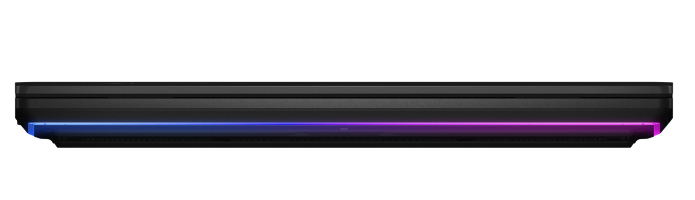

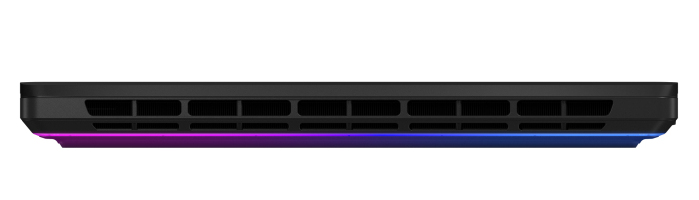

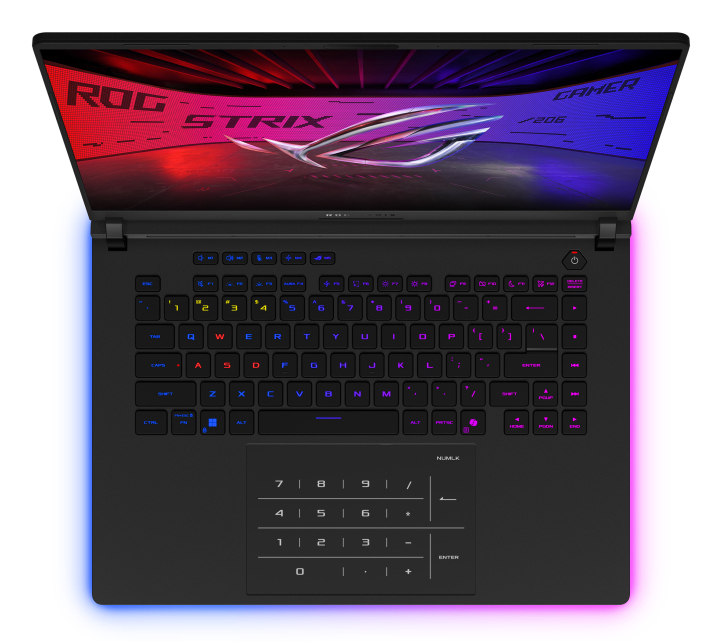

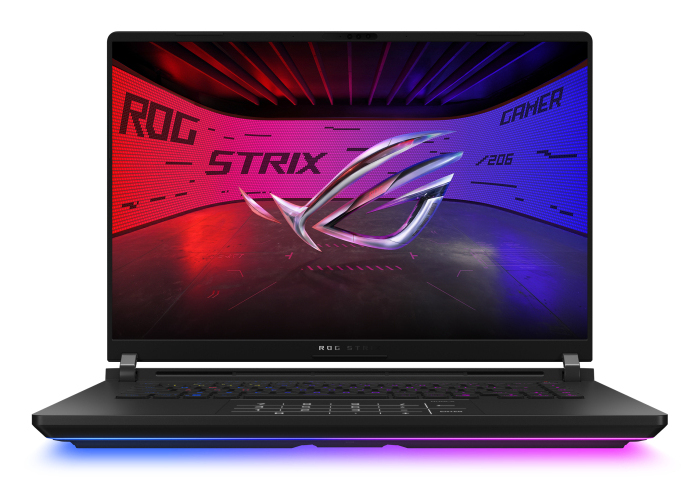

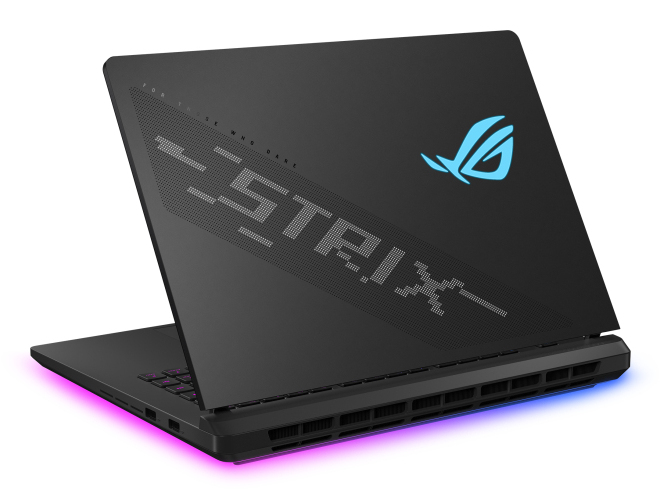

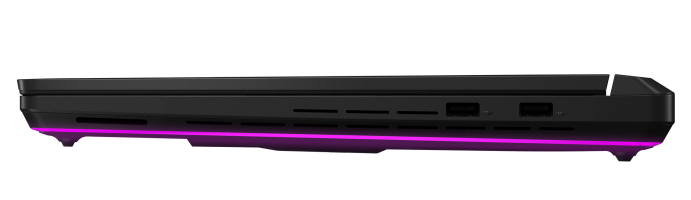

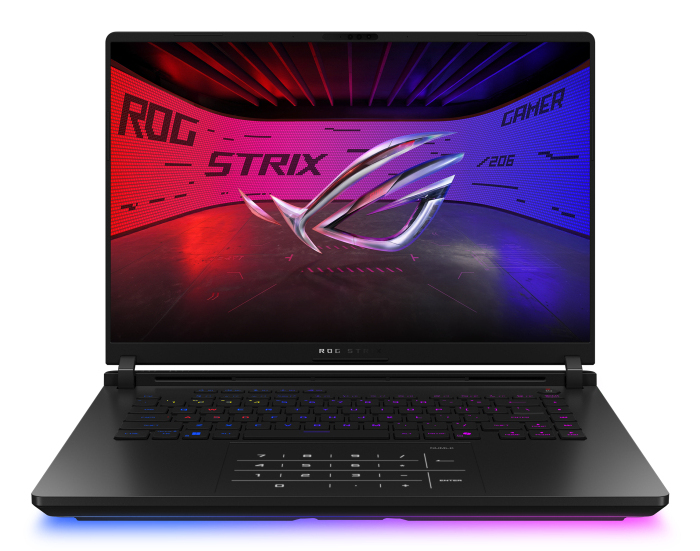

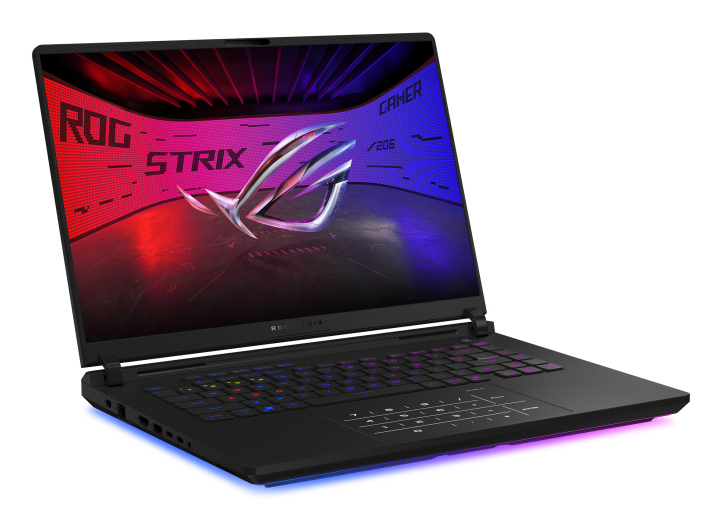

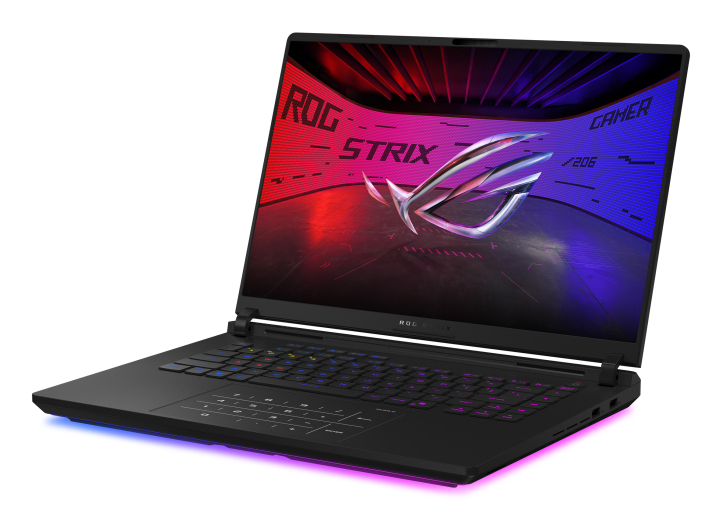

ROG Strix SCAR 16 G635LX-U92A59PB1 laptop Intel Core Ultra 9 275HX
40.6 cm (16") 2.5K 64 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 5090 Wi-Fi 7 (802.11be)
Model G635LX-U92A59PB1EAN 4711387890660
157 specifications Checked today
- Display40.6 cm (16")
- Resolution2560 x 1600 pixels
- ProcessorIntel Core Ultra 9
- Memory64 GB
- Storage1 TB
- GraphicsNVIDIA GeForce RTX 5090
Overview
- Display
- 40.6 cm (16")
- Resolution
- 2560 x 1600 pixels
- Processor
- Intel Core Ultra 9
- Memory
- 64 GB
- Storage
- 1 TB
- Graphics
- NVIDIA GeForce RTX 5090
- Brand
- ASUS
- Category
- Laptop
- Model
- G635LX-U92A59PB1
- Part number
- G635LX-U92A59PB1
- EAN / UPC
- 4711387890660
- Also known as
- ASUS ROG Strix SCAR 16 G635LX-U92A59PB1 laptop Intel Core Ultra 9 275HX 40.6 cm (16") 2.5K 64 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 5090 Wi-Fi 7 (802.11be)
Specifications
157 specifications in 24 groups
Design
| Specification | Value |
|---|---|
| Product type | Laptop |
| Product colour | Black |
| Form factor | Clamshell |
| Intel® vPro™ Platform Eligibility | Yes |
Display
| Specification | Value |
|---|---|
| Display diagonal | 40.6 cm (16") |
| Display resolution | 2560 x 1600 pixels |
| Touchscreen | No |
| HD type | 2.5K |
| Panel type | Mini LED |
| Native aspect ratio | 16:10 |
| Anti-glare screen | Yes |
| Colour gamut | 100% |
| RGB colour space | DCI-P3 |
| Maximum refresh rate | 240 Hz |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | Dolby Vision |
| Number of external displays supported | 4 |
| DCI-P3 coverage | 100% |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Core Ultra 9 |
| Processor generation | Intel Core Ultra (Series 2) |
| Processor model | 275HX |
| Processor cores | 24 |
| Processor threads | 24 |
| Processor boost frequency | 1.55 GHz |
| Processor frequency | 5.4 GHz |
| Performance cores | 8 |
| Efficient cores | 16 |
| Performance-core Max Turbo Frequency | 5.4 GHz |
| Efficient-core Max Turbo Frequency | 4.6 GHz |
| Performance-core base frequency | 2.7 GHz |
| Efficient-core base frequency | 2.1 GHz |
| Processor cache | 36 MB |
| Maximum number of PCI Express lanes | 24 |
| PCI Express slots version | 4.0, 5.0 |
| Maximum turbo power | 160 W |
| Processor base power | 55 W |
Neural processor unit (NPU)
| Specification | Value |
|---|---|
| Neural processor unit (NPU) | Intel AI Boost |
| Sparsity support | Yes |
| Windows Studio effects support | Yes |
| AI software frameworks supported by NPU | DirectML, ONNX RT, OpenVINO, WebNN, Windows ML |
| NPU performance up to | 13 TOPs |
| GPU performance up to | 8 TOPs |
Memory
| Specification | Value |
|---|---|
| Internal memory | 64 GB |
| Internal memory type | DDR5-SDRAM |
| Memory form factor | SO-DIMM |
| Memory layout (slots x size) | 2 x 32 GB |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 64 GB |
| Memory channels | Dual-channel |
| Memory data transfer rate | 6400 MT/s |
| ECC | No |
| Non-ECC | Yes |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1 TB |
| Storage media | SSD |
| Total SSDs capacity | 64 GB |
| Number of SSDs installed | 2 |
| SSD capacity | 32 GB |
| NVMe | Yes |
| SSD interface | M.2 |
| SSD form factor | M.2 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card | Yes |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card model | NVIDIA GeForce RTX 5090 |
| Discrete graphics card memory | 24 GB |
| Discrete graphics memory type | GDDR7 |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® Graphics |
| On-board graphics card model | Intel® Graphics |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.5 |
| NVIDIA Advanced Optimus | Yes |
| NVIDIA G-SYNC | Yes |
| Ray tracing acceleration | Yes |
Audio
| Specification | Value |
|---|---|
| Audio system | Dolby Atmos |
| Number of built-in speakers | 4 |
| Built-in microphone | Yes |
| Dolby technologies | Dolby Atmos, Dolby Vision |
| Noise-canceling | Yes |
Camera
| Specification | Value |
|---|---|
| Front camera | Yes |
| Front camera resolution (numeric) | 1080 MP |
| Front camera HD type | Full HD |
| Infrared (IR) camera | Yes |
Network
| Specification | Value |
|---|---|
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 2 |
| Thunderbolt 4 ports quantity | 1 |
| Thunderbolt 5 ports quantity | 2 |
| Combo headphone/mic port | Yes |
| HDMI | Yes |
Performance
| Specification | Value |
|---|---|
| Repairability index | 9.9 |
Keyboard
| Specification | Value |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
| Numeric keypad | Yes |
| Keyboard backlit colour | Purple |
| Keyboard backlit zone | Per-key RGB |
| Keyboard layout | QWERTY |
| Keyboard language | English |
| Built-in touchpad | Yes |
| Copilot key | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Home |
| Microsoft Copilot | Yes |
Processor special features
| Specification | Value |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel Standard Manageability | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Intel® OS Guard | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® Smart Sound Technology | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Virtualization Technology (Intel® VT) | Yes |
| Scalability | 1S |
| Supported instruction sets | AVX 2.0, SSE4.1, SSE4.2 |
| Thermal Monitoring Technologies | Yes |
| Video decode engine | Yes |
| Video encode engine | Yes |
Brand-specific features
| Specification | Value |
|---|---|
| Brand specific technologies | Collaboration Touchpad |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 4 |
| Battery capacity | 90 Wh |
Power
| Specification | Value |
|---|---|
| AC adapter power | 380 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output current | 19 A |
| AC adapter output voltage | 20 V |
| USB Type-C charging port | Yes |
| USB Power Delivery (USB PD) | Yes |
Security
| Specification | Value |
|---|---|
| Windows Hello | Yes |
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
| Password protection type | BIOS, User |
| BIOS password | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 105 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.8 kg |
| Width | 354 mm |
| Depth | 268 mm |
| Height | 228 mm |
Video
| Specification | Value |
|---|---|
| Video formats supported | AV1, H.264, HEVC/H.265, VP9 |
Packaging content
| Specification | Value |
|---|---|
| Interface adapters included | USB Type-C male - 3.5 mm female |
Other features
| Specification | Value |
|---|---|
| Xbox Wireless | Yes |
| Supplied AC adapter type | DP2.1 UHBR20, HDM2.1 FRL 12GHz, eDP1.4b |
