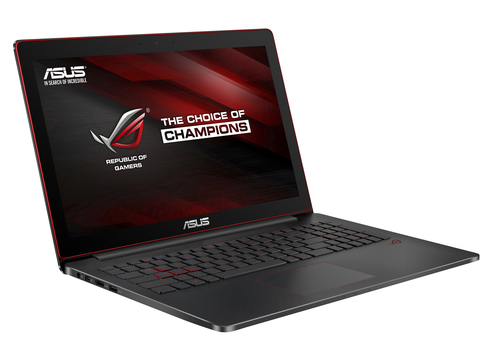

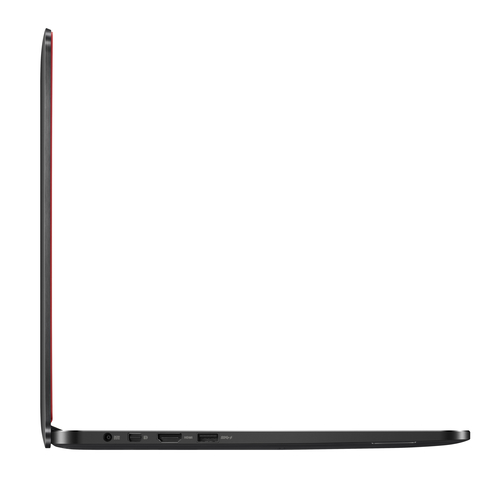

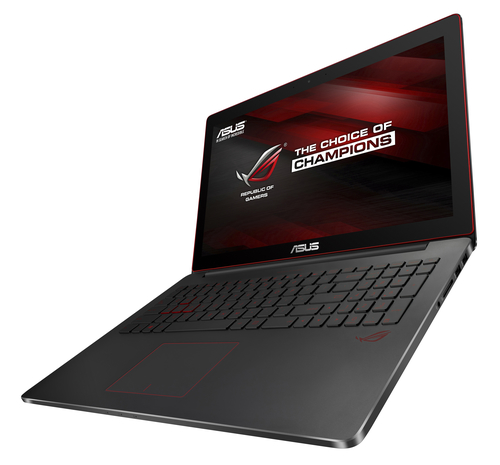

ASUS ROG G501JW-CN207H laptop 4th gen Intel® Core™ i7 i7-4720HQ

39.6 cm (15.6") 8 GB DDR3-SDRAM 1.12 TB HDD+SSD NVIDIA® GeForce® GTX 960M Windows 8.1 Black Alph

Model G501JW-CN207H

121 specifications Checked 4 days ago

Display39.6 cm (15.6")
Resolution1920 x 1080 pixels
Processor4th gen Intel® Core™ i7
Memory8 GB
Storage1.12 TB
GraphicsNVIDIA® GeForce® GTX 960M

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1920 x 1080 pixels
Processor: 4th gen Intel® Core™ i7
Memory: 8 GB
Storage: 1.12 TB
Graphics: NVIDIA® GeForce® GTX 960M

Brand: ASUS
Category: Laptop
Model: G501JW-CN207H
Part number: G501JW-CN207H
Also known as: ASUS ROG G501JW-CN207H laptop 4th gen Intel® Core™ i7 i7-4720HQ 39.6 cm (15.6") 8 GB DDR3-SDRAM 1.12 TB HDD+SSD NVIDIA® GeForce® GTX 960M Windows 8.1 Black Alph

Specifications

121 specifications in 17 groups

Design

Specification	Value
Product colour	Black
Form factor	Clamshell
Housing material	Aluminium

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1920 x 1080 pixels
Touchscreen	No
LED backlight	Yes
Display surface	Matt

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	4th gen Intel® Core™ i7
Processor model	i7-4720HQ
Processor cores	4
Processor threads	8
Processor boost frequency	3.6 GHz
Processor frequency	2.6 GHz
System bus rate	5 GT/s
Processor cache	6 MB
Processor cache type	L3
Processor socket	BGA 1364
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Core i7-4700 Mobile series
Processor codename	Haswell
Bus type	DMI2
FSB Parity	No
Stepping	C0
Thermal Design Power (TDP)	47 W
Tjunction	100 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	3.0
ECC supported by processor	No

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR3-SDRAM
Maximum internal memory	16 GB

Storage

Specification	Value
Total storage capacity	1.12 TB
Storage media	HDD+SSD
Optical drive type	No
Card reader integrated	Yes

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA® GeForce® GTX 960M
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 4600
Maximum on-board graphics card memory	1.74 GB
On-board graphics card base frequency	400 MHz
On-board graphics card dynamic frequency (max)	1200 MHz
On-board graphics card DirectX version	11.2/12
On-board graphics card OpenGL version	4.3
On-board graphics card ID	0x416

Audio

Specification	Value
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes

Network

Specification	Value
Wi-Fi	Yes
Ethernet LAN	Yes
Ethernet LAN data rates	10,100 Mbit/s
Bluetooth	Yes

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	1
DVI port	No
VGA (D-Sub) ports quantity	0
Thunderbolt ports quantity	0
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes

Performance

Specification	Value
Motherboard chipset	Intel® HM87

Keyboard

Specification	Value
Numeric keypad	Yes
Keyboard layout	Alphanumeric

Software

Specification	Value
Operating system installed	Windows 8.1
Operating system architecture	64-bit

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	Yes
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	No
Processor ARK ID	78934
Processor code	SR1Q8
Processor package size	37.5 x 32 x 1.6 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Conflict-Free processor	Yes

Battery

Specification	Value
Battery technology	Lithium Polymer (LiPo)
Battery life (max)	6 h

Security

Specification	Value
Cable lock slot	Yes

Weight & dimensions

Specification	Value
Weight	2.01 kg
Width	383 mm
Depth	255 mm
Height	206 mm
