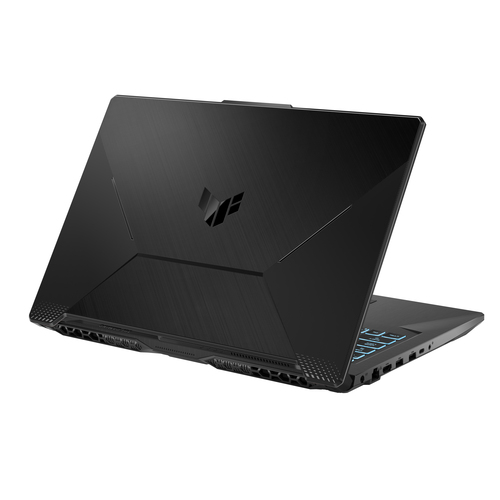

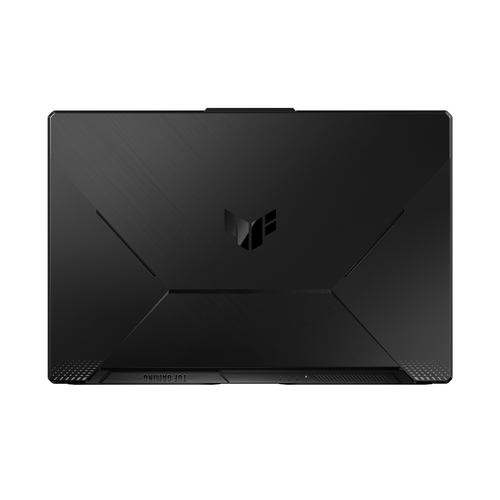

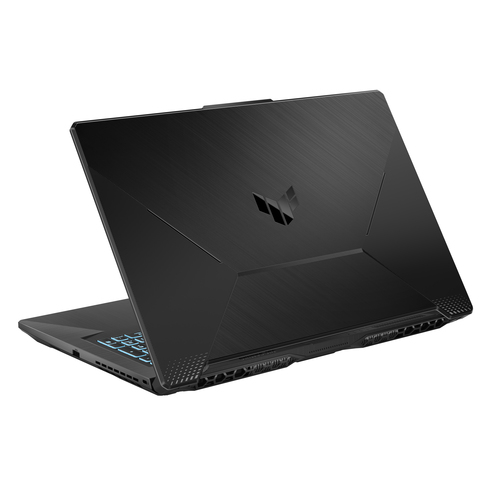

ASUS TUF Gaming A17 FA706NF-HX026W AMD Ryzen™ 5 7535HS Laptop

TUF Gaming A17 FA706NF-HX026W AMD Ryzen™ 5 7535HS Laptop

43.9 cm (17.3") Full HD 8 GB DDR5-SDRAM 512 GB SSD NVIDIA GeForce RTX 2050 Wi-Fi 6 (802.11ax) Wind

Model FA706NF-HX026WPart no. 90NR0JH5-M001K0EAN 4711387474921

103 specifications Checked today

Display43.9 cm (17.3")
Resolution1920 x 1080 pixels
ProcessorAMD Ryzen™ 5
Memory8 GB
Storage512 GB
GraphicsNVIDIA GeForce RTX 2050

See all specifications

Overview

Display: 43.9 cm (17.3")
Resolution: 1920 x 1080 pixels
Processor: AMD Ryzen™ 5
Memory: 8 GB
Storage: 512 GB
Graphics: NVIDIA GeForce RTX 2050

Brand: ASUS
Category: Laptop
Model: FA706NF-HX026W
Part number: 90NR0JH5-M001K0
EAN / UPC: 4711387474921
Also known as: ASUS TUF Gaming A17 FA706NF-HX026W AMD Ryzen™ 5 7535HS Laptop 43.9 cm (17.3") Full HD 8 GB DDR5-SDRAM 512 GB SSD NVIDIA GeForce RTX 2050 Wi-Fi 6 (802.11ax) Wind

Specifications

103 specifications in 18 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Colour name	Graphite Black
Form factor	Clamshell
Market positioning	Gaming
Introduction year	2021

Display

Specification	Value
Display diagonal	43.9 cm (17.3")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Panel type	IPS-Level
Native aspect ratio	16:9
Anti-glare screen	Yes
Colour gamut	62.5%
RGB colour space	sRGB
Maximum refresh rate	144 Hz

Processor

Specification	Value
Processor manufacturer	AMD
Processor family	AMD Ryzen™ 5
Processor generation	AMD Ryzen 7000 Series
Processor model	7535HS
Processor cores	6
Processor threads	12
Processor boost frequency	4.55 GHz
Processor frequency	3.3 GHz
Processor cache	16 MB
Processor cache type	L3

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR5-SDRAM
Memory clock speed	4800 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	1 x 8 GB
Memory slots	2x SO-DIMM
Maximum internal memory	64 GB

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
NVMe	Yes
SSD interface	PCI Express 4.0
SSD form factor	M.2
Optical drive type	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete GPU manufacturer	NVIDIA
Discrete graphics card model	NVIDIA GeForce RTX 2050
Discrete graphics card memory	4 GB
Discrete graphics memory type	GDDR6
On-board graphics card model	AMD Radeon 660M

Audio

Specification	Value
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera HD type	HD
Front camera resolution	1280 x 720 pixels

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Antenna type	2x2
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.2

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
Combo headphone/mic port	Yes
Power adapter barrel connector	6.0 mm
USB Type-C DisplayPort Alternate Mode	Yes

Performance

Specification	Value
Repairability index	8.3

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes
Keyboard backlit colour	RGB
Keyboard backlit zone	1-zone RGB

Software

Specification	Value
Operating system installed	Windows 11 Home
Operating system architecture	64-bit
Trial software	1-month trial for new Microsoft 365 customers
Bundled software	Xbox Game Pass for PC_3 months (*Terms and exclusions apply. Offer only available in eligible markets for Xbox Game Pass for PC. Eligible markets are determined at activation. Game catalog varies by region, device, and time.)

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	3
Battery capacity	48 Wh

Power

Specification	Value
AC adapter power	150 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	7.5 A
AC adapter output voltage	20 V
USB Type-C charging port	No

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Trusted Platform Module (TPM)	Yes
Password protection	Yes
Password protection type	BIOS, User

Weight & dimensions

Specification	Value
Weight	2.6 kg
Width	399 mm
Depth	269 mm
Height (front)	2.33 cm
Height (rear)	2.48 cm

Packaging content

Specification	Value
AC adapter included	Yes
