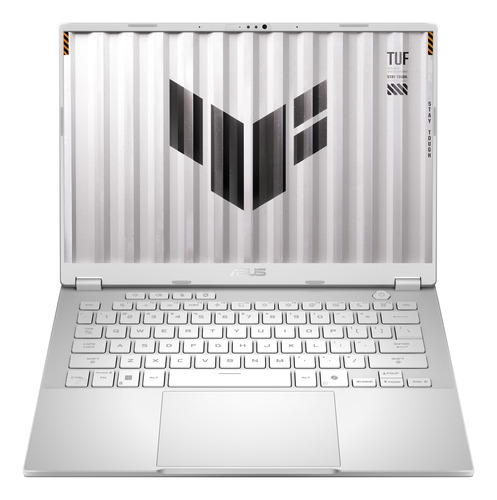

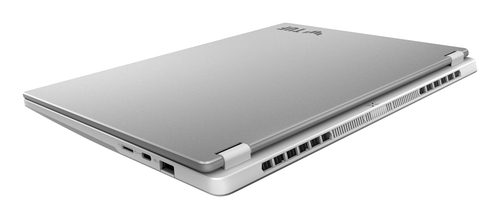

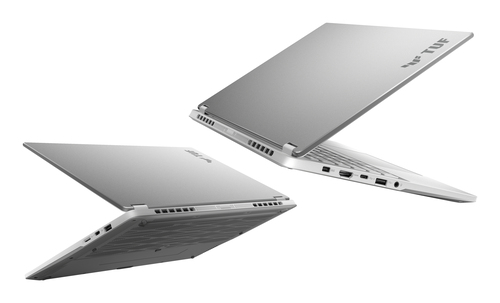

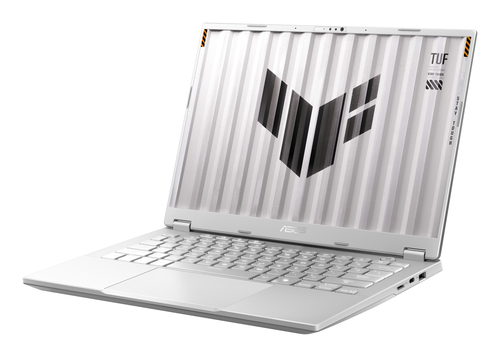

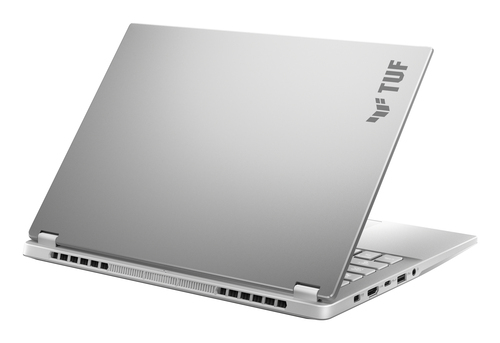

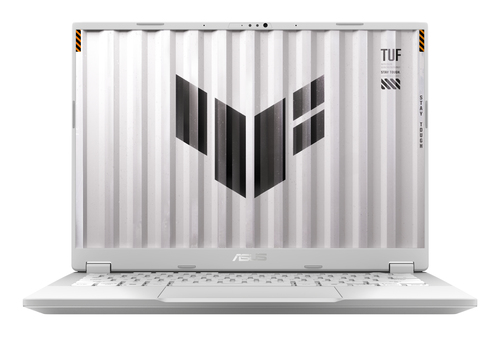

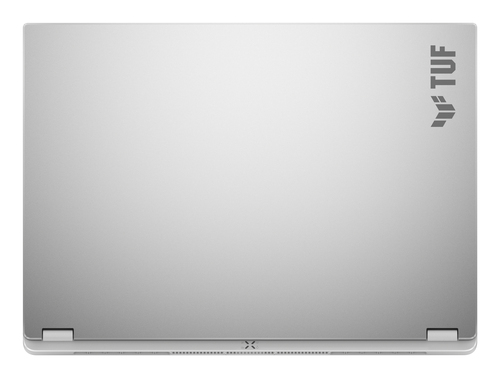

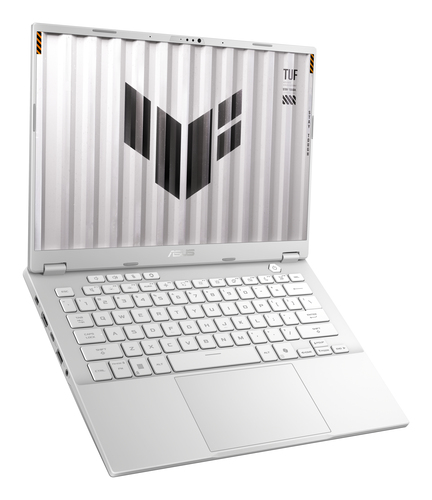

ASUS TUF Gaming A14 FA401UH-R7R505016GW AMD Ryzen™ 7 260 Laptop

TUF Gaming A14 FA401UH-R7R505016GW AMD Ryzen™ 7 260 Laptop

35.6 cm (14") WQXGA 16 GB LPDDR5x-SDRAM 512 GB SSD NVIDIA® GeForce RTX™ 5050 Wi-Fi 6E (802.11ax)

Model FA401UH-R7R505016GWPart no. 90NR0KQ4-M002T0

118 specifications Checked today

Display35.6 cm (14")
Resolution2560 x 1600 pixels
ProcessorAMD Ryzen™ 7
Memory16 GB
Storage512 GB
GraphicsNVIDIA® GeForce RTX™ 5050

See all specifications

Overview

Display: 35.6 cm (14")
Resolution: 2560 x 1600 pixels
Processor: AMD Ryzen™ 7
Memory: 16 GB
Storage: 512 GB
Graphics: NVIDIA® GeForce RTX™ 5050

Brand: ASUS
Category: Laptop
Model: FA401UH-R7R505016GW
Part number: 90NR0KQ4-M002T0
Also known as: ASUS TUF Gaming A14 FA401UH-R7R505016GW AMD Ryzen™ 7 260 Laptop 35.6 cm (14") WQXGA 16 GB LPDDR5x-SDRAM 512 GB SSD NVIDIA® GeForce RTX™ 5050 Wi-Fi 6E (802.11ax)

Specifications

118 specifications in 19 groups

Design

Specification	Value
Product type	Laptop
Product colour	White
Colour name	Moonlight White
Form factor	Clamshell
Housing material	Plastic
Market positioning	Gaming
Certified refurbished	No

Display

Specification	Value
Display diagonal	35.6 cm (14")
Display resolution	2560 x 1600 pixels
Touchscreen	No
HD type	WQXGA
Panel type	IPS-Level
LED backlight	Yes
Native aspect ratio	16:10
Anti-glare screen	Yes
Display brightness	400 cd/m²
Colour gamut	100%
RGB colour space	sRGB
Maximum refresh rate	165 Hz

Processor

Specification	Value
Processor manufacturer	AMD
Processor family	AMD Ryzen™ 7
Processor generation	AMD Ryzen 200 Series
Processor model	260
Processor cores	8
Processor threads	16
Processor boost frequency	5.1 GHz
Processor frequency	3.8 GHz
Processor cache type	L2 & L3
L3 cache	16 MB
L2 cache	8 MB

Neural processor unit (NPU)

Specification	Value
Copilot+ PC	No
Neural processor unit (NPU)	AMD Ryzen AI
Total processor performance up to	38 TOPs
NPU performance up to	16 TOPs

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	LPDDR5x-SDRAM
Memory clock speed	7500 MHz
Memory form factor	On-board
Memory layout (slots x size)	2 x 8 GB
Maximum internal memory	16 GB

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
NVMe	Yes
SSD interface	PCI Express 4.0
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete GPU manufacturer	NVIDIA
Discrete graphics card model	NVIDIA® GeForce RTX™ 5050
Discrete graphics card memory	8 GB
Discrete graphics memory type	GDDR7
On-board GPU manufacturer	AMD
On-board graphics card family	AMD Radeon Graphics
On-board graphics card model	AMD Radeon 780M
Total Graphics Power (TGP)	105 W
NVIDIA G-SYNC	Yes

Audio

Specification	Value
Audio system	Dolby Atmos
Number of built-in speakers	2
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera HD type	Full HD
Front camera resolution	1920 x 1080 pixels
Infrared (IR) camera	Yes

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Antenna type	2x2
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	5.3

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
USB4 Gen 3x2 ports quantity	1
HDMI ports quantity	1
HDMI version	2.1
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	No
Keyboard backlit colour	White
Copilot key	Yes

Software

Specification	Value
Operating system installed	Windows 11 Home
Operating system architecture	64-bit
Microsoft Copilot	Yes

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	4
Battery capacity	73 Wh
Fast charging	Yes
Fast charging time (50%)	30 min

Power

Specification	Value
AC adapter power	200 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	10 A
AC adapter output voltage	20 V
DC-in jack	Yes
USB Type-C charging port	Yes
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Face recognition	Yes
Windows Hello	Yes
Password protection	Yes
Password protection type	BIOS, User

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR, EPEAT Silver

Weight & dimensions

Specification	Value
Weight	1.46 kg
Width	311 mm
Depth	227 mm
Height (front)	1.69 cm
Height (rear)	1.99 cm

Packaging content

Specification	Value
AC adapter included	Yes
