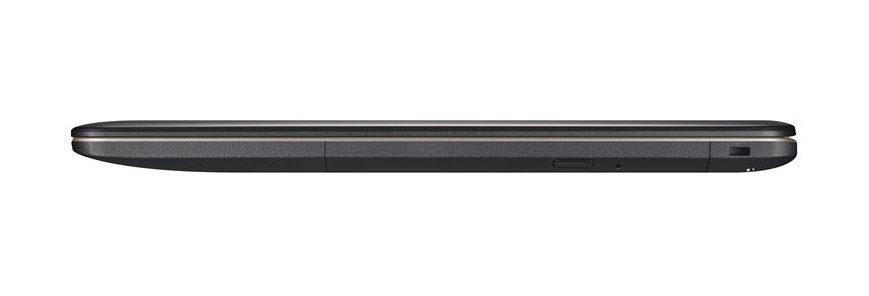

ASUS F540LJ-XX167T Intel® Core™ i5 i5-5200U Laptop

39.6 cm (15.6") HD 4 GB DDR3L-SDRAM 500 GB HDD NVIDIA® GeForce® 920M Windows 10 Brown

Model F540LJ-XX167TPart no. 90NB0B11-M02530EAN 4712900346756

152 specifications Checked 2 days ago

Display39.6 cm (15.6")
Resolution1366 x 768 pixels
ProcessorIntel® Core™ i5
Memory4 GB
Storage500 GB
GraphicsNVIDIA® GeForce® 920M

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1366 x 768 pixels
Processor: Intel® Core™ i5
Memory: 4 GB
Storage: 500 GB
Graphics: NVIDIA® GeForce® 920M

Brand: ASUS
Category: Laptop
Model: F540LJ-XX167T
Part number: 90NB0B11-M02530
EAN / UPC: 4712900346756
Also known as: ASUS F540LJ-XX167T Intel® Core™ i5 i5-5200U Laptop 39.6 cm (15.6") HD 4 GB DDR3L-SDRAM 500 GB HDD NVIDIA® GeForce® 920M Windows 10 Brown

Specifications

152 specifications in 18 groups

Design

Specification	Value
Product type	Laptop
Product colour	Brown
Form factor	Clamshell

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1366 x 768 pixels
Touchscreen	No
HD type	HD
LED backlight	Yes
Native aspect ratio	16:9
Display surface	Gloss

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	5th gen Intel® Core™ i5
Processor model	i5-5200U
Processor cores	2
Processor threads	4
Processor boost frequency	2.7 GHz
Processor frequency	2.2 GHz
System bus rate	5 GT/s
Processor cache	3 MB
Processor cache type	Smart Cache
Processor socket	BGA 1168
Processor lithography	14 nm
Processor operating modes	32-bit, 64-bit
Processor series	Intel® Core™ i5-5200 Mobile Series
Processor codename	Broadwell
Bus type	DMI2
FSB Parity	No
Stepping	F0
Thermal Design Power (TDP)	15 W
Configurable TDP-down	7.5 W
Configurable TDP-down frequency	0.6 GHz
Tjunction	105 °C
Maximum number of PCI Express lanes	12
PCI Express configurations	4x1, 2x4
PCI Express slots version	2.0
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3L-SDRAM
Memory clock speed	1600 MHz
Memory layout (slots x size)	1 x 4 GB
Memory slots	1x SO-DIMM
Maximum internal memory	8 GB
Maximum internal memory (64-bit)	8 GB

Storage

Specification	Value
Total storage capacity	500 GB
Storage media	HDD
Number of HDDs installed	1
HDD capacity	500 GB
HDD speed	5400 RPM
Optical drive type	DVD Super Multi DL
Card reader integrated	Yes
Compatible memory cards	SD, SDHC, SDXC

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA® GeForce® 920M
Discrete graphics card memory	2 GB
Discrete graphics memory type	GDDR3
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 5500
Maximum on-board graphics card memory	16 GB
On-board graphics card base frequency	300 MHz
On-board graphics card dynamic frequency (max)	900 MHz
On-board graphics card DirectX version	11.2
On-board graphics card OpenGL version	4.3
On-board graphics card ID	0x1616
Number of discrete graphics cards installed	1
Number of discrete graphics cards supported	1

Audio

Specification	Value
Audio system	SonicMaster
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100 Mbit/s
Bluetooth	Yes
Bluetooth version	4.0

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	1
Thunderbolt ports quantity	0
Combo headphone/mic port	Yes
Docking connector	No

Keyboard

Specification	Value
Pointing device	Touchpad
Numeric keypad	Yes
Island-style keyboard	Yes
Full-size keyboard	Yes
Windows keys	Yes

Software

Specification	Value
Operating system installed	Windows 10
Operating system architecture	64-bit
Trial software	Microsoft Office 365 Home

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	Yes
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	14 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	1.00
Intel Smart Response Technology version	1.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	No
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	Yes
Intel® Smart Response Technology	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	85212
Processor code	SR23Y
Processor package size	40 x 24 x 1.3 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Conflict-Free processor	Yes

Battery

Specification	Value
Number of battery cells	3

Power

Specification	Value
AC adapter power	65 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
DC-in jack	Yes

Security

Specification	Value
Password protection	Yes
Password protection type	BIOS, HDD, User

Weight & dimensions

Specification	Value
Weight	2 kg
Width	381 mm
Depth	252 mm
Height	27.2 mm

Packaging content

Specification	Value
AC adapter included	Yes
Power cord included	Yes
