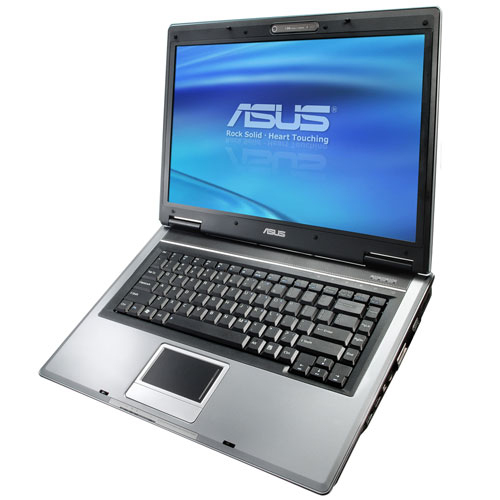

ASUS F3Jp-AP030M Intel® Core™2 Duo T5600

39.1 cm (15.4") 1 GB DDR2-SDRAM 120 GB AMD Radeon X1700

Model F3Jp-AP030MPart no. 90NL0A13B211149CE08YEAN 610839466818

122 specifications Checked 3 days ago

Display39.1 cm (15.4")
Resolution1280 x 800 pixels
ProcessorIntel® Core™2 Duo
Memory1 GB
Storage120 GB
GraphicsAMD Radeon X1700

See all specifications

Overview

Display: 39.1 cm (15.4")
Resolution: 1280 x 800 pixels
Processor: Intel® Core™2 Duo
Memory: 1 GB
Storage: 120 GB
Graphics: AMD Radeon X1700

Brand: ASUS
Category: Laptop
Model: F3Jp-AP030M
Part number: 90NL0A13B211149CE08Y
EAN / UPC: 610839466818
Also known as: ASUS F3Jp-AP030M Intel® Core™2 Duo T5600 39.1 cm (15.4") 1 GB DDR2-SDRAM 120 GB AMD Radeon X1700

Specifications

122 specifications in 18 groups

Display

Specification	Value
Display diagonal	39.1 cm (15.4")
Display resolution	1280 x 800 pixels
LED backlight	Yes
Native aspect ratio	16:10

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™2 Duo
Processor model	T5600
Processor cores	2
Processor threads	2
Processor frequency	1.83 GHz
Processor cache	2 MB
Processor cache type	L2
Processor front side bus	667 MHz
Processor socket	Socket 478
Processor lithography	65 nm
Processor operating modes	64-bit
Processor series	Intel Core 2 Duo T5000 Series
Processor codename	Merom
Bus type	FSB
FSB Parity	No
Stepping	B2
Thermal Design Power (TDP)	34 W
Tjunction	100 °C
Processor core voltage (AC)	1.0375 - 1.30 V
Number of Processing Die Transistors	291 M
Processing Die size	143 mm²
CPU multiplier (bus/core ratio)	11
ECC supported by processor	No

Memory

Specification	Value
Internal memory	1 GB
Internal memory type	DDR2-SDRAM
Maximum internal memory	2 GB

Storage

Specification	Value
Total storage capacity	120 GB
HDD interface	SATA
Optical drive type	DVD Super Multi
Card reader integrated	Yes

Graphics

Specification	Value
On-board graphics card	No
Discrete graphics card	Yes
Discrete graphics card model	AMD Radeon X1700
Discrete graphics card memory	0.25 GB
On-board graphics card model	Not available

Audio

Specification	Value
Audio system	Intel HDA
Number of built-in speakers	2
Speaker power	1.5 W

Camera

Specification	Value
Front camera resolution (numeric)	1.3 MP

Network

Specification	Value
Networking features	Gigabit Ethernet, WLAN
Wireless technology	802.11/a/b/g
Bluetooth	Yes
Bluetooth version	2.0+EDR
Cabling technology	10/100/1000Base-T(X)

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	4
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	0
DVI port	Yes
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	1
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	No
ExpressCard slot	Yes
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
Modem (RJ-11) ports	1
TV-in port	No
TV-out	Yes
TV-out type	S-Video
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0

Performance

Specification	Value
Motherboard chipset	Intel® 945PM Express

Keyboard

Specification	Value
Keyboard number of keys	88
Keyboard keystroke	1.9 cm

Software

Specification	Value
Drivers included	Yes
Trial software	Symantec Norton Internet Security 2005
Bundled software	Adobe Acrobat Reader 7.0 NERO Express V6.0

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	No
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	27254
Processor package size	35 x 35 mm
Thermal Monitoring Technologies	No
Conflict-Free processor	No

Power

Specification	Value
AC adapter input voltage	100 - 240 V
AC adapter output voltage	19 V
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington

Weight & dimensions

Specification	Value
Weight	3 kg
Width	365 mm
Depth	269.5 mm
Height (front)	2.8 cm
Height (rear)	4.05 cm

Packaging content

Specification	Value
AC adapter included	Yes

Other features

Specification	Value
Infrared data port	No
Internal modem	Yes
Supplied AC adapter type	AC
