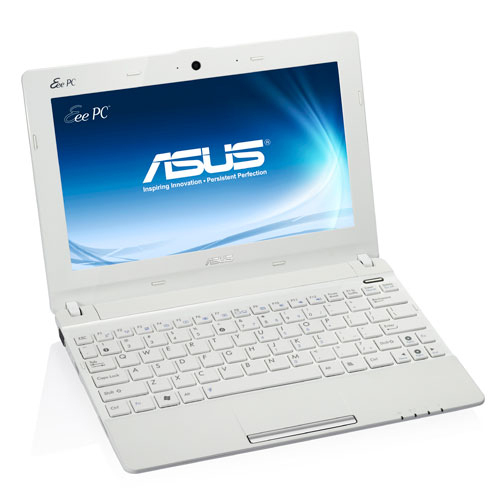

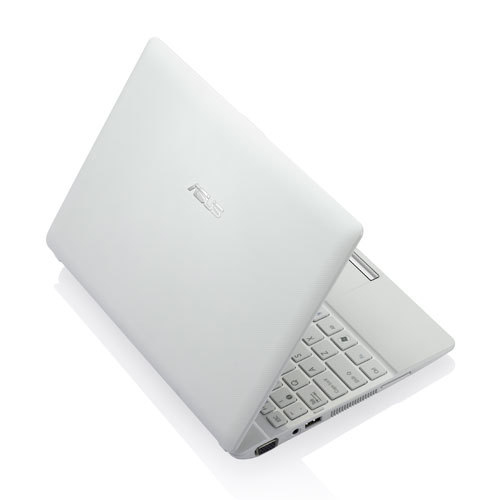

Eee PC X101H
Model Eee PC X101HPart no. X101H-WHITE036SEAN 884840941576
69 specifications Checked today
- Display25.6 cm (10.1")
- Resolution1024 x 600 pixels
- ProcessorIntel Atom®
- Memory1 GB
- Storage320 GB
- Battery28 Wh
Overview
- Display
- 25.6 cm (10.1")
- Resolution
- 1024 x 600 pixels
- Processor
- Intel Atom®
- Memory
- 1 GB
- Storage
- 320 GB
- Battery
- 28 Wh
- Brand
- ASUS
- Category
- Laptop
- Model
- Eee PC X101H
- Part numbers
- X101H-WHITE036S, 90OA3JB14111987E13EQ, 90OA3JB24111987E13EQ, 90OA3JB26111987E13EQ
- EAN / UPC
- 884840941576
- Also known as
- ASUS Eee PC X101H Intel Atom® N570 Netbook 25.6 cm (10.1") 1 GB DDR3-SDRAM 320 GB Windows 7 Starter White
Specifications
69 specifications in 15 groups
Design
| Specification | Value |
|---|---|
| Product type | Netbook |
| Product colour | White |
Display
| Specification | Value |
|---|---|
| Display diagonal | 25.6 cm (10.1") |
| Display resolution | 1024 x 600 pixels |
| LED backlight | Yes |
| Native aspect ratio | 5:3 |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Atom® |
| Processor model | N570 |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor frequency | 1.66 GHz |
| System bus rate | 2.5 GT/s |
| Processor cache | 1 MB |
| Processor cache type | L2 |
| Processor lithography | 45 nm |
| Processor operating modes | 64-bit |
| Processor codename | Pineview |
| Thermal Design Power (TDP) | 8.5 W |
| Number of Processing Die Transistors | 17 M |
| Processing Die size | 87 mm² |
Memory
| Specification | Value |
|---|---|
| Internal memory | 1 GB |
| Internal memory type | DDR3-SDRAM |
| Memory layout (slots x size) | 1 x 1 GB |
| Memory slots | 1x SO-DIMM |
| Maximum internal memory | 2 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 320 GB |
| HDD capacity | 320 GB |
| HDD interface | SATA |
| HDD size | 2.5" |
| Card reader integrated | Yes |
| Compatible memory cards | MMC, SD, SDHC |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card model | Intel® GMA 3150 |
| On-board graphics card base frequency | 200 MHz |
Camera
| Specification | Value |
|---|---|
| Front camera resolution (numeric) | 0.3 MP |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Bluetooth | No |

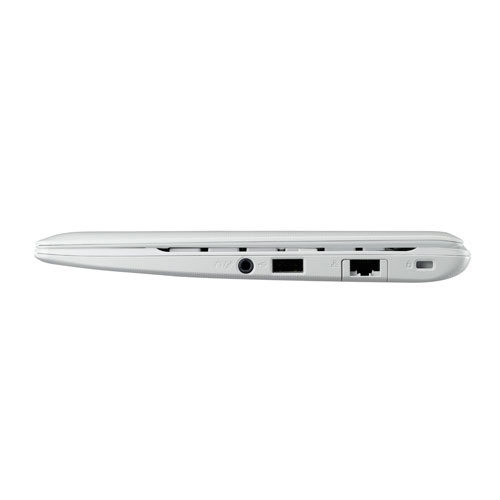

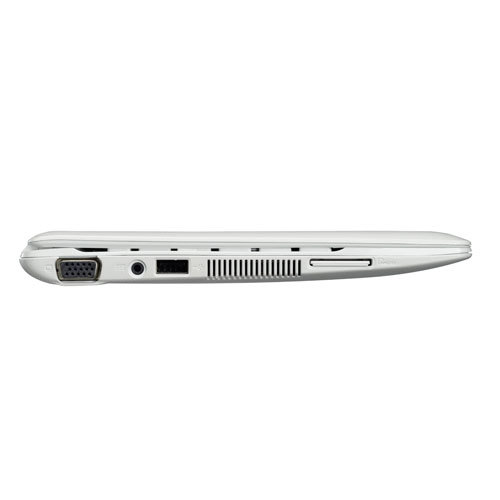

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 0 |
| VGA (D-Sub) ports quantity | 1 |
| Headphone outputs | 1 |
Performance
| Specification | Value |
|---|---|
| GPS (satellite) | No |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 7 Starter |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Intel 64 | Yes |
| Intel Demand Based Switching | No |
| Intel Trusted Execution Technology | No |
| Intel Virtualization Technology (VT-x) | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | No |
| Processor ARK ID | 55637 |
| Processor package size | 22 x 22 mm |
| Supported instruction sets | SSE2, SSE3, SSSE3 |
| Thermal Monitoring Technologies | Yes |
| Conflict-Free processor | Yes |
Battery
| Specification | Value |
|---|---|
| Number of battery cells | 3 |
| Battery capacity | 28 Wh |
| Battery life (max) | 5 h |
Power
| Specification | Value |
|---|---|
| DC-in jack | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1 kg |
| Width | 262 mm |
| Depth | 180 mm |
| Height | 22 mm |
