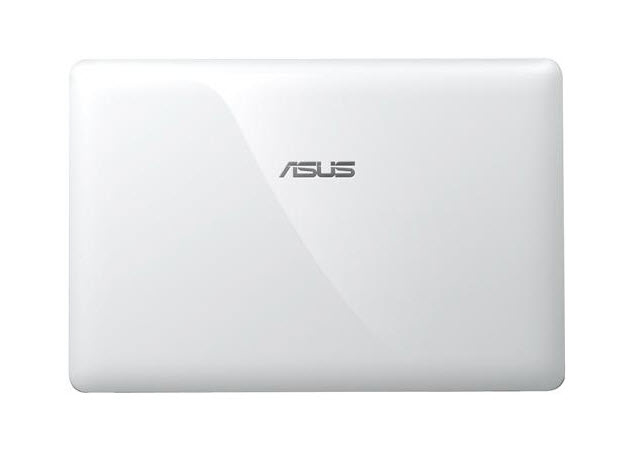

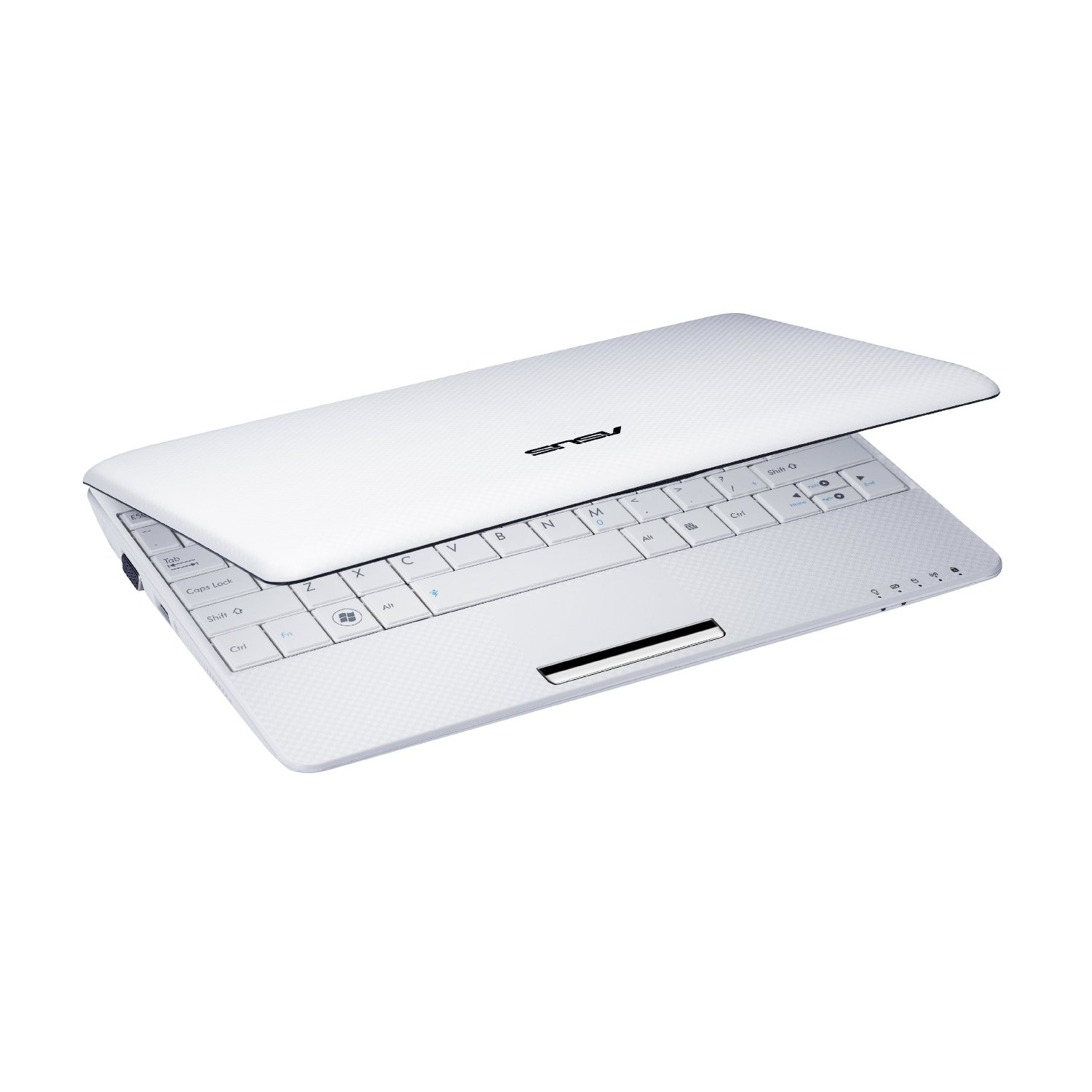

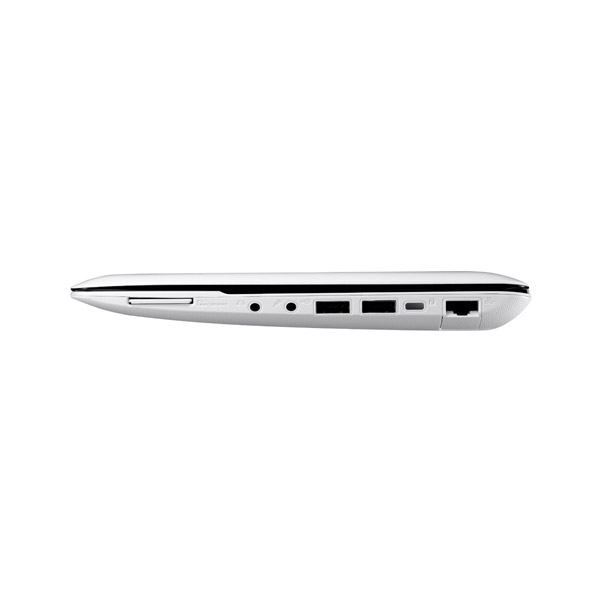

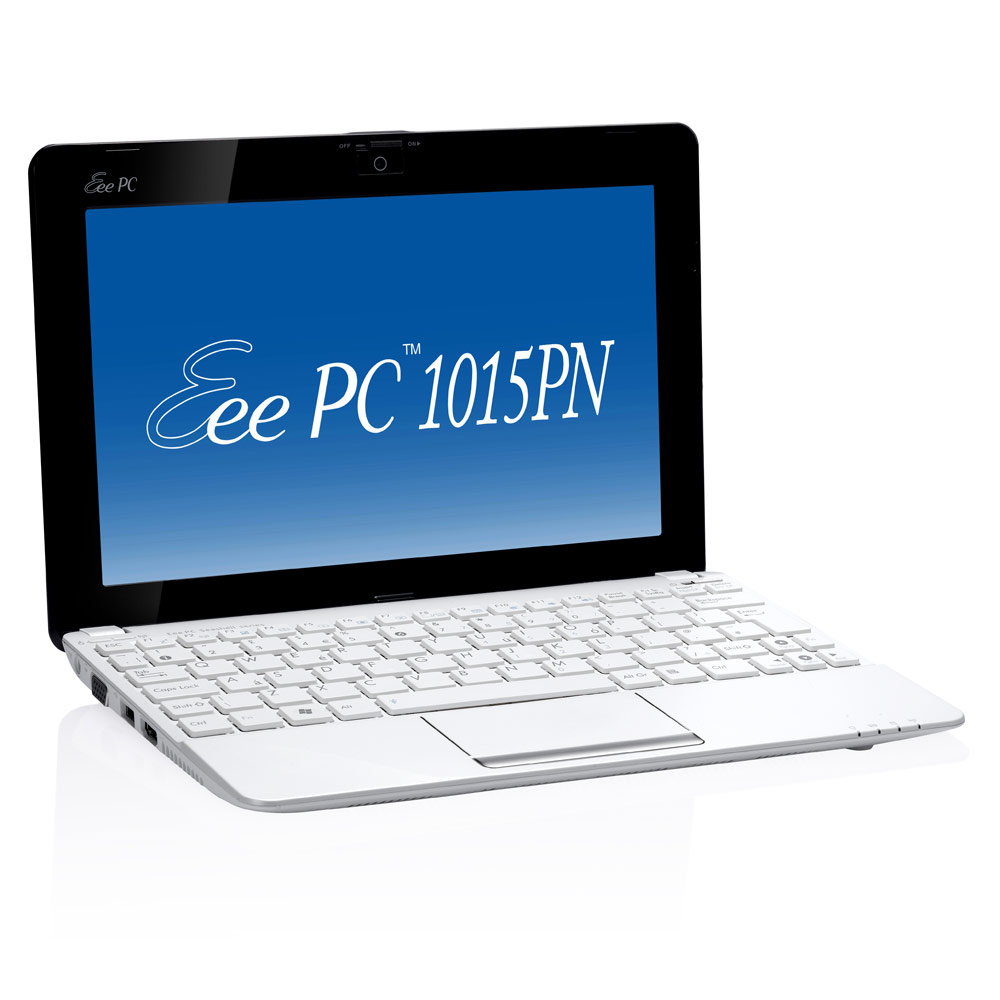

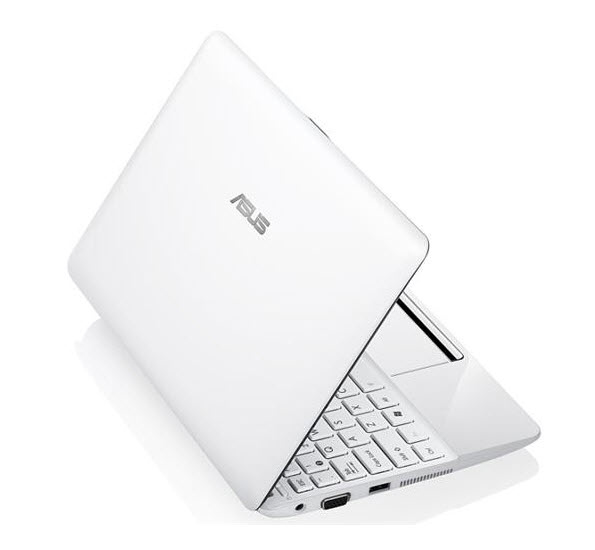

ASUS Eee PC 1015PN-WHI063S

Model Eee PC 1015PN-WHI063SPart no. 90OA2VBJ9115A81E339

113 specifications Checked 4 days ago

Display25.6 cm (10.1")
Resolution1024 x 600 pixels
ProcessorIntel Atom®
Memory1 GB
Storage320 GB
GraphicsNot available

See all specifications

Overview

Display: 25.6 cm (10.1")
Resolution: 1024 x 600 pixels
Processor: Intel Atom®
Memory: 1 GB
Storage: 320 GB
Graphics: Not available

Brand: ASUS
Category: Laptop
Model: Eee PC 1015PN-WHI063S
Part number: 90OA2VBJ9115A81E339
Also known as: ASUS Eee PC 1015PN-WHI063S Intel Atom® N570 Netbook 25.6 cm (10.1") 1 GB DDR3-SDRAM 320 GB HDD Windows 7 Starter White

Specifications

113 specifications in 20 groups

Design

Specification	Value
Product type	Netbook
Product colour	White
Form factor	Clamshell

Display

Specification	Value
Display diagonal	25.6 cm (10.1")
Display resolution	1024 x 600 pixels
Touchscreen	No
HD type	Not supported
LED backlight	Yes
Native aspect ratio	5:3

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	N570
Processor cores	2
Processor threads	4
Processor frequency	1.66 GHz
System bus rate	2.5 GT/s
Processor cache	1 MB
Processor cache type	L2
Processor lithography	45 nm
Processor operating modes	64-bit
Processor codename	Pineview
Thermal Design Power (TDP)	8.5 W
Number of Processing Die Transistors	17 M
Processing Die size	87 mm²

Memory

Specification	Value
Internal memory	1 GB
Internal memory type	DDR3-SDRAM
Memory layout (slots x size)	1 x 1 GB
Memory slots	1x SO-DIMM
Maximum internal memory	2 GB

Storage

Specification	Value
Total storage capacity	320 GB
Storage media	HDD
HDD capacity	320 GB
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MMC, SD, SDHC

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
Graphics card family	NVIDIA
On-board graphics card family	Intel® GMA
On-board graphics card model	Intel® GMA 3150
On-board graphics card base frequency	200 MHz
Graphics card	ION 2

Audio

Specification	Value
Audio system	HD
Number of built-in speakers	2
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera resolution (numeric)	0.3 MP

Network

Specification	Value
Wi-Fi	Yes
Networking features	Fast Ethernet
Wireless technology	IEEE 802.11 b/g/n
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100 Mbit/s
Bluetooth	Yes
Bluetooth version	3.0+HS

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DVI port	No
VGA (D-Sub) ports quantity	1
Headphone outputs	1
S/PDIF out port	No
Combo headphone/mic port	No
Microphone in	Yes
Docking connector	No
SmartCard slot	No

Performance

Specification	Value
GPS (satellite)	No

Keyboard

Specification	Value
Pointing device	Touchpad
Numeric keypad	No
Windows keys	Yes

Software

Specification	Value
Operating system installed	Windows 7 Starter
Operating system architecture	32-bit

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Trusted Execution Technology	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Quick Sync Video Technology	No
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Smart Response Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	55637
Processor package size	22 x 22 mm
Supported instruction sets	SSE2, SSE3, SSSE3
Thermal Monitoring Technologies	Yes
Conflict-Free processor	Yes

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	6
Battery life (max)	10 h

Power

Specification	Value
AC adapter frequency	50 - 60 Hz
DC-in jack	Yes

Security

Specification	Value
Fingerprint reader	No

Weight & dimensions

Specification	Value
Weight	1.25 kg
Width	262 mm
Depth	178 mm
Height (front)	2.36 cm
Height (rear)	3.64 cm

Packaging content

Specification	Value
AC adapter included	Yes
Cables included	Yes

Other features

Specification	Value
3D	No
