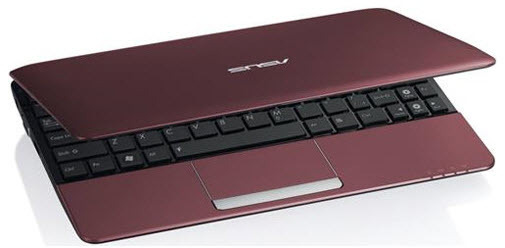

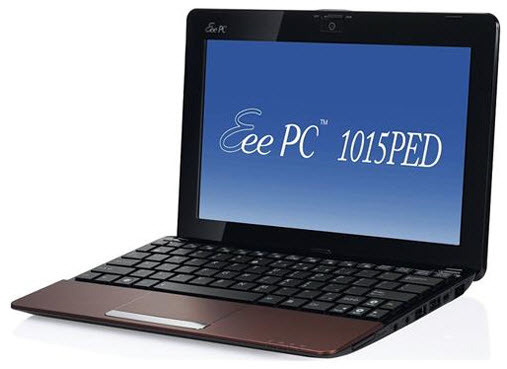

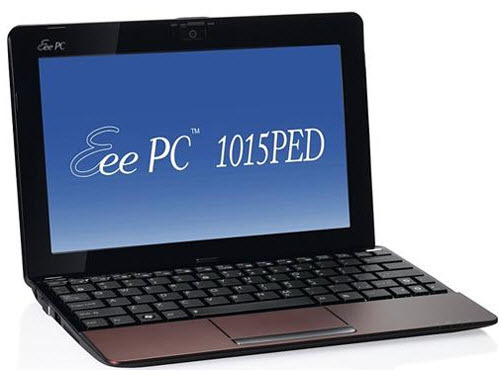

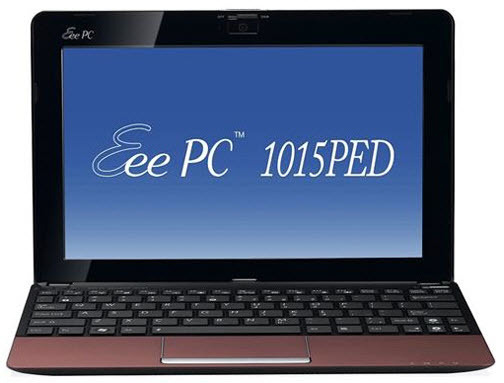

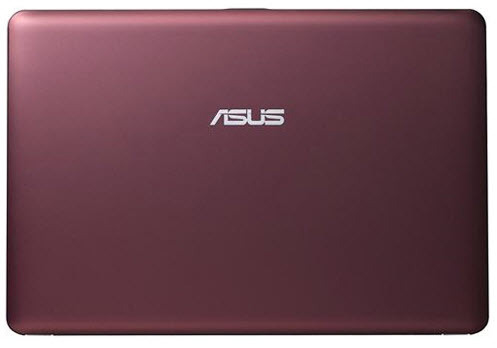

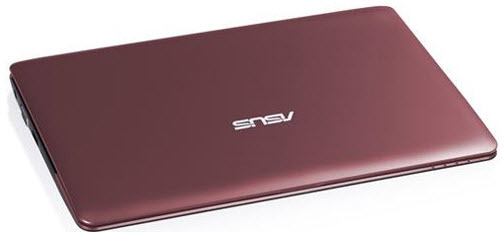

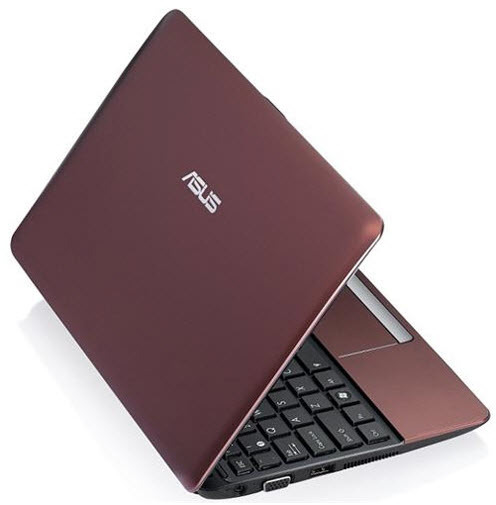

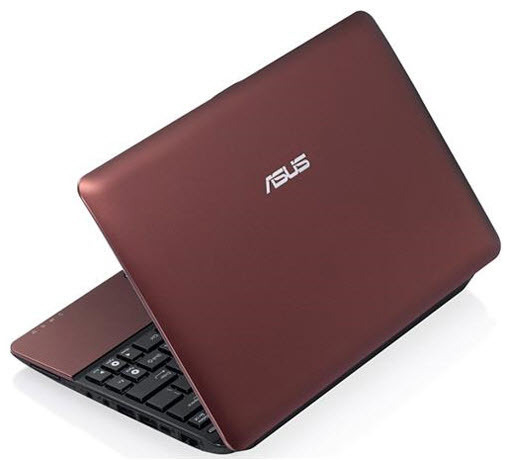

ASUS Eee PC 1015PN-RED041M

Model Eee PC 1015PN-RED041MPart no. 1015PN-RED041M

80 specifications Checked 2 days ago

Display25.6 cm (10.1")
Resolution1024 x 600 pixels
ProcessorIntel Atom®
Memory2 GB
Storage500 GB
TypeNetbook

See all specifications

Overview

Display: 25.6 cm (10.1")
Resolution: 1024 x 600 pixels
Processor: Intel Atom®
Memory: 2 GB
Storage: 500 GB
Type: Netbook

Brand: ASUS
Category: Laptop
Model: Eee PC 1015PN-RED041M
Part number: 1015PN-RED041M
Also known as: ASUS Eee PC 1015PN-RED041M Intel Atom® N570 Netbook 25.6 cm (10.1") 2 GB DDR3-SDRAM 500 GB HDD Windows 7 Home Premium Red

Specifications

80 specifications in 17 groups

Design

Specification	Value
Product type	Netbook
Product colour	Red

Display

Specification	Value
Display diagonal	25.6 cm (10.1")
Display resolution	1024 x 600 pixels
LED backlight	Yes
Native aspect ratio	5:3

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	N570
Processor cores	2
Processor threads	4
Processor frequency	1.66 GHz
System bus rate	2.5 GT/s
Processor cache	1 MB
Processor cache type	L2
Processor lithography	45 nm
Processor operating modes	64-bit
Processor codename	Pineview
Thermal Design Power (TDP)	8.5 W
Number of Processing Die Transistors	17 M
Processing Die size	87 mm²

Memory

Specification	Value
Internal memory	2 GB
Internal memory type	DDR3-SDRAM
Memory slots	1x SO-DIMM
Maximum internal memory	2 GB

Storage

Specification	Value
Total storage capacity	500 GB
Storage media	HDD
HDD interface	SATA
HDD size	2.5"
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MMC, SD, SDHC

Graphics

Specification	Value
Graphics card family	NVIDIA
On-board graphics card model	Intel® GMA 3150
On-board graphics card base frequency	200 MHz
Maximum graphics card memory	0.5 GB
Graphics card	ION N11M-PT1

Audio

Specification	Value
Audio system	HD
Built-in microphone	Yes

Camera

Specification	Value
Front camera resolution (numeric)	0.3 MP

Network

Specification	Value
Ethernet LAN	Yes
Bluetooth	No

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
eSATA ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Thunderbolt ports quantity	0
Headphone outputs	1
Microphone in	Yes
TV-out	No

Performance

Specification	Value
GPS (satellite)	No

Software

Specification	Value
Operating system installed	Windows 7 Home Premium
Operating system architecture	64-bit

Processor special features

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Intel 64	Yes
Intel Demand Based Switching	No
Intel Trusted Execution Technology	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Turbo Boost Technology	No
Processor ARK ID	55637
Processor package size	22 x 22 mm
Supported instruction sets	SSE2, SSE3, SSSE3
Thermal Monitoring Technologies	Yes
Conflict-Free processor	Yes

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	6

Power

Specification	Value
DC-in jack	Yes

Weight & dimensions

Specification	Value
Weight	1.25 kg
Width	262 mm
Depth	178 mm
Height (front)	2.36 cm
Height (rear)	3.64 cm

Other features

Specification	Value
Supplied AC adapter type	AC
