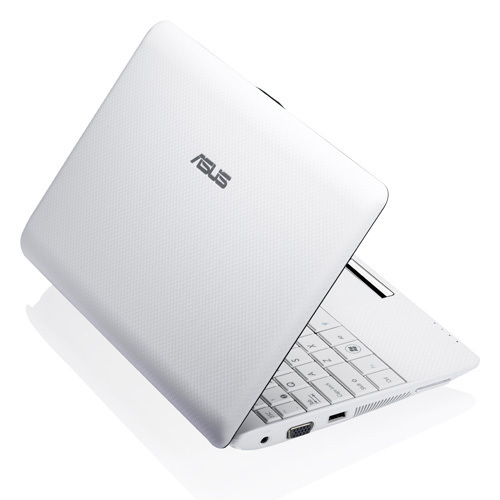

ASUS Eee PC 1001PXD-WHI066S

Model Eee PC 1001PXD-WHI066SPart no. 1001PXD-WHI066SEAN 884840800729

119 specifications Checked 3 days ago

Display25.6 cm (10.1")
Resolution1024 x 600 pixels
ProcessorIntel Atom®
Memory2 GB
Storage320 GB
Battery2200 mAh

See all specifications

Overview

Display: 25.6 cm (10.1")
Resolution: 1024 x 600 pixels
Processor: Intel Atom®
Memory: 2 GB
Storage: 320 GB
Battery: 2200 mAh

Brand: ASUS
Category: Laptop
Model: Eee PC 1001PXD-WHI066S
Part number: 1001PXD-WHI066S
EAN / UPC: 884840800729
Also known as: ASUS Eee PC 1001PXD-WHI066S Intel Atom® N455 Netbook 25.6 cm (10.1") 2 GB DDR3-SDRAM 320 GB Windows 7 Starter White

Specifications

119 specifications in 18 groups

Design

Specification	Value
Product type	Netbook
Product colour	White

Display

Specification	Value
Display diagonal	25.6 cm (10.1")
Display resolution	1024 x 600 pixels
LED backlight	Yes
Native aspect ratio	5:3

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	N455
Processor cores	1
Processor threads	2
Processor frequency	1.66 GHz
Processor cache	0.512 MB
Processor cache type	L2
Processor socket	BGA 559
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Atom N400 Series
Processor codename	Pineview
Bus type	DMI
FSB Parity	No
Stepping	A0
Thermal Design Power (TDP)	6.5 W
Tjunction	100 °C
Number of Processing Die Transistors	123 M
Processing Die size	66 mm²
CPU multiplier (bus/core ratio)	10
ECC supported by processor	No

Memory

Specification	Value
Internal memory	2 GB
Internal memory type	DDR3-SDRAM
Memory clock speed	1066 MHz
Memory slots	1x SO-DIMM
Maximum internal memory	2 GB

Storage

Specification	Value
Total storage capacity	320 GB
HDD capacity	320 GB
HDD interface	SATA II
HDD speed	5400 RPM
HDD size	2.5"
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MMC, SD, SDHC

Graphics

Specification	Value
On-board graphics card	Yes
Graphics card family	Intel
On-board graphics card base frequency	200 MHz
Graphics card	GMA 3150

Audio

Specification	Value
Audio system	HDA
Number of built-in speakers	2
Built-in microphone	Yes

Camera

Specification	Value
Front camera resolution (numeric)	0.3 MP

Network

Specification	Value
Wi-Fi	Yes
Networking features	Fast Ethernet
Wireless technology	802.11b/g
Ethernet LAN	Yes
Ethernet LAN data rates	10,100 Mbit/s
Bluetooth	Yes
Bluetooth version	2.1+EDR
Cabling technology	10/100Base-T(X)

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
eSATA ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	0
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Thunderbolt ports quantity	0
Headphone outputs	1
TV-out	No

Performance

Specification	Value
Motherboard chipset	Intel NM10
GPS (satellite)	No

Keyboard

Specification	Value
Pointing device	Touchpad

Software

Specification	Value
Operating system installed	Windows 7 Starter
Operating system architecture	32-bit
Drivers included	Yes

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	49491
Processor code	SLBX9
Processor package size	22 x 22 mm
Supported instruction sets	SSE2, SSE3, SSSE3
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	6
Battery capacity	2200 mAh
Battery life (max)	8 h

Power

Specification	Value
AC adapter power	48 W
AC adapter frequency	50 - 60 Hz
DC-in jack	Yes

Weight & dimensions

Specification	Value
Weight	1.27 kg
Width	262 mm
Depth	178 mm
Height (front)	2.59 cm
Height (rear)	3.65 cm

Other features

Specification	Value
Supplied AC adapter type	AC
