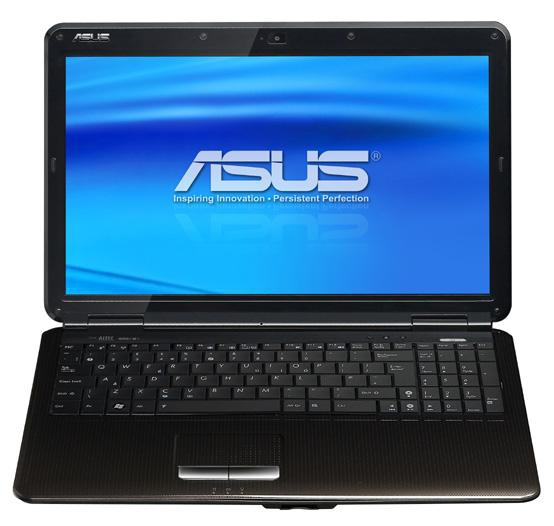

ASUS DIE-SX163V Intel® Pentium® Dual-Core T4500

39.6 cm (15.6") 4 GB DDR3-SDRAM 640 GB HDD NVIDIA® GeForce® 310M Windows 7 Home Premium Black

Model DIE-SX163VPart no. X5DIE-SX163VEAN 884840692553

111 specifications Checked 3 days ago

Display39.6 cm (15.6")
Resolution1366 x 768 pixels
ProcessorIntel® Pentium® Dual-Core
Memory4 GB
Storage640 GB
GraphicsNVIDIA® GeForce® 310M

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1366 x 768 pixels
Processor: Intel® Pentium® Dual-Core
Memory: 4 GB
Storage: 640 GB
Graphics: NVIDIA® GeForce® 310M

Brand: ASUS
Category: Laptop
Model: DIE-SX163V
Part number: X5DIE-SX163V
EAN / UPC: 884840692553
Also known as: ASUS DIE-SX163V Intel® Pentium® Dual-Core T4500 39.6 cm (15.6") 4 GB DDR3-SDRAM 640 GB HDD NVIDIA® GeForce® 310M Windows 7 Home Premium Black

Specifications

111 specifications in 20 groups

Design

Specification	Value
Product colour	Black
Form factor	Clamshell

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1366 x 768 pixels
Touchscreen	No
LED backlight	Yes
Native aspect ratio	16:9

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Pentium® Dual-Core
Processor model	T4500
Processor cores	2
Processor threads	2
Processor frequency	2.3 GHz
Processor cache	1 MB
Processor cache type	Smart Cache
Processor front side bus	800 MHz
Processor lithography	45 nm
Processor operating modes	64-bit
Processor codename	Penryn
Thermal Design Power (TDP)	35 W
Number of Processing Die Transistors	410 M
Processing Die size	107 mm²

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR3-SDRAM
Memory clock speed	1066 MHz
Memory slots	2x SO-DIMM
Maximum internal memory	8 GB

Storage

Specification	Value
Total storage capacity	640 GB
Storage media	HDD
Number of HDDs installed	1
HDD capacity	640 GB
HDD interface	SATA
HDD size	2.5"
Optical drive type	DVD Super Multi
Card reader integrated	Yes
Compatible memory cards	Memory Stick (MS), MMC, SD

Graphics

Specification	Value
On-board graphics card	No
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA® GeForce® 310M
Discrete graphics card memory	0.512 GB
Graphics card family	NVIDIA
On-board graphics card model	Not available
Number of discrete graphics cards	1

Audio

Specification	Value
Audio system	SRS
Built-in speaker(s)	Yes
Speakers manufacturer	Altec Lansing
Built-in microphone	Yes

Camera

Specification	Value
Front camera resolution (numeric)	0.3 MP

Optical drive

Specification	Value
Disc types supported	CD-R, CD-RW, DVD+R, DVD+RW, DVD-R, DVD-RW

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	No
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u

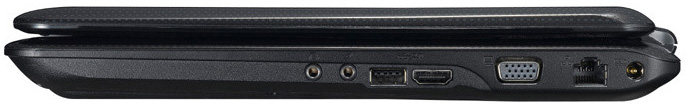

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
eSATA/USB 2.0 ports quantity	0
eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	0
eSATA ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Thunderbolt ports quantity	0
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
ExpressCard slot	No
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No

Keyboard

Specification	Value
Pointing device	Touchpad
Numeric keypad	No
Windows keys	Yes

Software

Specification	Value
Operating system installed	Windows 7 Home Premium

Processor special features

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Intel 64	Yes
Intel Trusted Execution Technology	No
Intel Virtualization Technology (VT-x)	No
Intel® Turbo Boost Technology	No
Processor ARK ID	42925
Processor code	SLGZC
Thermal Monitoring Technologies	Yes

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	6
Battery capacity	4400 mAh

Power

Specification	Value
AC adapter power	90 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	4.74 A
AC adapter output voltage	19 V
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	No

Weight & dimensions

Specification	Value
Weight	2.6 kg
Width	370 mm
Depth	256 mm
Height (front)	3.1 cm
Height (rear)	3.55 cm

Packaging content

Specification	Value
AC adapter included	Yes
Cables included	AC
Manual	Yes

Other features

Specification	Value
Infrared data port	No
Indication light	Yes
Power supply type	AC/DC
Supplied AC adapter type	AC
