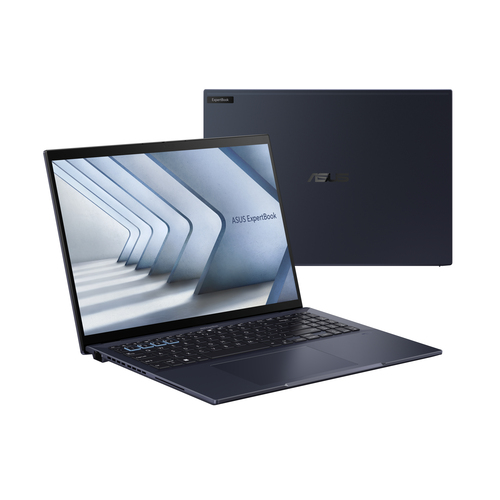

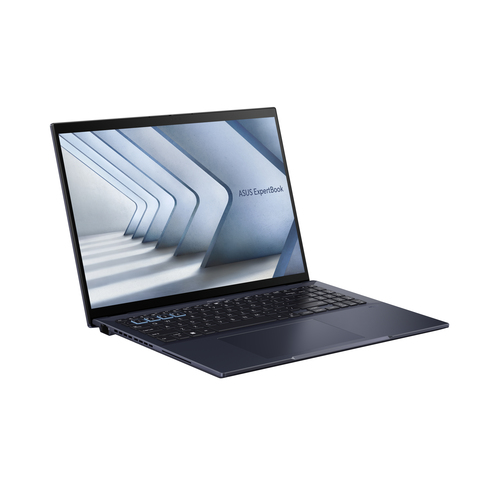

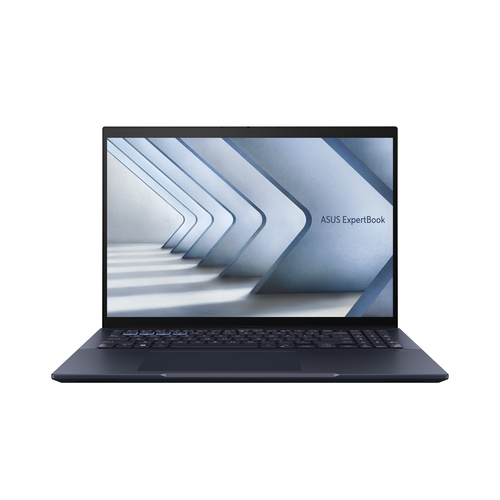

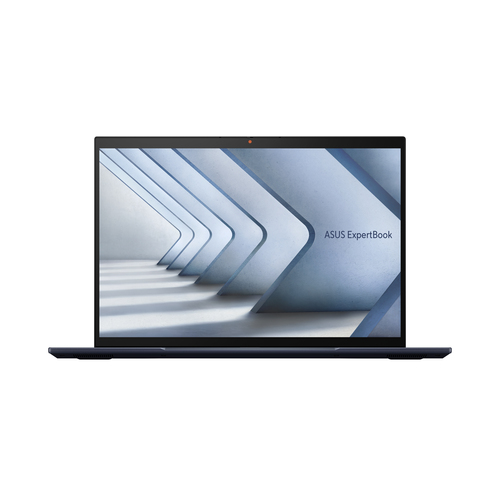

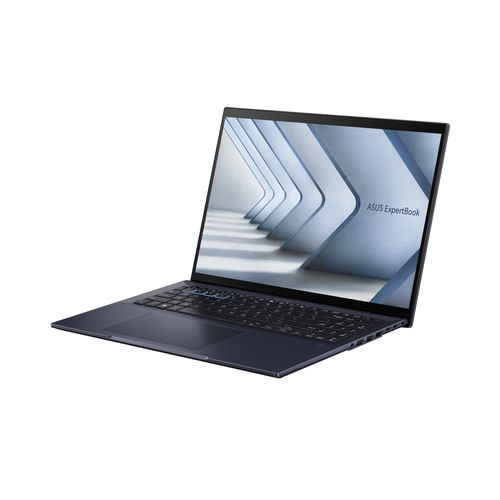

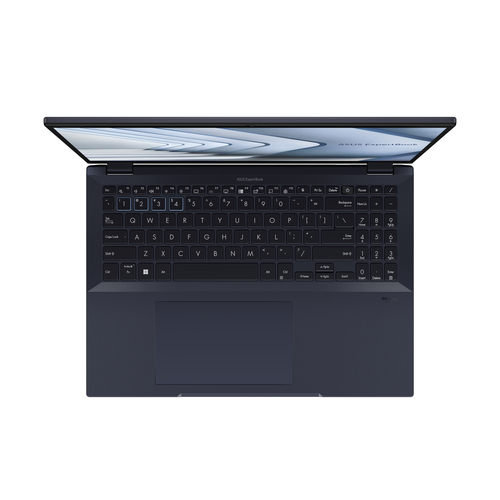

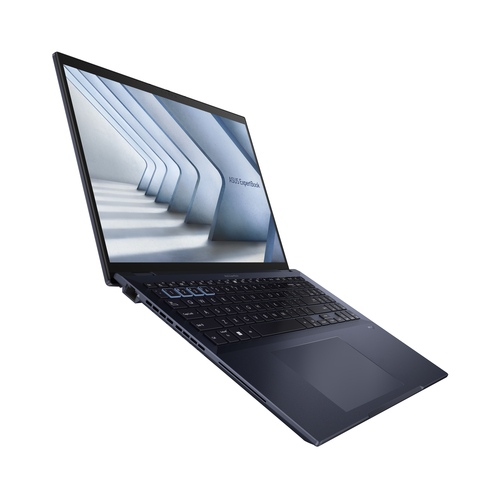

ExpertBook B5 B5604CMA_L-QZ0261X Intel Core Ultra 7 155H Laptop

40.6 cm (16") Touchscreen WQXGA 64 GB DDR5-SDRAM 2 TB SSD Wi-Fi 6E (802.11ax) Windows 11 Pr

Model B5604CMA_L-QZ0261XPart no. 90NX0751-M009S0EAN 4711387609958

125 specifications Checked today

Display40.6 cm (16")
Resolution2560 x 1600 pixels
ProcessorIntel Core Ultra 7
Memory64 GB
Storage2 TB
GraphicsNot available

See all specifications

Overview

Display: 40.6 cm (16")
Resolution: 2560 x 1600 pixels
Processor: Intel Core Ultra 7
Memory: 64 GB
Storage: 2 TB
Graphics: Not available

Brand: ASUS
Category: Laptop
Model: B5604CMA_L-QZ0261X
Part number: 90NX0751-M009S0
EAN / UPC: 4711387609958
Also known as: ASUS ExpertBook B5 B5604CMA_L-QZ0261X Intel Core Ultra 7 155H Laptop 40.6 cm (16") Touchscreen WQXGA 64 GB DDR5-SDRAM 2 TB SSD Wi-Fi 6E (802.11ax) Windows 11 Pr

Specifications

125 specifications in 20 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Colour name	Star Black
Form factor	Clamshell
Market positioning	Work

Display

Specification	Value
Display diagonal	40.6 cm (16")
Display resolution	2560 x 1600 pixels
Touchscreen	Yes
HD type	WQXGA
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:10
Anti-glare screen	Yes
Display brightness	500 cd/m²
Colour gamut	100%
Display diagonal (metric)	40.6 cm
RGB colour space	DCI-P3

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Core Ultra 7
Processor generation	Intel® Core™ Ultra (Series 1)
Processor model	155H
Processor cores	16
Processor threads	22
Processor boost frequency	4.8 GHz
Performance cores	6
Efficient cores	8
Low Power Efficient-cores	2
Performance-core Max Turbo Frequency	4.8 GHz
Efficient-core Max Turbo Frequency	3.8 GHz
Low Power Efficient-core Max Turbo Frequency	2.5 GHz
Performance-core base frequency	1.4 GHz
Efficient-core base frequency	0.9 GHz
Low Power Efficient-core Base Frequency	700 MHz
Processor cache	24 MB
Processor cache type	Smart Cache
Maximum turbo power	115 W
Processor base power	28 W

Neural processor unit (NPU)

Specification	Value
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	DirectML, ONNX RT, OpenVINO, Windows ML

Memory

Specification	Value
Internal memory	64 GB
Internal memory type	DDR5-SDRAM
Memory form factor	SO-DIMM
Memory slots	2x SO-DIMM

Storage

Specification	Value
Total storage capacity	2 TB
Storage media	SSD
Total SSDs capacity	2 TB
Number of SSDs installed	1
SSD capacity	2 TB
NVMe	Yes
SSD interface	PCI Express 4.0
SSD form factor	M.2
Optical drive type	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card family	Intel Arc Graphics
On-board graphics card model	Intel Arc Graphics

Audio

Specification	Value
Audio system	Dolby Atmos
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera HD type	Full HD
Infrared (IR) camera	Yes
Privacy camera	Yes
Privacy type	Privacy shutter

Network

Specification	Value
Mobile network connection	Yes
Mobile network generation	4G
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Antenna type	2x2
Ethernet LAN	Yes
Ethernet LAN data rates	1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.3

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
Thunderbolt 4 ports quantity	2
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes

Performance

Specification	Value
Repairability index	8.4

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes
Keyboard layout	QWERTZ
Keyboard language	German

Software

Specification	Value
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Trial software	Microsoft 365 (30-day trial)

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	3
Battery capacity	63 Wh

Power

Specification	Value
AC adapter power	65 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	3.25 A
AC adapter output voltage	20 V
USB Type-C charging port	Yes
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	Yes
Smart card reader	Yes
Windows Hello	Yes
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Password protection	Yes
Password protection type	BIOS, HDD, User

Weight & dimensions

Specification	Value
Weight	2 kg
Width	358 mm
Depth	254.3 mm
Height (front)	1.89 cm
Height (rear)	2.29 cm

Packaging data

Specification	Value
Package width	533 mm
Package depth	75 mm
Package height	319 mm
Package weight	2.25 kg

Packaging content

Specification	Value
AC adapter included	Yes
