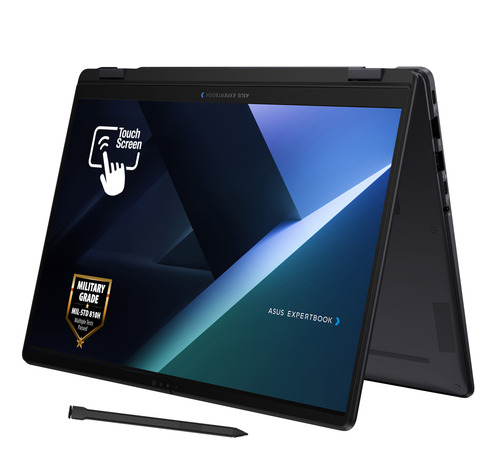

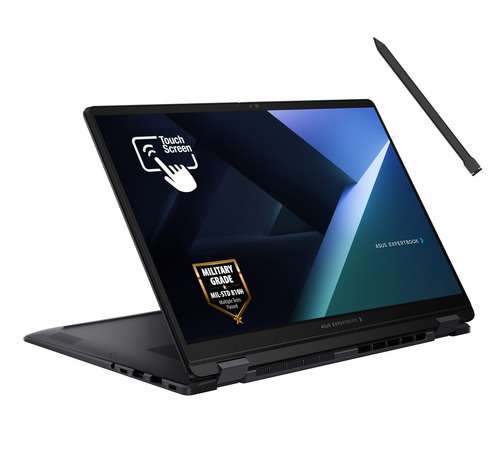

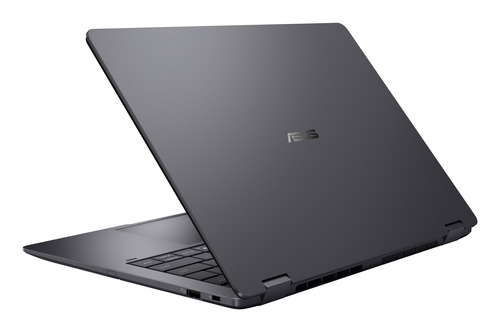

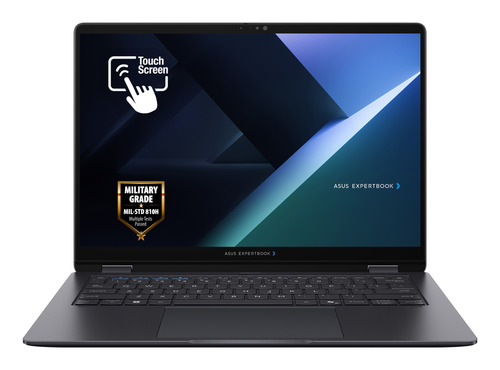

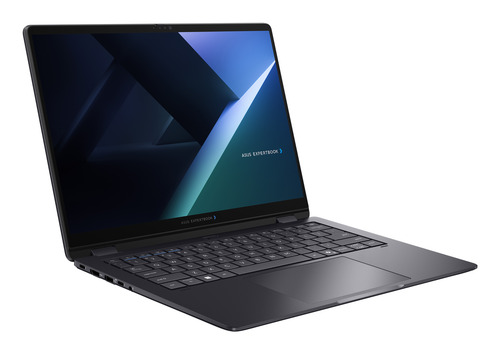

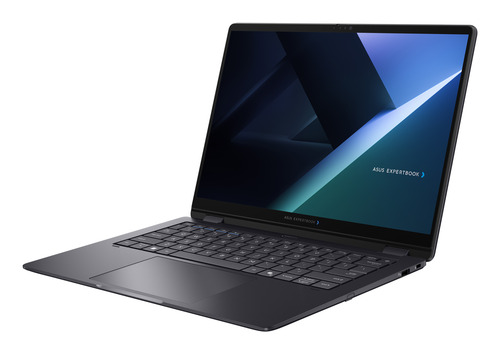

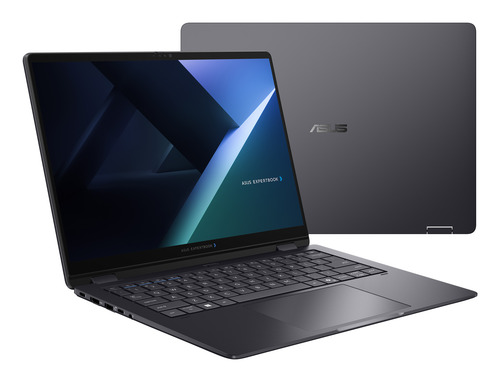

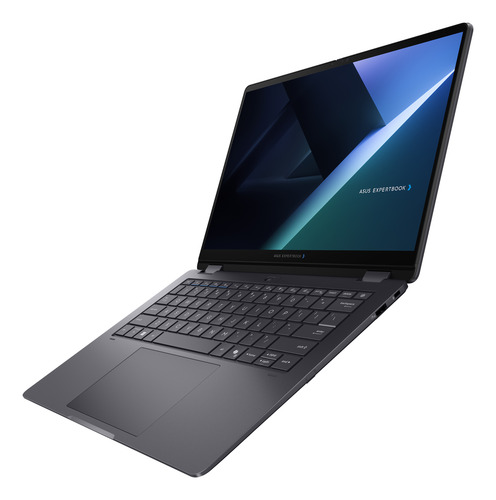

ASUS ExpertBook B5406FM-512XA Intel Core 5 320 Hybrid (2-in-1)

ExpertBook B5406FM-512XA Intel Core 5 320 Hybrid (2-in-1)

35.6 cm (14") Touchscreen WUXGA 16 GB LPDDR5x-SDRAM 256 GB SSD Wi-Fi 7 (802.11be) Windows 11 Pro

Model B5406FM-512XAPart no. 90NX0AK1-M00AJ0EAN 199291731899

129 specifications Checked today

Display35.6 cm (14")
Resolution1920 x 1200 pixels
ProcessorIntel Core 5
Memory16 GB
Storage256 GB
GraphicsNot available

See all specifications

Overview

Display: 35.6 cm (14")
Resolution: 1920 x 1200 pixels
Processor: Intel Core 5
Memory: 16 GB
Storage: 256 GB
Graphics: Not available

Brand: ASUS
Category: Laptop
Model: B5406FM-512XA
Part number: 90NX0AK1-M00AJ0
EAN / UPC: 199291731899, 4711636731898
Also known as: ASUS ExpertBook B5406FM-512XA Intel Core 5 320 Hybrid (2-in-1) 35.6 cm (14") Touchscreen WUXGA 16 GB LPDDR5x-SDRAM 256 GB SSD Wi-Fi 7 (802.11be) Windows 11 Pro

Specifications

129 specifications in 20 groups

Design

Specification	Value
Product type	Hybrid (2-in-1)
Product colour	Grey, Black
Colour name	Gentle Grey
Form factor	Convertible (Folder)
Display back cover material	Aluminium
Housing material	Aluminium
Market positioning	Work
Certified refurbished	No

Display

Specification	Value
Display diagonal	35.6 cm (14")
Display resolution	1920 x 1200 pixels
Touchscreen	Yes
HD type	WUXGA
LED backlight	Yes
Native aspect ratio	16:10
Display surface	Gloss
Display brightness	300 cd/m²
Colour gamut	45%
RGB colour space	NTSC
Maximum refresh rate	60 Hz
Contrast ratio (typical)	1000:1

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Core 5
Processor generation	Intel Core (Series 3)
Processor model	320
Processor cores	6
Processor threads	6
Processor boost frequency	4.6 GHz
Performance cores	2
Efficient cores	0
Low Power Efficient-cores	4
Performance-core Max Turbo Frequency	4.6 GHz
Low Power Efficient-core Max Turbo Frequency	3.4 GHz
Performance-core base frequency	1.5 GHz
Low Power Efficient-core Base Frequency	1400 MHz
Processor cache	6 MB
Processor cache type	Smart Cache
Processor socket	FCBGA1516
Maximum turbo power	35 W
Processor base power	15 W

Neural processor unit (NPU)

Specification	Value
Copilot+ PC	No
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	OpenVINO, Windows ML, ONNX RT, WebNN
NPU performance up to	16 TOPs
GPU performance up to	20 TOPs

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	LPDDR5x-SDRAM
Memory form factor	On-board
Maximum internal memory	16 GB

Storage

Specification	Value
Total storage capacity	256 GB
Storage media	SSD
Total SSDs capacity	256 GB
Number of SSDs installed	1
SSD capacity	256 GB
NVMe	Yes
SSD interface	PCI Express 4.0
M.2 SSD size	2280 (22 x 80 mm)
SSD form factor	M.2
Optical drive type	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® Graphics
On-board graphics card model	Intel® Graphics

Audio

Specification	Value
Audio system	Smart Amp
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera HD type	Full HD
Front camera resolution	1920 x 1080 pixels
Infrared (IR) camera	Yes
Privacy camera	Yes
Privacy type	Privacy shutter

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	Wi-Fi 7 (802.11be)
Antenna type	2x2
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	6.0

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
HDMI ports quantity	1
HDMI version	2.1
Thunderbolt 4 ports quantity	2
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes

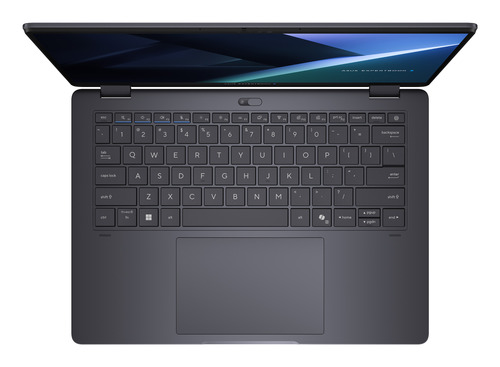

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	No
Keyboard layout	QWERTY
Keyboard language	UK English
Copilot key	Yes

Software

Specification	Value
Operating system installed	Windows 11 Pro Education
Operating system architecture	64-bit
Microsoft Copilot	Yes

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	3
Battery capacity	63 Wh

Power

Specification	Value
AC adapter power	65 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	3.25 A
AC adapter output voltage	20 V
USB Type-C charging port	Yes
USB Type-C required charging power (max)	65 W
USB Type-C required charging power (min)	55 W
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	Yes
Face recognition	Yes
Windows Hello	Yes
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Password protection	Yes
Password protection type	HDD, BIOS, User

Certificates

Specification	Value
Compliance certificates	REACH
Certification	US MIL STD 810H military grade standard (24 procedures)

Sustainability

Specification	Value
Sustainability certificates	TCO, Forest Stewardship Council (FSC) Recycled, ENERGY STAR, EPEAT Climate +

Weight & dimensions

Specification	Value
Weight	1.54 kg
Width	314.5 mm
Depth	224.9 mm
Height (front)	1.37 cm
Height (rear)	1.69 cm

Packaging content

Specification	Value
Stylus pen	Yes
