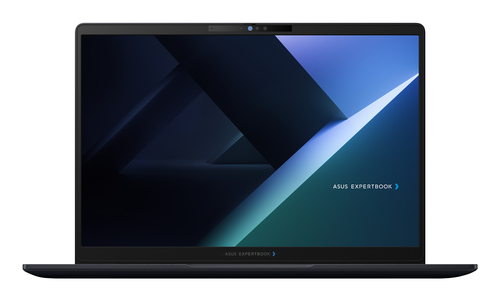

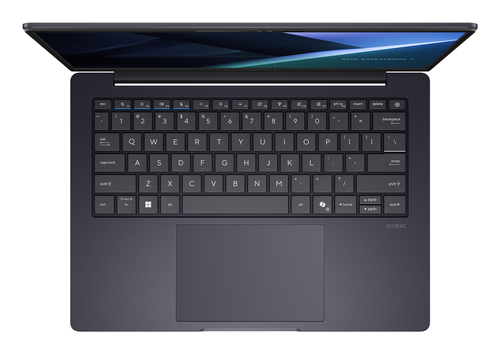

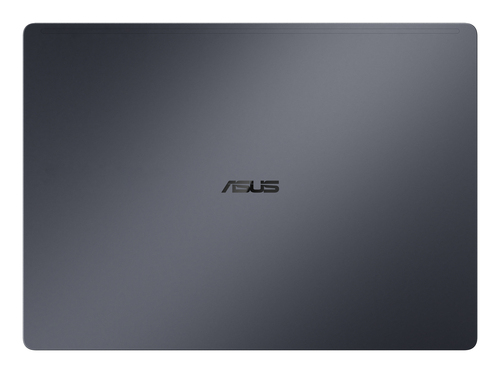

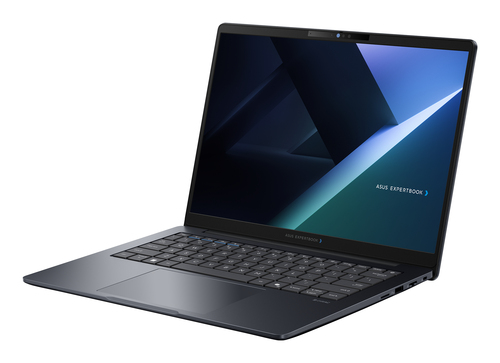

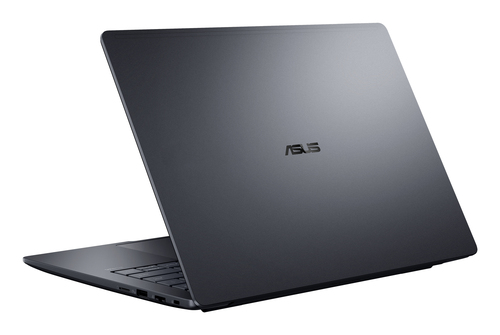

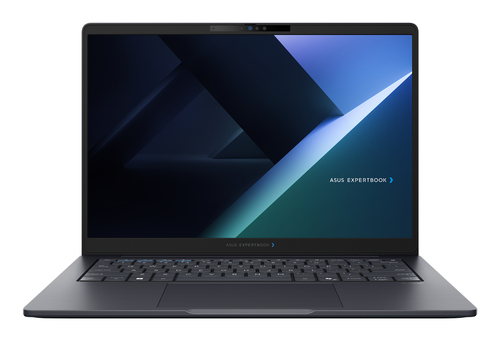

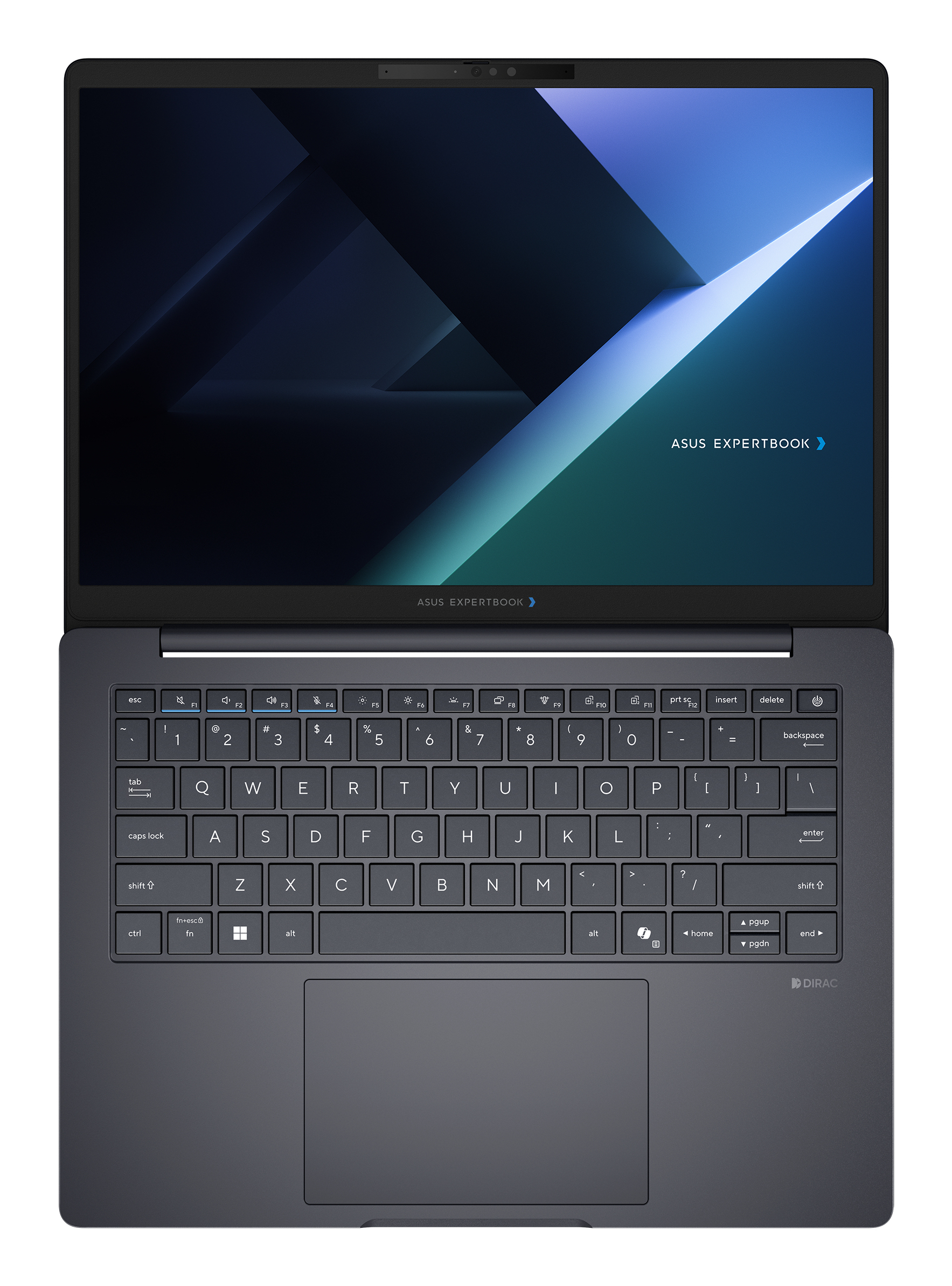

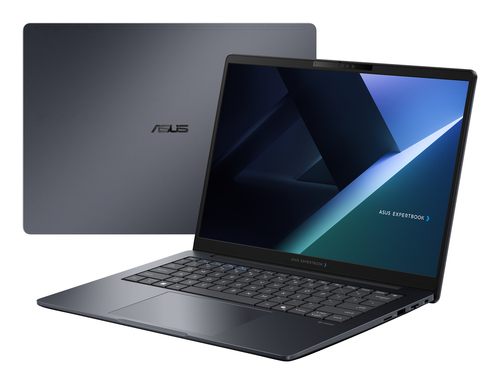

B5405CAA-TJ0584X Copilot+ PC

Model B5405CAA-TJ0584X Copilot+ PCPart no. 90NX0A21-M00LS0EAN 199291666276

129 specifications Checked today

Display35.6 cm (14")
Resolution1920 x 1200 pixels
ProcessorIntel Core Ultra 5
Memory32 GB
Storage1 TB
GraphicsNot available

See all specifications

Overview

Display: 35.6 cm (14")
Resolution: 1920 x 1200 pixels
Processor: Intel Core Ultra 5
Memory: 32 GB
Storage: 1 TB
Graphics: Not available

Brand: ASUS
Category: Laptop
Model: B5405CAA-TJ0584X Copilot+ PC
Part number: 90NX0A21-M00LS0
EAN / UPC: 199291666276, 4711636666275
Also known as: ASUS ExpertBook B5 G2 B5405CAA-TJ0584X Copilot+ PC Intel Core Ultra 5 325 Laptop 35.6 cm (14") Touchscreen WUXGA 32 GB DDR5-SDRAM 1 TB SSD Wi-Fi 7 (802.11be) Wi

Specifications

129 specifications in 19 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black, Grey
Colour name	Gentle Grey
Form factor	Clamshell
Display back cover material	Aluminium
Housing material	Aluminium
Market positioning	Work
Certified refurbished	No

Display

Specification	Value
Display diagonal	35.6 cm (14")
Display resolution	1920 x 1200 pixels
Touchscreen	Yes
HD type	WUXGA
LED backlight	Yes
Native aspect ratio	16:10
Anti-glare screen	Yes
Display brightness	400 cd/m²
Colour gamut	100%
RGB colour space	sRGB

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Core Ultra 5
Processor generation	Intel® Core™ Ultra (Series 3)
Processor model	325
Processor cores	8
Processor threads	8
Processor boost frequency	4.5 GHz
Performance cores	4
Efficient cores	0
Low Power Efficient-cores	4
Performance-core Max Turbo Frequency	4.5 GHz
Low Power Efficient-core Max Turbo Frequency	3.4 GHz
Performance-core base frequency	2.1 GHz
Efficient-core base frequency	1.6 GHz
Low Power Efficient-core Base Frequency	1600 MHz
Processor cache	12 MB
Processor cache type	Smart Cache
Processor socket	FCBGA2540
Maximum turbo power	55 W
Processor base power	25 W

Neural processor unit (NPU)

Specification	Value
Copilot+ PC	Yes
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	OpenVINO, Windows ML, ONNX RT, WebNN
NPU performance up to	47 TOPs
GPU performance up to	40 TOPs

Memory

Specification	Value
Internal memory	32 GB
Internal memory type	DDR5-SDRAM
Memory form factor	SO-DIMM
Memory layout (slots x size)	2 x 16 GB
Memory slots	2x SO-DIMM
Maximum internal memory	64 GB

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	SSD
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
NVMe	Yes
SSD interface	PCI Express 4.0
M.2 SSD size	2280 (22 x 80 mm)
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® Graphics
On-board graphics card model	Intel® Graphics
Ray tracing acceleration	Yes

Audio

Specification	Value
Audio system	Dirac

Camera

Specification	Value
Front camera	Yes
Front camera HD type	Full HD
Front camera resolution	1920 x 1080 pixels
Infrared (IR) camera	Yes
Privacy camera	Yes
Privacy type	Privacy shutter

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	Wi-Fi 7 (802.11be)
Antenna type	2x2
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	6.0

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
Thunderbolt 4 ports quantity	2
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	No
Keyboard layout	QWERTY
Keyboard language	US International
Copilot key	Yes

Software

Specification	Value
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Microsoft Copilot	Yes

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	3
Battery capacity	63 Wh

Power

Specification	Value
AC adapter power	65 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	3.25 A
AC adapter output voltage	20 V
USB Type-C charging port	Yes
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	Yes
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Password protection	Yes
Password protection type	BIOS, HDD, User

Certificates

Specification	Value
Compliance certificates	REACH
Certification	US MIL STD 810H military grade standard (24 procedures)

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR, EPEAT Climate +, Forest Stewardship Council (FSC) Recycled, TCO

Weight & dimensions

Specification	Value
Weight	1.38 kg
Width	315.1 mm
Depth	226.8 mm
Height (front)	1 cm
Height (rear)	1.8 cm
