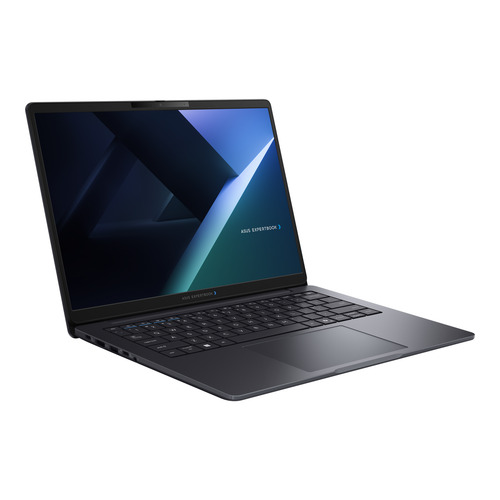

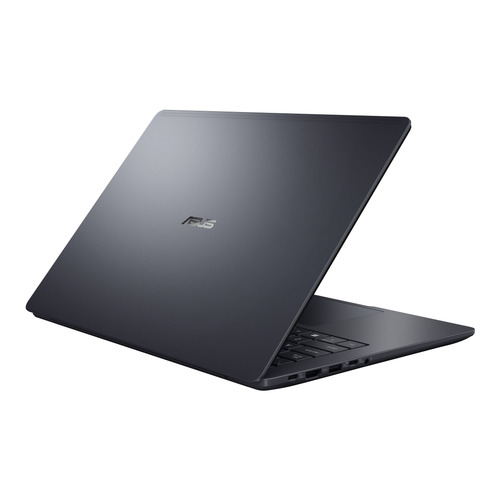

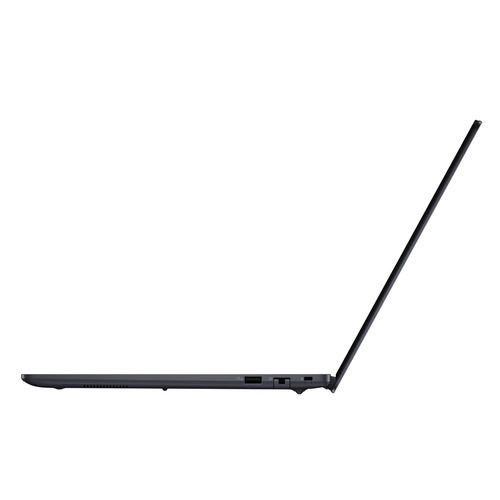

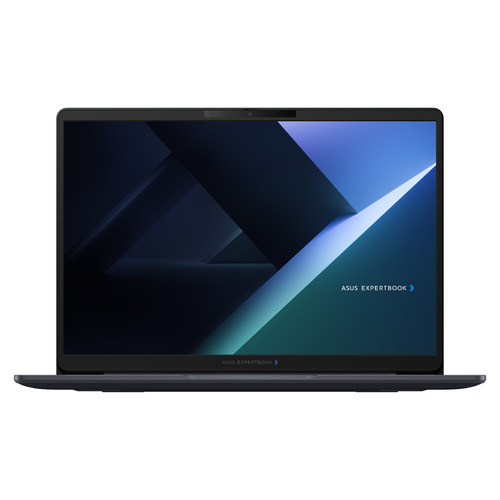

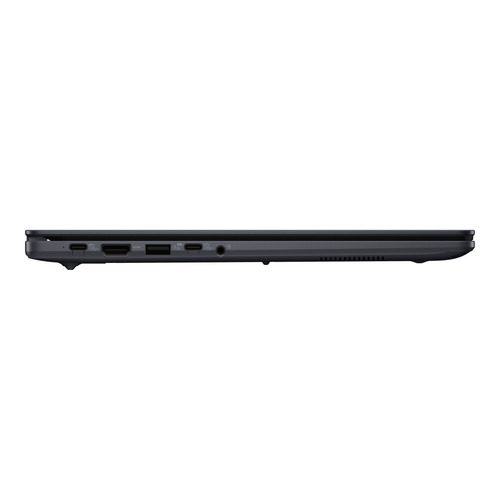

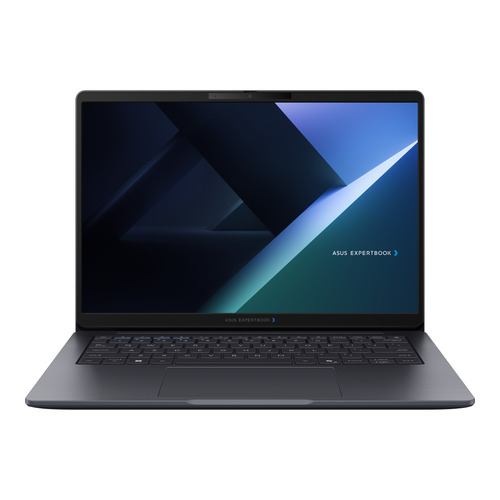

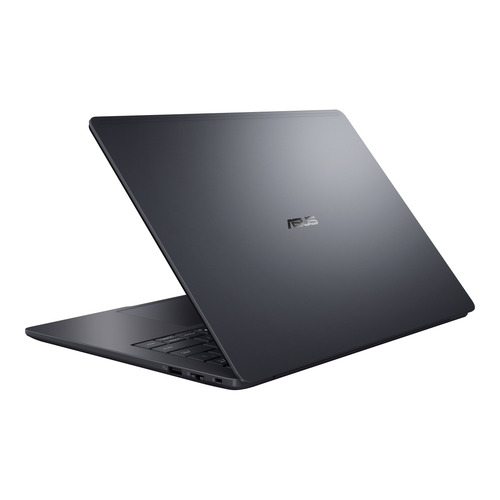

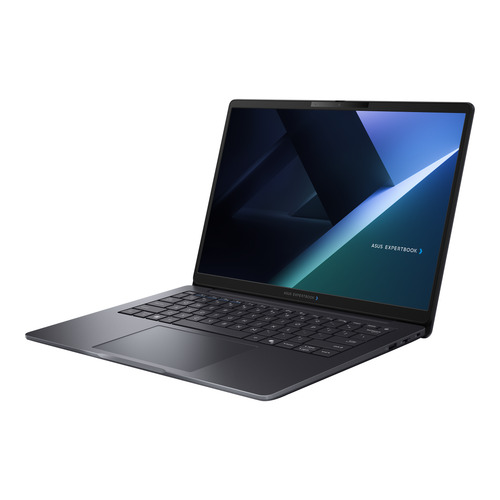

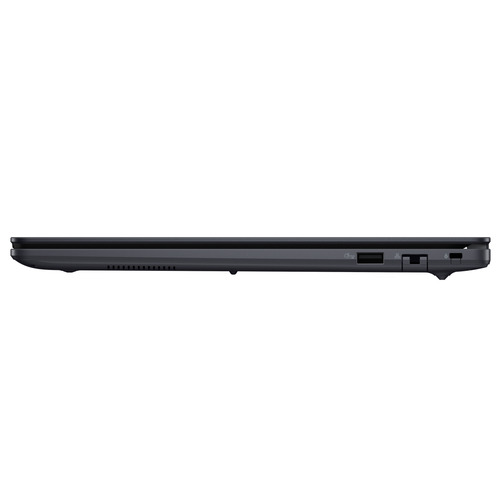

ASUS ExpertBook B3406CMA-LY0362X Intel Core 7 350 Laptop

ExpertBook B3406CMA-LY0362X Intel Core 7 350 Laptop

35.6 cm (14") WUXGA 16 GB DDR5-SDRAM 512 GB SSD Wi-Fi 6E (802.11ax) Windows 11 Pro Grey Swiss

Model B3406CMA-LY0362XPart no. 90NX0B42-M00DU0EAN 199291792791

116 specifications Checked today

Display35.6 cm (14")
Resolution1920 x 1200 pixels
ProcessorIntel Core 7
Memory16 GB
Storage512 GB
GraphicsNot available

See all specifications

Overview

Display: 35.6 cm (14")
Resolution: 1920 x 1200 pixels
Processor: Intel Core 7
Memory: 16 GB
Storage: 512 GB
Graphics: Not available

Brand: ASUS
Category: Laptop
Model: B3406CMA-LY0362X
Part number: 90NX0B42-M00DU0
EAN / UPC: 199291792791, 4711636792790
Also known as: ASUS ExpertBook B3406CMA-LY0362X Intel Core 7 350 Laptop 35.6 cm (14") WUXGA 16 GB DDR5-SDRAM 512 GB SSD Wi-Fi 6E (802.11ax) Windows 11 Pro Grey Swiss

Specifications

116 specifications in 20 groups

Design

Specification	Value
Product type	Laptop
Product colour	Grey
Colour name	Gentle Grey
Form factor	Clamshell
Display back cover material	Aluminium
Housing material	Plastic
Market positioning	Work

Display

Specification	Value
Display diagonal	35.6 cm (14")
Display resolution	1920 x 1200 pixels
Touchscreen	No
HD type	WUXGA
Native aspect ratio	16:10
Anti-glare screen	Yes
Display brightness	300 cd/m²
Colour gamut	45%
RGB colour space	NTSC
Maximum refresh rate	60 Hz
Contrast ratio (typical)	800:1

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Core 7
Processor generation	Intel Core (Series 3)
Processor model	350
Processor cores	6
Processor threads	6
Processor boost frequency	4.8 GHz
Performance cores	2
Efficient cores	0
Low Power Efficient-cores	4
Performance-core Max Turbo Frequency	4.8 GHz
Low Power Efficient-core Max Turbo Frequency	3.6 GHz
Performance-core base frequency	1.5 GHz
Low Power Efficient-core Base Frequency	1400 MHz
Processor cache	6 MB
Processor cache type	Smart Cache
Processor socket	FCBGA1516
Maximum turbo power	35 W
Processor base power	15 W

Neural processor unit (NPU)

Specification	Value
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	OpenVINO, Windows ML, ONNX RT, WebNN
NPU performance up to	17 TOPs
GPU performance up to	21 TOPs

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Memory form factor	SO-DIMM
Memory slots	1x SO-DIMM
Maximum internal memory	32 GB

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
NVMe	Yes
SSD interface	PCI Express 4.0
M.2 SSD size	2280 (22 x 80 mm)
SSD form factor	M.2
Optical drive type	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® Graphics
On-board graphics card model	Intel® Graphics

Audio

Specification	Value
Audio system	Dolby Audio Premium
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera HD type	Full HD
Privacy camera	Yes
Privacy type	Privacy shutter

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Antenna type	2x2
Ethernet LAN	Yes
Ethernet LAN data rates	1000 Mbit/s
Bluetooth	Yes
Bluetooth version	5.4

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes

Keyboard

Specification	Value
Pointing device	Touchpad
Numeric keypad	No
Keyboard language	Swiss

Software

Specification	Value
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Trial software	1-month trial for new Microsoft 365 customers. Credit card required. McAfee® 30 days free trial

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	3
Battery capacity	50 Wh

Power

Specification	Value
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
USB Type-C charging port	Yes
USB Type-C required charging power (max)	65 W
USB Type-C required charging power (min)	55 W
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Password protection	Yes
Password protection type	BIOS, User, HDD

Certificates

Specification	Value
Compliance certificates	REACH

Sustainability

Specification	Value
Sustainability certificates	EPEAT Climate +, EPEAT Gold, ENERGY STAR, Forest Stewardship Council (FSC) Recycled, TCO

Weight & dimensions

Specification	Value
Weight	1.51 kg
Width	316 mm
Depth	227.8 mm
Height (front)	1.07 cm
Height (rear)	1.89 cm

Packaging content

Specification	Value
AC adapter included	No
