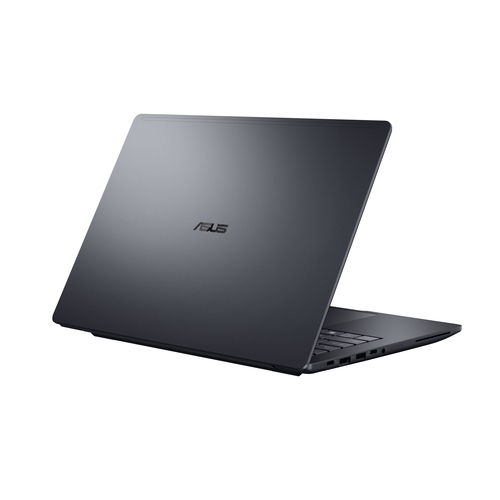

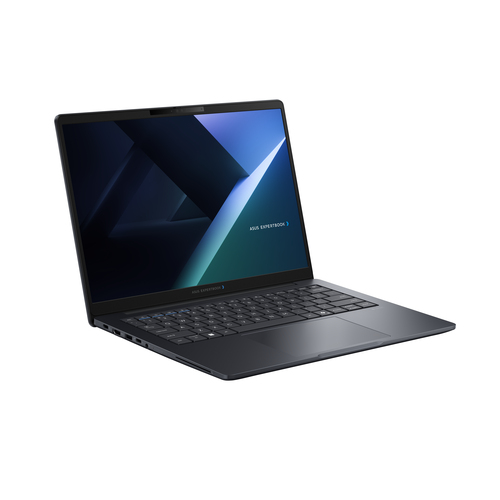

ASUS ExpertBook B3405CAA-LY0032X Intel Core Ultra 7 355 Laptop

ExpertBook B3405CAA-LY0032X Intel Core Ultra 7 355 Laptop

35.6 cm (14") WUXGA 16 GB DDR5-SDRAM 1 TB SSD Wi-Fi 7 (802.11be) Windows 11 Pro Grey QWERTZ Germa

Model B3405CAA-LY0032XPart no. 90NX0A01-M00110EAN 4711636668682

133 specifications Checked today

Display35.6 cm (14")
Resolution1920 x 1200 pixels
ProcessorIntel Core Ultra 7
Memory16 GB
Storage1 TB
GraphicsNot available

See all specifications

Overview

Display: 35.6 cm (14")
Resolution: 1920 x 1200 pixels
Processor: Intel Core Ultra 7
Memory: 16 GB
Storage: 1 TB
Graphics: Not available

Brand: ASUS
Category: Laptop
Model: B3405CAA-LY0032X
Part number: 90NX0A01-M00110
EAN / UPC: 4711636668682
Also known as: ASUS ExpertBook B3405CAA-LY0032X Intel Core Ultra 7 355 Laptop 35.6 cm (14") WUXGA 16 GB DDR5-SDRAM 1 TB SSD Wi-Fi 7 (802.11be) Windows 11 Pro Grey QWERTZ Germa

Specifications

133 specifications in 19 groups

Design

Specification	Value
Product type	Laptop
Product colour	Grey
Colour name	Gentle Grey
Form factor	Clamshell
Housing material	Aluminium
Market positioning	Work

Display

Specification	Value
Display diagonal	35.6 cm (14")
Display resolution	1920 x 1200 pixels
Touchscreen	No
HD type	WUXGA
Panel type	IPS-Level
Native aspect ratio	16:10
Anti-glare screen	Yes
Display brightness	300 cd/m²
Colour gamut	45%
Display diagonal (metric)	35.6 cm
RGB colour space	NTSC

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Core Ultra 7
Processor generation	Intel® Core™ Ultra (Series 3)
Processor model	355
Processor cores	8
Processor threads	8
Processor boost frequency	4.7 GHz
Performance cores	4
Efficient cores	0
Low Power Efficient-cores	4
Performance-core Max Turbo Frequency	4.7 GHz
Low Power Efficient-core Max Turbo Frequency	3.5 GHz
Performance-core base frequency	2.3 GHz
Efficient-core base frequency	1.7 GHz
Low Power Efficient-core Base Frequency	1700 MHz
Processor cache	12 MB
Processor cache type	Smart Cache
Maximum turbo power	55 W
Processor base power	25 W

Neural processor unit (NPU)

Specification	Value
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI datatype support on NPU	Int8
AI software frameworks supported by NPU	ONNX RT, WebNN, Windows ML, OpenVINO
Total processor performance up to	96 TOPs
NPU performance up to	49 TOPs
GPU performance up to	74 TOPs

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Memory form factor	SO-DIMM
Memory slots	2x SO-DIMM
Maximum internal memory	64 GB

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	SSD
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
NVMe	Yes
SSD interface	PCI Express 4.0
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® Graphics
On-board graphics card model	Intel® Graphics
On-board graphics card 4K support	Yes
On-board graphics card 8K support	Yes
Graphics card Open GL support	Yes
Ray tracing acceleration	Yes

Audio

Specification	Value
Audio system	Dirac
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera HD type	Full HD
Infrared (IR) camera	Yes
Privacy camera	Yes
Privacy type	Privacy shutter

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	Wi-Fi 7 (802.11be)
Antenna type	2x2
Ethernet LAN	Yes
Ethernet LAN data rates	1000,10,100 Mbit/s
Bluetooth	Yes
Bluetooth version	6.0

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
Thunderbolt 4 ports quantity	1
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	No
Keyboard layout	QWERTZ
Keyboard language	German

Software

Specification	Value
Operating system installed	Windows 11 Pro
Operating system architecture	64-bit
Trial software	Microsoft 365 (30-day trial)

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	3
Battery capacity	50 Wh

Power

Specification	Value
AC adapter power	65 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	3.25 A
AC adapter output voltage	20 V
USB Type-C charging port	Yes
USB Type-C required charging power (max)	65 W
USB Type-C required charging power (min)	55 W
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	Yes
Windows Hello	Yes
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Password protection	Yes
Password protection type	BIOS, HDD, User

Weight & dimensions

Specification	Value
Weight	1.5 kg
Width	301.5 mm
Depth	232 mm
Height (front)	1.05 cm
Height (rear)	1.9 cm

Packaging data

Specification	Value
Package width	429 mm
Package depth	65 mm
Package height	270 mm

Packaging content

Specification	Value
AC adapter included	Yes
