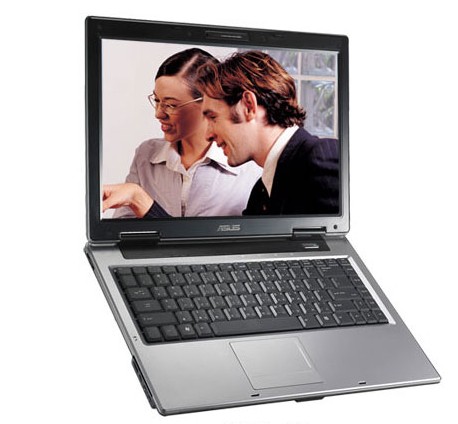

ASUS A8F-H008P Notebook

Model A8F-H008P NotebookPart no. 90NF6A62135352BC2HEAN 4719543867921

117 specifications Checked 3 days ago

Display35.8 cm (14.1")
Resolution1280 x 768 pixels
ProcessorIntel® Core™ Solo
Memory0.5 GB
Storage80 GB
OSWindows XP Professional

See all specifications

Overview

Display: 35.8 cm (14.1")
Resolution: 1280 x 768 pixels
Processor: Intel® Core™ Solo
Memory: 0.5 GB
Storage: 80 GB
OS: Windows XP Professional

Brand: ASUS
Category: Laptop
Model: A8F-H008P Notebook
Part number: 90NF6A62135352BC2H
EAN / UPC: 4719543867921
Also known as: ASUS A8F-H008P Notebook Intel® Core™ Solo T1300 35.8 cm (14.1") 0.5 GB DDR2-SDRAM 80 GB Windows XP Professional

Specifications

117 specifications in 18 groups

Display

Specification	Value
Display diagonal	35.8 cm (14.1")
Display resolution	1280 x 768 pixels
HD type	Not supported
Native aspect ratio	5:3

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ Solo
Processor model	T1300
Processor cores	1
Processor threads	1
Processor frequency	1.66 GHz
Processor cache	2 MB
Processor cache type	L2
Processor front side bus	667 MHz
Processor socket	Socket 478
Processor lithography	65 nm
Processor operating modes	32-bit
Processor series	Intel Core Solo T1000 Series
Processor codename	Yonah
Bus type	FSB
FSB Parity	No
Stepping	C0
Thermal Design Power (TDP)	27 W
Scenario Design Power (SDP)	0 W
Tjunction	100 °C
Number of Processing Die Transistors	151 M
Processing Die size	90 mm²
CPU multiplier (bus/core ratio)	10
ECC supported by processor	No

Memory

Specification	Value
Internal memory	0.5 GB
Internal memory type	DDR2-SDRAM
Memory slots	2x SO-DIMM
Maximum internal memory	2 GB

Storage

Specification	Value
Total storage capacity	80 GB
HDD speed	4200 RPM
Optical drive type	DVD Super Multi

Graphics

Specification	Value
Maximum graphics card memory	0.128 GB

Audio

Specification	Value
Audio system	Intel HDA + 3D Effect + Full duplex
Number of built-in speakers	2

Camera

Specification	Value
Front camera	Yes

Network

Specification	Value
Networking features	Fast Ethernet, Wireless LAN

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	5
Ethernet LAN (RJ-45) ports	1
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	1
Headphone outputs	1
S/PDIF out port	Yes
Microphone in	Yes
Docking connector	No
CardBus PCMCIA slots quantity	1
CardBus PCMCIA slot type	Type II
SmartCard slot	No
Modem (RJ-11) ports	1
TV-in port	No
TV-out	Yes
TV-out type	S-Video
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0
USB 1.1 ports quantity	0

Performance

Specification	Value
Motherboard chipset	Intel® 945GM Express

Keyboard

Specification	Value
Pointing device	Touchpad

Software

Specification	Value
Operating system installed	Windows XP Professional
Bundled software	ASUSDVD XP 6.0 Power Director V3.0 DE Medi@Show V2.0 SE Symantec NIS 2005 (trial) Adobe Acrobat Reader 7.0 NERO Express V6.0 ASUS Live Update ASUS ChkMail ASUS Hotkey ASUS Power4 Gear+

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	No
Intel 64	No
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Physical Address Extension (PAE)	32 bit
Physical Address Extension (PAE)	Yes
Processor ARK ID	27242
Processor code	SL8VY
Processor package size	35 x 35 mm
Thermal Monitoring Technologies	No
Conflict-Free processor	No

Power

Specification	Value
AC adapter power	65 W
AC adapter input voltage	100/240 V
AC adapter output current	3.42 A
AC adapter output voltage	19 V
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington

Weight & dimensions

Specification	Value
Weight	1.9 kg
Width	335 mm
Depth	245 mm
Height	34.8 mm

Packaging content

Specification	Value
AC adapter included	Yes

Other features

Specification	Value
Security features	BIOS Booting / HDD User Password
Infrared data port	Yes
Internal modem	Yes
Modem speed	56 Kbit/s
Modem type	Data/Fax V.92
Expansion slots	1x Flash card
