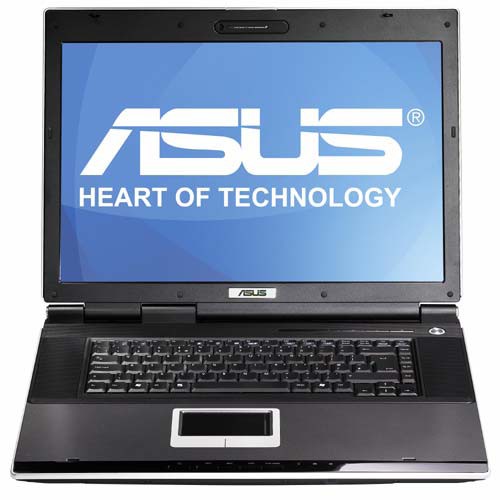

ASUS A7JC-R005M Notebook

Model A7JC-R005M NotebookPart no. A7JC-R005MEAN 4719543861189

120 specifications Checked yesterday

Display43.2 cm (17")
Resolution1440 x 900 pixels
ProcessorIntel® Core™ Duo
Memory1 GB
Storage100 GB
GraphicsAMD Mobility Radeon X1600

See all specifications

Overview

Display: 43.2 cm (17")
Resolution: 1440 x 900 pixels
Processor: Intel® Core™ Duo
Memory: 1 GB
Storage: 100 GB
Graphics: AMD Mobility Radeon X1600

Brand: ASUS
Category: Laptop
Model: A7JC-R005M Notebook
Part numbers: A7JC-R005M, 90NG4A41132344BC1I
EAN / UPC: 4719543861189
Also known as: ASUS A7JC-R005M Notebook Intel® Core™ Duo T2400 43.2 cm (17") 1 GB DDR2-SDRAM 100 GB AMD Mobility Radeon X1600 QWERTY

Specifications

120 specifications in 17 groups

Display

Specification	Value
Display diagonal	43.2 cm (17")
Display resolution	1440 x 900 pixels
Native aspect ratio	16:10

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ Duo
Processor model	T2400
Processor cores	2
Processor threads	2
Processor frequency	1.83 GHz
Processor cache	2 MB
Processor cache type	L2
Processor front side bus	667 MHz
Processor socket	Socket 478
Processor lithography	65 nm
Processor operating modes	32-bit
Processor series	Intel Core Duo T2000 Series
Processor codename	Yonah
Bus type	FSB
FSB Parity	No
Stepping	C0
Thermal Design Power (TDP)	31 W
Tjunction	100 °C
Number of Processing Die Transistors	151 M
Processing Die size	90 mm²
CPU multiplier (bus/core ratio)	11
ECC supported by processor	No

Memory

Specification	Value
Internal memory	1 GB
Internal memory type	DDR2-SDRAM
Memory layout (slots x size)	2 x 0.5 GB

Storage

Specification	Value
Total storage capacity	100 GB
HDD interface	SATA
HDD speed	5400 RPM
Optical drive type	DVD Super Multi

Graphics

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	AMD Mobility Radeon X1600
Maximum graphics card memory	0.256 GB

Audio

Specification	Value
Audio system	Intel HDA + 3D Effect
Number of built-in speakers	2

Camera

Specification	Value
Front camera	Yes

Network

Specification	Value
Networking features	Fast Ethernet, WLAN, Bluetooth
Ethernet LAN data rates	10,100 Mbit/s
Bluetooth	Yes
Wireless compliance	Bluetooth V2.0+ EDR

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	5
Ethernet LAN (RJ-45) ports	1
DVI port	Yes
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	1
Headphone outputs	1
S/PDIF out port	Yes
Microphone in	Yes
Docking connector	No
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
Modem (RJ-11) ports	1
TV-in port	Yes
TV-out	Yes
TV-out type	S-Video
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0
USB 1.1 ports quantity	0

Performance

Specification	Value
Motherboard chipset	Intel® 945PM Express

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard number of keys	88
Windows keys	Yes
Keyboard layout	QWERTY
Hot keys	4
Keyboard function keys	9

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	No
Intel 64	No
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	27235
Processor package size	35 x 35 mm
Thermal Monitoring Technologies	No
Conflict-Free processor	No

Battery

Specification	Value
Number of battery cells	8
Battery capacity	4400 mAh

Power

Specification	Value
AC adapter power	65 W
AC adapter input voltage	100/240 V
AC adapter output current	4.7 A
AC adapter output voltage	19 V
DC-in jack	Yes

Weight & dimensions

Specification	Value
Weight	4 kg
Width	405 mm
Depth	314 mm
Height	38.2 mm

Hard drive

Specification	Value
Storage drive type	2.5"

Other features

Specification	Value
Infrared data port	Yes
Special features	Audio DJ(play/pause, stop, forward, rewind)
Internal modem	Yes
Modem speed	56 Kbit/s
Expansion slots	1x ExpressCard
Supplied AC adapter type	AC
