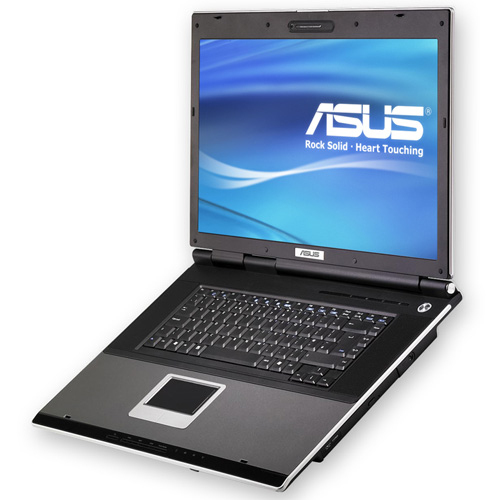

ASUS A7JC-R003M-A Intel® Core™ Duo T2400

43.2 cm (17") 1 GB DDR2-SDRAM 100 GB AMD Radeon X1600 Black, Grey

Model A7JC-R003M-APart no. 90NG4A41B223449C18

130 specifications Checked 3 days ago

Display43.2 cm (17")
Resolution1440 x 900 pixels
ProcessorIntel® Core™ Duo
Memory1 GB
Storage100 GB
GraphicsAMD Radeon X1600

See all specifications

Overview

Display: 43.2 cm (17")
Resolution: 1440 x 900 pixels
Processor: Intel® Core™ Duo
Memory: 1 GB
Storage: 100 GB
Graphics: AMD Radeon X1600

Brand: ASUS
Category: Laptop
Model: A7JC-R003M-A
Part number: 90NG4A41B223449C18
Also known as: ASUS A7JC-R003M-A Intel® Core™ Duo T2400 43.2 cm (17") 1 GB DDR2-SDRAM 100 GB AMD Radeon X1600 Black, Grey

Specifications

130 specifications in 19 groups

Design

Specification	Value
Product colour	Black, Grey

Display

Specification	Value
Display diagonal	43.2 cm (17")
Display resolution	1440 x 900 pixels
Native aspect ratio	16:10

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ Duo
Processor model	T2400
Processor cores	2
Processor threads	2
Processor frequency	1.83 GHz
Processor cache	2 MB
Processor cache type	L2
Processor front side bus	667 MHz
Processor socket	Socket 478
Processor lithography	65 nm
Processor operating modes	32-bit
Processor series	Intel Core Duo T2000 Series
Processor codename	Yonah
Bus type	FSB
FSB Parity	No
Stepping	C0
Thermal Design Power (TDP)	31 W
Tjunction	100 °C
Number of Processing Die Transistors	151 M
Processing Die size	90 mm²
CPU multiplier (bus/core ratio)	11
ECC supported by processor	No

Memory

Specification	Value
Internal memory	1 GB
Internal memory type	DDR2-SDRAM
Memory slots	2x SO-DIMM
Maximum internal memory	2 GB

Storage

Specification	Value
Total storage capacity	100 GB
Number of HDDs installed	1
HDD interface	SATA
Optical drive type	DVD-RW
Card reader integrated	Yes
Compatible memory cards	Memory Stick (MS), MMC, MS PRO, SD

Graphics

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	AMD Radeon X1600
Graphics card family	AMD
Maximum graphics card memory	0.256 GB

Audio

Specification	Value
Audio system	HDA
Number of built-in speakers	2
Audio system full duplex	Yes
Audio system direct 3D sound	Yes

Camera

Specification	Value
Front camera resolution (numeric)	1.3 MP

Network

Specification	Value
Wi-Fi	Yes
Networking features	Fast Ethernet
Wireless technology	Wi-Fi
Bluetooth	Yes
Bluetooth version	2.0+EDR

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	5
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
eSATA ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	0
DisplayPorts quantity	0
DVI port	Yes
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	1
Headphone outputs	1
S/PDIF out port	Yes
Microphone in	Yes
Docking connector	No
ExpressCard slot	Yes
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
Modem (RJ-11) ports	1
TV-in port	No
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0

Performance

Specification	Value
Motherboard chipset	Intel® 945PM Express

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard keystroke	2.5 mm
Keyboard key pitch	1.9 cm

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	No
Intel 64	No
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	27235
Processor package size	35 x 35 mm
Thermal Monitoring Technologies	No
Conflict-Free processor	No

Battery

Specification	Value
Number of battery cells	8
Battery capacity	4800 mAh

Power

Specification	Value
AC adapter power	90 W
AC adapter input voltage	100 - 240 V
AC adapter output current	4.7 A
AC adapter output voltage	19 V
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Password protection type	BIOS
HDD user password	Yes

Weight & dimensions

Specification	Value
Weight	4 kg
Dimensions (WxDxH)	405 x 314 x 38.2 mm

Packaging content

Specification	Value
AC adapter included	Yes

Other features

Specification	Value
Infrared data port	Yes
Compliance industry standards	IEEE 802.3, IEEE 802.3u
Power supply type	AC/DC
Internal modem	Yes
TV tuner integrated	No
Modem speed	56 Kbit/s
Supplied AC adapter type	AC
