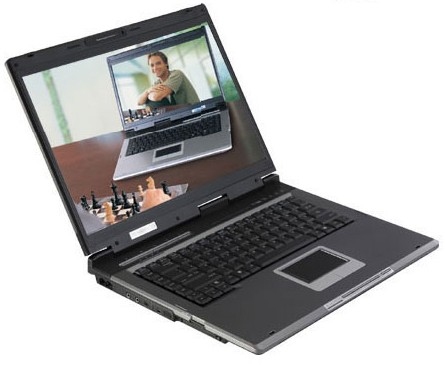

ASUS A6JE-AP012H laptop Intel® Core™ Duo T2300E

39.1 cm (15.4") 1 GB DDR2-SDRAM 80 GB AMD Mobility Radeon X1450 Windows XP Home Edition

Model A6JE-AP012H

119 specifications Checked 3 days ago

Display39.1 cm (15.4")
Resolution1280 x 800 pixels
ProcessorIntel® Core™ Duo
Memory1 GB
Storage80 GB
GraphicsAMD Mobility Radeon X1450

See all specifications

Overview

Display: 39.1 cm (15.4")
Resolution: 1280 x 800 pixels
Processor: Intel® Core™ Duo
Memory: 1 GB
Storage: 80 GB
Graphics: AMD Mobility Radeon X1450

Brand: ASUS
Category: Laptop
Model: A6JE-AP012H
Part numbers: A6JE-AP012H, 90NKWA214644202C351Y, 90NKWA214644202C351
Also known as: ASUS A6JE-AP012H laptop Intel® Core™ Duo T2300E 39.1 cm (15.4") 1 GB DDR2-SDRAM 80 GB AMD Mobility Radeon X1450 Windows XP Home Edition

Specifications

119 specifications in 18 groups

Display

Specification	Value
Display diagonal	39.1 cm (15.4")
Display resolution	1280 x 800 pixels
Native aspect ratio	16:10

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ Duo
Processor model	T2300E
Processor cores	2
Processor threads	2
Processor frequency	1.66 GHz
Processor cache	2 MB
Processor cache type	L2
Processor front side bus	667 MHz
Processor socket	PBGA479, PPGA478
Processor lithography	65 nm
Processor operating modes	32-bit
Processor series	Intel Core Duo T2000 Series
Processor codename	Yonah
Bus type	FSB
FSB Parity	No
Thermal Design Power (TDP)	31 W
Tjunction	100 °C
Number of Processing Die Transistors	151 M
Processing Die size	90 mm²
CPU multiplier (bus/core ratio)	10
ECC supported by processor	No

Memory

Specification	Value
Internal memory	1 GB
Internal memory type	DDR2-SDRAM
Memory layout (slots x size)	2 x 0.5 GB

Storage

Specification	Value
Total storage capacity	80 GB
HDD interface	SATA
HDD speed	5400 RPM

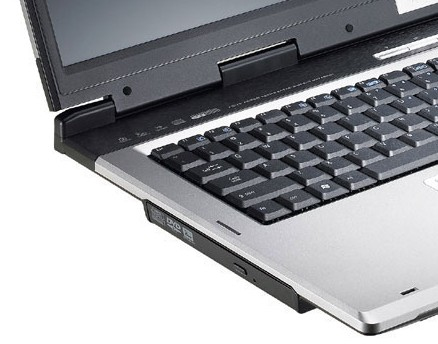

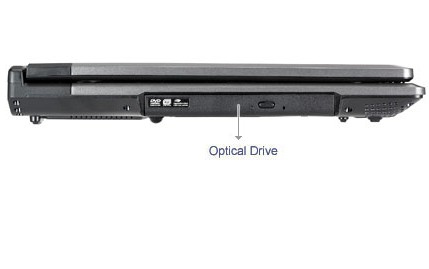

Optical drive type	DVD Super Multi

Graphics

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	AMD Mobility Radeon X1450
Maximum graphics card memory	0.128 GB

Audio

Specification	Value
Audio system	Intel HDA

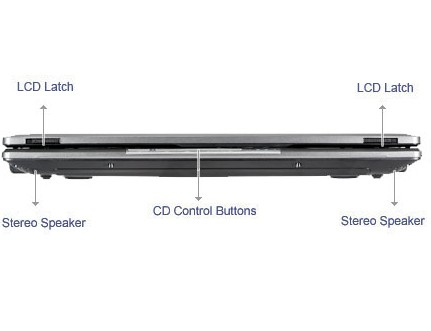

Number of built-in speakers	2

Camera

Specification	Value
Front camera	Yes
Front camera resolution (numeric)	1.3 MP

Network

Specification	Value
Networking features	Gigabit Ethernet, WLAN
Wireless technology	IEEE 802.11b/g
Bluetooth	Yes
Bluetooth version	2.0+EDR

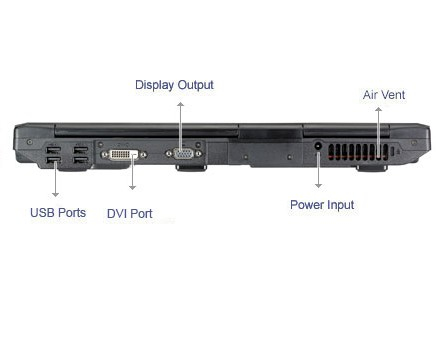

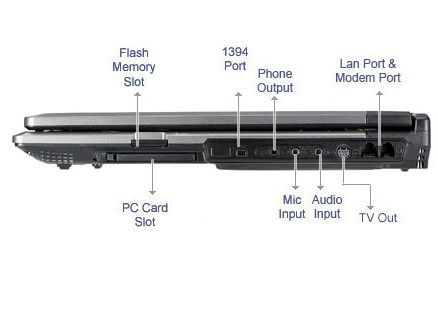

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	5
Ethernet LAN (RJ-45) ports	1
DVI port	Yes
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	1
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	No
ExpressCard slot	No
CardBus PCMCIA slots quantity	1
CardBus PCMCIA slot type	Type II
SmartCard slot	No
Modem (RJ-11) ports	1
TV-in port	No
TV-out	Yes
TV-out type	S-Video
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0
USB 1.1 ports quantity	0

Performance

Specification	Value
Motherboard chipset	Intel® 945PM Express

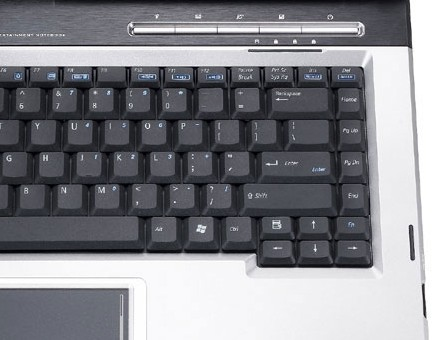

Keyboard

Specification	Value

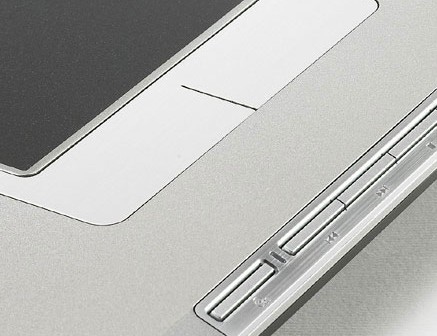

Pointing device	Touchpad

Software

Specification	Value
Operating system installed	Windows XP Home Edition
Bundled software	ASUSDVD XP 6.0 Power Director 3.0 DE Medi@Show 2.0 SE Adobe Acrobat Reader 7.0 NERO Express 6.0 ASUS

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	No
Intel 64	No
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Physical Address Extension (PAE)	32 bit
Processor ARK ID	27234
Processor package size	35 x 35 mm
Thermal Monitoring Technologies	No
Conflict-Free processor	No

Power

Specification	Value
AC adapter power	90 W
AC adapter input voltage	100/240 V
AC adapter output current	4.73 A
AC adapter output voltage	19 V
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Password protection type	BIOS
HDD user password	Yes

Weight & dimensions

Specification	Value
Weight	2.7 kg
Width	354 mm
Depth	284 mm
Height	35.2 mm

Packaging content

Specification	Value
AC adapter included	Yes

Other features

Specification	Value
Infrared data port	No
Internal modem	Yes
Modem speed	56 Kbit/s
Modem type	V.92
