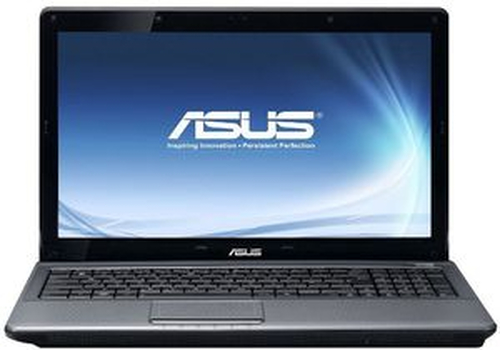

ASUS A52F-EX1193D Intel® Core™ i3 i3-380M Laptop

39.6 cm (15.6") HD 2 GB DDR3-SDRAM 320 GB HDD FreeDOS Black, Silver QWERTY

Model A52F-EX1193DPart no. 90NXNW478N2G436045D

161 specifications Checked 3 days ago

Display39.6 cm (15.6")
Resolution1366 x 768 pixels
ProcessorIntel® Core™ i3
Memory2 GB
Storage320 GB
Battery4400 mAh

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1366 x 768 pixels
Processor: Intel® Core™ i3
Memory: 2 GB
Storage: 320 GB
Battery: 4400 mAh

Brand: ASUS
Category: Laptop
Model: A52F-EX1193D
Part number: 90NXNW478N2G436045D
Also known as: ASUS A52F-EX1193D Intel® Core™ i3 i3-380M Laptop 39.6 cm (15.6") HD 2 GB DDR3-SDRAM 320 GB HDD FreeDOS Black, Silver QWERTY

Specifications

161 specifications in 20 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black, Silver
Form factor	Clamshell

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1366 x 768 pixels
Touchscreen	No
HD type	HD
LED backlight	Yes
Native aspect ratio	16:9

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i3
Processor generation	Intel® Core™ i3
Processor model	i3-380M
Processor cores	2
Processor threads	4
Processor frequency	2.53 GHz
System bus rate	2.5 GT/s
Processor cache	3 MB
Processor cache type	Smart Cache
Processor socket	PGA988
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Core i3-300 Mobile Series
Processor codename	Arrandale
Bus type	DMI
FSB Parity	No
Thermal Design Power (TDP)	35 W
Tjunction	90 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16
PCI Express slots version	2.0
Number of Processing Die Transistors	382 M
Processing Die size	81 mm²
CPU multiplier (bus/core ratio)	19
ECC supported by processor	No

Memory

Specification	Value
Internal memory	2 GB
Internal memory type	DDR3-SDRAM
Memory clock speed	1066 MHz
Memory slots	2x SO-DIMM
Maximum internal memory	8 GB

Storage

Specification	Value
Total storage capacity	320 GB
Storage media	HDD
Number of HDDs installed	1
HDD capacity	320 GB
HDD interface	SATA
Optical drive type	DVD Super Multi
Card reader integrated	Yes
Compatible memory cards	Memory Stick (MS), MMC, MS PRO, SD

Graphics

Specification	Value
On-board graphics card	Yes
Graphics card family	Intel
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
On-board graphics card base frequency	500 MHz
On-board graphics card dynamic frequency (max)	667 MHz

Audio

Specification	Value
Number of built-in speakers	2
Speakers manufacturer	Altec Lansing
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera resolution (numeric)	0.3 MP

Network

Specification	Value
Wi-Fi	Yes
Networking features	Gigabit Ethernet
Wireless technology	Wi-Fi
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	No
Cabling technology	10/100/1000Base-T(X)

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
eSATA/USB 2.0 ports quantity	0
eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	0
eSATA ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Thunderbolt ports quantity	0
Headphone outputs	1
S/PDIF out port	No
Combo headphone/mic port	No
Microphone in	Yes
Docking connector	No
ExpressCard slot	No
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
TV-out	No

Performance

Specification	Value
Motherboard chipset	Intel® HM55 Express

Keyboard

Specification	Value
Pointing device	Touchpad
Numeric keypad	No
Full-size keyboard	Yes
Windows keys	Yes
Keyboard layout	QWERTY

Software

Specification	Value
Operating system installed	FreeDOS

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	45 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Smart Response Technology	No
Intel® Turbo Boost Technology	No
Physical Address Extension (PAE)	36 bit
Processor ARK ID	50178
Processor package size	rPGA 37.5x 37.5, BGA 34x28
Supported instruction sets	SSE4.1/4.2
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Battery

Specification	Value
Number of battery cells	6
Battery capacity	4400 mAh
Battery capacity	48.84 Wh

Power

Specification	Value
AC adapter power	65 W
AC adapter output current	3.42 A
AC adapter output voltage	19 V
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	No
Fingerprint reader	No

Weight & dimensions

Specification	Value
Weight	2.62 kg
Width	380 mm
Depth	255 mm
Height (front)	3.45 cm
Height (rear)	3.57 cm
Width (imperial)	38.1 cm (15")
Depth (imperial)	25.4 cm (10")
Height (front) (imperial)	3.45 cm (1.36")
Height (rear) (imperial)	3.58 cm (1.41")

Packaging content

Specification	Value
AC adapter included	Yes
Cables included	AC

Other features

Specification	Value
Infrared data port	No
3D	No
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Power requirements	100 - 240V
Power supply type	AC/DC
Supplied AC adapter type	AC
