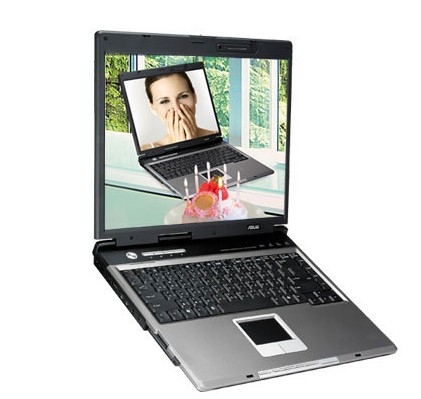

ASUS A3FP-5020P laptop Intel® Core™ Duo T2060

38.4 cm (15.1") 1 GB DDR2-SDRAM 100 GB Windows XP Professional

Model A3FP-5020P

113 specifications Checked 5 days ago

Display38.4 cm (15.1")
Resolution1024 x 768 pixels
ProcessorIntel® Core™ Duo
Memory1 GB
Storage100 GB
OSWindows XP Professional

See all specifications

Overview

Display: 38.4 cm (15.1")
Resolution: 1024 x 768 pixels
Processor: Intel® Core™ Duo
Memory: 1 GB
Storage: 100 GB
OS: Windows XP Professional

Brand: ASUS
Category: Laptop
Model: A3FP-5020P
Part number: A3FP-5020P
Also known as: ASUS A3FP-5020P laptop Intel® Core™ Duo T2060 38.4 cm (15.1") 1 GB DDR2-SDRAM 100 GB Windows XP Professional

Specifications

113 specifications in 17 groups

Display

Specification	Value
Display diagonal	38.4 cm (15.1")
Display resolution	1024 x 768 pixels
Native aspect ratio	4:3

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ Duo
Processor model	T2060
Processor cores	2
Processor threads	2
Processor frequency	1.6 GHz
Processor cache	1 MB
Processor cache type	L2
Processor front side bus	533 MHz
Processor socket	LGA 775 (Socket T)
Processor lithography	65 nm
Processor operating modes	32-bit
Processor series	Intel Pentium T2000 Series for Mobile
Processor codename	Yonah
Bus type	FSB
FSB Parity	No
Thermal Design Power (TDP)	31 W
Tjunction	100 °C
Number of Processing Die Transistors	151 M
Processing Die size	90 mm²
CPU multiplier (bus/core ratio)	12
ECC supported by processor	No

Memory

Specification	Value
Internal memory	1 GB
Internal memory type	DDR2-SDRAM
Memory layout (slots x size)	2 x 0.5 GB

Storage

Specification	Value
Total storage capacity	100 GB
HDD speed	5400 RPM
Optical drive type	DVD-ROM
Card reader integrated	Yes

Graphics

Specification	Value
Maximum graphics card memory	0.128 GB

Audio

Specification	Value
Audio system	Intel HDA
Number of built-in speakers	2
Audio system full duplex	Yes
Audio system direct 3D sound	Yes

Network

Specification	Value
Networking features	Fast Ethernet, WLAN
Bluetooth	No

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	4
Ethernet LAN (RJ-45) ports	1
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	1
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	Yes
ExpressCard slot	No
CardBus PCMCIA slots quantity	1
CardBus PCMCIA slot type	Type II
SmartCard slot	No
Modem (RJ-11) ports	1
TV-in port	No
TV-out	Yes
TV-out type	S-Video
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0
USB 1.1 ports quantity	0

Performance

Specification	Value
Motherboard chipset	Intel® 945GM Express

Keyboard

Specification	Value
Pointing device	Touchpad

Software

Specification	Value
Operating system installed	Windows XP Professional
Bundled software	Yes

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	No
Intel 64	No
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Physical Address Extension (PAE)	32 bit
Processor ARK ID	28021
Processor package size	35 x 35 mm
Thermal Monitoring Technologies	No
Conflict-Free processor	No

Power

Specification	Value
AC adapter input voltage	100/240 V
AC adapter output current	3.42 A
AC adapter output voltage	19 V
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Password protection type	BIOS
HDD user password	Yes

Weight & dimensions

Specification	Value
Weight	2.7 kg
Width	328 mm
Depth	288 mm

Packaging content

Specification	Value
AC adapter included	Yes

Other features

Specification	Value
Infrared data port	No
Internal modem	Yes
Modem speed	56 Kbit/s
Modem type	V.92
