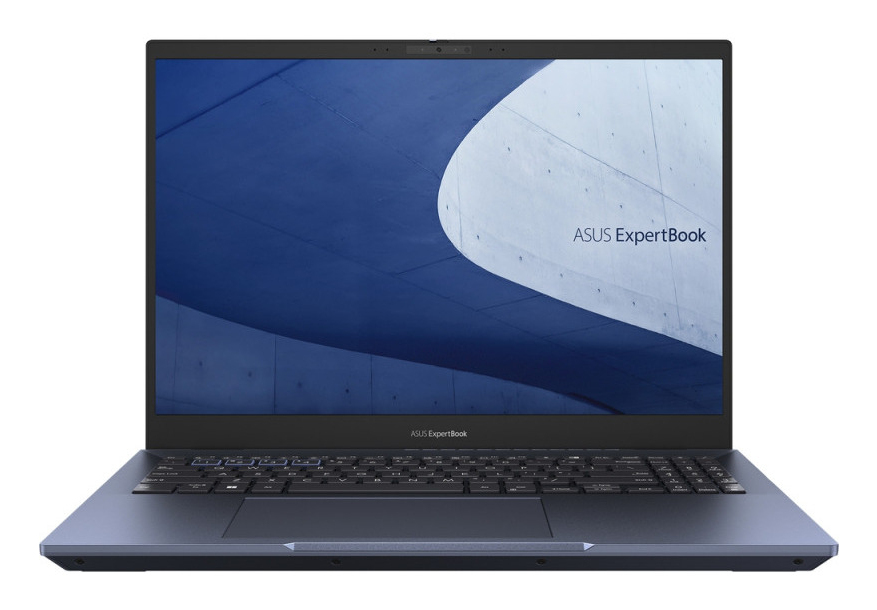

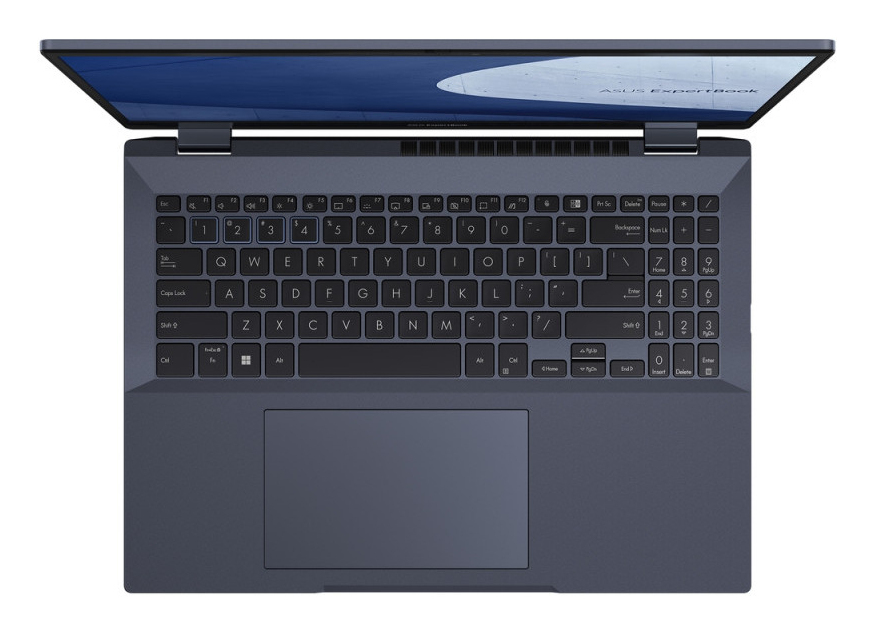

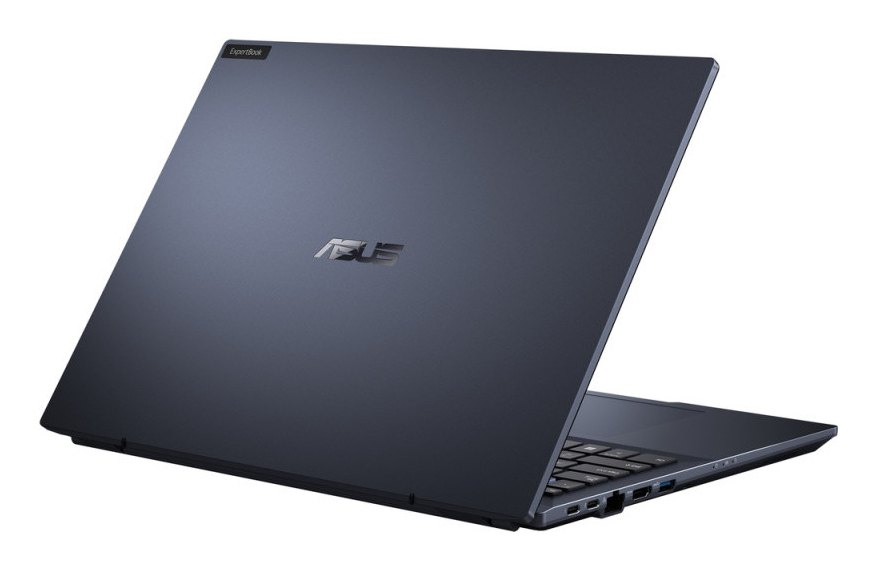

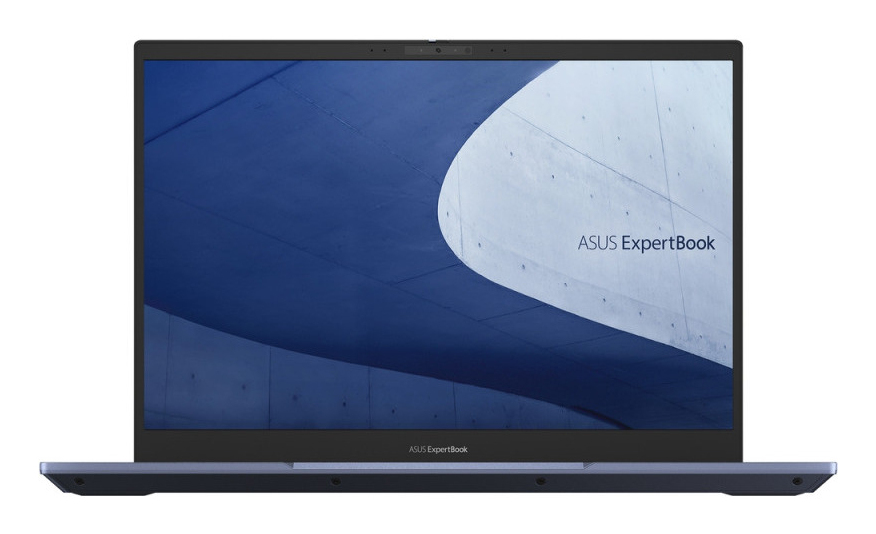

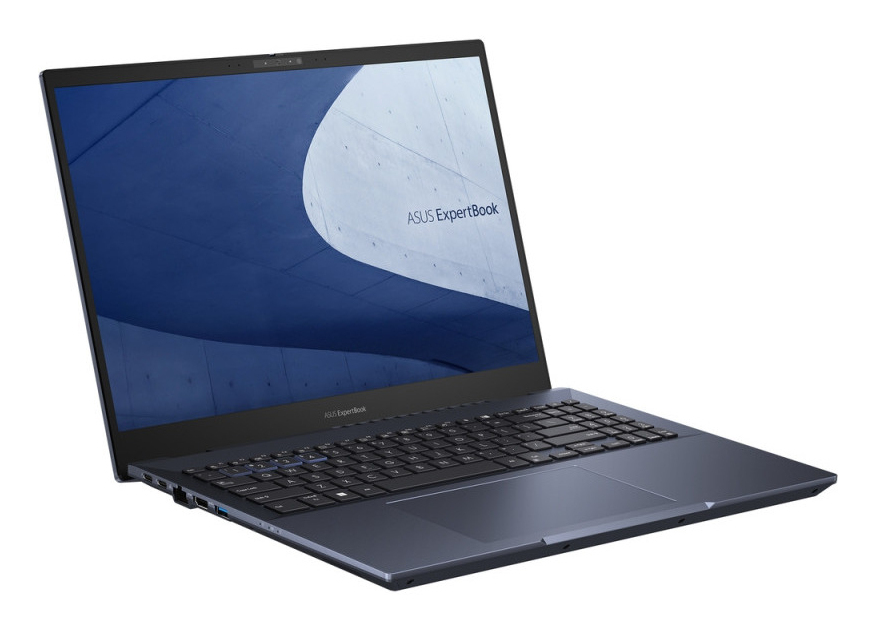

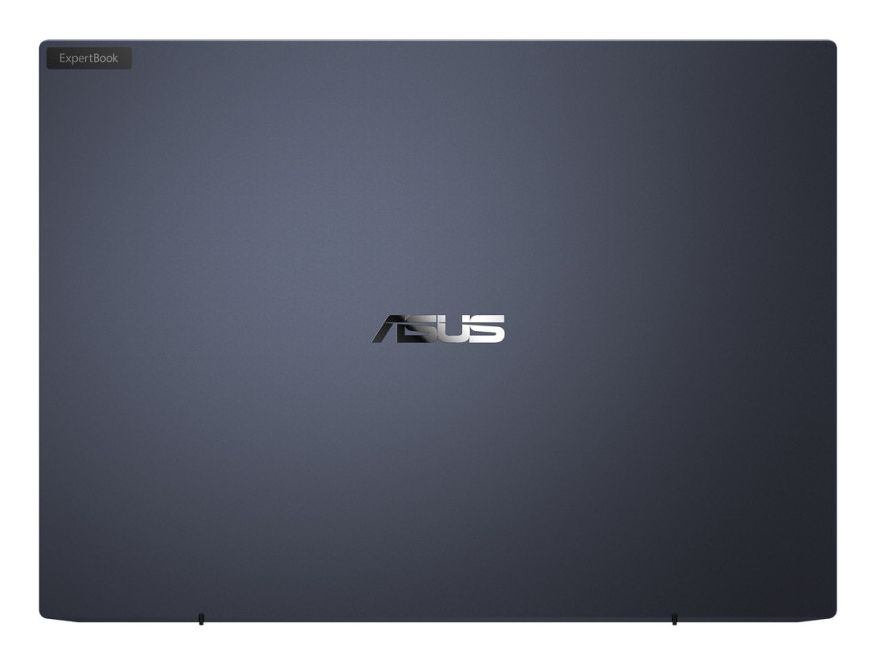

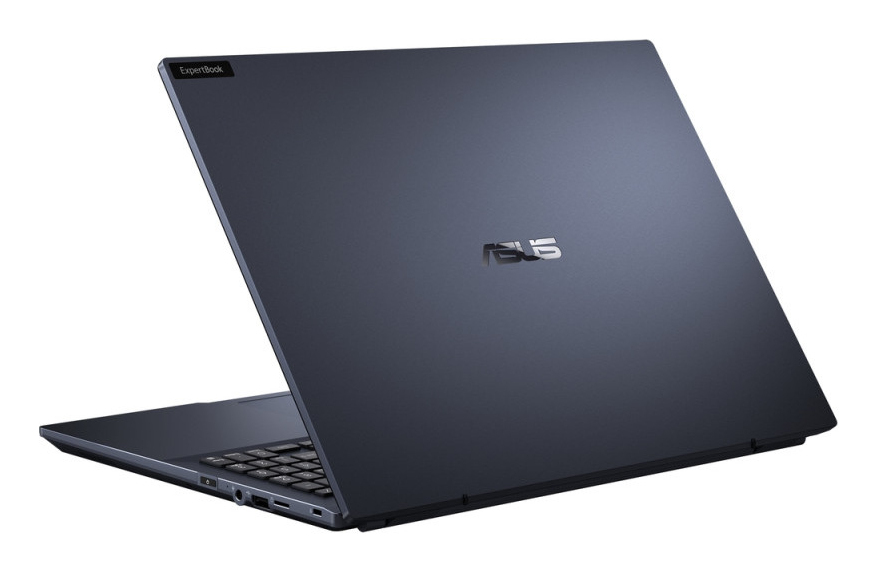

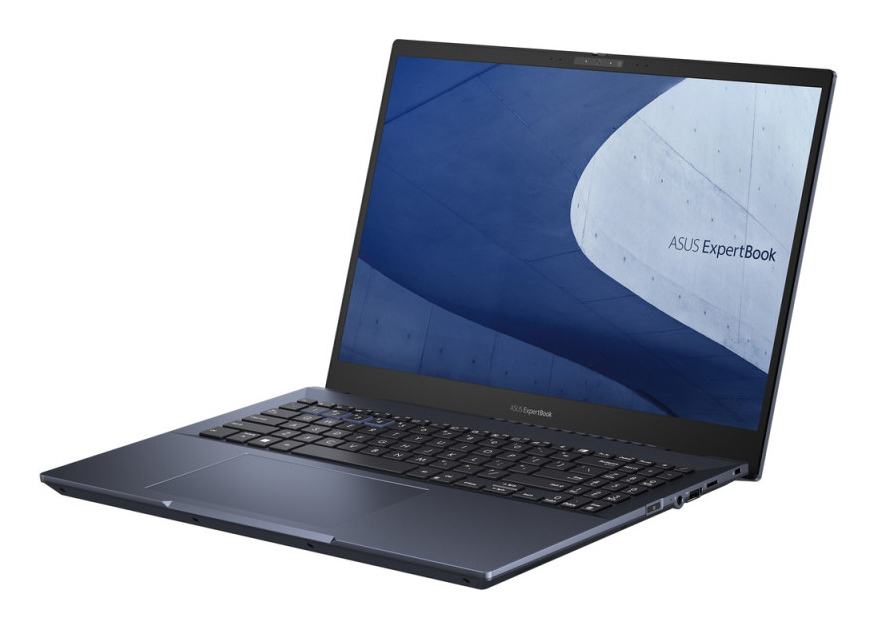

ASUS ExpertBook B5 90NX05H1-M00AN0 Intel® Core™ i7 i7-1260P Laptop

ExpertBook B5 90NX05H1-M00AN0 Intel® Core™ i7 i7-1260P Laptop

40.6 cm (16") WUXGA 16 GB DDR5-SDRAM 1 TB SSD Wi-Fi 6 (802.11ax) Windows 11 Pro Black

Model 90NX05H1-M00AN0Part no. B5602CBA-MB0275XEAN 4711387011454

95 specifications Checked today

Display40.6 cm (16")
Resolution1920 x 1200 pixels
ProcessorIntel® Core™ i7
Memory16 GB
Storage1 TB
GraphicsNot available

See all specifications

Overview

Display: 40.6 cm (16")
Resolution: 1920 x 1200 pixels
Processor: Intel® Core™ i7
Memory: 16 GB
Storage: 1 TB
Graphics: Not available

Brand: ASUS
Category: Laptop
Model: 90NX05H1-M00AN0
Part number: B5602CBA-MB0275X
EAN / UPC: 4711387011454
Also known as: ASUS ExpertBook B5 90NX05H1-M00AN0 Intel® Core™ i7 i7-1260P Laptop 40.6 cm (16") WUXGA 16 GB DDR5-SDRAM 1 TB SSD Wi-Fi 6 (802.11ax) Windows 11 Pro Black

Specifications

95 specifications in 19 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Form factor	Clamshell

Display

Specification	Value
Display diagonal	40.6 cm (16")
Display resolution	1920 x 1200 pixels
Touchscreen	No
HD type	WUXGA
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:10
Anti-glare screen	Yes
Display brightness	300 cd/m²
Colour gamut	45%
Display diagonal (metric)	40.6 cm
RGB colour space	NTSC

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	12th gen Intel® Core™ i7
Processor model	i7-1260P
Processor cores	12
Processor threads	16
Processor boost frequency	4.7 GHz
Processor frequency	2.1 GHz
Performance cores	4
Efficient cores	8
Performance-core Max Turbo Frequency	4.7 GHz
Efficient-core Max Turbo Frequency	3.4 GHz
Processor cache	18 MB
Processor cache type	Smart Cache
Maximum turbo power	64 W
Processor base power	28 W

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Memory form factor	On-board + SO-DIMM
Maximum internal memory	40 GB

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	SSD
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
NVMe	Yes
SSD interface	PCI Express 4.0
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card family	Intel Iris Xe Graphics
On-board graphics card model	Intel Iris Xe Graphics

Audio

Specification	Value
Audio system	Dolby Atmos
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera HD type	Full HD
Front camera resolution	1920 x 1080 pixels
Privacy camera	Yes

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Antenna type	2x2
Bluetooth	Yes
Bluetooth version	5.2

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.0b
Combo headphone/mic port	Yes

Performance

Specification	Value
Repairability index	8.6

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes
Spill-resistant keyboard	Yes

Software

Specification	Value
Operating system installed	Windows 11 Pro

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	3
Battery capacity	50 Wh

Power

Specification	Value
AC adapter power	90 W
AC adapter frequency	100 - 240 Hz
AC adapter input voltage	50 / 60 V
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	Yes
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Password protection	Yes
Password protection type	BIOS, HDD

Certificates

Specification	Value
Certification	EPEAT Silver Energy star 8.0 RoHS

Weight & dimensions

Specification	Value
Width	358 mm
Depth	261 mm
Height (front)	1.9 cm
Height (rear)	1.9 cm

Packaging content

Specification	Value
AC adapter included	Yes
