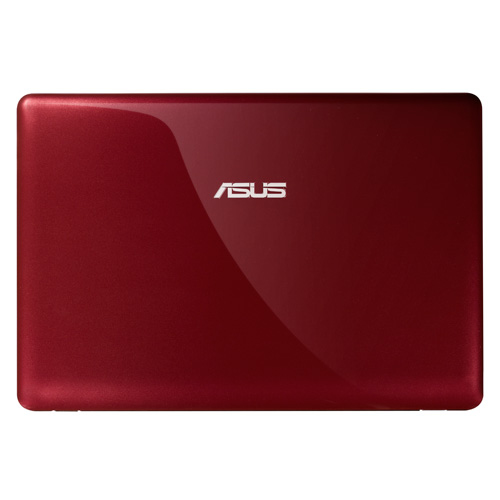

ASUS 1215P-RED020M netbook Intel Atom® N570

30.7 cm (12.1") 2 GB DDR-SDRAM 320 GB HDD Windows 7 Home Premium Red

Model 1215P-RED020M

87 specifications Checked 3 days ago

Display30.7 cm (12.1")
Resolution1366 x 768 pixels
ProcessorIntel Atom®
Memory2 GB
Storage320 GB
TypeNetbook

See all specifications

Overview

Display: 30.7 cm (12.1")
Resolution: 1366 x 768 pixels
Processor: Intel Atom®
Memory: 2 GB
Storage: 320 GB
Type: Netbook

Brand: ASUS
Category: Laptop
Model: 1215P-RED020M
Part number: 1215P-RED020M
Also known as: ASUS 1215P-RED020M netbook Intel Atom® N570 30.7 cm (12.1") 2 GB DDR-SDRAM 320 GB HDD Windows 7 Home Premium Red

Specifications

87 specifications in 18 groups

Design

Specification	Value
Product type	Netbook
Product colour	Red

Display

Specification	Value
Display diagonal	30.7 cm (12.1")
Display resolution	1366 x 768 pixels
LED backlight	Yes
Native aspect ratio	16:9

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	N570
Processor cores	2
Processor threads	4
Processor frequency	1.66 GHz
System bus rate	2.5 GT/s
Processor cache	1 MB
Processor cache type	L2
Processor lithography	45 nm
Processor operating modes	64-bit
Processor codename	Pineview
Thermal Design Power (TDP)	8.5 W
Number of Processing Die Transistors	17 M
Processing Die size	87 mm²

Memory

Specification	Value
Internal memory	2 GB
Internal memory type	DDR-SDRAM
Memory form factor	SO-DIMM
Memory slots	2x SO-DIMM
Maximum internal memory	2 GB

Storage

Specification	Value
Total storage capacity	320 GB
Storage media	HDD
HDD capacity	320 GB
HDD interface	SATA
HDD size	2.5"
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MMC, SD, SDHC, SDXC

Graphics

Specification	Value
Graphics card family	Intel
On-board graphics card model	Intel® GMA 3150
On-board graphics card base frequency	200 MHz

Audio

Specification	Value
Audio system	HD
Number of built-in speakers	2
Built-in microphone	Yes

Camera

Specification	Value
Front camera resolution (numeric)	0.3 MP

Network

Specification	Value
Wi-Fi	Yes
Networking features	Fast Ethernet
Wireless technology	802.11 b/g/n
Ethernet LAN	Yes
Ethernet LAN data rates	10,100 Mbit/s
Bluetooth	No
Cabling technology	10/100Base-T(X)

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
eSATA ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	0
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Thunderbolt ports quantity	0
Headphone outputs	1
Microphone in	Yes
TV-out	No

Performance

Specification	Value
GPS (satellite)	No

Keyboard

Specification	Value
Pointing device	Touchpad

Software

Specification	Value
Operating system installed	Windows 7 Home Premium
Drivers included	Yes

Processor special features

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Intel 64	Yes
Intel Demand Based Switching	No
Intel Trusted Execution Technology	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Turbo Boost Technology	No
Processor ARK ID	55637
Processor package size	22 x 22 mm
Supported instruction sets	SSE2, SSE3, SSSE3
Thermal Monitoring Technologies	Yes
Conflict-Free processor	Yes

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	6
Battery life (max)	8 h

Power

Specification	Value
DC-in jack	Yes

Weight & dimensions

Specification	Value
Weight	1.45 kg
Width	296 mm
Depth	203 mm
Height	23 mm

Other features

Specification	Value
Supplied AC adapter type	AC
