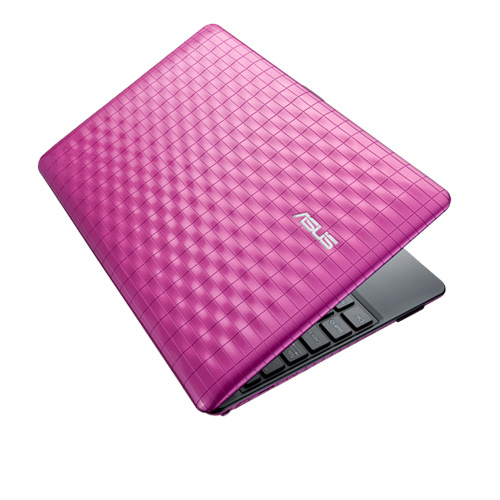

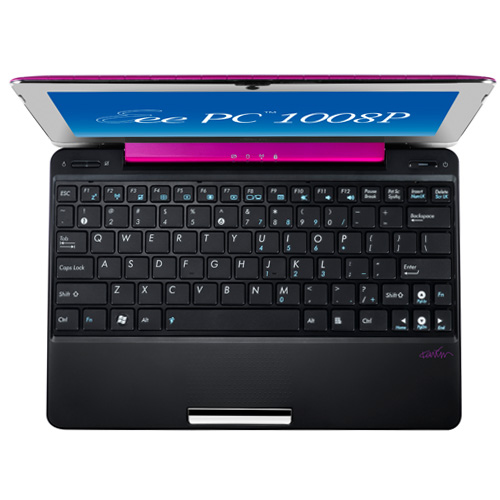

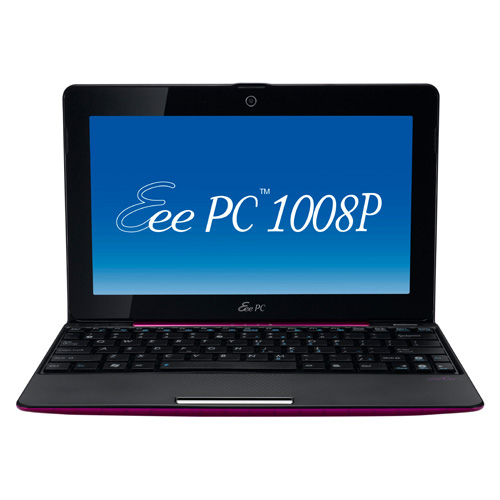

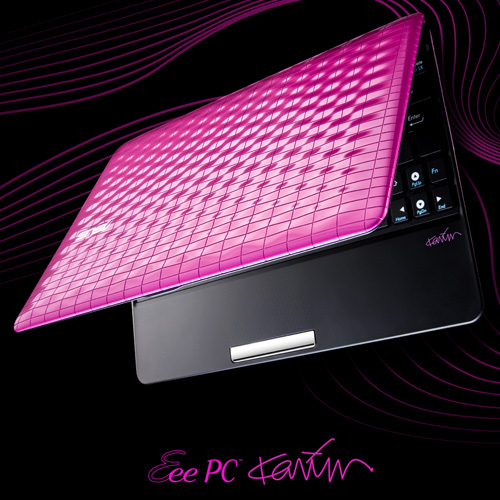

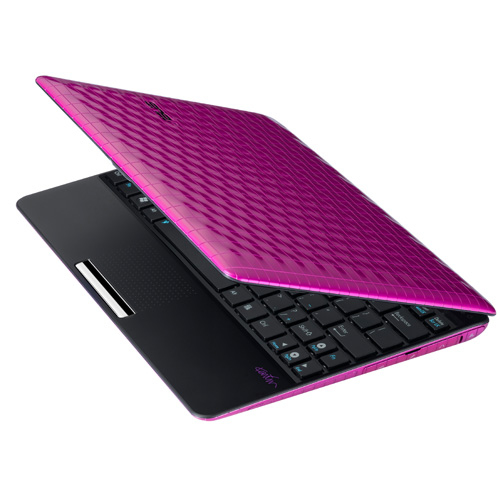

ASUS 1008P-PCH174S netbook Intel Atom® N570

25.6 cm (10.1") 1 GB DDR2-SDRAM 320 GB Windows 7 Starter Pink QWERTY

Model 1008P-PCH174S

87 specifications Checked 3 days ago

Display25.6 cm (10.1")
Resolution1024 x 600 pixels
ProcessorIntel Atom®
Memory1 GB
Storage320 GB
TypeNetbook

See all specifications

Overview

Display: 25.6 cm (10.1")
Resolution: 1024 x 600 pixels
Processor: Intel Atom®
Memory: 1 GB
Storage: 320 GB
Type: Netbook

Brand: ASUS
Category: Laptop
Model: 1008P-PCH174S
Part number: 1008P-PCH174S
Also known as: ASUS 1008P-PCH174S netbook Intel Atom® N570 25.6 cm (10.1") 1 GB DDR2-SDRAM 320 GB Windows 7 Starter Pink QWERTY

Specifications

87 specifications in 18 groups

Design

Specification	Value
Product type	Netbook
Product colour	Pink

Display

Specification	Value
Display diagonal	25.6 cm (10.1")
Display resolution	1024 x 600 pixels
LED backlight	Yes
Native aspect ratio	5:3

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	N570
Processor cores	2
Processor threads	4
Processor frequency	1.66 GHz
System bus rate	2.5 GT/s
Processor cache	1 MB
Processor cache type	L2
Processor lithography	45 nm
Processor operating modes	64-bit
Processor codename	Pineview
Thermal Design Power (TDP)	8.5 W
Number of Processing Die Transistors	17 M
Processing Die size	87 mm²

Memory

Specification	Value
Internal memory	1 GB
Internal memory type	DDR2-SDRAM
Memory form factor	SO-DIMM

Storage

Specification	Value
Total storage capacity	320 GB
HDD capacity	320 GB
HDD interface	SATA II
HDD speed	5400 RPM
HDD size	2.5"
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MMC, SD, SDHC

Graphics

Specification	Value
Graphics card family	Intel
On-board graphics card model	Intel® GMA 3150
On-board graphics card base frequency	200 MHz
Graphics card	GMA 3150

Audio

Specification	Value
Audio system	HD
Number of built-in speakers	2
Built-in microphone	Yes

Camera

Specification	Value
Front camera resolution (numeric)	1.3 MP

Network

Specification	Value
Wi-Fi	Yes
Wireless technology	802.11 b/g/n
Ethernet LAN	Yes
Ethernet LAN data rates	10,100 Mbit/s
Bluetooth	Yes
Bluetooth version	2.1+EDR
Cabling technology	10/100Base-T(X)

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
eSATA ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	0

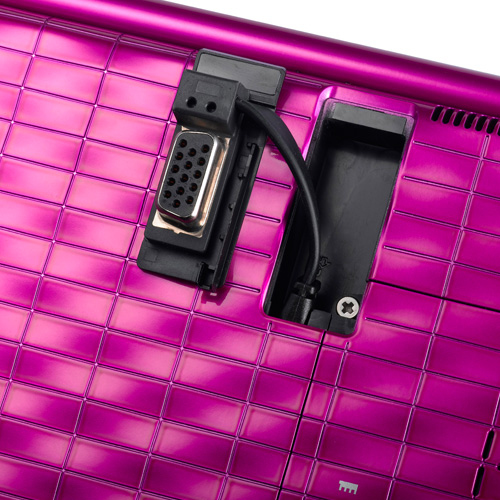

VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Thunderbolt ports quantity	0
Headphone outputs	1
Microphone in	Yes
TV-out	No

Performance

Specification	Value
GPS (satellite)	No

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard layout	QWERTY

Software

Specification	Value
Operating system installed	Windows 7 Starter

Processor special features

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Intel 64	Yes
Intel Demand Based Switching	No
Intel Trusted Execution Technology	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Turbo Boost Technology	No
Processor ARK ID	55637
Processor package size	22 x 22 mm
Supported instruction sets	SSE2, SSE3, SSSE3
Thermal Monitoring Technologies	Yes
Conflict-Free processor	Yes

Battery

Specification	Value
Battery technology	Lithium Polymer (LiPo)
Battery life (max)	6 h

Power

Specification	Value
DC-in jack	Yes

Weight & dimensions

Specification	Value
Weight	1.15 kg
Width	262 mm
Depth	180 mm
Height	26.2 mm
Dimensions (WxDxH)	262 x 180 x 26.2 mm

Other features

Specification	Value
Assisted GPS (A-GPS)	No
Supplied AC adapter type	AC
