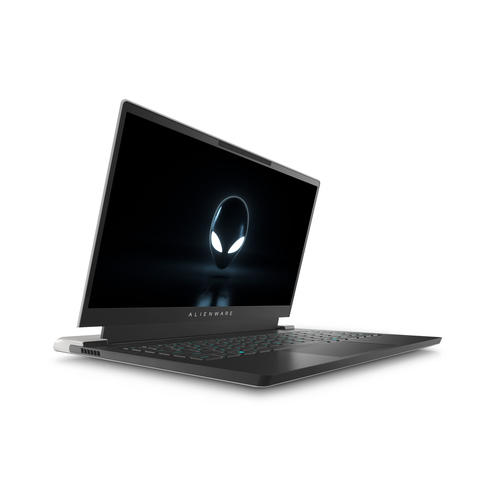

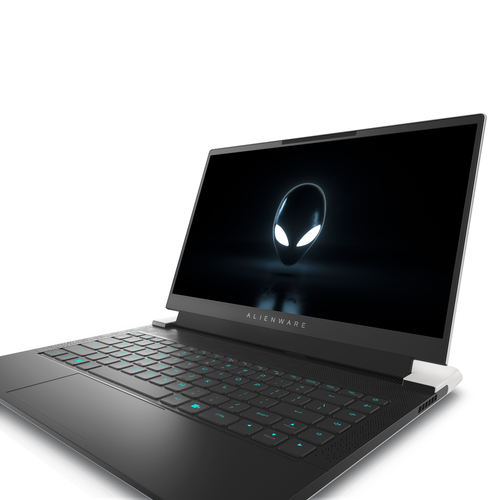

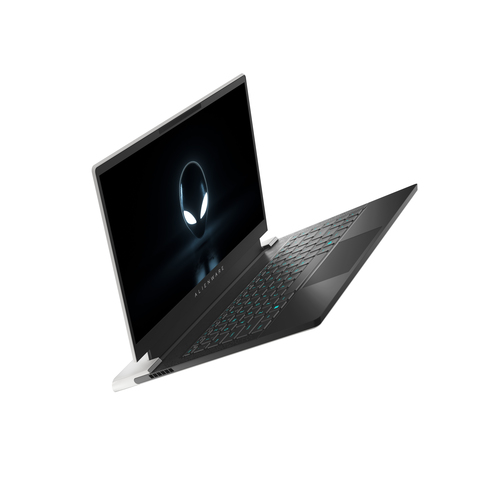

Alienware x14 R1

x14 R1

Model x14 R1Part no. WNR1X14CTO30SEAN 5397184671375

154 specifications Checked today

Display35.6 cm (14")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i7
Memory16 GB
Storage512 GB
GraphicsNVIDIA GeForce RTX 3060

See all specifications

Overview

Display: 35.6 cm (14")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i7
Memory: 16 GB
Storage: 512 GB
Graphics: NVIDIA GeForce RTX 3060

Brand: Alienware
Category: Laptop
Model: x14 R1
Part numbers: WNR1X14CTO30S, WNR1X14CTO40S, WNR1X14FKBOS, NV86D, DCMPV, NAWX140010SC +25 more
EAN / UPC: 5397184671375, 5397184671382, 5397184671993, 5397184671986 +2 more
Also known as: Alienware x14 R1 Intel® Core™ i7 i7-12700H Laptop 35.6 cm (14") Full HD 16 GB LPDDR5-SDRAM 512 GB SSD NVIDIA GeForce RTX 3060 Wi-Fi 6E (802.11ax) Windows 11 Hom

Specifications

154 specifications in 22 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black, White
Colour name	Lunar Light
Form factor	Clamshell
Market positioning	Gaming

Display

Specification	Value
Display diagonal	35.6 cm (14")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Panel type	WVA
LED backlight	Yes
Native aspect ratio	16:9
Anti-glare screen	Yes
Display brightness	400 cd/m²
Pixel density	157 ppi
Colour gamut	100%
RGB colour space	DCI-P3
Maximum refresh rate	144 Hz
Contrast ratio (typical)	1000:1

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	12th gen Intel® Core™ i7
Processor model	i7-12700H
Processor cores	14
Processor cache	24 MB
Configurable TDP-down	35 W

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	LPDDR5-SDRAM
Memory clock speed	5200 MHz
Memory form factor	On-board
Maximum internal memory	16 GB

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
NVMe	Yes
SSD interface	NVMe, PCI Express
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA GeForce RTX 3060
Discrete graphics card memory	6 GB
Discrete graphics memory type	GDDR6
On-board GPU manufacturer	Intel
On-board graphics card model	Intel Iris Xe Graphics
NVIDIA G-SYNC	Yes

Audio

Specification	Value
Audio chip	Realtek ALC3281-CG
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera resolution (numeric)	0.92 MP
Front camera HD type	HD
Front camera resolution	1280 x 720 pixels
Video capturing speed	30 fps
Infrared (IR) camera	Yes

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
Antenna type	2x2
WLAN controller manufacturer	Intel
WLAN controller model	Intel Wi-Fi 6E AX211
Bluetooth	Yes
Bluetooth version	5.2

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
HDMI ports quantity	1
HDMI version	2.1
Thunderbolt 4 ports quantity	2
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes
USB Type-C DisplayPort Alternate Mode	Yes

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	No
Keyboard backlit colour	RGB
Keyboard language	German

Software

Specification	Value
Operating system installed	Windows 11 Home
Operating system architecture	64-bit
Trial software	Microsoft Office 30 Day

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Execute Disable Bit	Yes
Intel Flex Memory Access	Yes
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	6
Battery capacity	80.5 Wh
Battery voltage	11.4 V
Battery recharge time	3 h
Fast charging	Yes
Battery weight	320 g

Power

Specification	Value
AC adapter power	130 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	6.5 A
USB Type-C charging port	Yes
USB Power Delivery (USB PD)	Yes
USB charging voltage	5,20 V
USB charging current	6.5 A

Security

Specification	Value
Password protection	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	-15.2 - 3048 m
Non-operating altitude	-15.2 - 10668 m
Operating shock	140 G
Non-operating shock	160 G
Operating vibration	0.66 G
Non-operating vibration	1.3 G

Weight & dimensions

Specification	Value
Weight	1.84 kg
Width	321.5 mm
Depth	262.8 mm
Height	14.5 mm

Packaging data

Specification	Value
Package width	330 mm
Package depth	397 mm
Package height	112 mm
Package weight	4.13 kg
Package material	Grey board, Corrugated cardboard, Polyethylene terephthalate (PET), High-Density Polyethylene (HDPE), Polypropylene (PP)

Recycling data

Specification	Value
Paper molded pulp content per package	0 g
Bamboo molded pulp content per package	0 g
Wheat straw molded pulp content per package	0 g
Grey board content per package	774 g
Corrugated cardboard content per package	978 g
Corrugated cardboard content per shipping (inner) case	452 g
Corrugated cardboard content per box for accessories	518 g
Corrugated cardboard content per sleeve for accessories	8 g
Polyethylene terephthalate (PET) content per package	4 g
High-density polyethylene (HDPE) content per package	125 g
Low-density polyethylene (LDPE) content per package	0 g
Polypropylene (PP) content per package	19 g
Polystyrene (PS) content per package	0 g
Other materials content per package	0 g

Logistics data

Specification	Value
Maximum number of stacking cartons	18 pc(s)
Products per pallet layer	8 pc(s)
Layers per pallet	9 pc(s)
Products per pallet	72 pc(s)
Pallet gross width	100 cm
Pallet gross length	120 cm
Pallet gross weight	305.4 kg
Pallet volume weight	229.6 kg
Products per intermodal container (20ft)	1360 pc(s)
Products per intermodal container (40ft, HC)	3024 pc(s)

Other features

Specification	Value
EPEAT rating	92.21%
