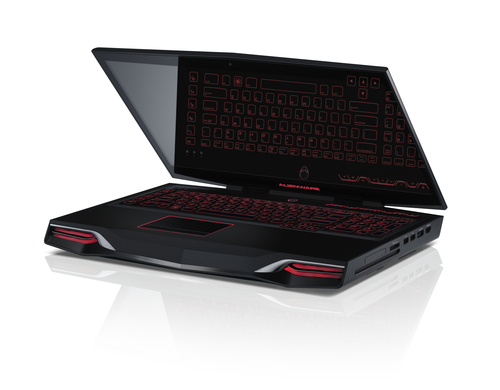

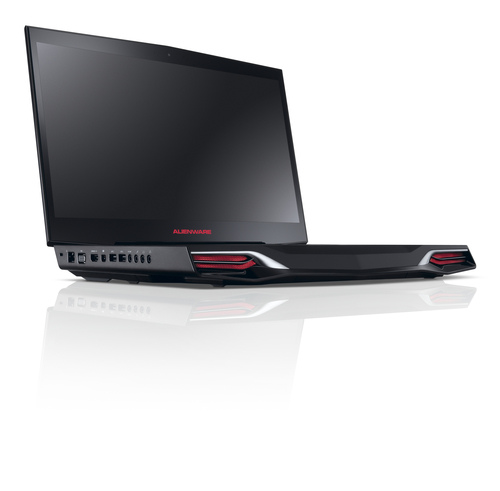

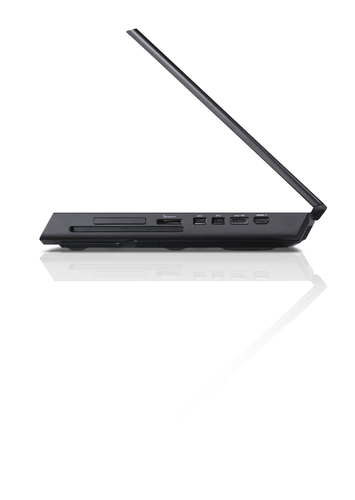

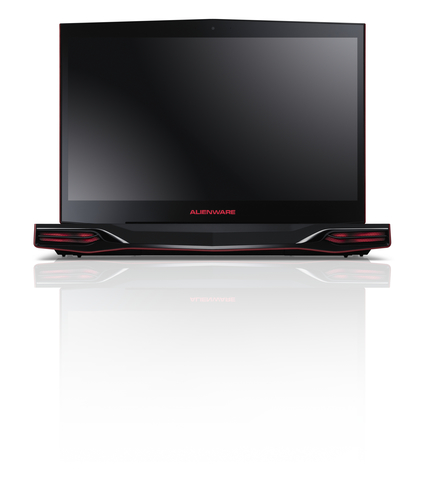

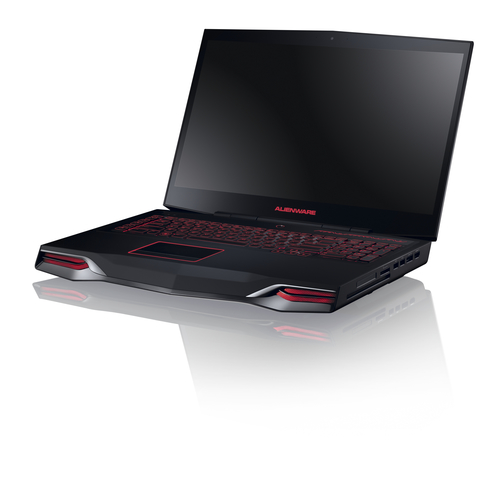

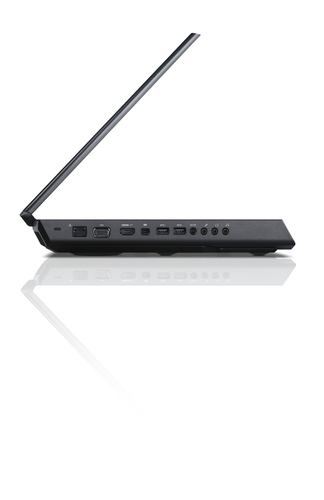

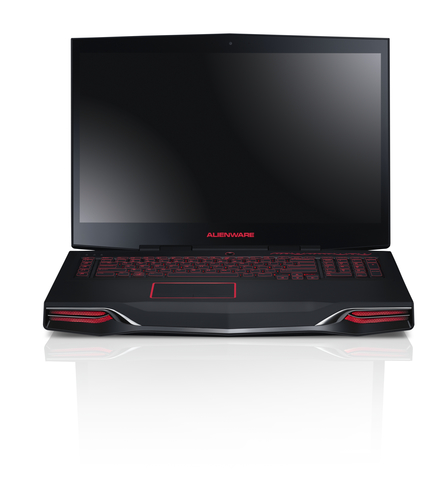

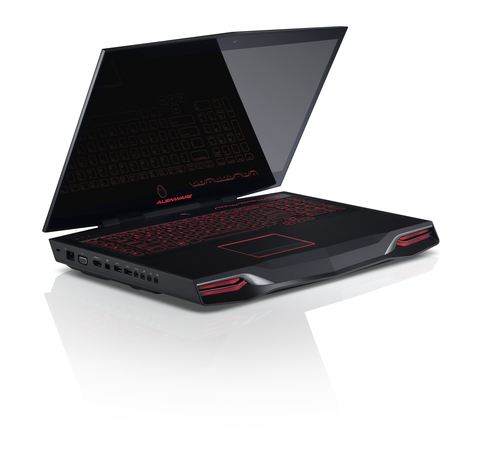

Alienware M18x R2

Model M18x R2Part no. AM18XR2-8728BKEAN 884116084020

186 specifications Checked 3 days ago

Display46.7 cm (18.4")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i7
Memory8 GB
Storage750 GB
GraphicsNVIDIA® GeForce® GTX 660M

See all specifications

Overview

Display: 46.7 cm (18.4")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i7
Memory: 8 GB
Storage: 750 GB
Graphics: NVIDIA® GeForce® GTX 660M

Brand: Alienware
Category: Laptop
Model: M18x R2
Part number: AM18XR2-8728BK
EAN / UPC: 884116084020
Also known as: Alienware M18x R2 Intel® Core™ i7 i7-3610QM Laptop 46.7 cm (18.4") Full HD 8 GB DDR3-SDRAM 750 GB HDD NVIDIA® GeForce® GTX 660M Windows 7 Home Premium Black

Specifications

186 specifications in 22 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Form factor	Clamshell
Market positioning	Gaming

Display

Specification	Value
Display diagonal	46.7 cm (18.4")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
LED backlight	Yes
Native aspect ratio	16:9
Display surface	Gloss

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	3rd gen Intel® Core™ i7
Processor model	i7-3610QM
Processor cores	4
Processor threads	8
Processor boost frequency	3.3 GHz
Processor frequency	2.3 GHz
System bus rate	5 GT/s
Processor cache	6 MB
Processor cache type	Smart Cache
Processor socket	Socket G2
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Core i7-3600 Mobile series
Processor codename	Ivy Bridge
Bus type	DMI
FSB Parity	No
Thermal Design Power (TDP)	45 W
Tjunction	105 C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8
PCI Express slots version	3.0
CPU multiplier (bus/core ratio)	23
ECC supported by processor	No

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR3-SDRAM
Memory clock speed	1600 MHz
Memory form factor	SO-DIMM
Memory slots	4x SO-DIMM
Maximum internal memory	32 GB
Maximum internal memory (64-bit)	32 GB

Storage

Specification	Value
Total storage capacity	750 GB
Storage media	HDD
Number of HDDs installed	1
HDD capacity	750 GB
HDD interface	SATA III
HDD speed	7200 RPM
HDD size	2.5"
Optical drive type	DVD Super Multi
Card reader integrated	Yes
Compatible memory cards	MMC, MMC+, MS PRO, Memory Stick (MS), SD, SDHC, SDXC

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA® GeForce® GTX 660M
Discrete graphics card memory	2 GB
Discrete graphics memory type	GDDR5
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 4000
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1100 MHz
On-board graphics card ID	0x166
CUDA	Yes
NVIDIA G-SYNC	No
NVIDIA GameWorks VR	No

Audio

Specification	Value
Audio system	HD
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera resolution (numeric)	2.1 MP
Front camera resolution	1920 x 1080 pixels
Video capturing speed	30 fps

Optical drive

Specification	Value
Disc types supported	CD, DVD

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	3.0+HS
Integrated 4G WiMAX	Yes

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Micro-USB 2.0 ports quantity	0
Micro-USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	0
eSATA/USB 2.0 ports quantity	1
eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	0
eSATA ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	0
Mini DisplayPorts quantity	1
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Thunderbolt ports quantity	0
Thunderbolt 2 ports quantity	0
Thunderbolt 3 ports quantity	0
Headphone outputs	1
S/PDIF out port	Yes
Combo headphone/mic port	Yes
Microphone in	Yes
ExpressCard slot	Yes
TV-out	No

Performance

Specification	Value
Motherboard chipset	Intel HM77

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes
Windows keys	Yes

Software

Specification	Value
Operating system installed	Windows 7 Home Premium
Operating system architecture	64-bit
Drivers included	Yes

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	Yes
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel HD Graphics	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Intel® Built-in Visuals Technology	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	64899
Processor package size	37.5 x 37.5 (rPGA988B)
Supported instruction sets	AVX
Thermal Monitoring Technologies	Yes
Conflict-Free processor	Yes

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	12
Battery capacity	97 Wh

Power

Specification	Value
AC adapter power	240 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	12.3 A
AC adapter output voltage	19.5 V

Security

Specification	Value
Cable lock slot	Yes
Password protection	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	10 - 95%
Operating altitude	-15.2 - 3048 m
Non-operating altitude	-15.2 - 10668 m
Operating shock	110 G
Non-operating shock	160 G
Operating vibration	0.66 G
Non-operating vibration	1.3 G

Weight & dimensions

Specification	Value
Weight	5.41 kg
Width	436 mm
Depth	322.5 mm
Height (front)	5.3 cm
Height (rear)	5.47 cm

Packaging content

Specification	Value
AC adapter included	Yes
Manual	Yes
Power cord included	Yes
Quick start guide	Yes

Other features

Specification	Value
3D	No
