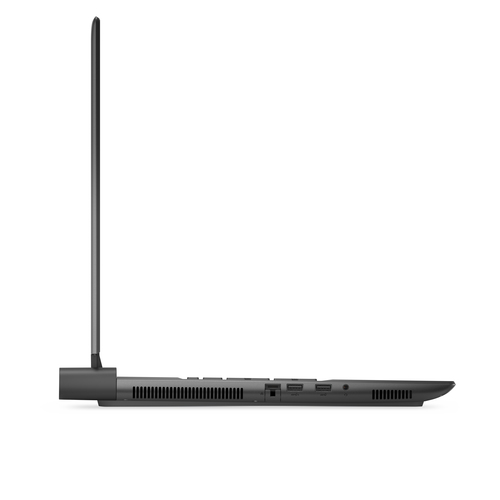

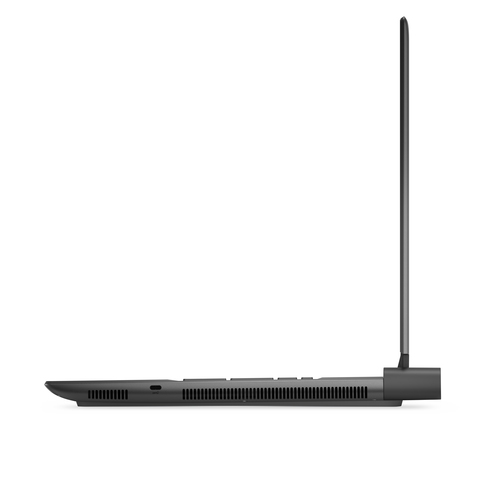

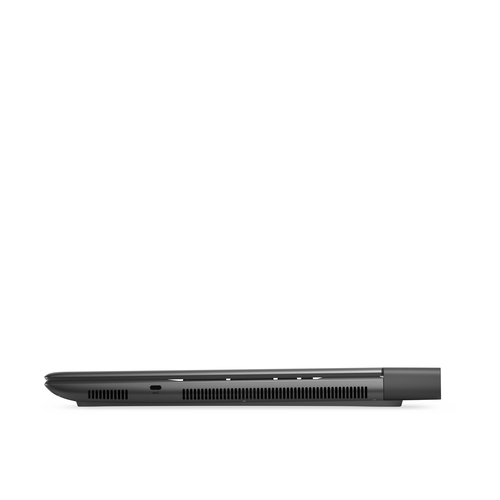

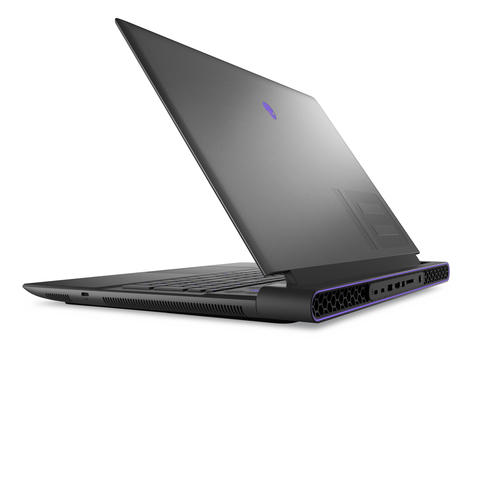

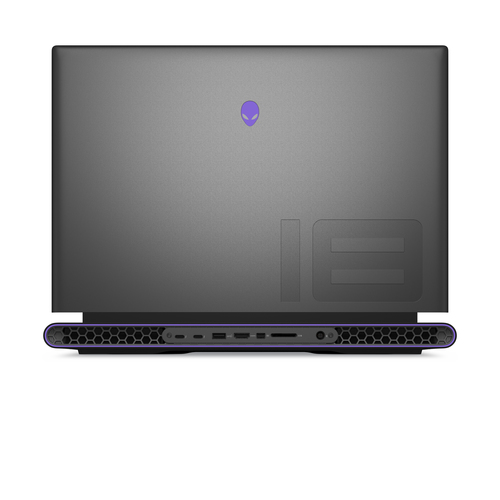

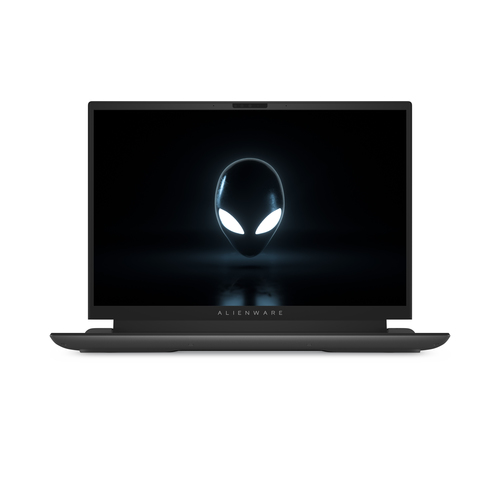

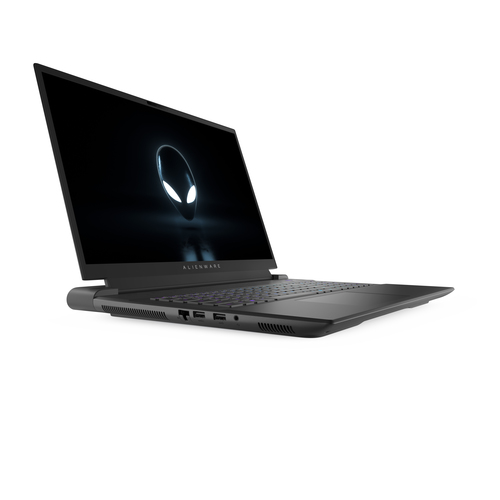

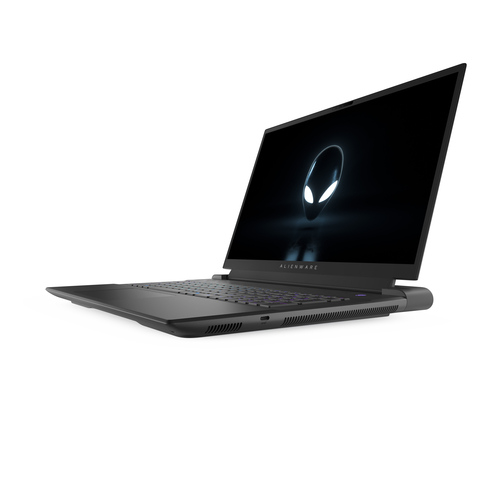

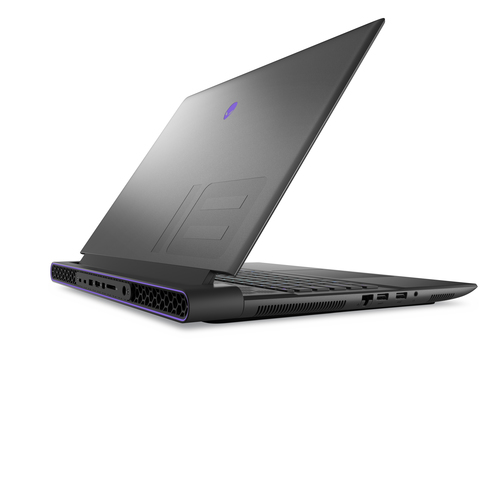

m18 R2

Model m18 R2Part no. USEASHCTOM18R204EAN 884116480556

123 specifications Checked today

Display45.7 cm (18")
Resolution2560 x 1600 pixels
ProcessorIntel® Core™ i7
Memory16 GB
Storage1 TB
GraphicsNVIDIA GeForce RTX 4070

See all specifications

Overview

Display: 45.7 cm (18")
Resolution: 2560 x 1600 pixels
Processor: Intel® Core™ i7
Memory: 16 GB
Storage: 1 TB
Graphics: NVIDIA GeForce RTX 4070

Brand: Alienware
Category: Laptop
Model: m18 R2
Part numbers: USEASHCTOM18R204, USEASHCTOM18R203, USEASHBTSM18R2GSCV, USEASHBTSM18R2GRTN, CAEASHCTOM18R202, CAEASHCTOM18R201 +34 more
EAN / UPC: 884116480556, 884116461494, 884116462583, 884116461586 +4 more
Also known as: Alienware m18 R2 Intel® Core™ i7 i7-14700HX Laptop 45.7 cm (18") Quad HD+ 16 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 4070 Wi-Fi 7 (802.11be) Windows 11 Home B

Specifications

123 specifications in 19 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Colour name	Dark Metallic Moon
Form factor	Clamshell
Market positioning	Gaming

Display

Specification	Value
Display diagonal	45.7 cm (18")
Display resolution	2560 x 1600 pixels
Touchscreen	No
HD type	Quad HD+
Panel type	WVA
LED backlight	Yes
Native aspect ratio	16:10
Anti-glare screen	Yes
Display brightness	300 cd/m²
Pixel density	168 ppi
Colour gamut	100%
RGB colour space	DCI-P3
Maximum refresh rate	165 Hz
Contrast ratio (typical)	1000:1

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	Intel® Core™ i7 (14th gen)
Processor model	i7-14700HX
Processor cores	20
Performance cores	8
Efficient cores	12
Performance-core Max Turbo Frequency	5.5 GHz
Efficient-core Max Turbo Frequency	3.9 GHz
Performance-core base frequency	2.1 GHz
Efficient-core base frequency	1.5 GHz
Processor cache	33 MB
Processor cache type	Smart Cache
Maximum turbo power	157 W
Processor base power	55 W

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Memory form factor	SO-DIMM
Memory layout (slots x size)	2 x 8 GB
Memory slots	2x SO-DIMM
Maximum internal memory	64 GB

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	SSD
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
NVMe	Yes
SSD interface	PCI Express 4.0
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA GeForce RTX 4070
Discrete graphics card memory	8 GB
Discrete graphics memory type	GDDR6
On-board graphics card model	Intel® UHD Graphics

Audio

Specification	Value
Audio chip	Realtek ALC3254
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Number of microphones	2

Camera

Specification	Value
Front camera	Yes
Front camera resolution (numeric)	2.07 MP
Front camera HD type	Full HD
Front camera resolution	1920 x 1080 pixels
Video capturing speed	30 fps
Infrared (IR) camera	Yes

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Antenna type	2x2
WLAN controller manufacturer	Killer
Ethernet LAN	Yes
Ethernet LAN data rates	5000 Mbit/s
Bluetooth	Yes

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
Mini DisplayPorts quantity	1
Thunderbolt 4 ports quantity	2
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes
PowerShare	Yes
Number of USB ports with PowerShare support	1

Performance

Specification	Value
Motherboard chipset	Intel HM770

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes
Keyboard backlit colour	RGB

Software

Specification	Value
Operating system installed	Windows 11 Home
Operating system architecture	64-bit

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	6
Battery capacity	97 Wh
Battery voltage	11.4 V
Battery recharge time	3 h
Fast charging	Yes
Battery weight	430 g

Power

Specification	Value
AC adapter power	280 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	19.5 A

Security

Specification	Value
Windows Hello	Yes
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	-15.2 - 3048 m
Non-operating altitude	-15.2 - 10668 m
Operating shock	140 G
Operating vibration	0.66 G

Weight & dimensions

Specification	Value
Weight	4.23 kg
Width	410.3 mm
Depth	319.9 mm
Height (front)	2.41 cm
Height (rear)	2.51 cm

Packaging content

Specification	Value
AC adapter included	Yes
