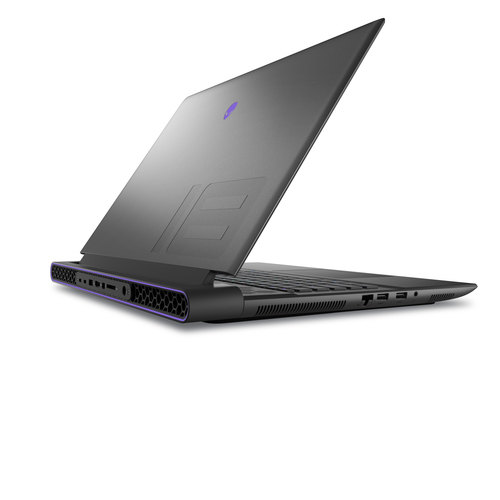

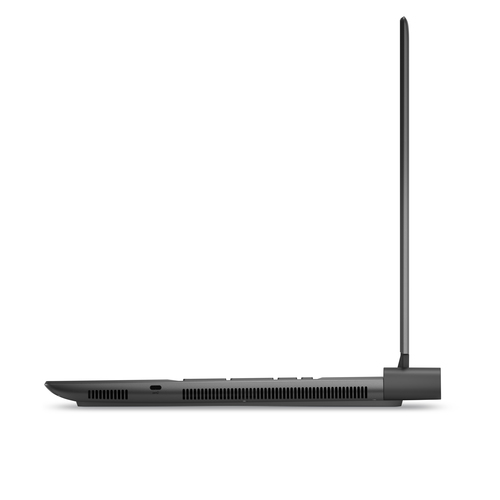

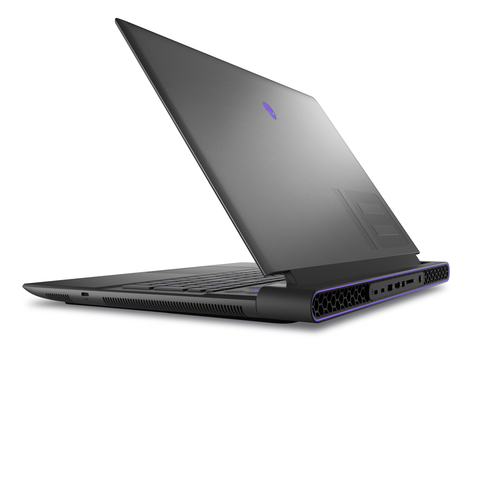

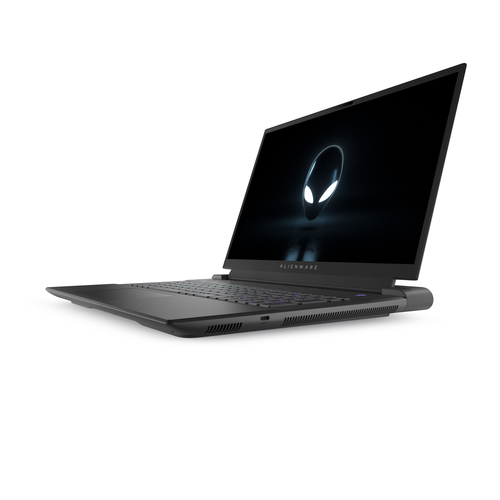

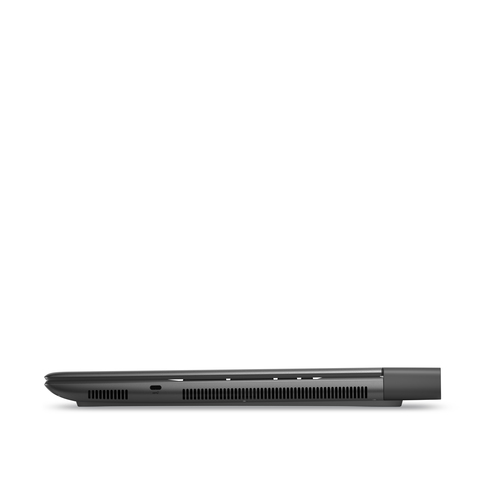

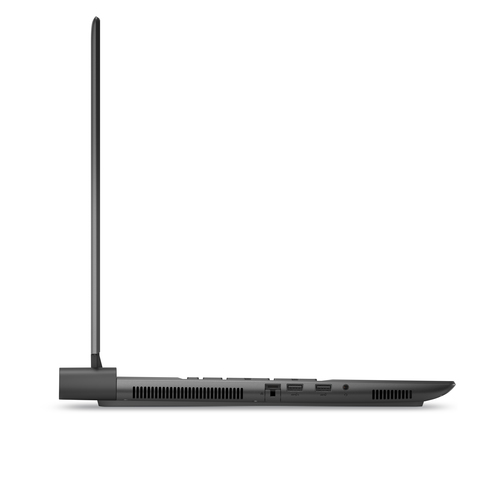

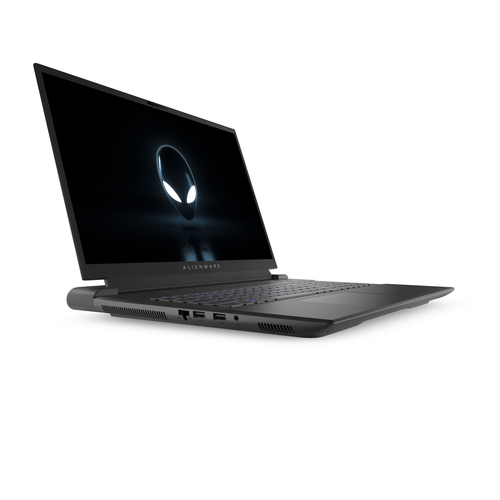

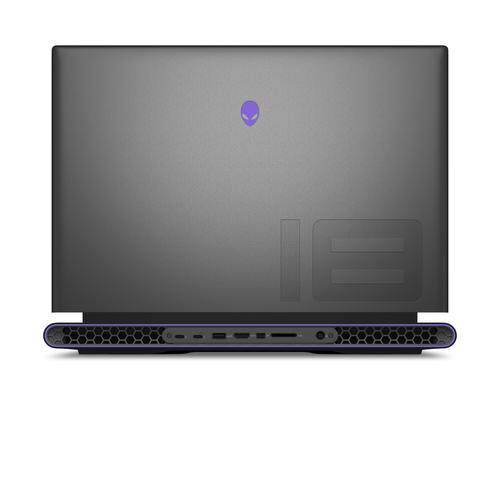

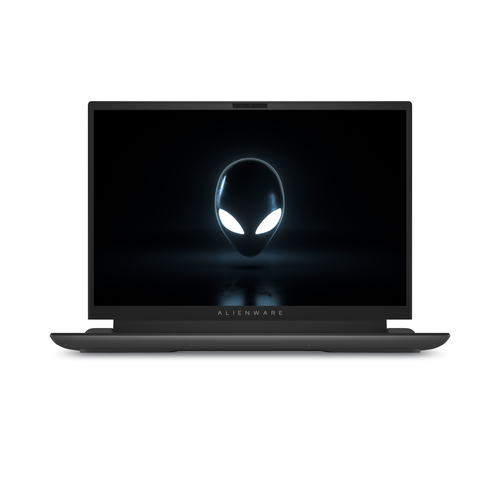

Alienware m18 R1
Alienware

m18 R1

Model m18 R1Part no. WNM18R1CTO50EAN 884116427728

132 specifications Checked today
  • Display45.7 cm (18")
  • Resolution2560 x 1600 pixels
  • ProcessorIntel® Core™ i7
  • Memory16 GB
  • Storage512 GB
  • GraphicsNVIDIA GeForce RTX 4060
See all specifications

Overview

Display
45.7 cm (18")
Resolution
2560 x 1600 pixels
Processor
Intel® Core™ i7
Memory
16 GB
Storage
512 GB
Graphics
NVIDIA GeForce RTX 4060
Brand
Alienware
Category
Laptop
Model
m18 R1
Part numbers
WNM18R1CTO50, WNM18R1CTO40, WNM18R1CTO30, WNM18R1CTO20, USEAHCTOM18R1AMD01, ANM18I0UCFG001CMNOJP +34 more
EAN / UPC
884116427728, 5397184885161, 884116456452, 884116428145 +2 more
Also known as
Alienware m18 R1 Intel® Core™ i7 i7-13700HX Laptop 45.7 cm (18") Quad HD+ 16 GB DDR5-SDRAM 512 GB SSD NVIDIA GeForce RTX 4060 Wi-Fi 6E (802.11ax) Windows 11 Hom

Specifications

132 specifications in 19 groups

Design

Product typeLaptop
Product colourBlack
Colour nameDark Metallic Moon
Form factorClamshell
Market positioningGaming
Introduction year2023

Display

Display diagonal45.7 cm (18")
Display resolution2560 x 1600 pixels
TouchscreenNo
HD typeQuad HD+
Panel typeWVA
LED backlightYes
Native aspect ratio16:10
Anti-glare screenYes
Display brightness300 cd/m²
Pixel density168 ppi
Colour gamut100%
RGB colour spaceDCI-P3
Maximum refresh rate165 Hz
Contrast ratio (typical)1000:1

Processor

Processor manufacturerIntel
Processor familyIntel® Core™ i7
Processor generation13th gen Intel® Core™ i7
Processor modeli7-13700HX
Processor cores16
Processor boost frequency5 GHz
Performance-core base frequency5 GHz
Efficient-core boost frequency3.7 GHz
Processor cache30 MB
Bus typeDMI4
Configurable TDP-down45 W

Memory

Internal memory16 GB
Internal memory typeDDR5-SDRAM
Memory clock speed4800 MHz
Memory form factorSO-DIMM
Memory layout (slots x size)2 x 8 GB
Memory slots2x SO-DIMM
Maximum internal memory64 GB
Memory channelsDual-channel

Storage

Total storage capacity512 GB
Storage mediaSSD
Total SSDs capacity512 GB
Number of SSDs installed1
SSD capacity512 GB
NVMeYes
SSD interfacePCI Express 4.0
SSD form factorM.2
Optical drive typeNo
Card reader integratedYes
Compatible memory cardsSD, SDHC, SDXC

Graphics

On-board graphics cardYes
Discrete graphics cardYes
Discrete graphics card modelNVIDIA GeForce RTX 4060
Discrete graphics card memory8 GB
Discrete graphics memory typeGDDR6
On-board graphics card modelIntel® UHD Graphics

Audio

Audio chipRealtek ALC3254
Number of built-in speakers2
Speaker power2 W
Built-in microphoneYes
Number of microphones2

Camera

Front cameraYes
Front camera resolution (numeric)2.07 MP
Front camera HD typeFull HD
Front camera resolution1920 x 1080 pixels
Video capturing speed30 fps
Infrared (IR) cameraYes

Network

Mobile network connectionNo
Top Wi-Fi standardWi-Fi 6E (802.11ax)
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
Antenna type2x2
WLAN controller manufacturerKiller
WLAN controller modelKiller Wi-Fi 6E AX1675
Ethernet LANYes
Ethernet LAN data rates10,100,1000,2500 Mbit/s
BluetoothYes

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
Ethernet LAN (RJ-45) ports1
HDMI ports quantity1
HDMI version2.1
Mini DisplayPorts quantity1
Thunderbolt 4 ports quantity2
Intel® Thunderbolt 4Yes
Combo headphone/mic portYes
Power adapter barrel connector7.4 mm
USB Type-C DisplayPort Alternate ModeYes
PowerShareYes
Number of USB ports with PowerShare support1

Performance

Motherboard chipsetIntel HM770

Keyboard

Pointing deviceTouchpad
Keyboard backlitYes
Numeric keypadYes
Keyboard backlit colourRGB
Keyboard backlit zonePer-key RGB
Full-size keyboardYes

Software

Operating system installedWindows 11 Home
Operating system architecture64-bit

Processor special features

CPU configuration (max)1
Embedded options availableNo
Intel Flex Memory AccessYes
Intel VT-x with Extended Page Tables (EPT)Yes
Intel Virtualization Technology (VT-x)Yes
Intel Virtualization Technology for Directed I/O (VT-d)Yes

Battery

Battery technologyLithium-Ion (Li-Ion)
Number of battery cells6
Battery capacity97 Wh
Battery voltage11.4 V
Battery recharge time3 h
Fast chargingYes
Battery weight430 g

Power

AC adapter power330 W
AC adapter frequency50 - 60 Hz
AC adapter input voltage100 - 240 V
AC adapter output current4.4 A
AC adapter output voltage19.5 V
DC-in jackYes

Operational conditions

Operating temperature (T-T)0 - 35 °C
Storage temperature (T-T)-40 - 65 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 95%
Operating altitude-15.2 - 3048 m
Non-operating altitude-15.2 - 10668 m
Operating shock140 G
Operating vibration0.66 G

Weight & dimensions

Weight4.23 kg
Width410.3 mm
Depth319.9 mm
Height (front)2.41 cm
Height (rear)2.51 cm

Packaging content

Cables includedAC
