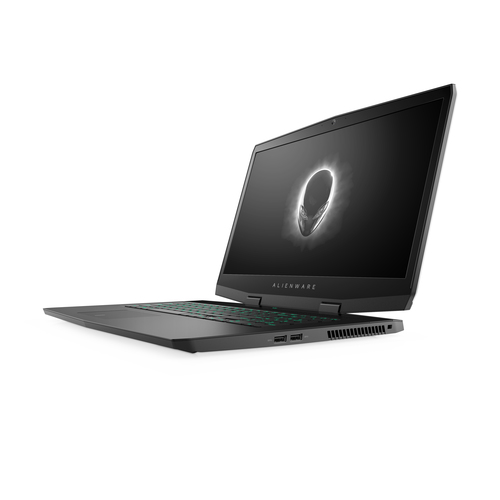

m17 R1
Model m17 R1Part no. WNORN7CHM173HSB
166 specifications Checked today
- Display43.9 cm (17.3")
- Resolution3840 x 2160 pixels
- ProcessorIntel® Core™ i7
- Memory16 GB
- Storage256 GB
- GraphicsNVIDIA® GeForce RTX™ 2070 Max-Q
Overview
- Display
- 43.9 cm (17.3")
- Resolution
- 3840 x 2160 pixels
- Processor
- Intel® Core™ i7
- Memory
- 16 GB
- Storage
- 256 GB
- Graphics
- NVIDIA® GeForce RTX™ 2070 Max-Q
- Brand
- Alienware
- Category
- Laptop
- Model
- m17 R1
- Part numbers
- WNORN7CHM173HSB, WNORN7CHM177HSB, GMWNORN7CHM172H
- Also known as
- Alienware m17 R1 Intel® Core™ i7 i7-9750H Laptop 43.9 cm (17.3") 4K Ultra HD 16 GB DDR4-SDRAM 256 GB SSD NVIDIA® GeForce RTX™ 2070 Max-Q Wi-Fi 6 (802.11ax) Wind
Specifications
166 specifications in 19 groups
Design
| Specification | Value |
|---|---|
| Product type | Laptop |
| Product colour | Black, Silver |
| Colour name | Epic Silver |
| Form factor | Clamshell |
| Market positioning | Gaming |
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.9 cm (17.3") |
| Display resolution | 3840 x 2160 pixels |
| Touchscreen | No |
| HD type | 4K Ultra HD |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:9 |
| Display brightness | 400 cd/m² |
| Pixel density | 255 ppi |
| Pixel pitch | 0.0995 x 0.0995 mm |
| Display response rise/fall | 35 ms |
| Maximum refresh rate | 60 Hz |
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor generation | 9th gen Intel® Core™ i7 |
| Processor model | i7-9750H |
| Processor cores | 6 |
| Processor threads | 12 |
| Processor boost frequency | 4.5 GHz |
| Processor frequency | 2.6 GHz |
| System bus rate | 8 GT/s |
| Processor cache | 12 MB |
| Processor cache type | Smart Cache |
| Processor socket | BGA 1440 |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Coffee Lake |
| Thermal Design Power (TDP) | 45 W |
| Configurable TDP-down | 35 W |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express configurations | 1x16, 2x8, 1x8+2x4 |
| PCI Express slots version | 3.0 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2666 MHz |
| Memory form factor | SO-DIMM |
| Memory layout (slots x size) | 2 x 8 GB |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 32 GB |
| Maximum internal memory (64-bit) | 32 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 256 GB |
| Storage media | SSD |
| Total SSDs capacity | 256 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 256 GB |
| SSD interface | PCI Express |
| SSD form factor | M.2 |
| Optical drive type | No |
| Card reader integrated | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA® GeForce RTX™ 2070 Max-Q |
| Discrete graphics card memory | 8 GB |
| Discrete graphics memory type | GDDR6 |
| On-board graphics card model | Intel® UHD Graphics 630 |
| Maximum on-board graphics card memory | 64 GB |
| On-board graphics card base frequency | 350 MHz |
| On-board graphics card dynamic frequency (max) | 1150 MHz |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card ID | 0x3E9B |
| Number of discrete graphics cards installed | 1 |
| NVIDIA Max-Q | Yes |
| CUDA | Yes |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC3281-CG |
| Number of built-in speakers | 1 |
| Speaker power | 2 W |
| Built-in microphone | Yes |
Camera
| Specification | Value |
|---|---|
| Front camera | Yes |
| Front camera resolution (numeric) | 2 MP |
| Front camera HD type | Full HD |
| Front camera resolution | 1920 x 1080 pixels |
| Front camera signal format | 1080p |
| Video capturing speed | 30 fps |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Antenna type | 2x2 |
| WLAN controller model | Killer Wireless-AX 1650 |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0b |
| DisplayPorts quantity | 0 |
| Mini DisplayPorts quantity | 1 |
| Thunderbolt 3 ports quantity | 1 |
| Thunderbolt™ 3 Technology | Yes |
| Combo headphone/mic port | Yes |
| Alienware graphics amplifier port | Yes |
Keyboard
| Specification | Value |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
| Numeric keypad | Yes |
| Windows keys | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Pro |
| Operating system architecture | 64-bit |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel TSX-NI | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® OS Guard | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Processor ARK ID | 191045 |
| Processor package size | 42 x 28 mm |
| Supported instruction sets | SSE4.1, SSE4.2, AVX 2.0 |
| Thermal Monitoring Technologies | Yes |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Number of battery cells | 4 |
| Battery capacity | 60 Wh |
| Battery voltage | 15.2 V |
| Battery recharge time | 4 h |
| Battery weight | 250 g |
Power
| Specification | Value |
|---|---|
| AC adapter power | 240 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 19.5 V |
| DC-in jack | Yes |
Security
| Specification | Value |
|---|---|
| Cable lock slot | Yes |
| Password protection | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | -15.2 - 3048 m |
| Non-operating altitude | -15.2 - 10668 m |
| Operating shock | 110 G |
| Non-operating shock | 160 G |
| Operating vibration | 0.66 G |
| Non-operating vibration | 1.3 G |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.63 kg |
| Width | 410 mm |
| Depth | 292 mm |
| Height (front) | 1.4 cm |
| Height (rear) | 2.18 cm |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Manual | Yes |
| Power cord included | Yes |
