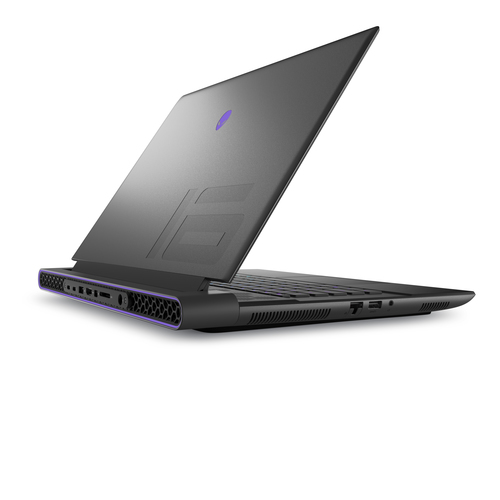

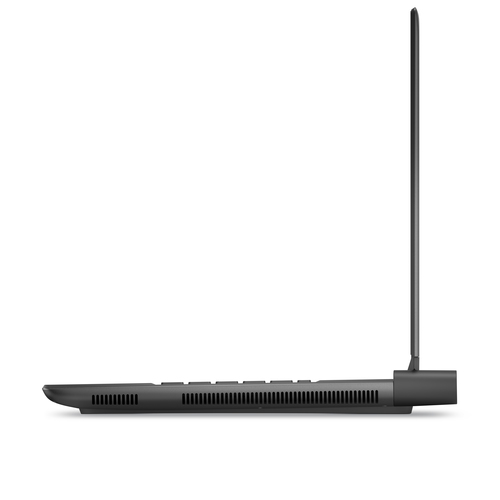

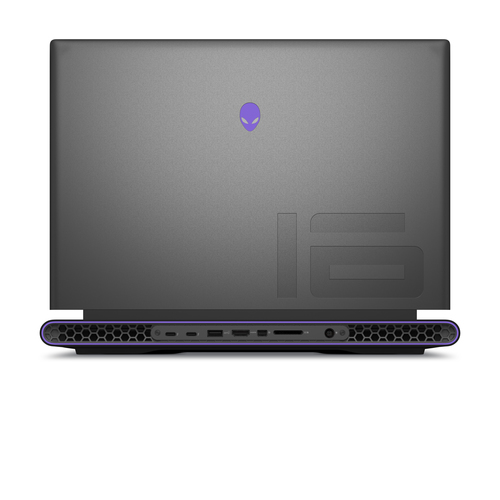

Alienware M16 R1 AMD

M16 R1 AMD

Model M16 R1 AMDPart no. CAEAHCTOM16R1AMD04

119 specifications Checked today

Display40.6 cm (16")
Resolution2560 x 1600 pixels
ProcessorAMD Ryzen™ 9
Memory16 GB
Storage1 TB
GraphicsNVIDIA GeForce RTX 4080

See all specifications

Overview

Display: 40.6 cm (16")
Resolution: 2560 x 1600 pixels
Processor: AMD Ryzen™ 9
Memory: 16 GB
Storage: 1 TB
Graphics: NVIDIA GeForce RTX 4080

Brand: Alienware
Category: Laptop
Model: M16 R1 AMD
Part numbers: CAEAHCTOM16R1AMD04, CAEAHCTOM16R1AMD05
Also known as: Alienware M16 R1 AMD AMD Ryzen™ 9 7845HX Laptop 40.6 cm (16") Quad HD+ 16 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 4080 Wi-Fi 6E (802.11ax) Windows 11 Home Bla

Specifications

119 specifications in 16 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Colour name	Dark Metallic Moon
Form factor	Clamshell
Market positioning	Gaming

Display

Specification	Value
Display diagonal	40.6 cm (16")
Display resolution	2560 x 1600 pixels
Touchscreen	No
HD type	Quad HD+
Panel type	WVA
LED backlight	Yes
Native aspect ratio	16:10
Anti-glare screen	Yes
Display brightness	300 cd/m²
Pixel density	188.7 ppi
Colour gamut	100%
RGB colour space	DCI-P3
Maximum refresh rate	240 Hz
Contrast ratio (typical)	1000:1

Processor

Specification	Value
Processor manufacturer	AMD
Processor family	AMD Ryzen™ 9
Processor generation	AMD Ryzen 7000 Series
Processor model	7845HX
Processor cores	12
Processor boost frequency	5.2 GHz
Processor frequency	3 GHz
Processor cache	64 MB
Processor cache type	L3
Maximum turbo power	55 W

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Memory form factor	SO-DIMM
Memory layout (slots x size)	2 x 8 GB
Memory slots	2x SO-DIMM
Maximum internal memory	64 GB
Memory channels	Dual-channel
Memory data transfer rate	4800 MT/s

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	SSD
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
NVMe	Yes
SSD interface	PCI Express 4.0
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	SD, SDHC, SDXC

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA GeForce RTX 4080
Discrete graphics card memory	12 GB
Discrete graphics memory type	GDDR6
On-board graphics card model	AMD Radeon 610M

Audio

Specification	Value
Audio chip	Realtek ALC3254
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Number of microphones	2

Camera

Specification	Value
Front camera	Yes
Front camera resolution (numeric)	2.07 MP
Front camera HD type	Full HD
Front camera resolution	1920 x 1080 pixels
Video capturing speed	30 fps
Infrared (IR) camera	Yes

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	Wi-Fi 6E (802.11ax)
Antenna type	2x2
WLAN controller manufacturer	Qualcomm
WLAN controller model	Qualcomm WCN6856
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Bluetooth	Yes
MIMO	Yes
MIMO type	Multi User MIMO

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
Mini DisplayPorts quantity	1
Thunderbolt 4 ports quantity	2
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes
PowerShare	Yes

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	No
Keyboard backlit colour	RGB

Software

Specification	Value
Operating system installed	Windows 11 Home
Operating system architecture	64-bit

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	6
Battery capacity	86 Wh
Battery voltage	11.4 V
Battery recharge time	3 h
Fast charging	Yes
Battery weight	340 g

Power

Specification	Value
AC adapter power	330 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	16.92 A
AC adapter output voltage	19.5 V
DC-in jack	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	-15.2 - 3048 m
Non-operating altitude	-15.2 - 10668 m
Operating shock	140 G
Operating vibration	0.66 G

Weight & dimensions

Specification	Value
Weight	3.3 kg
Width	368.9 mm
Depth	289.9 mm
Height (front)	2.31 cm
Height (rear)	2.3 cm
