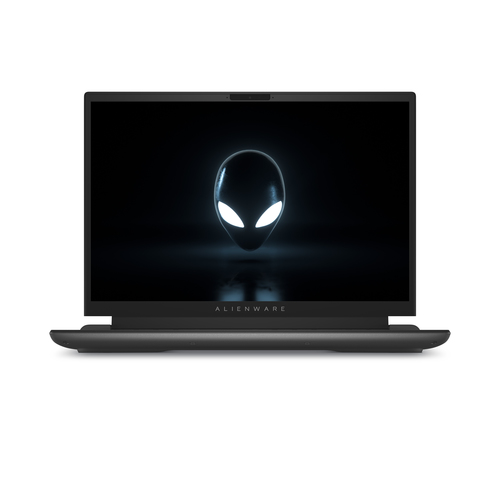

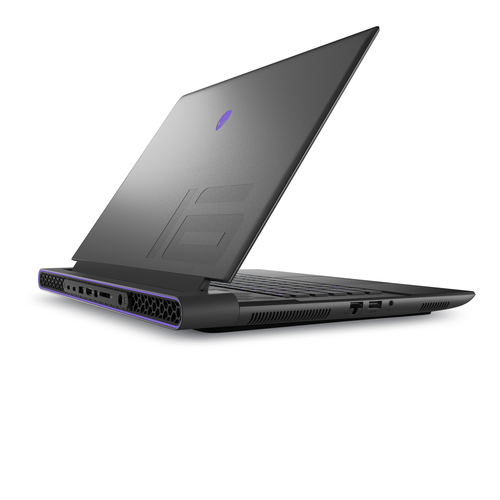

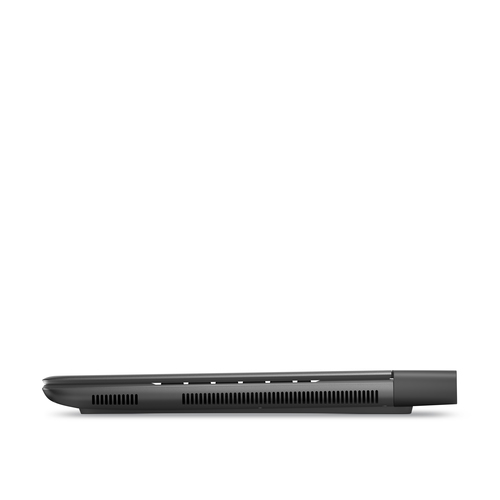

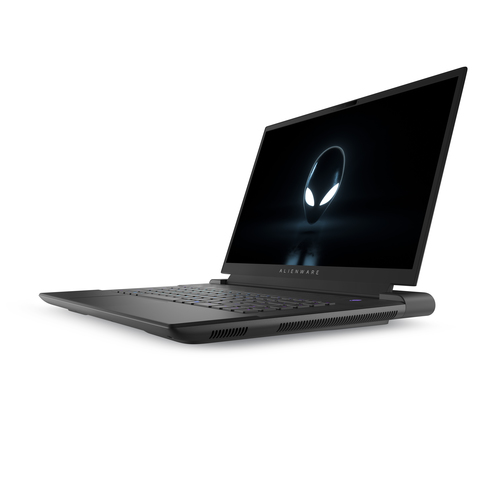

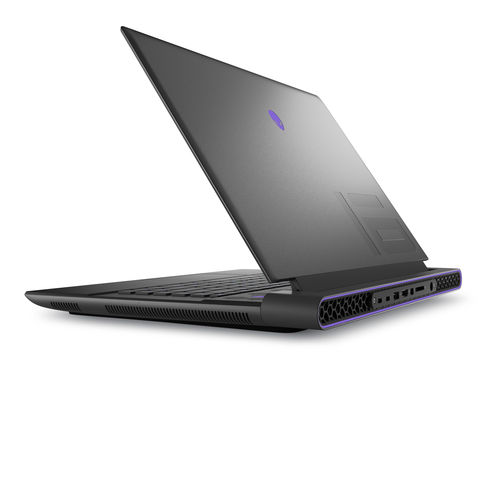

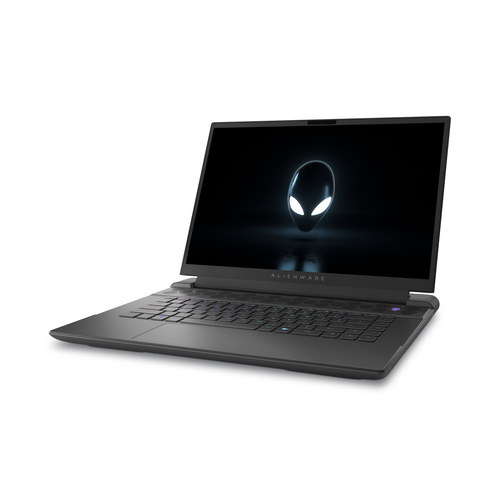

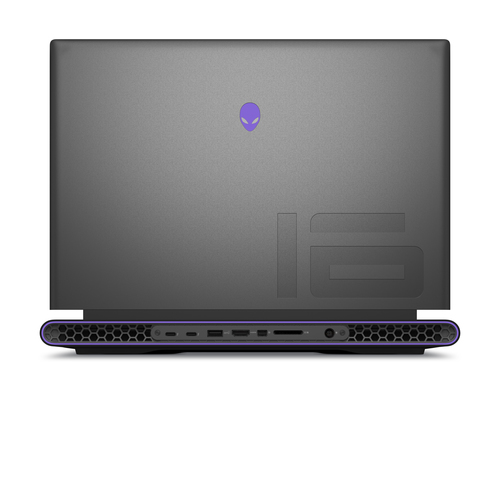

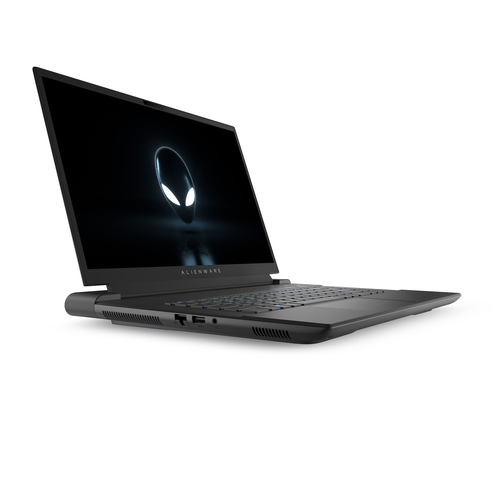

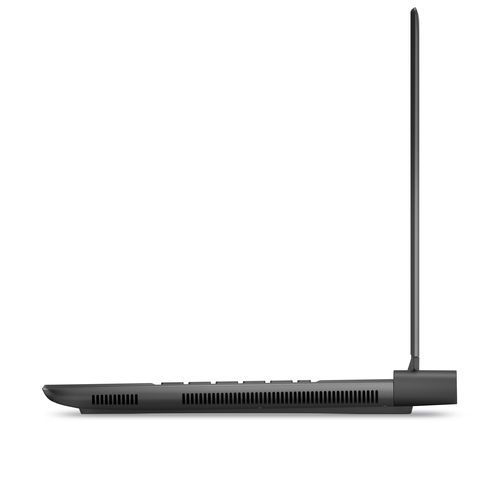

m16 R1

Model m16 R1Part no. USEAHCTOM16R1AMD01EAN 884116456759

126 specifications Checked today

Display40.6 cm (16")
Resolution2560 x 1600 pixels
ProcessorIntel® Core™ i9
Memory16 GB
Storage1 TB
GraphicsNVIDIA GeForce RTX 4080

See all specifications

Overview

Display: 40.6 cm (16")
Resolution: 2560 x 1600 pixels
Processor: Intel® Core™ i9
Memory: 16 GB
Storage: 1 TB
Graphics: NVIDIA GeForce RTX 4080

Brand: Alienware
Category: Laptop
Model: m16 R1
Part numbers: USEAHCTOM16R1AMD01, USEAHBTSM16R1RPLGFDB, AWM16-7602BLK-PUS, ANM16I0UCFG001CMNOJP, ANM16I0UCFG002CMNOJP, ANM16I0UCFG003CMNOJP +34 more
EAN / UPC: 884116456759, 5397184885123, 5397184885130, 884116455868 +7 more
Also known as: Alienware m16 R1 Intel® Core™ i9 i9-13900HX Laptop 40.6 cm (16") Quad HD+ 16 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 4080 Wi-Fi 6E (802.11ax) Windows 11 Home

Specifications

126 specifications in 18 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Colour name	Dark Metallic Moon
Form factor	Clamshell
Market positioning	Gaming

Display

Specification	Value
Display diagonal	40.6 cm (16")
Display resolution	2560 x 1600 pixels
Touchscreen	No
HD type	Quad HD+
Panel type	WVA
LED backlight	Yes
Native aspect ratio	16:10
Anti-glare screen	Yes
Display brightness	300 cd/m²
Pixel density	188.7 ppi
Pixel pitch	0.13 x 0.13 mm
Colour gamut	100%
RGB colour space	DCI-P3
Display response rise/fall	7 ms
Maximum refresh rate	240 Hz
Contrast ratio (typical)	1000:1

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i9
Processor generation	13th gen Intel® Core™ i9
Processor model	i9-13900HX
Processor cores	24
Processor boost frequency	5.4 GHz
Efficient-core Max Turbo Frequency	3.9 GHz
Processor cache	36 MB
Processor cache type	Smart Cache
Bus type	DMI4
Configurable TDP-down	45 W
Maximum turbo power	157 W
Processor base power	55 W

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Memory clock speed	4800 MHz
Memory form factor	SO-DIMM
Memory slots	2x SO-DIMM
Maximum internal memory	64 GB

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	SSD
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
NVMe	Yes
SSD interface	PCI Express
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	SD

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete GPU manufacturer	NVIDIA
Discrete graphics card model	NVIDIA GeForce RTX 4080
Discrete graphics card memory	12 GB
Discrete graphics memory type	GDDR6
On-board graphics card model	Intel® UHD Graphics
NVIDIA G-SYNC	Yes

Audio

Specification	Value
Audio chip	Realtek ALC3254
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes
Number of microphones	2

Camera

Specification	Value
Front camera	Yes
Front camera resolution (numeric)	2.07 MP
Front camera HD type	Full HD
Front camera resolution	1920 x 1080 pixels
Video capturing speed	30 fps

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
Antenna type	2x2
Wi-Fi data rate (max)	2400 Mbit/s
WLAN controller manufacturer	Killer
WLAN controller model	Killer Wi-Fi 6E 1675i
Ethernet LAN	Yes
Ethernet LAN data rates	2500 Mbit/s
Bluetooth	Yes
Bluetooth version	5.3

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
Ethernet LAN (RJ-45) ports	1
Thunderbolt 4 ports quantity	2
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes
PowerShare	Yes

Performance

Specification	Value
Motherboard chipset	Intel HM770

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	No

Software

Specification	Value
Operating system installed	Windows 11 Home
Operating system architecture	64-bit

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Intel Flex Memory Access	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	6
Battery capacity	86 Wh
Battery voltage	11.4 V
Battery recharge time	3 h
Fast charging	Yes
Battery weight	340 g

Power

Specification	Value
AC adapter power	330 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	16.92 A
AC adapter output voltage	19.5 V
DC-in jack	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	-15.2 - 3048 m
Non-operating altitude	-15.2 - 10668 m
Operating shock	140 G
Operating vibration	0.66 G

Weight & dimensions

Specification	Value
Weight	3.3 kg
Width	368.9 mm
Depth	289.9 mm
Height (front)	2.31 cm
Height (rear)	2.3 cm
