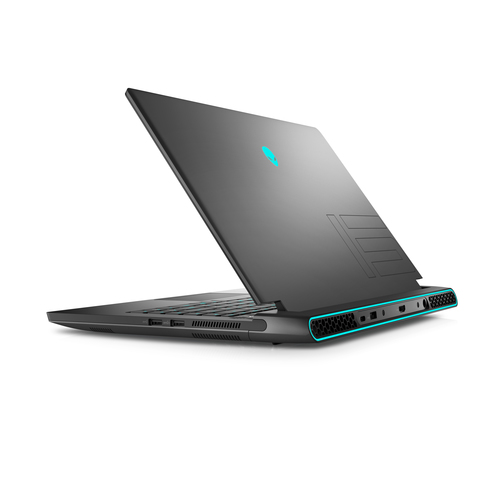

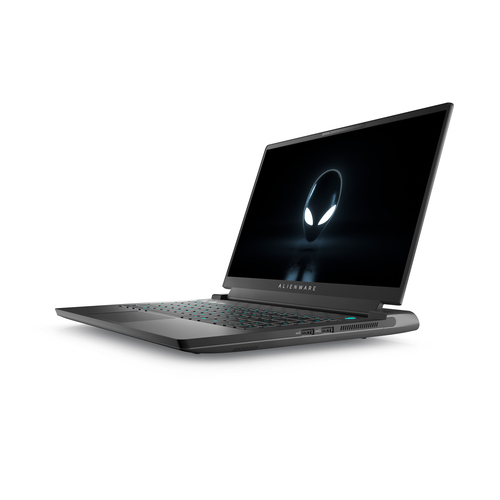

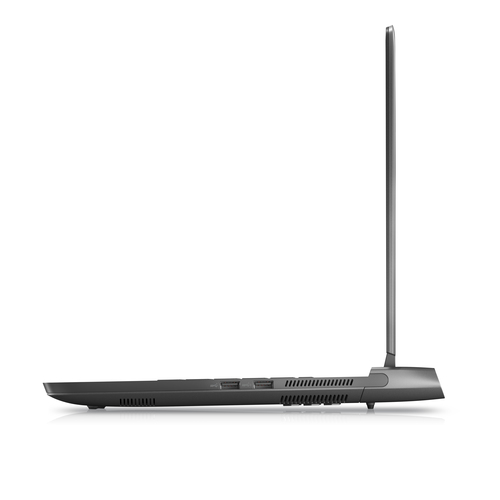

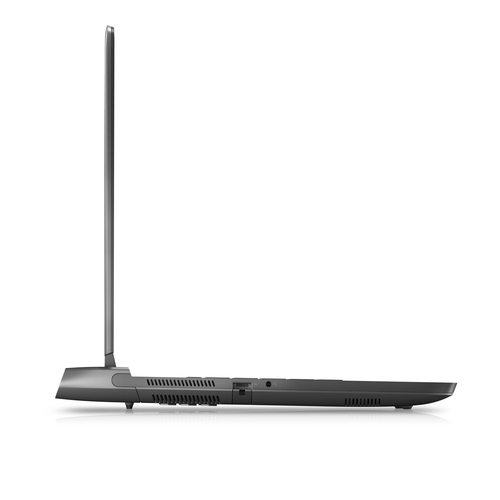

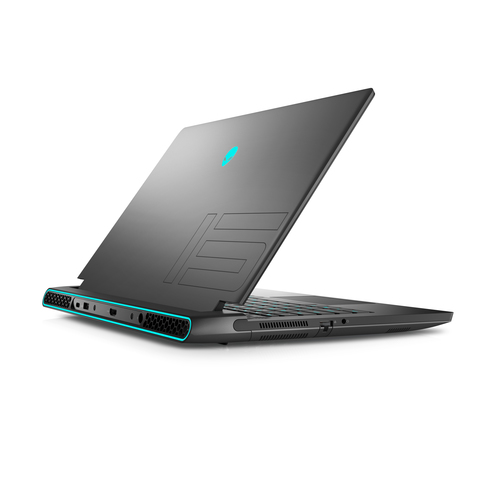

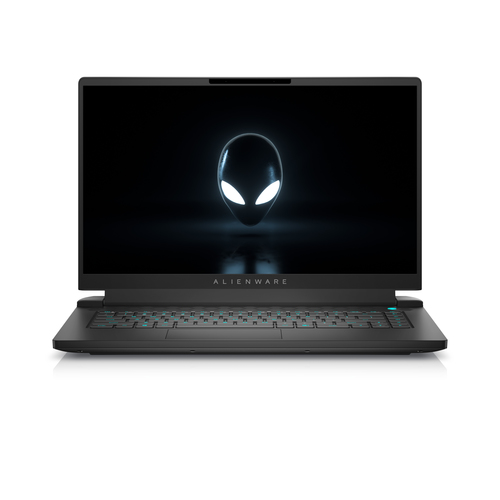

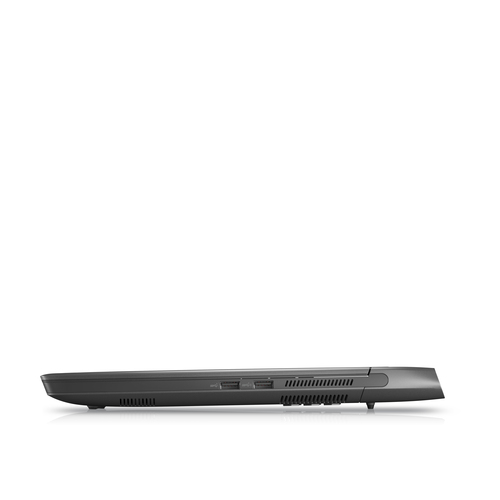

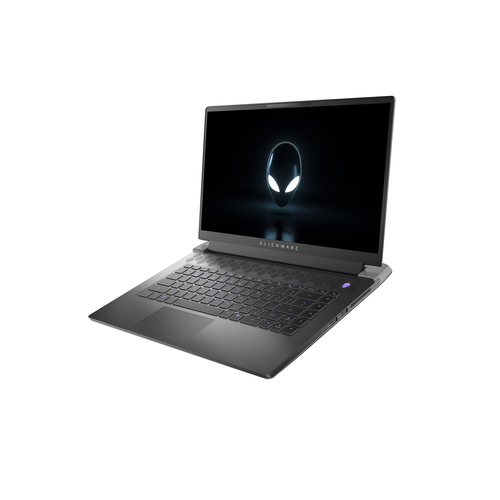

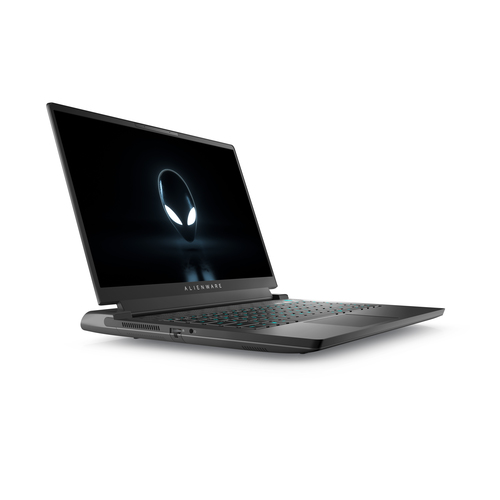

m15 R7

Model m15 R7Part no. AWM15R7-7600BLK-PUSEAN 5397184787373

160 specifications Checked today

Display39.6 cm (15.6")
Resolution2560 x 1440 pixels
ProcessorIntel® Core™ i7
Memory32 GB
Storage1 TB
GraphicsNVIDIA GeForce RTX 3070 Ti

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 2560 x 1440 pixels
Processor: Intel® Core™ i7
Memory: 32 GB
Storage: 1 TB
Graphics: NVIDIA GeForce RTX 3070 Ti

Brand: Alienware
Category: Laptop
Model: m15 R7
Part numbers: AWM15R7-7600BLK-PUS, WNR7M15FOQRS, AM15R7_FR7165123050TIBW11S_123, NAAM15R7_PS01E, NAAM15R7_PS02E, NAAM15R7_PS02F +34 more
EAN / UPC: 5397184787373, 884116395782, 5397184747957, 5397184747360 +18 more
Also known as: Alienware m15 R7 Intel® Core™ i7 i7-12700H Laptop 39.6 cm (15.6") Quad HD 32 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 3070 Ti Wi-Fi 6 (802.11ax) Windows 11 Hom

Specifications

160 specifications in 23 groups

Design

Specification	Value
Product type	Laptop
Product colour	Grey
Colour name	Dark Side of the Moon
Form factor	Clamshell
Market positioning	Gaming

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	2560 x 1440 pixels
Touchscreen	No
HD type	Quad HD
Panel type	WVA
LED backlight	Yes
Native aspect ratio	16:9
Anti-glare screen	Yes
Display brightness	400 cd/m²
Pixel density	188.3 ppi
Colour gamut	99%
RGB colour space	DCI-P3
Maximum refresh rate	240 Hz
Contrast ratio (typical)	1000:1

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	12th gen Intel® Core™ i7
Processor model	i7-12700H
Processor cores	14
Processor cache	24 MB
Configurable TDP-down	35 W

Memory

Specification	Value
Internal memory	32 GB
Internal memory type	DDR5-SDRAM
Memory clock speed	4800 MHz
Memory form factor	SO-DIMM
Memory slots	2x SO-DIMM
Maximum internal memory	32 GB

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	SSD
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity	1 TB
NVMe	Yes
SSD interface	NVMe, PCI Express
SSD form factor	M.2
Optical drive type	No
Card reader integrated	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA GeForce RTX 3070 Ti
Discrete graphics card memory	8 GB
Discrete graphics memory type	GDDR6
On-board GPU manufacturer	Intel
On-board graphics card model	Intel Iris Xe Graphics
AMD FreeSync	Yes
NVIDIA G-SYNC	Yes

Audio

Specification	Value
Audio chip	Realtek ALC3254
Number of built-in speakers	2
Speaker power	2 W
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera resolution (numeric)	0.92 MP
Front camera HD type	HD
Front camera resolution	1280 x 720 pixels
Video capturing speed	30 fps
Infrared (IR) camera	Yes

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Antenna type	2x2
WLAN controller manufacturer	Killer
WLAN controller model	Killer Wi-Fi 6E 1675i
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Bluetooth	Yes
Bluetooth version	5.2

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
Thunderbolt 4 ports quantity	1
Intel® Thunderbolt 4	Yes
Combo headphone/mic port	Yes
Power adapter barrel connector	7.4 mm
PowerShare	Yes

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	No
Keyboard backlit colour	RGB
Keyboard number of keys	86
Keyboard language	German

Software

Specification	Value
Operating system installed	Windows 11 Home
Operating system architecture	64-bit
Trial software	Microsoft Office 30 Day

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Execute Disable Bit	Yes
Intel Flex Memory Access	Yes
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	6
Battery capacity	86 Wh
Battery voltage	13.35 V
Battery recharge time	3 h
Fast charging	Yes
Battery weight	340 g

Power

Specification	Value
AC adapter power	240 W
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	3.5 A
AC adapter output voltage	19.5 V
DC-in jack	Yes
USB Power Delivery (USB PD)	Yes

Security

Specification	Value
Password protection	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	-15.2 - 3048 m
Non-operating altitude	-15.2 - 10668 m
Operating shock	110 G
Non-operating shock	160 G
Operating vibration	0.66 G
Non-operating vibration	1.3 G

Weight & dimensions

Specification	Value
Weight	2.69 kg
Width	356.2 mm
Depth	272.5 mm
Height (front)	1.29 cm
Height (rear)	2.06 cm

Packaging data

Specification	Value
Package width	345.5 mm
Package depth	553 mm
Package height	76 mm
Package weight	5 kg
Package material	Corrugated cardboard, Polyethylene terephthalate (PET)

Recycling data

Specification	Value
Paper molded pulp content per package	0 g
Bamboo molded pulp content per package	0 g
Wheat straw molded pulp content per package	0 g
Grey board content per package	0 g
Corrugated cardboard content per package	1.1 kg
Corrugated cardboard content per shipping (inner) case	128 g
Corrugated cardboard content per box for accessories	101 g
Corrugated cardboard content per sleeve for accessories	873 g
Polyethylene terephthalate (PET) content per package	15 g
High-density polyethylene (HDPE) content per package	0 g
Low-density polyethylene (LDPE) content per package	0 g
Polypropylene (PP) content per package	0 g
Polystyrene (PS) content per package	0 g
Other materials content per package	218 g

Packaging content

Specification	Value
Cables included	AC

Logistics data

Specification	Value
Maximum number of stacking cartons	6 pc(s)
Products per pallet layer	27 pc(s)
Layers per pallet	3 pc(s)
Products per pallet	81 pc(s)
Pallet gross width	100 cm
Pallet gross length	120 cm
Pallet gross weight	413 kg
Pallet volume weight	73.6 kg
Products per intermodal container (20ft)	1620 pc(s)
Products per intermodal container (40ft)	3402 pc(s)

Other features

Specification	Value
EPEAT rating	82.55%
