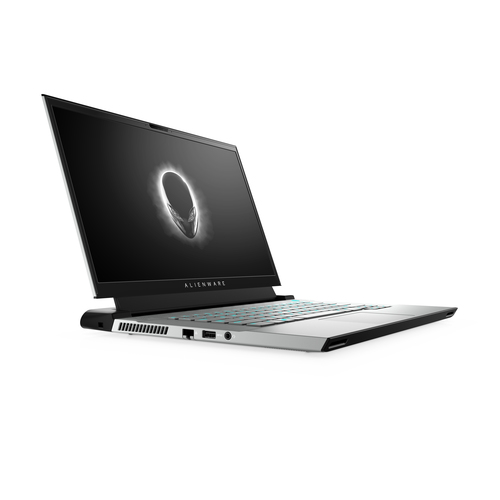

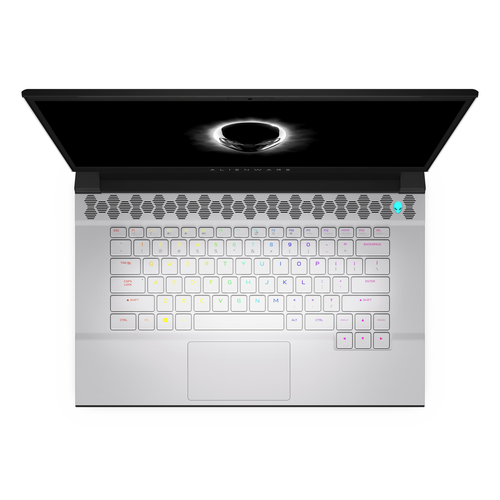

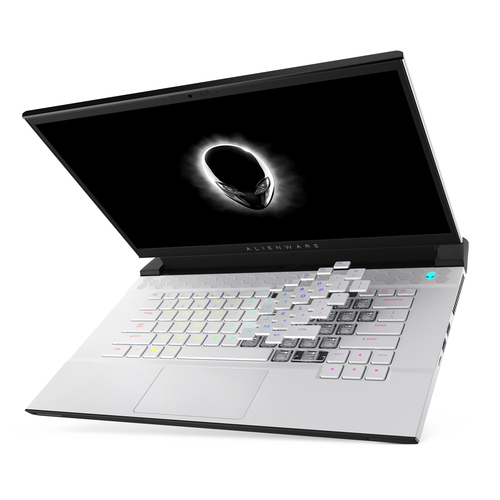

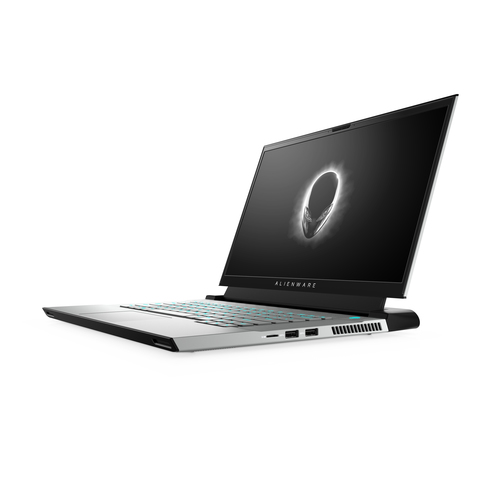

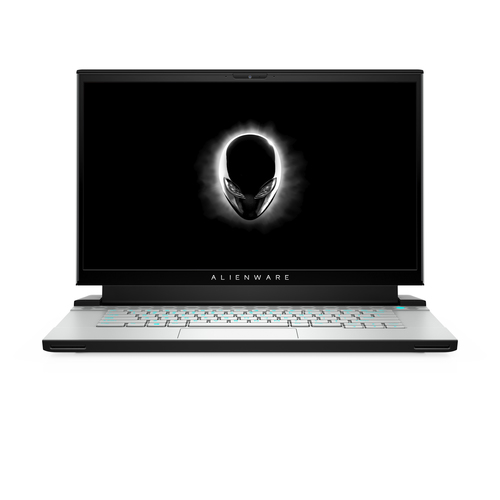

Alienware m15 R4

m15 R4

Model m15 R4Part no. WNM15R409SEAN 5397184518045

158 specifications Checked today

Display39.6 cm (15.6")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i7
Memory16 GB
Storage512 GB
GraphicsNVIDIA GeForce RTX 3060

See all specifications

Overview

Display: 39.6 cm (15.6")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i7
Memory: 16 GB
Storage: 512 GB
Graphics: NVIDIA GeForce RTX 3060

Brand: Alienware
Category: Laptop
Model: m15 R4
Part numbers: WNM15R409S, MKTWNM15R410H, MKTWNM15R420H, MKTWNM15R430H, MKTWNM15R440H, CAAWM15R400JP +34 more
EAN / UPC: 5397184518045, 884116365273, 884116389415, 884116389422 +11 more
Also known as: Alienware m15 R4 Intel® Core™ i7 i7-10870H Laptop 39.6 cm (15.6") Full HD 16 GB DDR4-SDRAM 512 GB SSD NVIDIA GeForce RTX 3060 Wi-Fi 6 (802.11ax) Windows 10 Adva

Specifications

158 specifications in 23 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black, White
Colour name	Lunar Light
Form factor	Clamshell
Market positioning	Gaming

Display

Specification	Value
Display diagonal	39.6 cm (15.6")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Native aspect ratio	16:9
Anti-glare screen	Yes
Pixel density	141 ppi
Maximum refresh rate	144 Hz

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	10th gen Intel® Core™ i7
Processor model	i7-10870H
Processor cores	8
Processor boost frequency	5 GHz
Processor frequency	2.2 GHz
Processor cache	16 MB
Processor cache type	Smart Cache
Configurable TDP-down	35 W

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	2933 MHz
Memory form factor	On-board
Maximum internal memory	16 GB

Storage

Specification	Value
Total storage capacity	512 GB
Storage media	SSD
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA GeForce RTX 3060
Discrete graphics card memory	6 GB
Discrete graphics memory type	GDDR6
On-board GPU manufacturer	Intel
On-board graphics card model	Intel® UHD Graphics

Audio

Specification	Value
Audio chip	Realtek ALC3281-CG
Number of built-in speakers	2
Speaker power	4 W
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera resolution (numeric)	0.92 MP
Front camera HD type	HD
Front camera resolution	1280 x 720 pixels
Video capturing speed	30 fps

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Wi-Fi data rate (max)	2400 Mbit/s
WLAN controller manufacturer	Killer
WLAN controller model	Killer Wireless-AX 1650
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Bluetooth	Yes
Bluetooth version	5.0

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.1
Mini DisplayPorts quantity	1
Thunderbolt 3 ports quantity	1
Combo headphone/mic port	Yes
Alienware graphics amplifier port	Yes
PowerShare	Yes
Number of USB ports with PowerShare support	1

Performance

Specification	Value
Virtual Reality (VR) ready	Yes

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	No
Keyboard backlit colour	Various
Full-size keyboard	Yes
Keyboard language	German

Software

Specification	Value
Operating system installed	Windows 10 Advanced
Operating system architecture	64-bit
Bundled software	Financial Tracker & Retail Information

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Flex Memory Access	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	6
Battery capacity	86 Wh
Battery voltage	11.4 V
Battery recharge time	3 h
Battery weight	340 g

Power

Specification	Value
AC adapter power	240 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	12.31 A
AC adapter output voltage	19.5 V
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Password protection	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 10668 m
Operating shock	140 G
Non-operating shock	160 G
Operating vibration	0.66 G
Non-operating vibration	1.3 G

Weight & dimensions

Specification	Value
Weight	2.5 kg
Width	360.3 mm
Depth	276 mm
Height (front)	1.79 cm
Height (rear)	1.97 cm

Packaging data

Specification	Value
Package width	415.8 mm
Package depth	456.1 mm
Package height	117.4 mm
Package weight	4.71 kg
Package material	Corrugated cardboard, Polypropylene (PP)

Recycling data

Specification	Value
Paper molded pulp content per package	0 g
Bamboo molded pulp content per package	0 g
Wheat straw molded pulp content per package	0 g
Grey board content per package	0 g
Corrugated cardboard content per package	848.3 g
Corrugated cardboard content per shipping (inner) case	557.4 g
Corrugated cardboard content per box for accessories	111.3 g
Corrugated cardboard content per sleeve for accessories	179.6 g
Polyethylene terephthalate (PET) content per package	0 g
High-density polyethylene (HDPE) content per package	0 g
Low-density polyethylene (LDPE) content per package	0 g
Polypropylene (PP) content per package	15.7 g
Polystyrene (PS) content per package	0 g
Other materials content per package	371.1 g

Logistics data

Specification	Value
Maximum number of stacking cartons	4 pc(s)
Products per pallet layer	20 pc(s)
Layers per pallet	2 pc(s)
Products per pallet	40 pc(s)
Pallet gross width	100 cm
Pallet gross length	120 cm
Pallet gross weight	196.2 kg
Pallet volume weight	75 kg
Products per intermodal container (20ft)	800 pc(s)
Products per intermodal container (40ft)	1680 pc(s)

Other features

Specification	Value
EPEAT rating	72.07%
