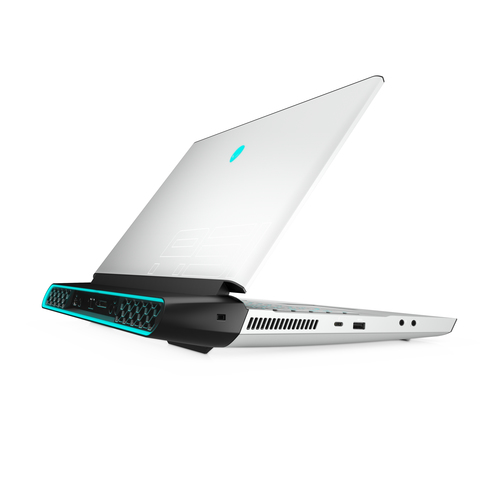

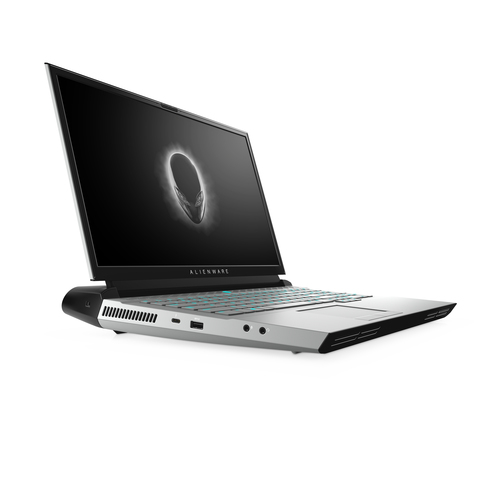

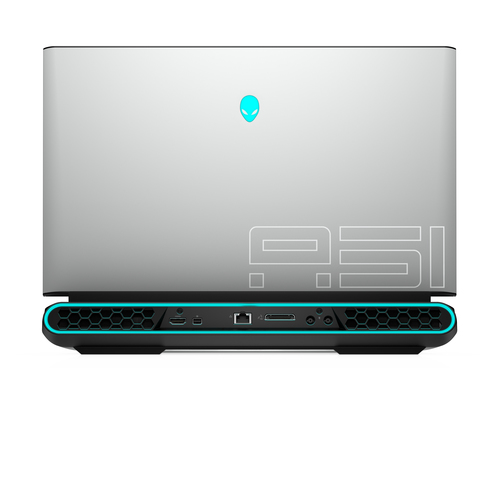

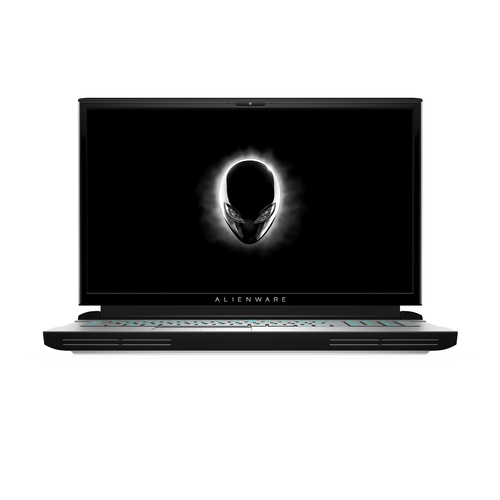

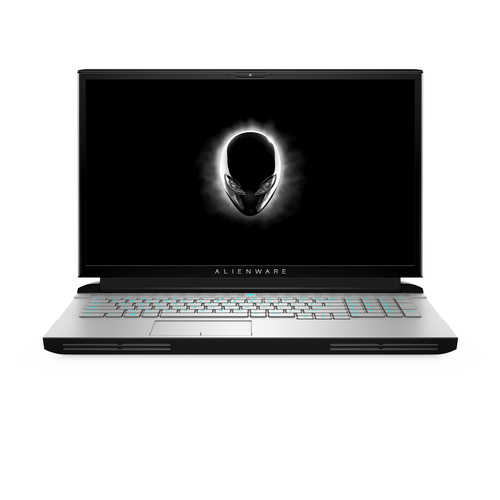

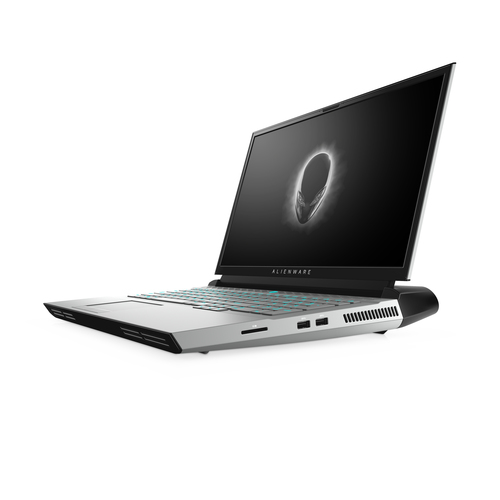

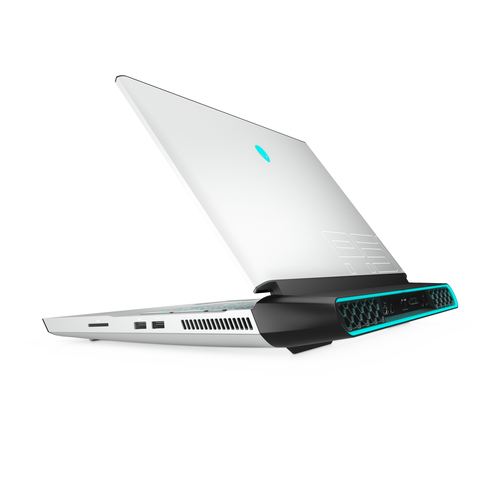

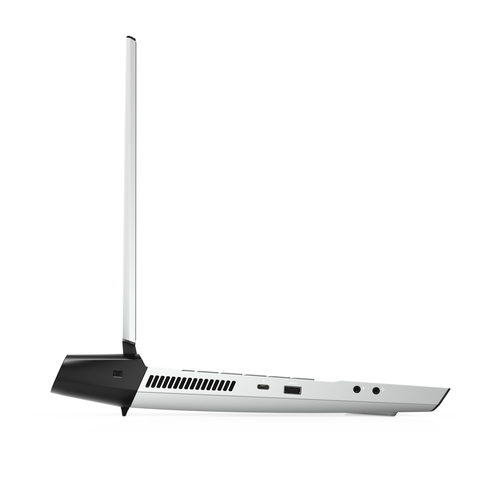

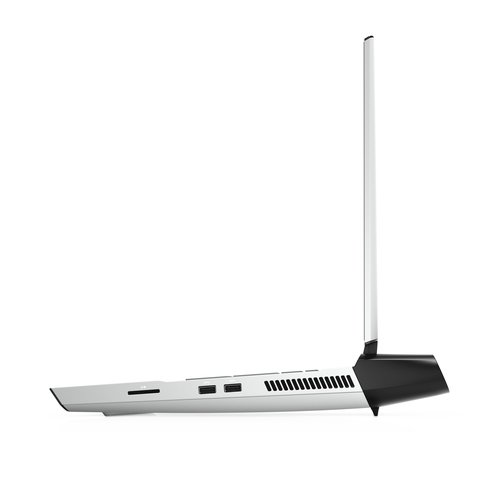

Area 51M R2

Model Area 51M R2Part no. AWR2-2552EAN 5397184490471

192 specifications Checked today

Display43.9 cm (17.3")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i9
Memory16 GB
Storage1.51 TB
GraphicsNVIDIA GeForce RTX 2080 SUPER

See all specifications

Overview

Display: 43.9 cm (17.3")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i9
Memory: 16 GB
Storage: 1.51 TB
Graphics: NVIDIA GeForce RTX 2080 SUPER

Brand: Alienware
Category: Laptop
Model: Area 51M R2
Part numbers: AWR2-2552, AWR2-1607, LA_A17FR_I716151260WW10S_121, A17FR_I9K32151280WW10S_121, ALWA51M-D2748PW, ALWA51M-D2765PB +23 more
EAN / UPC: 5397184490471, 5397184490488, 884116368588, 5397184472552 +8 more
Also known as: Alienware Area 51M R2 Intel® Core™ i9 i9-10900K Netbook 43.9 cm (17.3") Full HD 16 GB DDR4-SDRAM 1.51 TB HDD+SSD NVIDIA GeForce RTX 2080 SUPER Wi-Fi 6 (802.11ax

Specifications

192 specifications in 23 groups

Design

Specification	Value
Product type	Netbook
Product colour	White
Colour name	Lunar Light
Form factor	Clamshell

Display

Specification	Value
Display diagonal	43.9 cm (17.3")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
LED backlight	Yes
Native aspect ratio	16:9
Display brightness	300 cd/m²
Pixel density	127 ppi
Maximum refresh rate	144 Hz

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i9
Processor generation	10th gen Intel® Core™ i9
Processor model	i9-10900K
Processor cores	10
Processor boost frequency	5.3 GHz
Processor frequency	3.7 GHz
System bus rate	8 GT/s
Processor cache	20 MB
Processor cache type	Smart Cache
Processor socket	LGA 1200 (Socket H5)
Processor lithography	14 nm
Processor operating modes	64-bit
Processor codename	Comet Lake
Thermal Design Power (TDP)	125 W
Configurable TDP-down	95 W
Configurable TDP-down frequency	3.3 GHz
Tjunction	100 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	3.0

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	2933 MHz
Memory form factor	SO-DIMM
Memory slots	2x SO-DIMM
Maximum internal memory	64 GB

Storage

Specification	Value
Total storage capacity	1.51 TB
Storage media	HDD+SSD
Total HDDs capacity	1 TB
Number of HDDs installed	1
HDD capacity	1 TB
HDD speed	7200 RPM
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express
SSD form factor	M.2
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	SD, SDHC, SDXC

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA GeForce RTX 2080 SUPER
Discrete graphics card memory	8 GB
Discrete graphics memory type	GDDR6
On-board GPU manufacturer	Intel
On-board graphics card model	Intel® UHD Graphics 630
Maximum on-board graphics card memory	64 GB
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1200 MHz
On-board graphics card DirectX version	12.0
On-board graphics card OpenGL version	4.5
On-board graphics card ID	0x9BC5

Audio

Specification	Value
Audio chip	Realtek ALC3282-CG
Number of built-in speakers	4
Speaker power	4 W
Built-in microphone	Yes
Number of microphones	2

Camera

Specification	Value
Front camera	Yes
Front camera resolution (numeric)	0.92 MP
Front camera HD type	HD
Front camera resolution	1280 x 720 pixels
Video capturing speed	30 fps

Network

Specification	Value
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Antenna type	2x2
WLAN controller model	Killer Wireless-AX 1650
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Bluetooth	Yes
Bluetooth version	5.1

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
Thunderbolt version	3
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.0
Mini DisplayPorts quantity	1
Thunderbolt 3 ports quantity	1
Combo headphone/mic port	Yes
PowerShare	Yes
Number of USB ports with PowerShare support	1

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes
Keyboard language	Nordic

Software

Specification	Value
Operating system installed	Windows 10 Home
Operating system architecture	64-bit
Operating system language	Norwegian
Bundled software	Financial Tracker & Retail Information

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	199332
Processor package size	37.5 x 37.5 mm
Scalability	1S
Supported instruction sets	SSE4.1, SSE4.2, AVX 2.0
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2015D

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	6
Battery capacity	90 Wh
Battery voltage	11.4 V
Battery weight	370 g

Power

Specification	Value
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output voltage	19.5 V
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Fingerprint reader	No
Password protection	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 10668 m
Operating shock	140 G
Non-operating shock	160 G
Operating vibration	0.66 G
Non-operating vibration	1.3 G

Weight & dimensions

Specification	Value
Weight	4.7 kg
Width	402.6 mm
Depth	319.1 mm
Height (front)	2.77 cm
Height (rear)	3.18 cm

Packaging data

Specification	Value
Package width	503.6 mm
Package depth	501.3 mm
Package height	130.4 mm
Package weight	9.8 kg
Package material	Corrugated cardboard, Polypropylene (PP)

Recycling data

Specification	Value
Paper molded pulp content per package	0 g
Bamboo molded pulp content per package	0 g
Wheat straw molded pulp content per package	0 g
Grey board content per package	0 g
Corrugated cardboard content per package	1.61 kg
Corrugated cardboard content per shipping (inner) case	1.08 kg
Corrugated cardboard content per box for accessories	275 g
Corrugated cardboard content per sleeve for accessories	251 g
Polyethylene terephthalate (PET) content per package	0 g
High-density polyethylene (HDPE) content per package	0 g
Low-density polyethylene (LDPE) content per package	0 g
Polypropylene (PP) content per package	19 g
Polystyrene (PS) content per package	0 g
Other materials content per package	187 g

Packaging content

Specification	Value
Cables included	AC

Logistics data

Specification	Value
Maximum number of stacking cartons	4 pc(s)
Products per pallet layer	15 pc(s)
Layers per pallet	2 pc(s)
Products per pallet	30 pc(s)
Pallet gross width	100 cm
Pallet gross length	120 cm
Pallet gross weight	302 kg
Pallet volume weight	80.2 kg
Products per intermodal container (20ft)	600 pc(s)
Products per intermodal container (40ft)	1260 pc(s)

Other features

Specification	Value
EPEAT rating	88.66%
