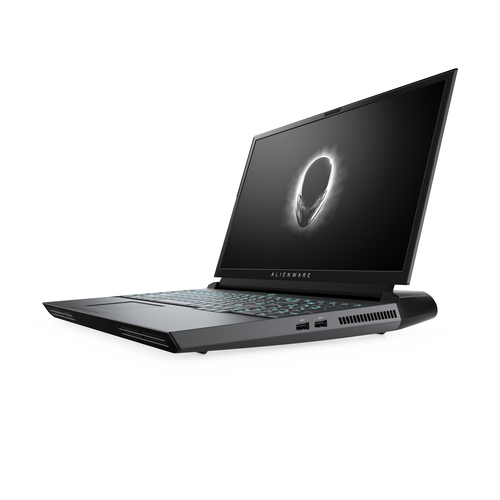

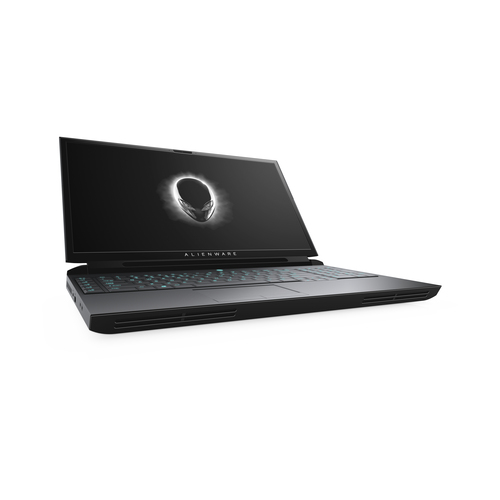

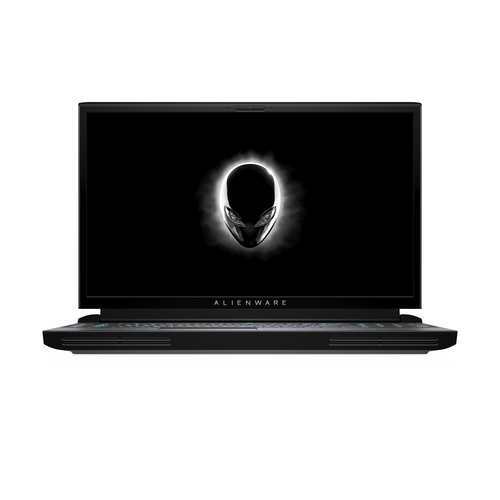

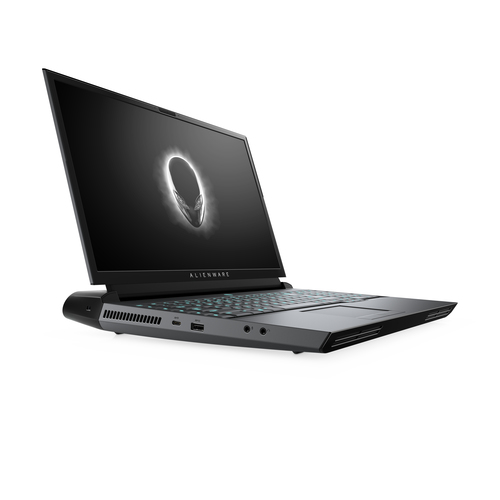

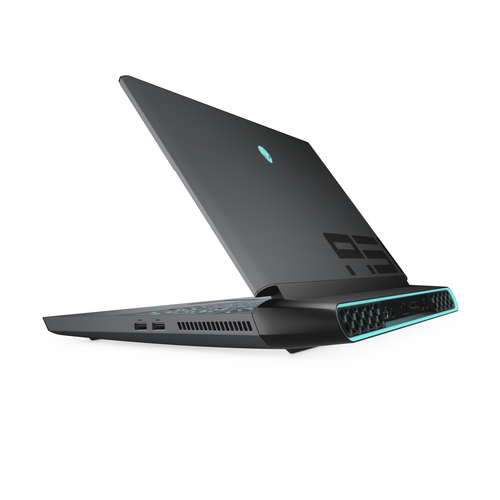

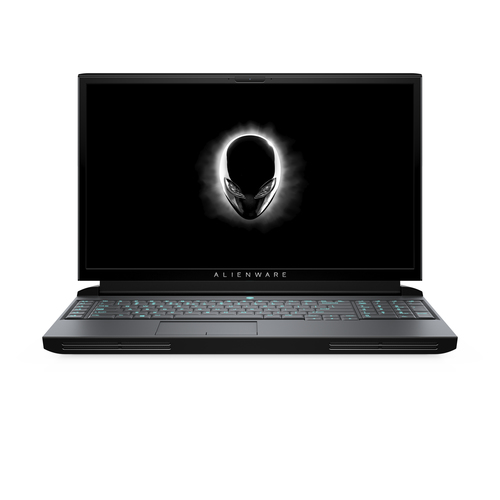

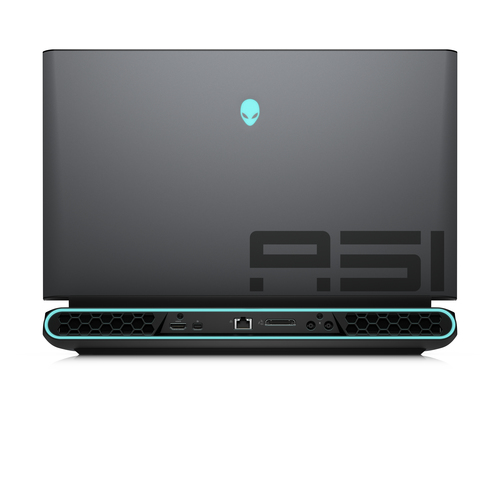

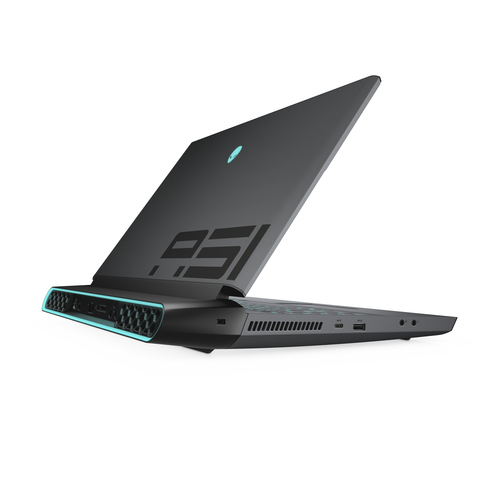

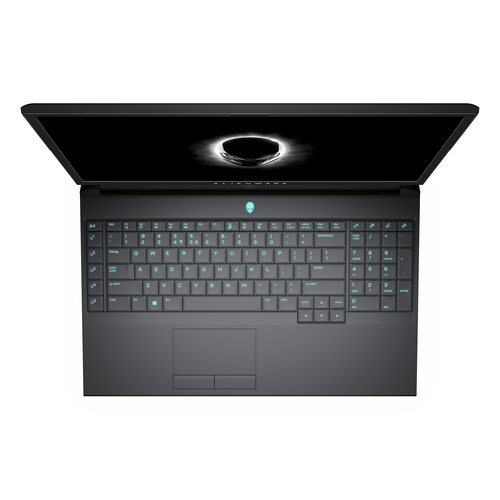

Area-51m Intel® Core™ i7 i7-8700 Laptop

43.9 cm (17.3") Full HD 16 GB DDR4-SDRAM 1.51 TB Hybrid-HDD+SSD NVIDIA® GeForce RTX™ 2070 Wi-Fi 5 (802.11ac) W

Model Area-51mPart no. ALWA51M-R1746WEAN 5397184246887

190 specifications Checked today

Display43.9 cm (17.3")
Resolution1920 x 1080 pixels
ProcessorIntel® Core™ i7
Memory16 GB
Storage1.51 TB
GraphicsNVIDIA® GeForce RTX™ 2070

See all specifications

Overview

Display: 43.9 cm (17.3")
Resolution: 1920 x 1080 pixels
Processor: Intel® Core™ i7
Memory: 16 GB
Storage: 1.51 TB
Graphics: NVIDIA® GeForce RTX™ 2070

Brand: Alienware
Category: Laptop
Model: Area-51m
Part numbers: ALWA51M-R1746W, N00AW51M15, N00AW51M14, CAAWAREA51M03JP, CAAWAREA51M02JP, CAAWAREA51M00JP +34 more
EAN / UPC: 5397184246887, 5397184246597, 884116316350, 5397184327739 +5 more
Also known as: Alienware Area-51m Intel® Core™ i7 i7-8700 Laptop 43.9 cm (17.3") Full HD 16 GB DDR4-SDRAM 1.51 TB Hybrid-HDD+SSD NVIDIA® GeForce RTX™ 2070 Wi-Fi 5 (802.11ac) W

Specifications

190 specifications in 20 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black
Colour name	Dark side of the moon
Form factor	Clamshell
Market positioning	Gaming

Display

Specification	Value
Display diagonal	43.9 cm (17.3")
Display resolution	1920 x 1080 pixels
Touchscreen	No
HD type	Full HD
Panel type	IPS
LED backlight	Yes
Native aspect ratio	16:9
Display surface	Matt
Display brightness	300 cd/m²
Pixel density	127 ppi
Pixel pitch	0.1989 x 0.1989 mm
Dual-screen	No
Display response rise/fall	19 ms
Maximum refresh rate	144 Hz

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	8th gen Intel® Core™ i7
Processor model	i7-8700
Processor cores	6
Processor threads	12
Processor boost frequency	4.6 GHz
Processor frequency	3.2 GHz
System bus rate	8 GT/s
Processor cache	12 MB
Processor cache type	Smart Cache
Processor socket	LGA 1151 (Socket H4)
Processor lithography	14 nm
Processor operating modes	64-bit
Processor series	Intel Core i7-8700 Desktop Series
Processor codename	Coffee Lake
Bus type	DMI3
Thermal Design Power (TDP)	65 W
Tjunction	100 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 1x8+2x4, 2x8
PCI Express slots version	3.0
ECC supported by processor	No

Memory

Specification	Value
Internal memory	16 GB
Internal memory type	DDR4-SDRAM
Memory clock speed	2400 MHz
Memory form factor	SO-DIMM
Memory layout (slots x size)	2 x 8 GB
Memory slots	4x SO-DIMM
Maximum internal memory	64 GB
Maximum internal memory (64-bit)	64 GB

Storage

Specification	Value
Total storage capacity	1.51 TB
Storage media	Hybrid-HDD+SSD
Hybrid-HDD capacity	1 TB
Hybrid-HDD cache memory	8 GB
HDD size	2.5"
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express
SSD form factor	M.2
Optical drive type	No
Card reader integrated	No

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA® GeForce RTX™ 2070
Discrete graphics card memory	8 GB
Discrete graphics memory type	GDDR6
On-board graphics card model	Intel® UHD Graphics 630
Maximum on-board graphics card memory	64 GB
Number of execution units	24
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1200 MHz
On-board graphics card DirectX version	12.0
On-board graphics card OpenGL version	4.5
On-board graphics card ID	0x3E92
Number of discrete graphics cards installed	1
CUDA	Yes
CUDA cores	2304
NVIDIA G-SYNC	Yes

Audio

Specification	Value
Audio chip	Realtek ALC3282-CG
Number of built-in speakers	4
Speaker power	8 W
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera resolution (numeric)	0.92 MP
Front camera HD type	HD
Front camera resolution	1280 x 720 pixels
Front camera signal format	720p
Video capturing speed	30 fps

Network

Specification	Value
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Antenna type	2x2
WLAN controller model	Killer Wireless-AC 1550
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Bluetooth	Yes
Bluetooth version	5.0

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.0
DisplayPorts quantity	0
Mini DisplayPorts quantity	1
Thunderbolt 3 ports quantity	1
Thunderbolt™ 3 Technology	Yes
Combo headphone/mic port	Yes
Alienware graphics amplifier port	Yes
PowerShare	Yes
Number of USB ports with PowerShare support	1

Performance

Specification	Value
Virtual Reality (VR) ready	Yes

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes
Keyboard backlit colour	Various
Windows keys	Yes

Software

Specification	Value
Operating system installed	Windows 10 Home
Operating system architecture	64-bit
Operating system language	German, Dutch, English, French, Italian
Bundled software	Financial Tracker & Retail Information

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel Stable Image Platform Program (SIPP) version	1.00
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	126686
Processor code	SR3QS
Processor package size	37.5 x 37.5 mm
Scalability	1S
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2015C
Conflict-Free processor	Yes

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	6
Battery capacity	90 Wh
Battery voltage	11.4 V
Battery recharge time	4 h
Battery weight	370 g

Power

Specification	Value
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output voltage	19.5 V
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Face recognition	Yes
Password protection	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 10668 m
Operating shock	140 G
Non-operating shock	160 G
Operating vibration	0.66 G
Non-operating vibration	1.3 G

Weight & dimensions

Specification	Value
Weight	3.87 kg
Width	402.6 mm
Depth	319.1 mm
Height (front)	2.77 cm
Height (rear)	3.12 cm

Packaging content

Specification	Value
AC adapter included	Yes
Manual	Yes
Power cord included	Yes
