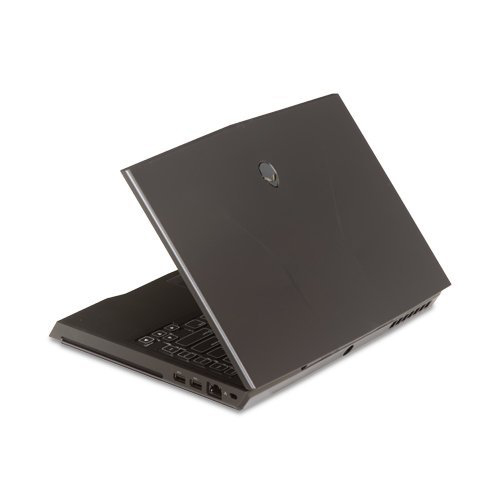

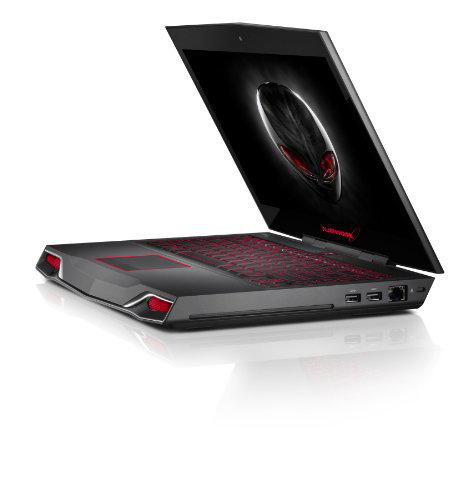

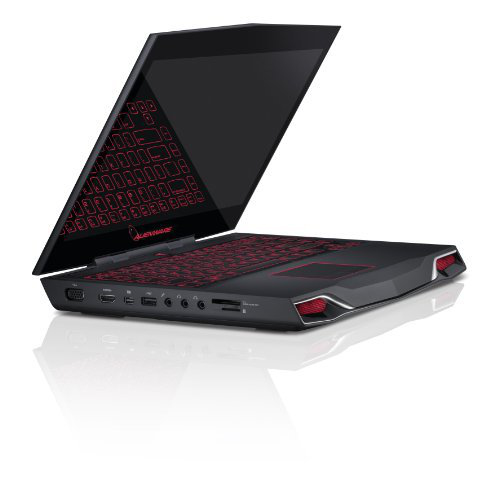

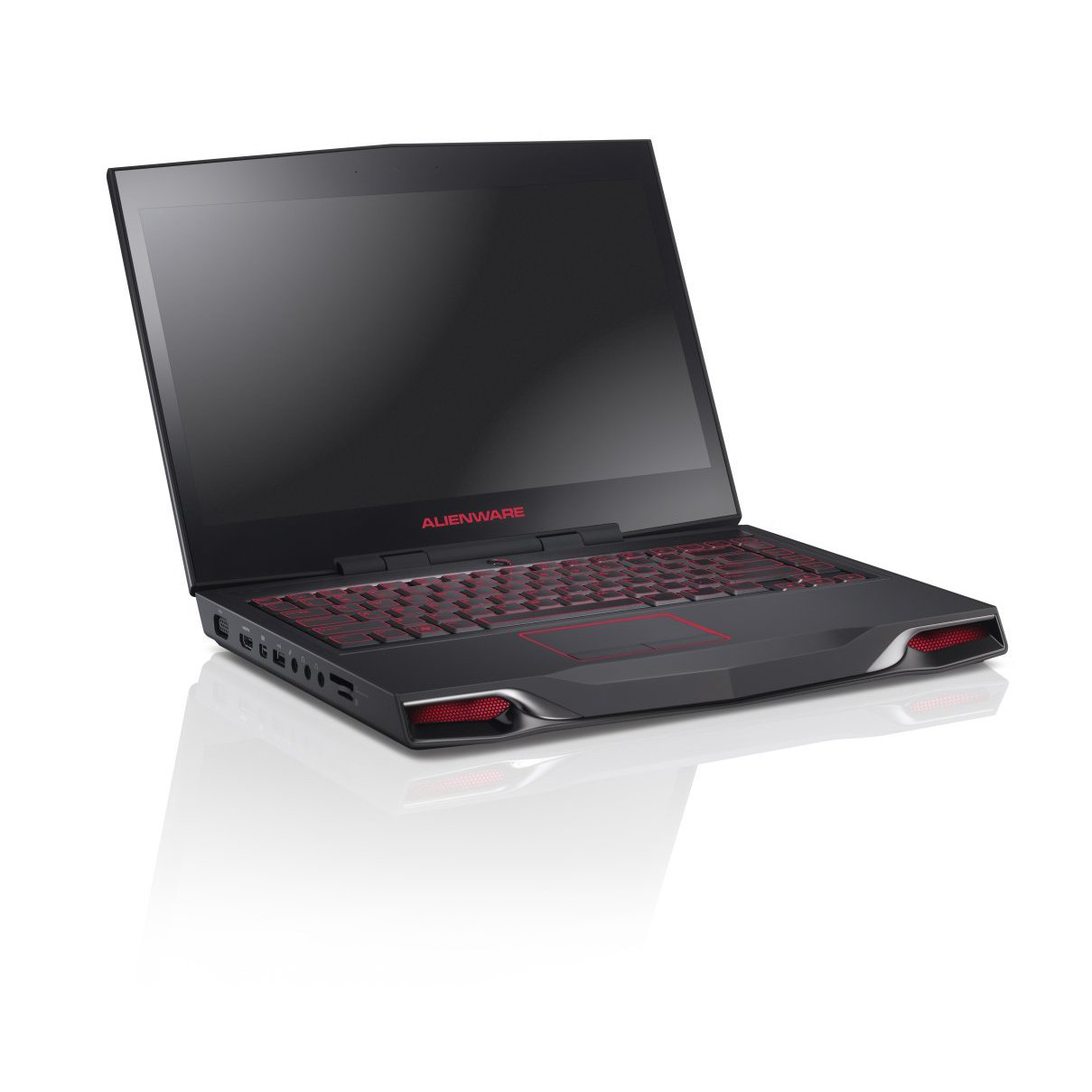

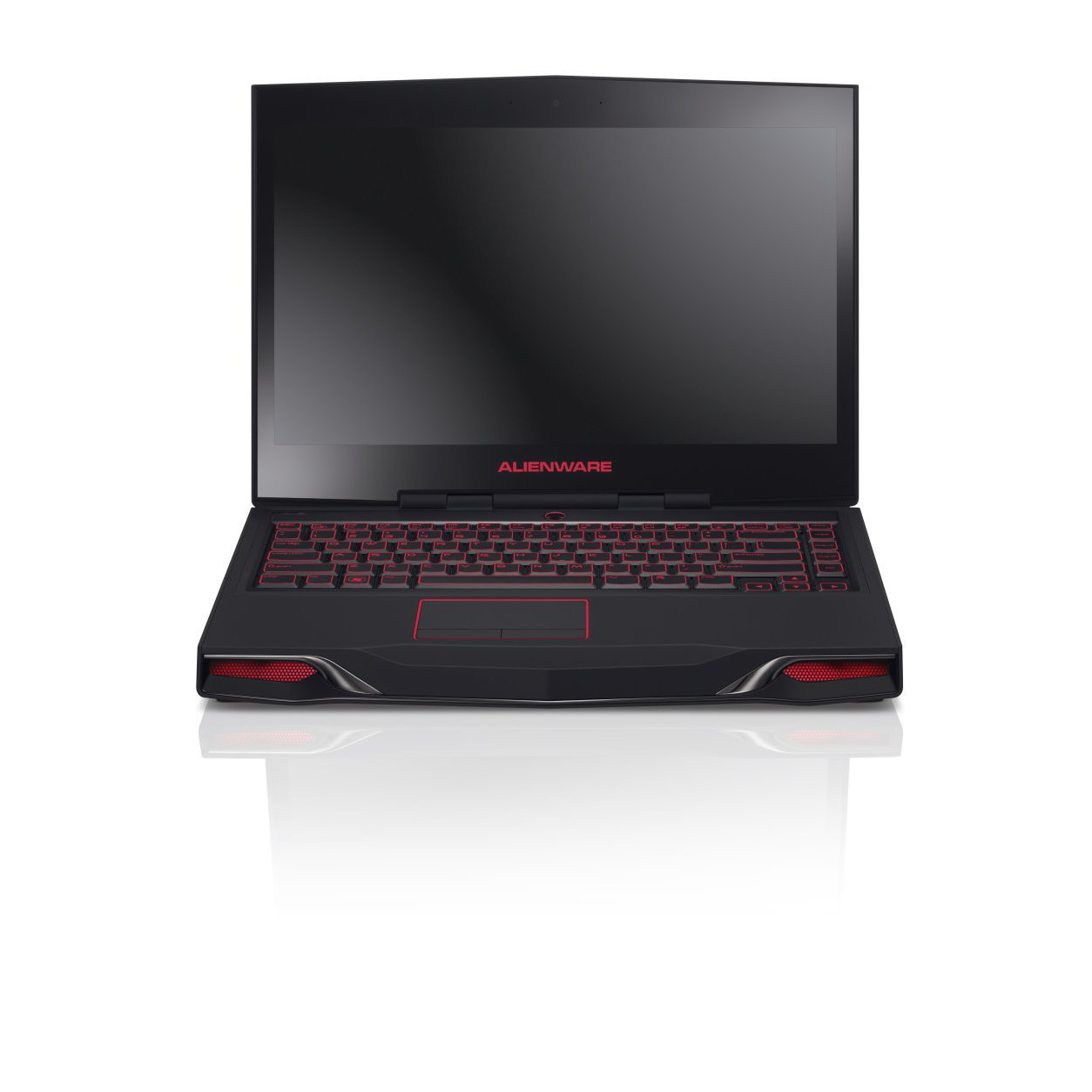

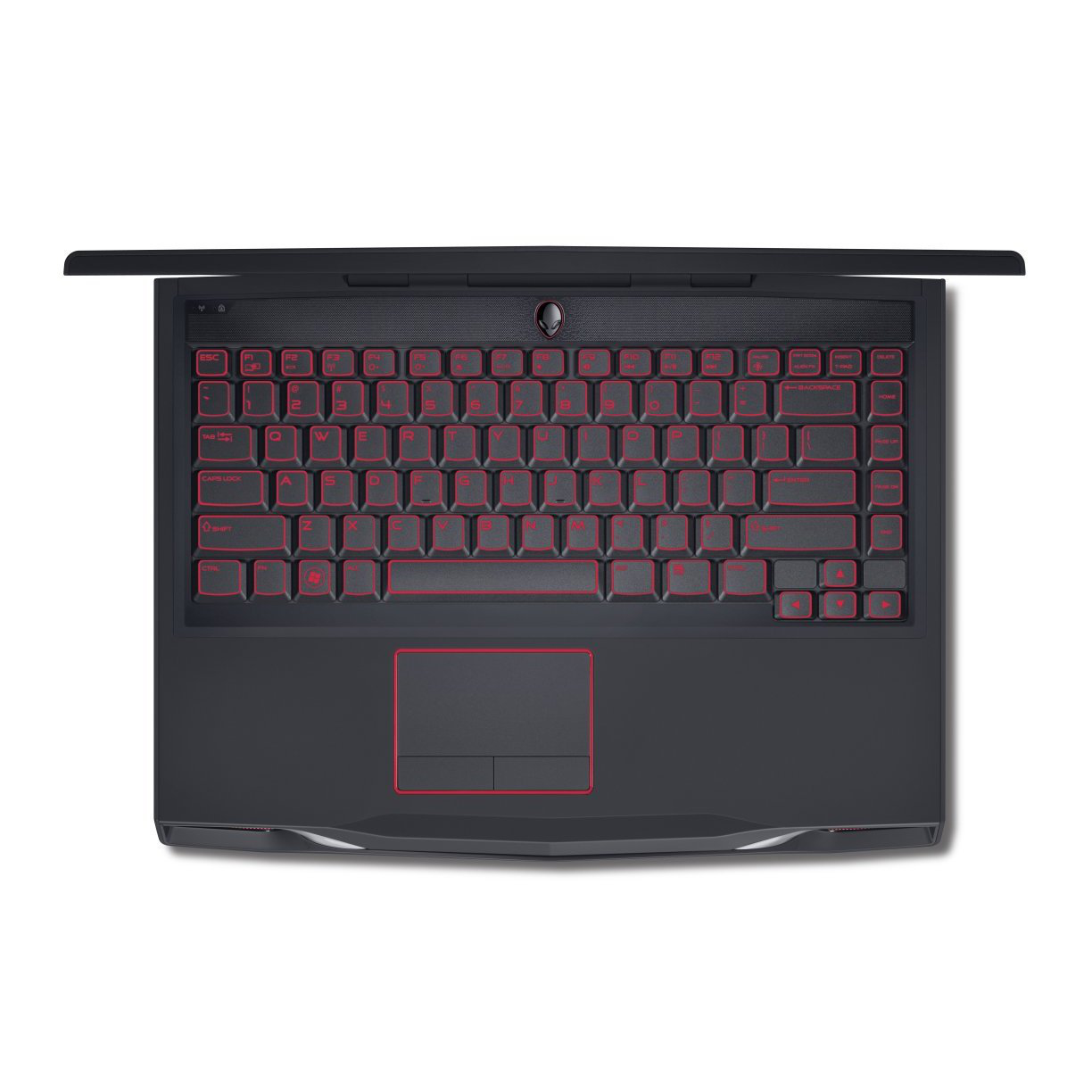

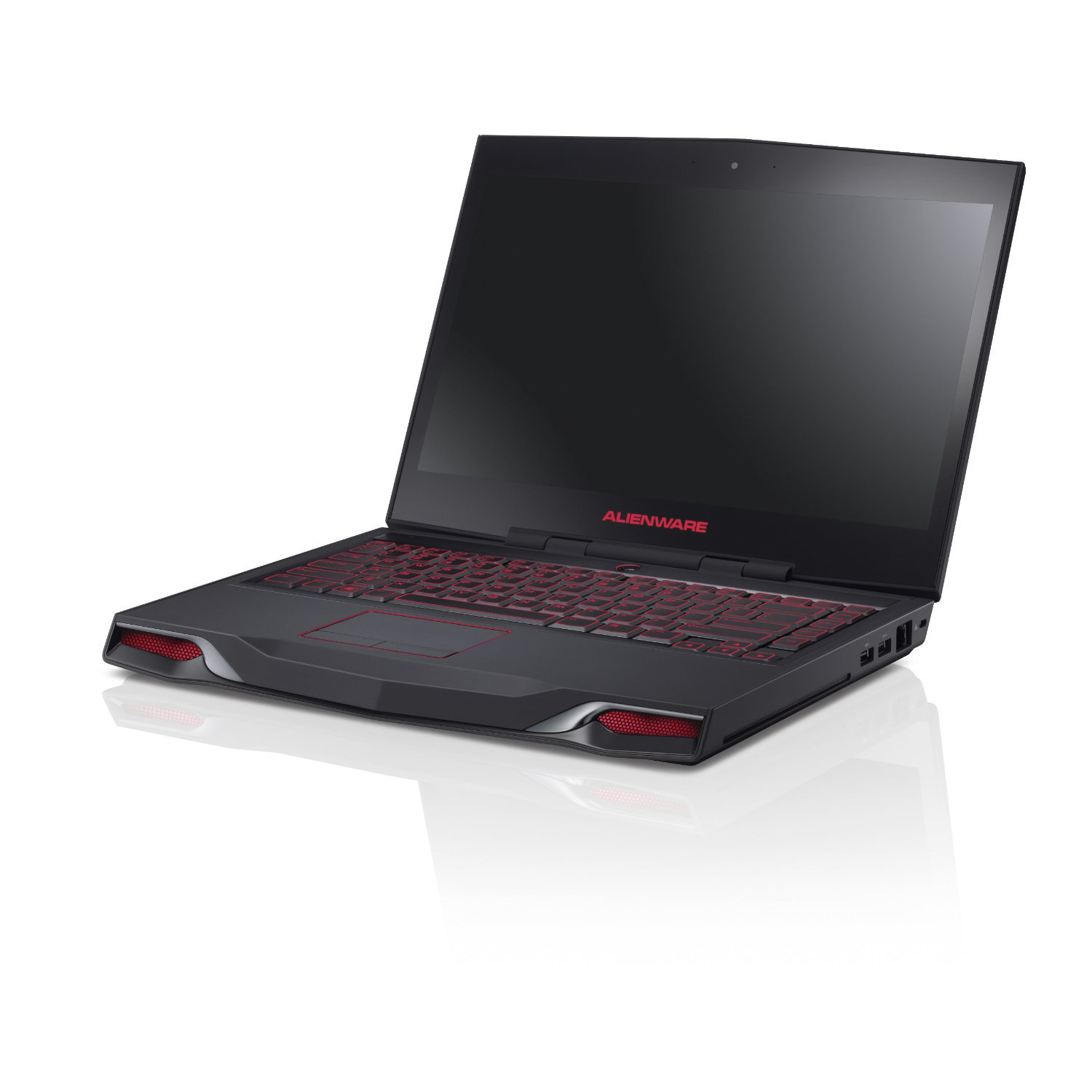

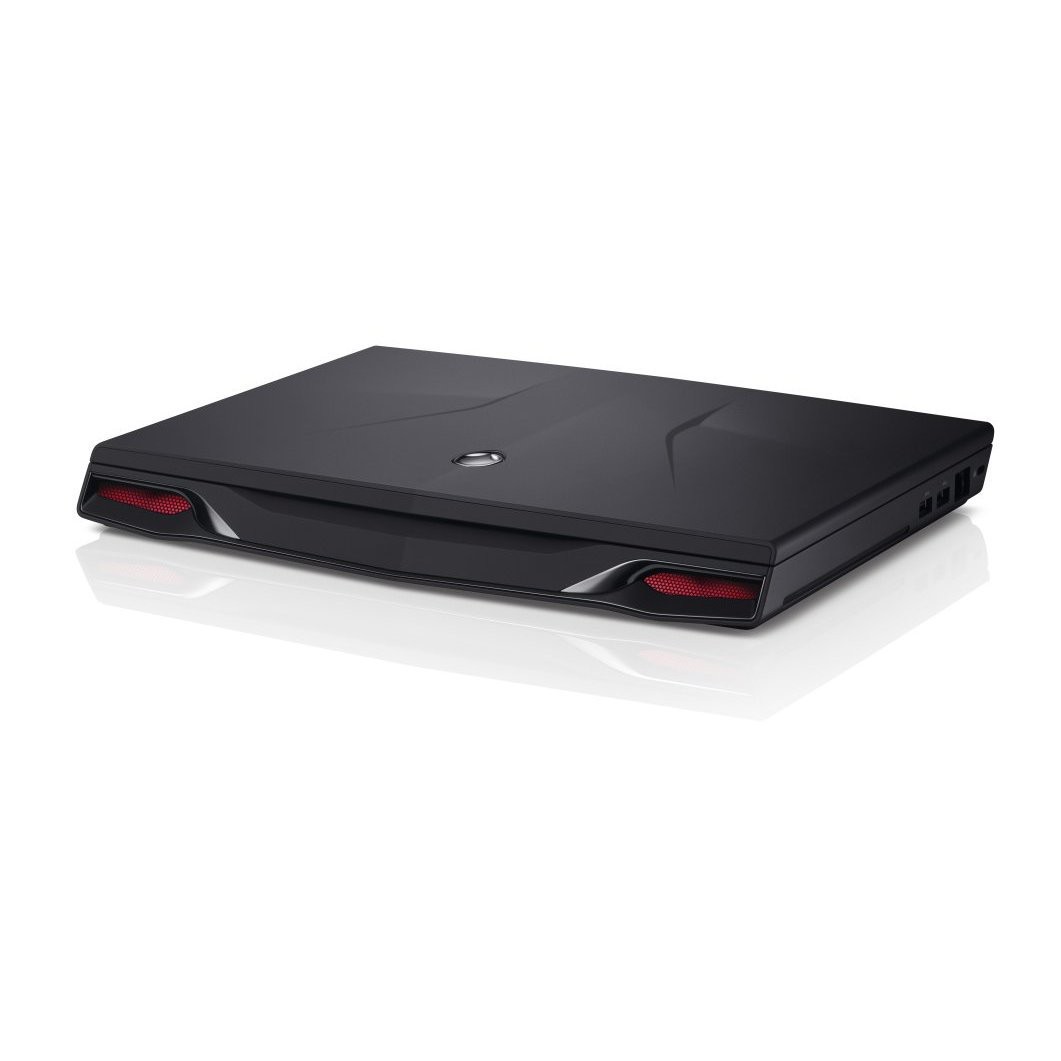

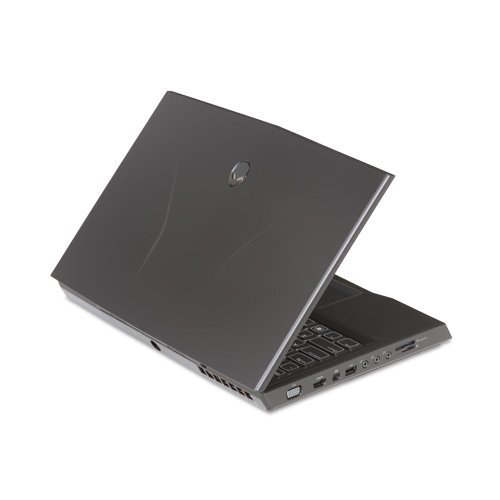

Alienware AM14X-5283SBK
Alienware

Alienware AM14X-5283SBK

Model Alienware AM14X-5283SBKPart no. AM14X-5283SBKEAN 884116071600

153 specifications Checked today
  • Display35.6 cm (14")
  • Resolution1366 x 768 pixels
  • ProcessorIntel® Core™ i7
  • Memory8 GB
  • Storage750 GB
  • Battery63 Wh
See all specifications

Overview

Display
35.6 cm (14")
Resolution
1366 x 768 pixels
Processor
Intel® Core™ i7
Memory
8 GB
Storage
750 GB
Battery
63 Wh
Brand
Alienware
Category
Laptop
Model
Alienware AM14X-5283SBK
Part number
AM14X-5283SBK
EAN / UPC
884116071600
Also known as
Alienware AM14X-5283SBK Intel® Core™ i7 i7-2630QM 35.6 cm (14") HD 8 GB DDR3-SDRAM 750 GB HDD Windows 7 Home Premium Black

Specifications

153 specifications in 21 groups

Design

Product colourBlack
Form factorClamshell

Display

Display diagonal35.6 cm (14")
Display resolution1366 x 768 pixels
HD typeHD
LED backlightYes
Native aspect ratio16:9

Processor

Processor manufacturerIntel
Processor familyIntel® Core™ i7
Processor generation2nd gen Intel® Core™ i7
Processor modeli7-2630QM
Processor cores4
Processor threads8
Processor boost frequency2.9 GHz
Processor frequency2 GHz
System bus rate5 GT/s
Processor cache6 MB
Processor cache typeSmart Cache
Processor socketSocket 988
Processor lithography32 nm
Processor operating modes64-bit
Processor seriesIntel Core i7-2600 Mobile Series
Processor codenameSandy Bridge
Bus typeDMI
FSB ParityNo
SteppingD2
Thermal Design Power (TDP)45 W
Tjunction100 °C
Maximum number of PCI Express lanes16
PCI Express configurations1x16, 2x8, 1x8+2x4
PCI Express slots version2.0
CPU multiplier (bus/core ratio)20
ECC supported by processorNo

Memory

Internal memory8 GB
Internal memory typeDDR3-SDRAM

Storage

Total storage capacity750 GB
Storage mediaHDD
Number of HDDs installed1
HDD capacity750 GB
HDD interfaceSATA
Optical drive typeDVD Super Multi
Card reader integratedYes

Graphics

On-board graphics cardYes
Graphics card familyIntel
On-board graphics card familyIntel® HD Graphics
On-board graphics card modelIntel® HD Graphics 3000
On-board graphics card base frequency650 MHz
On-board graphics card dynamic frequency (max)1100 MHz
On-board graphics card ID0x116

Audio

Audio systemHD
Built-in speaker(s)Yes
Built-in microphoneYes

Camera

Swivel webcamNo

Optical drive

DVD-ROM read speed8x
Disc types supportedCD-R, CD-RW, DVD, DVD+R, DVD-R, DVD-RW, CD, DVD+RW

Network

Wi-FiYes
Networking featuresGigabit Ethernet
Wireless technologyWi-Fi
Wi-Fi standards802.11a, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LANYes
Ethernet LAN data rates10,100,1000 Mbit/s
BluetoothYes
Bluetooth version3.0+HS
Cabling technology10/100/1000Base-T(X)
Integrated 4G WiMAXYes

Ports & interfaces

USB 2.0 ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
eSATA/USB 2.0 ports quantity0
eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity0
eSATA ports quantity0
Ethernet LAN (RJ-45) ports1
HDMI ports quantity1
HDMI version1.4
DisplayPorts quantity0
Mini DisplayPorts quantity1
DVI portNo
VGA (D-Sub) ports quantity1
Firewire (IEEE 1394) ports0
Thunderbolt ports quantity0
Headphone outputs2
S/PDIF out portNo
Microphone inYes
ExpressCard slotNo
CardBus PCMCIA slots quantity0
CardBus PCMCIA slot typeNo
SmartCard slotNo
TV-outNo

Keyboard

Pointing deviceTouchpad
Keyboard backlitYes
Numeric keypadNo
Keyboard number of keys82

Software

Operating system installedWindows 7 Home Premium
Operating system architecture64-bit

Processor special features

Intel® Wireless Display (Intel® WiDi)Yes
Embedded options availableNo
Enhanced Intel SpeedStep TechnologyYes
Execute Disable BitYes
Graphics & IMC lithography32 nm
Idle StatesYes
Intel 64Yes
Intel Clear Video TechnologyNo
Intel Demand Based SwitchingNo
Intel Dual Display Capable TechnologyYes
Intel Enhanced Halt StateYes
Intel FDI TechnologyYes
Intel Fast Memory AccessYes
Intel Flex Memory AccessYes
Intel Identity Protection Technology version1.00
Intel Rapid Storage TechnologyNo
Intel Trusted Execution TechnologyNo
Intel VT-x with Extended Page Tables (EPT)Yes
Intel Virtualization Technology (VT-x)Yes
Intel Virtualization Technology for Directed I/O (VT-d)No
Intel® AES New Instructions (Intel® AES-NI)Yes
Intel® Anti-Theft Technology (Intel® AT)Yes
Intel® Clear Video HD Technology (Intel® CVT HD)Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)No
Intel® Hyper Threading Technology (Intel® HT Technology)Yes
Intel® Identity Protection Technology (Intel® IPT)Yes
Intel® InTru™ 3D TechnologyYes
Intel® Insider™Yes
Intel® My WiFi Technology (Intel® MWT)Yes
Intel® Quick Sync Video TechnologyYes
Intel® Turbo Boost Technology2.0
Processor ARK ID52219
Processor codeSR02Y
Processor package size37.5 x 37.5 (rPGA998)
Supported instruction setsAVX
Thermal Monitoring TechnologiesYes
Conflict-Free processorNo

Battery

Battery technologyLithium-Ion (Li-Ion)
Number of battery cells8
Battery capacity63 Wh
Battery life (max)6 h

Power

DC-in jackYes

Security

Cable lock slotYes

Weight & dimensions

Weight2.92 kg
Width337 mm
Depth258.3 mm
Height37.8 mm
Width (imperial)33.7 cm (13.3")
Depth (imperial)25.8 cm (10.2")
Height (imperial)3.78 cm (1.49")
Dimensions (WxDxH)337 x 258.3 x 37.8 mm

Video

HD-ReadyYes

Packaging content

AC adapter includedYes
Cables includedAC
ManualYes
Quick start guideYes

Other features

Infrared data portNo
Compliance industry standardsIEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Power supply typeAC/DC
Supplied AC adapter typeAC
