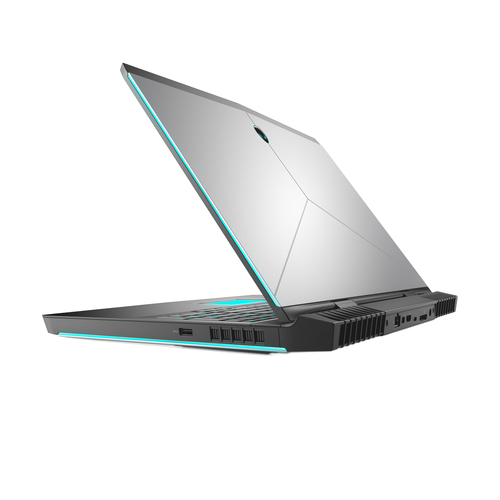

17 R5

Model 17 R5Part no. N777A1801209KREAN 6291106885552

167 specifications Checked today

Overview

Brand: Alienware
Category: Laptop
Model: 17 R5
Part numbers: N777A1801209KR, N778A170153KR, 17R5-1426, 17R5-1433, 17R5-1440, CUAW17R5I7BF1 +34 more
EAN / UPC: 6291106885552, 5397184191729, 5397184191736, 5397184151426 +23 more
Also known as: Alienware 17 R5 Intel® Core™ i7 i7-8750H Laptop 43.9 cm (17.3") Full HD 8 GB DDR4-SDRAM 1.25 TB HDD+SSD NVIDIA® GeForce® GTX 1060 Windows 10 Home Black, Silver

167 specifications in 20 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	8th gen Intel® Core™ i7
Processor model	i7-8750H
Processor cores	6
Processor threads	12
Processor boost frequency	4.1 GHz
Processor frequency	2.2 GHz
System bus rate	8 GT/s
Processor cache	9 MB
Processor cache type	Smart Cache
Processor socket	BGA 1440
Processor lithography	14 nm
Processor operating modes	64-bit
Processor codename	Coffee Lake
Bus type	DMI
Stepping	U0
Thermal Design Power (TDP)	45 W
Configurable TDP-down	35 W
Configurable TDP-down frequency	1.7 GHz
Tjunction	100 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 1x8+2x4, 2x8
PCI Express slots version	3.0
ECC supported by processor	No

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA® GeForce® GTX 1060
Discrete graphics card memory	6 GB
Discrete graphics memory type	GDDR5
On-board graphics card model	Intel® UHD Graphics 630
Maximum on-board graphics card memory	64 GB
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1100 MHz
On-board graphics card DirectX version	12.0
On-board graphics card OpenGL version	4.5
On-board graphics card ID	0x3E9B
Number of discrete graphics cards installed	1
CUDA	Yes
CUDA cores	1280
NVIDIA G-SYNC	Yes
NVIDIA GameWorks VR	Yes

Specification	Value
Front camera	Yes
Front camera resolution (numeric)	2.07 MP
Front camera HD type	Full HD
Front camera resolution	1920 x 1080 pixels
Video capturing speed	30 fps

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
HDMI version	2.0
DisplayPorts quantity	0
Mini DisplayPorts quantity	1
Thunderbolt 3 ports quantity	1
Thunderbolt™ 3 Technology	Yes
Combo headphone/mic port	Yes
Microphone in	Yes
Alienware graphics amplifier port	Yes
PowerShare	Yes
Number of USB ports with PowerShare support	1

Specification	Value
Virtual Reality (VR) ready	Yes
Motherboard chipset	Intel® CM246

Specification	Value
Operating system installed	Windows 10 Home
Operating system architecture	64-bit
Drivers included	Yes

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	134906
Processor code	SR3YY
Processor package size	42 x 28 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)

Specification	Value
DC-in jack	Yes

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Noble

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	-15.2 - 3048 m
Non-operating altitude	-15.2 - 10668 m
Operating vibration	0.26 G
Non-operating vibration	1.37 G
