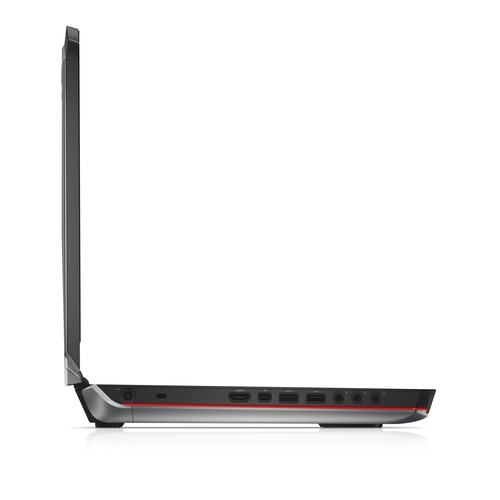

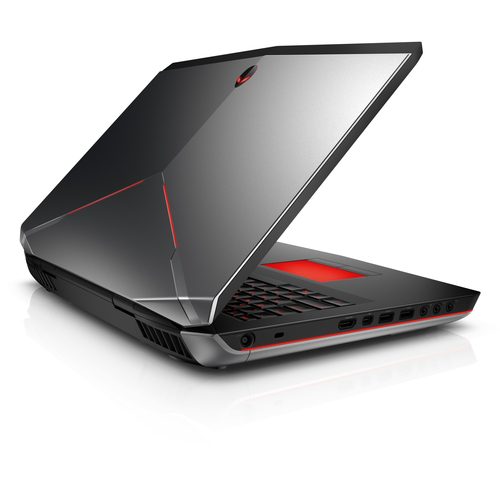

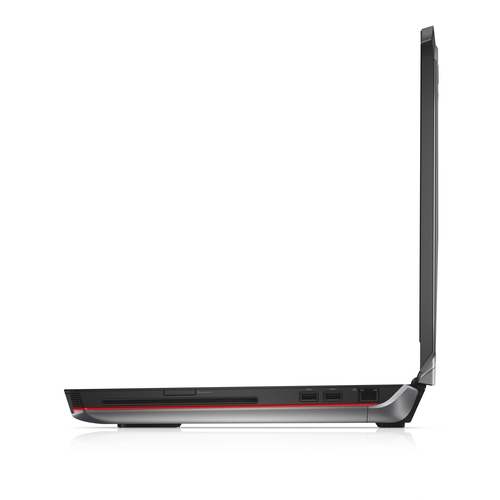

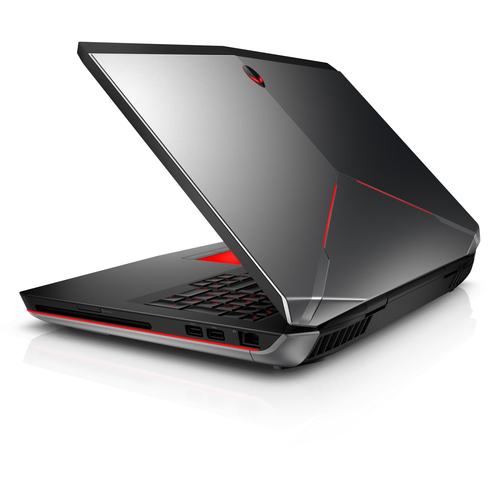

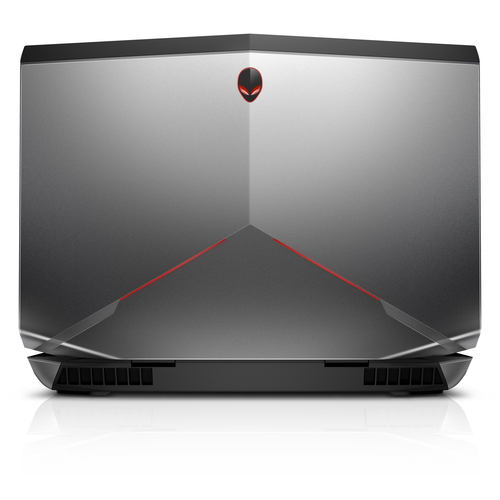

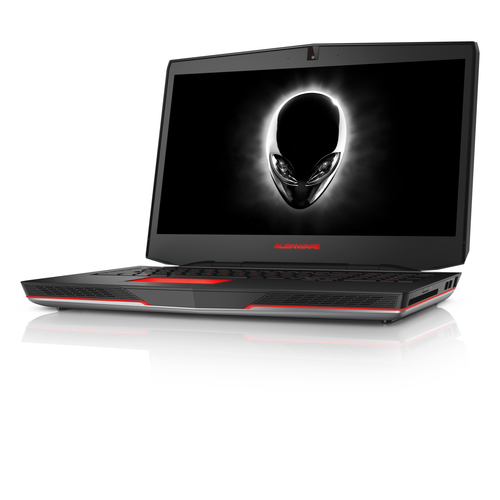

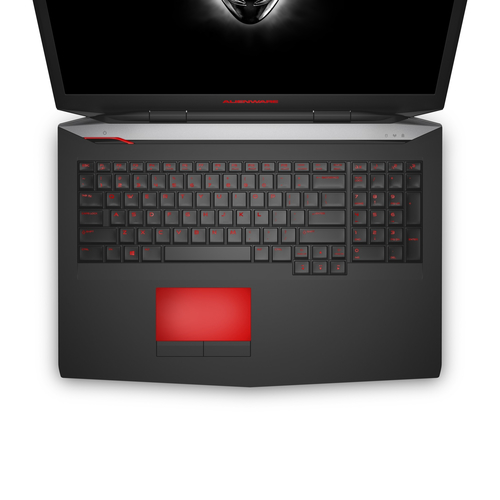

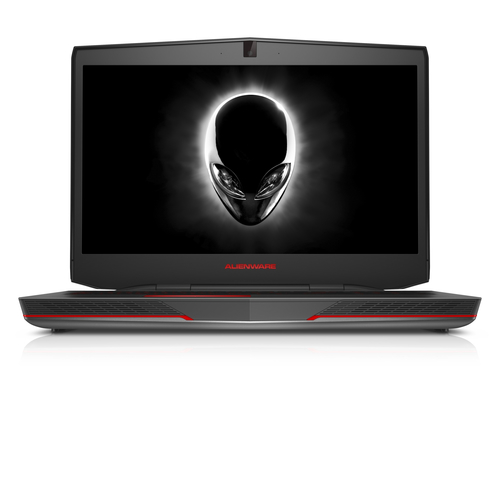

Alienware 17 Intel® Core™ i7 i7-4700MQ Laptop

43.9 cm (17.3") HD+ 8 GB DDR3-SDRAM 814 GB HDD+SSD AMD Radeon HD 7970M Windows 8 Black, Silver

Model 17Part no. N00AW713EAN 5397063672103

192 specifications Checked 3 days ago

Display43.9 cm (17.3")
Resolution1600 x 900 pixels
ProcessorIntel® Core™ i7
Memory8 GB
Storage814 GB
GraphicsAMD Radeon HD 7970M

See all specifications

Overview

Display: 43.9 cm (17.3")
Resolution: 1600 x 900 pixels
Processor: Intel® Core™ i7
Memory: 8 GB
Storage: 814 GB
Graphics: AMD Radeon HD 7970M

Brand: Alienware
Category: Laptop
Model: 17
Part numbers: N00AW713, 17-4341, 17-4365, N00AW701, N00AW715, N00AW721 +34 more
EAN / UPC: 5397063672103, 5397063384341, 5397063384365, 884116132929 +42 more
Also known as: Alienware 17 Intel® Core™ i7 i7-4700MQ Laptop 43.9 cm (17.3") HD+ 8 GB DDR3-SDRAM 814 GB HDD+SSD AMD Radeon HD 7970M Windows 8 Black, Silver

Specifications

192 specifications in 21 groups

Design

Specification	Value
Product type	Laptop
Product colour	Black, Silver
Form factor	Clamshell
Housing material	Aluminium, Magnesium
Market positioning	Gaming

Display

Specification	Value
Display diagonal	43.9 cm (17.3")
Display resolution	1600 x 900 pixels
Touchscreen	No
HD type	HD+
LED backlight	Yes
Native aspect ratio	16:9

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	4th gen Intel® Core™ i7
Processor model	i7-4700MQ
Processor cores	4
Processor threads	8
Processor boost frequency	3.4 GHz
Processor frequency	2.4 GHz
Processor cache	6 MB
Processor cache type	Smart Cache
Processor socket	PGA946
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Core i7-4700 Mobile series
Processor codename	Haswell
Bus type	DMI2
FSB Parity	No
Stepping	C0
Thermal Design Power (TDP)	47 W
Tjunction	100 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	3.0
ECC supported by processor	No

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR3-SDRAM
Memory clock speed	1600 MHz
Memory form factor	SO-DIMM
Memory slots	4x SO-DIMM
Maximum internal memory	32 GB
Maximum internal memory (64-bit)	32 GB

Storage

Specification	Value
Total storage capacity	814 GB
Storage media	HDD+SSD
Number of HDDs installed	1
HDD capacity	750 GB
HDD interface	SATA III
HDD speed	7200 RPM
Number of SSDs installed	1
SSD capacity	64 GB
SSD interface	mSATA
Optical drive type	DVD Super Multi
Card reader integrated	Yes
Compatible memory cards	Memory Stick (MS), MMC, MMC+, MS PRO, SD, SDHC, SDXC

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	Yes
Discrete graphics card model	AMD Radeon HD 7970M
Discrete graphics card memory	2 GB
Discrete graphics memory type	GDDR5
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 4600
Maximum on-board graphics card memory	1.74 GB
On-board graphics card base frequency	400 MHz
On-board graphics card dynamic frequency (max)	1150 MHz
On-board graphics card DirectX version	11.1
On-board graphics card ID	0x416
Number of discrete graphics cards installed	1
Number of discrete graphics cards supported	1

Audio

Specification	Value
Audio system	HD + Dolby Home Theater v4
Number of built-in speakers	2
Speaker power	5 W
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera resolution (numeric)	2 MP
Video capturing speed	30 fps

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
eSATA/USB 2.0 ports quantity	0
eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	0
eSATA ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	0
Mini DisplayPorts quantity	1
DVI port	No
VGA (D-Sub) ports quantity	0
Firewire (IEEE 1394) ports	0
Thunderbolt ports quantity	0
Thunderbolt 2 ports quantity	0
Headphone outputs	1
S/PDIF out port	No
Combo headphone/mic port	Yes
Microphone in	Yes
ExpressCard slot	No
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
USB Sleep-and-Charge	Yes
USB Sleep-and-Charge ports	1

Performance

Specification	Value
Motherboard chipset	Intel® HM87

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard backlit	Yes
Numeric keypad	Yes
Windows keys	Yes

Software

Specification	Value
Operating system installed	Windows 8
Operating system architecture	64-bit
Drivers included	Yes
Bundled software	- Alienware Command Center - AlienFX - AlienTouch - AlienFusion - AlienAdrenaline w/ Accelerator - Alienware TactX

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	Yes
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	2.0
Intel® Virtualization Technology (Intel® VT)	VT-x
Processor ARK ID	75117
Processor code	SR15H
Processor package size	37.5 x 32 x 1.6 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Conflict-Free processor	Yes

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	8
Battery capacity	86 Wh
Battery voltage	14.8 V

Power

Specification	Value
AC adapter power	240 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	12.3 A
AC adapter output voltage	19.5 V
Power auto-sensing	Yes
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Password protection	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 35 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	10 - 95%
Operating altitude	-15.2 - 3048 m
Non-operating altitude	-15.2 - 10668 m
Operating shock	110 G
Non-operating shock	160 G
Operating vibration	0.66 G
Non-operating vibration	1.3 G

Weight & dimensions

Specification	Value
Weight	4.15 kg
Width	413.6 mm
Depth	299 mm
Height (front)	4.62 cm
Height (rear)	4.85 cm

Packaging content

Specification	Value
AC adapter included	Yes
Cables included	AC
Manual	Yes
Power cord included	Yes
Quick start guide	Yes
Warranty card	Yes

Other features

Specification	Value
3D	No
