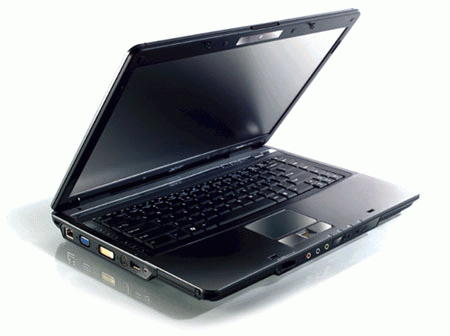

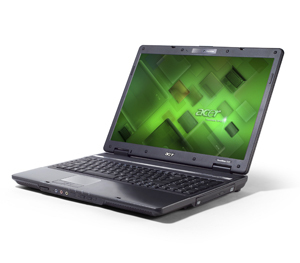

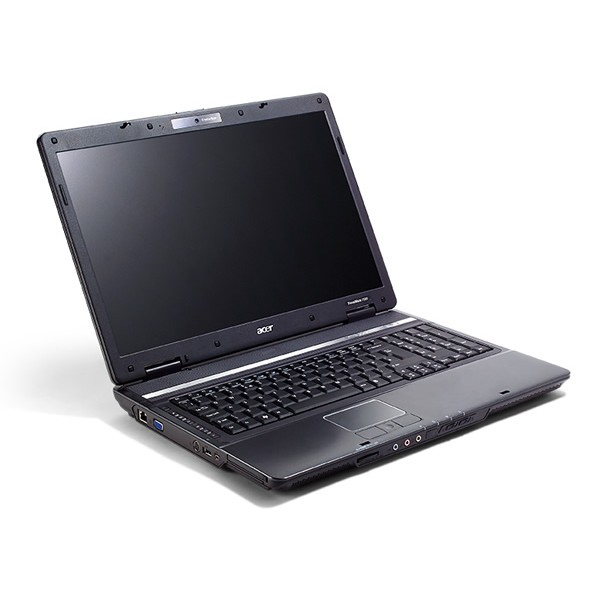

Acer TravelMate 7520-5863

Model TravelMate 7520-5863Part no. LX.TL80Z.007

95 specifications Checked 5 days ago

Display43.2 cm (17")
Resolution1440 x 900 pixels
ProcessorAMD Turion 64 X2 Mobile
Memory2 GB
Storage250 GB
GraphicsAMD Radeon Xpress 1250

See all specifications

Overview

Display: 43.2 cm (17")
Resolution: 1440 x 900 pixels
Processor: AMD Turion 64 X2 Mobile
Memory: 2 GB
Storage: 250 GB
Graphics: AMD Radeon Xpress 1250

Brand: Acer
Category: Laptop
Model: TravelMate 7520-5863
Part number: LX.TL80Z.007
Also known as: Acer TravelMate 7520-5863 AMD Turion 64 X2 Mobile TL-60 43.2 cm (17") 2 GB DDR2-SDRAM 250 GB AMD Radeon Xpress 1250 Windows Vista Business Black

Specifications

95 specifications in 19 groups

Design

Specification	Value
Product colour	Black

Display

Specification	Value
Display diagonal	43.2 cm (17")
Display resolution	1440 x 900 pixels
LED backlight	Yes
Native aspect ratio	16:10

Processor

Specification	Value
Processor manufacturer	AMD
Processor family	AMD Turion 64 X2 Mobile
Processor model	TL-60
Processor frequency	2 GHz
Processor cache	1 MB
Processor cache type	L2
Processor front side bus	1600 MHz

Memory

Specification	Value
Internal memory	2 GB
Internal memory type	DDR2-SDRAM
Memory clock speed	667 MHz
Memory layout (slots x size)	2 x 1 GB
Memory slots	2x SO-DIMM
Maximum internal memory	4 GB

Storage

Specification	Value
Total storage capacity	250 GB
Number of HDDs installed	1
HDD interface	SATA
HDD speed	5400 RPM
Optical drive type	DVD Super Multi DL
Card reader integrated	Yes
Compatible memory cards	Memory Stick (MS), MMC, MS PRO, SD, xD

Graphics

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	AMD Radeon Xpress 1250
Graphics card family	AMD
Maximum graphics card memory	0.64 GB

Audio

Specification	Value
Audio system	HD
Number of built-in speakers	2
Audio system direct 3D sound	Yes

Camera

Specification	Value
Front camera resolution (numeric)	0.3 MP

Network

Specification	Value
Wi-Fi	Yes
Networking features	Gigabit Ethernet
Wireless technology	Wi-Fi
Bluetooth	No
Cabling technology	10/100/1000Base-T(X)

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
eSATA ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	0
DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	1
Headphone outputs	1
S/PDIF out port	No
Line-in	Yes
Microphone in	Yes
Docking connector	No
ExpressCard slot	Yes
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	Type II
SmartCard slot	No
Modem (RJ-11) ports	1
TV-in port	No
TV-out	Yes
TV-out type	S-Video
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0

Keyboard

Specification	Value
Pointing device	Touchpad

Software

Specification	Value
Operating system installed	Windows Vista Business

Battery

Specification	Value
Number of battery cells	6
Battery capacity	4000 mAh
Battery life (max)	2.5 h
Battery recharge time	2 h

Power

Specification	Value
AC adapter power	44 W
AC adapter input voltage	100 - 240 V
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Password protection type	BIOS
HDD user password	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	10 - 90%

Weight & dimensions

Specification	Value
Weight	3.66 kg
Width	400 mm
Depth	290 mm
Height (front)	3.03 cm
Height (rear)	4.33 cm

Packaging content

Specification	Value
AC adapter included	Yes

Other features

Specification	Value
Infrared data port	Yes
Power requirements	100 - 240V
Power supply type	AC/DC
Wake-on-LAN ready	Yes
Internal modem	Yes
TV tuner integrated	Yes
Modem speed	56 Kbit/s
Modem type	ITU V.92
Supplied AC adapter type	AC
