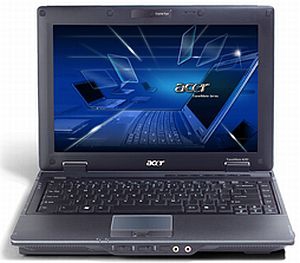

Acer TravelMate 6293-663G32Mn

Model TravelMate 6293-663G32MnPart no. LX.TQN03.219EAN 4712842779582

140 specifications Checked 2 days ago

Display30.7 cm (12.1")
Resolution1280 x 800 pixels
ProcessorIntel® Core™2 Duo
Memory3 GB
Storage320 GB
GraphicsIntel® GMA X4500HD

See all specifications

Overview

Display: 30.7 cm (12.1")
Resolution: 1280 x 800 pixels
Processor: Intel® Core™2 Duo
Memory: 3 GB
Storage: 320 GB
Graphics: Intel® GMA X4500HD

Brand: Acer
Category: Laptop
Model: TravelMate 6293-663G32Mn
Part number: LX.TQN03.219
EAN / UPC: 4712842779582
Also known as: Acer TravelMate 6293-663G32Mn Intel® Core™2 Duo T6670 Laptop 30.7 cm (12.1") 3 GB DDR3-SDRAM 320 GB Intel® GMA X4500HD Windows 7 Professional Silver

Specifications

140 specifications in 22 groups

Design

Specification	Value
Product type	Laptop
Product colour	Silver

Display

Specification	Value
Display diagonal	30.7 cm (12.1")
Display resolution	1280 x 800 pixels
Touchscreen	No
LED backlight	Yes
Native aspect ratio	16:10
External display	No

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™2 Duo
Processor model	T6670
Processor cores	2
Processor threads	2
Processor frequency	2.2 GHz
Processor cache	2 MB
Processor cache type	L2
Processor front side bus	800 MHz
Processor socket	Socket 478
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Core 2 Duo T6000 Series
Processor codename	Penryn
Bus type	FSB
FSB Parity	No
Thermal Design Power (TDP)	35 W
Tjunction	105 °C
Number of Processing Die Transistors	410 M
Processing Die size	107 mm²
CPU multiplier (bus/core ratio)	11
ECC supported by processor	No

Memory

Specification	Value
Internal memory	3 GB
Internal memory type	DDR3-SDRAM
Memory layout (slots x size)	1 x 1 + 1 x 2 GB
Memory slots	2x SO-DIMM
Maximum internal memory	4 GB

Storage

Specification	Value
Total storage capacity	320 GB
HDD interface	SATA
Optical drive type	DVD Super Multi DL
Card reader integrated	Yes
Compatible memory cards	Memory Stick (MS), MMC, MS PRO, SD, xD

Graphics

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	Intel® GMA X4500HD
Graphics card family	Intel
Maximum graphics card memory	0.384 GB

Audio

Specification	Value
Number of built-in speakers	2
Audio system direct 3D sound	Yes

Camera

Specification	Value
Front camera resolution (numeric)	0.3 MP
Swivel webcam	No

Network

Specification	Value
Mobile network connection	Yes
Mobile network generation	3G
Wi-Fi	Yes
Networking features	Gigabit Ethernet
Bluetooth	Yes
Bluetooth version	2.0+EDR

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
eSATA ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	0
DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	No
ExpressCard slot	No
CardBus PCMCIA slots quantity	1
CardBus PCMCIA slot type	Type II
SmartCard slot	No
Modem (RJ-11) ports	1
TV-in port	No
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0

Performance

Specification	Value
Motherboard chipset	Intel® GM45 Express

Keyboard

Specification	Value
Pointing device	Touchpad
Number of keyboard cursor keys	4
Keyboard key pitch	2.5 mm
Keyboard function keys	12

Software

Specification	Value
Operating system installed	Windows 7 Professional
Trial software	- McAfee Internet Security Suite
Bundled software	- Acer Empowering Technology (Acer eDataSecurity, ePower, eRecovery, eSettings Management) - Acer Crystal Eye - Acer Video Conference Manager - Acer Bio-Protection - Acer GridVista - Acer Launch Manager - Acer Video Conference Manager featuring Video Quality Enhancement (VQE) - Adobe Reader - Cyberl

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	42109
Processor package size	35 x 35 mm
Thermal Monitoring Technologies	No
Conflict-Free processor	No

Battery

Specification	Value
Number of battery cells	6
Battery capacity	4800 mAh
Battery life (max)	4.5 h
Battery recharge time	3.5 h

Power

Specification	Value
AC adapter power	58.8 W
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	Yes
Trusted Platform Module (TPM)	Yes
Password protection type	HDD, Supervisor, User
HDD user password	Yes

Certificates

Specification	Value
Certification	DMI 2.0 ACPI 3.0 Mobile PC 2002 Wi-Fi TCG 1.2 GS

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Weight & dimensions

Specification	Value
Weight	1.95 kg
Dimensions (WxDxH)	306 x 227 x 27.5 mm

Packaging content

Specification	Value
Mouse included	No
AC adapter included	Yes

Other features

Specification	Value
Infrared data port	Yes
Wake-on-LAN ready	Yes
Internal modem	Yes
TV tuner integrated	No
Modem speed	56 Kbit/s
Modem type	ITU V.92
Supplied AC adapter type	AC
