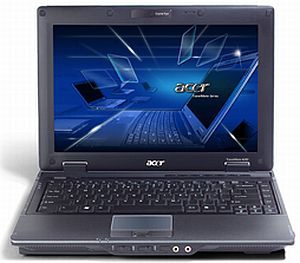

Acer TravelMate 6293-5B2G16Mn

Model TravelMate 6293-5B2G16MnPart no. LX.TQP0Z.284

120 specifications Checked 3 days ago

Display30.7 cm (12.1")
Resolution1280 x 800 pixels
ProcessorIntel® Core™2 Duo
Memory2 GB
Storage160 GB
GraphicsIntel® GMA X4500HD

See all specifications

Overview

Display: 30.7 cm (12.1")
Resolution: 1280 x 800 pixels
Processor: Intel® Core™2 Duo
Memory: 2 GB
Storage: 160 GB
Graphics: Intel® GMA X4500HD

Brand: Acer
Category: Laptop
Model: TravelMate 6293-5B2G16Mn
Part number: LX.TQP0Z.284
Also known as: Acer TravelMate 6293-5B2G16Mn Intel® Core™2 Duo T5670 30.7 cm (12.1") 2 GB DDR3-SDRAM 160 GB Intel® GMA X4500HD Windows Vista Business Black

Specifications

120 specifications in 22 groups

Design

Specification	Value
Product colour	Black

Display

Specification	Value
Display diagonal	30.7 cm (12.1")
Display resolution	1280 x 800 pixels
Touchscreen	No
LED backlight	Yes
Native aspect ratio	16:10
External display	No

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™2 Duo
Processor model	T5670
Processor cores	2
Processor threads	2
Processor frequency	1.8 GHz
Processor cache	2 MB
Processor cache type	L2
Processor front side bus	800 MHz
Processor socket	LGA 3647 (Socket P)
Processor lithography	65 nm
Processor operating modes	64-bit
Processor codename	Merom
Bus type	FSB
Stepping	M0
Thermal Design Power (TDP)	35 W
Tjunction	100 °C
Number of Processing Die Transistors	291 M
Processing Die size	143 mm²
CPU multiplier (bus/core ratio)	9

Memory

Specification	Value
Internal memory	2 GB
Internal memory type	DDR3-SDRAM
Memory layout (slots x size)	2 x 1 GB
Memory slots	2x SO-DIMM
Maximum internal memory	4 GB

Storage

Specification	Value
Total storage capacity	160 GB
Number of HDDs installed	1
HDD interface	SATA
Optical drive type	DVD Super Multi
Card reader integrated	Yes
Compatible memory cards	Memory Stick (MS), MMC, MS PRO, SD, xD

Graphics

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	Intel® GMA X4500HD
Discrete graphics card memory	0.376 GB
Graphics card family	Intel
Maximum graphics card memory	0.384 GB

Audio

Specification	Value
Number of built-in speakers	2
Audio system direct 3D sound	Yes

Camera

Specification	Value
Front camera resolution (numeric)	0.3 MP
Swivel webcam	No

Network

Specification	Value
Wi-Fi	Yes
Networking features	Gigabit Ethernet
Ethernet LAN	Yes
Bluetooth	Yes
Bluetooth version	2.0+EDR

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
eSATA ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	0
DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	No
ExpressCard slot	No
CardBus PCMCIA slots quantity	1
CardBus PCMCIA slot type	Type II
SmartCard slot	No
Modem (RJ-11) ports	1
TV-in port	No
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0

Performance

Specification	Value
Motherboard chipset	Intel® GM45 Express

Keyboard

Specification	Value
Pointing device	Touchpad
Number of keyboard cursor keys	4
Keyboard key pitch	2.5 mm
Keyboard function keys	12

Software

Specification	Value
Operating system installed	Windows Vista Business
Trial software	- McAfee Internet Security Suite
Bundled software	- Acer Empowering Technology (Acer eDataSecurity, ePower, eRecovery, eSettings Management) - Acer Crystal Eye - Acer Video Conference Manager - Acer Bio-Protection - Acer GridVista - Acer Launch Manager - Acer Video Conference Manager featuring Video Quality Enhancement (VQE) - Adobe Reader - Cyberl

Processor special features

Specification	Value
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	No
Idle States	Yes
Intel 64	Yes
Intel Demand Based Switching	No
Intel Trusted Execution Technology	No
Intel Virtualization Technology (VT-x)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Turbo Boost Technology	No
Processor ARK ID	35163
Processor code	SLAJ5
Processor package size	35 x 35 mm

Battery

Specification	Value
Number of battery cells	6
Battery capacity	4800 mAh
Battery life (max)	4.5 h
Battery recharge time	3.5 h

Power

Specification	Value
AC adapter power	58.8 W
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	Yes
Trusted Platform Module (TPM)	Yes
Password protection type	HDD, Supervisor, User
HDD user password	Yes

Certificates

Specification	Value
Certification	DMI 2.0 ACPI 3.0 Mobile PC 2002 Wi-Fi TCG 1.2 GS

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Weight & dimensions

Specification	Value
Weight	1.95 kg
Dimensions (WxDxH)	306 x 227 x 27.5 mm

Packaging content

Specification	Value
Mouse included	No
AC adapter included	Yes

Other features

Specification	Value
Infrared data port	Yes
Wake-on-LAN ready	Yes
Wake-on-Ring ready	Yes
Internal modem	Yes
TV tuner integrated	No
Modem speed	56 Kbit/s
Modem type	ITU V.92
Supplied AC adapter type	AC
