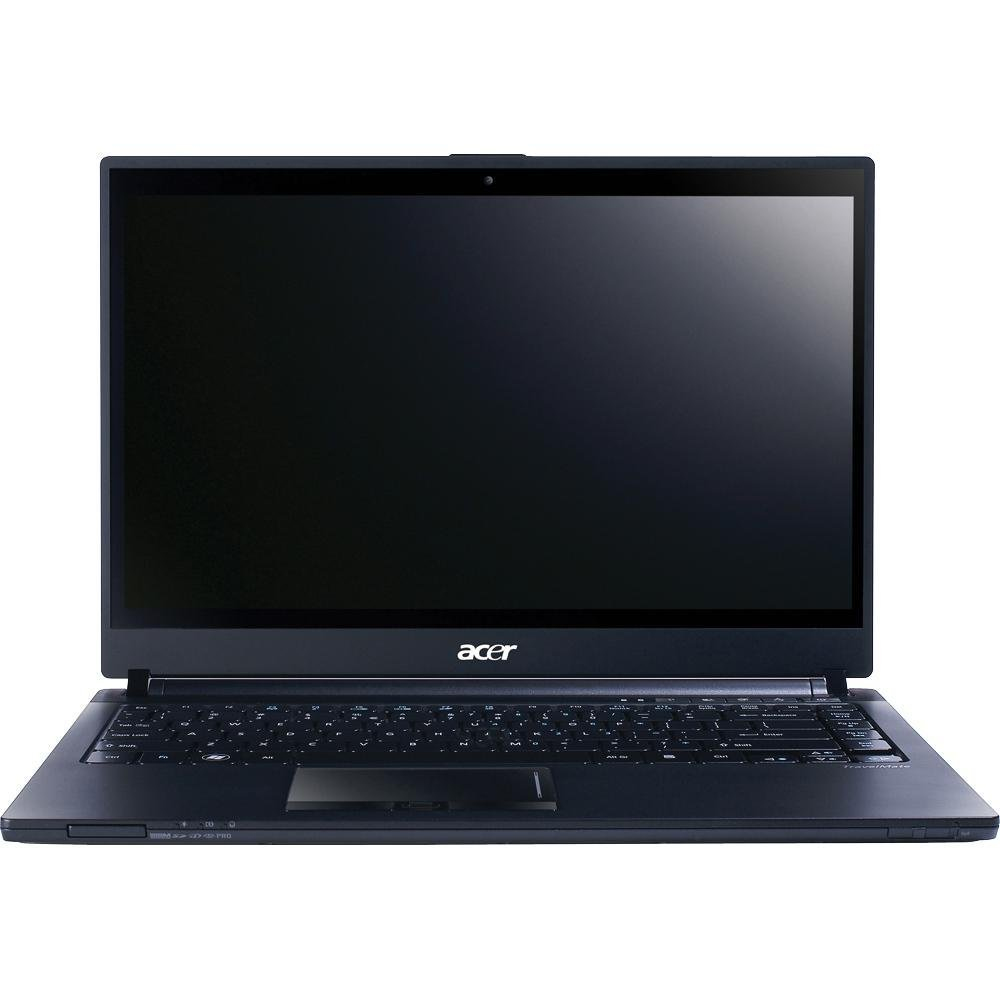

Acer TravelMate X TM8481T-9831 Intel® Core™ i7 i7-2637M

35.6 cm (14") HD 8 GB DDR3-SDRAM 320 GB HDD+SSD Windows 7 Professional Black

Model TM8481T-9831Part no. NX.V79AA.004EAN 886541520364

194 specifications Checked 3 days ago

Display35.6 cm (14")
Resolution1366 x 768 pixels
ProcessorIntel® Core™ i7
Memory8 GB
Storage320 GB
GraphicsNot available

See all specifications

Overview

Display: 35.6 cm (14")
Resolution: 1366 x 768 pixels
Processor: Intel® Core™ i7
Memory: 8 GB
Storage: 320 GB
Graphics: Not available

Brand: Acer
Category: Laptop
Model: TM8481T-9831
Part number: NX.V79AA.004
EAN / UPC: 886541520364, 8865415203642
Also known as: Acer TravelMate X TM8481T-9831 Intel® Core™ i7 i7-2637M 35.6 cm (14") HD 8 GB DDR3-SDRAM 320 GB HDD+SSD Windows 7 Professional Black

Specifications

194 specifications in 24 groups

Design

Specification	Value
Product colour	Black
Form factor	Clamshell
Housing material	Aluminium, Plastic

Display

Specification	Value
Display diagonal	35.6 cm (14")
Display resolution	1366 x 768 pixels
Touchscreen	No
HD type	HD
LED backlight	Yes
Native aspect ratio	16:9

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	2nd gen Intel® Core™ i7
Processor model	i7-2637M
Processor cores	2
Processor threads	4
Processor boost frequency	2.8 GHz
Processor frequency	1.7 GHz
System bus rate	5 GT/s
Processor cache	4 MB
Processor cache type	L3
Processor socket	BGA 1023
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Core i7-2600 Mobile Series
Processor codename	Sandy Bridge
Bus type	DMI
FSB Parity	No
Stepping	J1
Thermal Design Power (TDP)	17 W
Tjunction	100 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x8, 1x16, 2x4, 2x8
PCI Express slots version	2.0
CPU multiplier (bus/core ratio)	17
ECC supported by processor	No

Memory

Specification	Value
Internal memory	8 GB
Internal memory type	DDR3-SDRAM
Memory clock speed	1066 MHz
Memory slots	2x SO-DIMM
Memory slots (available)	0
Maximum internal memory	8 GB

Storage

Specification	Value
Total storage capacity	320 GB
Storage media	HDD+SSD
Number of HDDs installed	1
HDD capacity	320 GB
HDD interface	SATA
HDD speed	7200 RPM
Number of SSDs installed	1
SSD capacity	64 GB
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	Memory Stick (MS), MMC, MS PRO, SD, xD

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
Graphics card family	Intel
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 3000
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1200 MHz
On-board graphics card ID	0x116

Audio

Specification	Value
Audio system	HD
Built-in speaker(s)	Yes
Built-in subwoofer	No
Built-in microphone	Yes

Camera

Specification	Value
Rear camera	No

Optical drive

Specification	Value
LightScribe	No

Network

Specification	Value
Mobile network connection	No
Wi-Fi	Yes
Networking features	Gigabit Ethernet
Wi-Fi standards	802.11a, 802.11b, 802.11g
WLAN controller model	Intel Centrino Advanced-N 6205
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Bluetooth	Yes
Bluetooth version	2.1+EDR
WWAN	Not installed
Data network	Not supported
Cabling technology	10/100/1000Base-T(X)
SIM card support	No
Integrated 4G WiMAX	Yes

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Micro-USB 2.0 ports quantity	0
eSATA/USB 2.0 ports quantity	1
eSATA/USB 3.2 Gen 1 (3.1 Gen 1) ports quantity	0
eSATA ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	0
Mini DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Thunderbolt ports quantity	0
Mini HDMI ports quantity	0
Micro HDMI ports quantity	0
Mini VGA ports quantity	0
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	No
ExpressCard slot	No
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
Mini-USB 2.0 ports quantity	0
Modem (RJ-11) ports	0
S-Video port	No
TV-out	No
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0

Performance

Specification	Value
Motherboard chipset	Intel UM67 Express
Ambient light sensor	No
Electronic compass	No
GPS (satellite)	No
Orientation sensor	No

Keyboard

Specification	Value
Pointing device	Touchpad
Numeric keypad	Yes
Windows keys	Yes

Software

Specification	Value
Operating system installed	Windows 7 Professional
Operating system architecture	32-bit
Drivers included	Yes
Bundled software	Microsoft Office Starter, Bing Bar, Windows Live Essentials

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	Yes
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	32 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Turbo Boost Technology	2.0
Processor ARK ID	54618
Processor package size	31.0 x 24.0 (BGA1023)
Supported instruction sets	AVX
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	8
Battery capacity	6000 mAh
Battery life (max)	12 h

Power

Specification	Value
AC adapter power	65 W

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	Yes
Trusted Platform Module (TPM)	No
Password protection type	BIOS, HDD, Supervisor, User

Certificates

Specification	Value
Compliance certificates	RoHS
Wi-Fi certified	Yes

Sustainability

Specification	Value
Sustainability certificates	EPEAT Silver, ENERGY STAR

Weight & dimensions

Specification	Value
Weight	1.79 kg
Width	328 mm
Depth	238.8 mm
Height	22.9 mm

Video

Specification	Value
HD-Ready	Yes

Packaging content

Specification	Value
Mouse included	No
AC adapter included	Yes
Bag included	No
Manual	Yes
Remote control included	No
Warranty card	Yes

Other features

Specification	Value
Infrared data port	No
3D	No
Assisted GPS (A-GPS)	No
Instant messaging (IM)	No
Intel Turbo Memory	0 GB
Internal modem	No
TV tuner integrated	No
Supplied AC adapter type	AC
