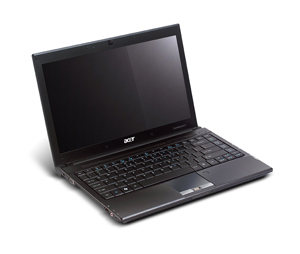

Acer TravelMate TM8331-232G32n Intel® Celeron® SU2300

33.8 cm (13.3") 2 GB DDR3-SDRAM 320 GB Intel® GMA 4500M Windows 7 Professional

Model TM8331-232G32nPart no. LX.TUS03.048

127 specifications Checked 3 days ago

Display33.8 cm (13.3")
Resolution1366 x 768 pixels
ProcessorIntel® Celeron®
Memory2 GB
Storage320 GB
GraphicsIntel® GMA 4500M

See all specifications

Overview

Display: 33.8 cm (13.3")
Resolution: 1366 x 768 pixels
Processor: Intel® Celeron®
Memory: 2 GB
Storage: 320 GB
Graphics: Intel® GMA 4500M

Brand: Acer
Category: Laptop
Model: TM8331-232G32n
Part number: LX.TUS03.048
Also known as: Acer TravelMate TM8331-232G32n Intel® Celeron® SU2300 33.8 cm (13.3") 2 GB DDR3-SDRAM 320 GB Intel® GMA 4500M Windows 7 Professional

Specifications

127 specifications in 19 groups

Display

Specification	Value
Display diagonal	33.8 cm (13.3")
Display resolution	1366 x 768 pixels
LED backlight	Yes
Native aspect ratio	16:9
Display brightness	200 cd/m²

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Celeron®
Processor model	SU2300
Processor cores	2
Processor threads	2
Processor frequency	1.2 GHz
Processor cache	1 MB
Processor cache type	L2
Processor front side bus	800 MHz
Processor socket	BGA 956
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Celeron Processor SU2000 Series for Mobile
Processor codename	Penryn
Bus type	FSB
FSB Parity	Yes
Stepping	R0
Thermal Design Power (TDP)	10 W
Tjunction	100 °C
Number of Processing Die Transistors	410 M
Processing Die size	107 mm²
ECC supported by processor	No

Memory

Specification	Value
Internal memory	2 GB
Internal memory type	DDR3-SDRAM
Memory layout (slots x size)	1 x 2 GB
Memory slots	2x SO-DIMM
Maximum internal memory	8 GB

Storage

Specification	Value
Total storage capacity	320 GB
HDD interface	SATA
HDD speed	5400 RPM
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MMC, MS PRO, SD, xD

Graphics

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	Intel® GMA 4500M
Discrete graphics card memory	0.0625 GB
Maximum graphics card memory	1.759 GB

Audio

Specification	Value
Audio system	High Definition Audio

Camera

Specification	Value
Front camera resolution (numeric)	0.3 MP

Network

Specification	Value
Networking features	Gigabit Ethernet, WLAN
Wireless technology	802.11 b/g/n
Bluetooth	Yes
Bluetooth version	2.1+EDR

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	0
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	Yes
ExpressCard slot	No
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
Modem (RJ-11) ports	0
TV-in port	No
TV-out	No
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0

Performance

Specification	Value
Motherboard chipset	Intel® GS45 Express

Software

Specification	Value
Operating system installed	Windows 7 Professional
Optional operating system supplied	Windows XP Professional
Trial software	-McAfee Internet Security Suite.
Bundled software	-Acer Backup Manager, -Acer Crystal Eye, -Acer GridVista, -Acer Assist, -Acer Bio-Protection, -Acer PowerSmart Manager, -Acer Launch Manager, -Acer eRecovery Management, -Adobe Reader, -Adobe Flash Player, -Google Toolbar, -Google Desktop, -eSobi, -Office Ready, -Windows Live Essentials.

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	No
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Processor ARK ID	42779
Processor code	SLGSB
Processor package size	22 x 22 mm
Thermal Monitoring Technologies	Yes
Conflict-Free processor	No

Battery

Specification	Value
Number of battery cells	6
Battery capacity	4400 mAh
Battery capacity	48.8 Wh
Battery life (max)	6 h

Power

Specification	Value
AC adapter power	65 W
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	Yes
Password protection type	BIOS
HDD user password	Yes

Certificates

Specification	Value
Certification	-Wi-Fi, -ACPI 3.0, -Mobile PC 2002, -DMI 2.0, -EPEAT Silver, -GS.

Weight & dimensions

Specification	Value
Weight	1.65 kg
Width	323.6 mm
Depth	228 mm
Height (front)	2.6 cm
Height (rear)	2.94 cm

Packaging content

Specification	Value
AC adapter included	Yes

Other features

Specification	Value
Infrared data port	No
Wake-on-LAN ready	Yes
Internal modem	No
Supplied AC adapter type	AC
