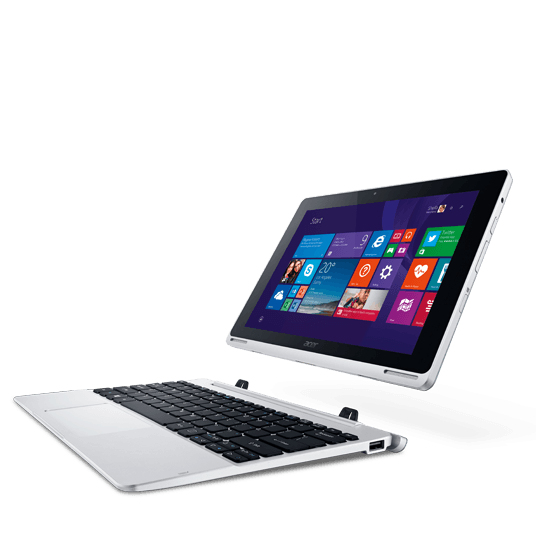

Acer Aspire Switch 10 SW5-012P-10BJ Intel Atom® Z3735F Hybrid (2-in-1)

25.6 cm (10.1") Touchscreen HD 2 GB DDR3-SDRAM 32 GB SSD Windows 8.1 Pro Black, White

Model SW5-012P-10BJPart no. NT.L6LEG.003#*KIT1*EAN 4053162971561

119 specifications Checked yesterday

Display25.6 cm (10.1")
Resolution1280 x 800 pixels
ProcessorIntel Atom®
Memory2 GB
Storage32 GB
GraphicsNot available

See all specifications

Overview

Display: 25.6 cm (10.1")
Resolution: 1280 x 800 pixels
Processor: Intel Atom®
Memory: 2 GB
Storage: 32 GB
Graphics: Not available

Brand: Acer
Category: Laptop
Model: SW5-012P-10BJ
Part numbers: NT.L6LEG.003#*KIT1*, NT.L6LEG.003
EAN / UPC: 4053162971561, 4713147577071
Also known as: Acer Aspire Switch 10 SW5-012P-10BJ Intel Atom® Z3735F Hybrid (2-in-1) 25.6 cm (10.1") Touchscreen HD 2 GB DDR3-SDRAM 32 GB SSD Windows 8.1 Pro Black, White

Specifications

119 specifications in 20 groups

Design

Specification	Value
Product type	Hybrid (2-in-1)
Product colour	Black, White
Form factor	Convertible (Detachable)

Display

Specification	Value
Display diagonal	25.6 cm (10.1")
Display resolution	1280 x 800 pixels
Touchscreen	Yes
HD type	HD
LED backlight	Yes
Native aspect ratio	16:10

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	Z3735F
Processor cores	4
Processor threads	4
Processor boost frequency	1.83 GHz
Processor frequency	1.33 GHz
Processor cache	2 MB
Processor cache type	L2
Processor socket	BGA 592
Processor lithography	22 nm
Processor operating modes	32-bit, 64-bit
Processor series	Intel Atom Z3700 Series
Processor codename	Bay Trail
FSB Parity	No
Stepping	C0
Scenario Design Power (SDP)	2.2 W
ECC supported by processor	No

Memory

Specification	Value
Internal memory	2 GB
Internal memory type	DDR3-SDRAM

Storage

Specification	Value
Total storage capacity	32 GB
Storage media	SSD
Number of SSDs installed	1
SSD capacity	32 GB
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	SD

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
On-board graphics card base frequency	311 MHz
On-board graphics card burst frequency	646 MHz

Audio

Specification	Value
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes

Optical drive

Specification	Value
LightScribe	No

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Bluetooth	Yes
Bluetooth version	4.0

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Micro-USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	0
HDMI ports quantity	0
DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	0
Firewire (IEEE 1394) ports	0
Thunderbolt ports quantity	0
Micro HDMI ports quantity	1
Combo headphone/mic port	Yes
Docking connector	Yes

Keyboard

Specification	Value
Pointing device	Touchpad
Numeric keypad	No
Full-size keyboard	Yes
Windows keys	Yes

Software

Specification	Value
Operating system installed	Windows 8.1 Pro
Operating system architecture	64-bit

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	No
Execute Disable Bit	No
Graphics & IMC lithography	22 nm
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel HD Graphics	Yes
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Smart Cache	No
Intel® Turbo Boost Technology	No
Intel® Virtualization Technology (Intel® VT)	VT-x
Processor ARK ID	80274
Processor code	SR1UB
Processor package size	17 x 17 mm
Thermal Monitoring Technologies	No
Conflict-Free processor	Yes

Battery

Specification	Value
Battery technology	Lithium Polymer (LiPo)
Number of battery cells	2
Battery capacity	5700 mAh

Power

Specification	Value
AC adapter power	18 W
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	No

Weight & dimensions

Specification	Value
Weight	1.17 kg
Width	261.6 mm
Depth	177.1 mm
Height	8.9 mm

Packaging content

Specification	Value
AC adapter included	Yes

Other features

Specification	Value
3D	No
