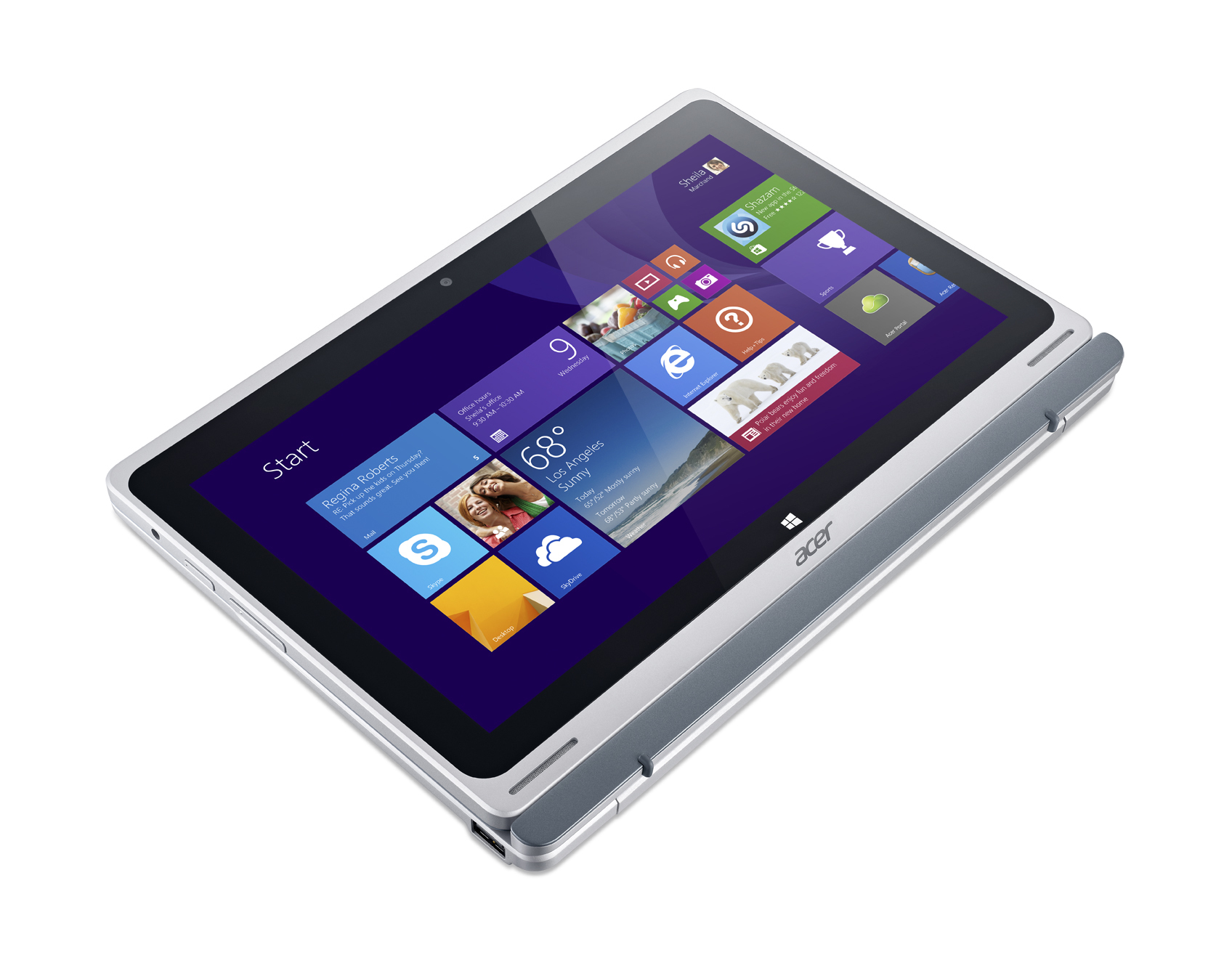

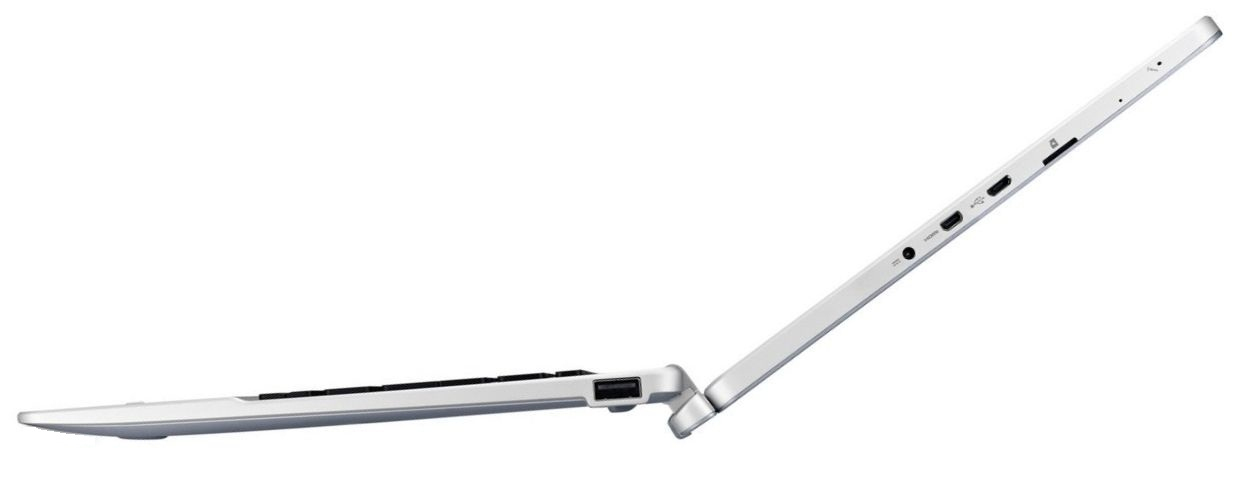

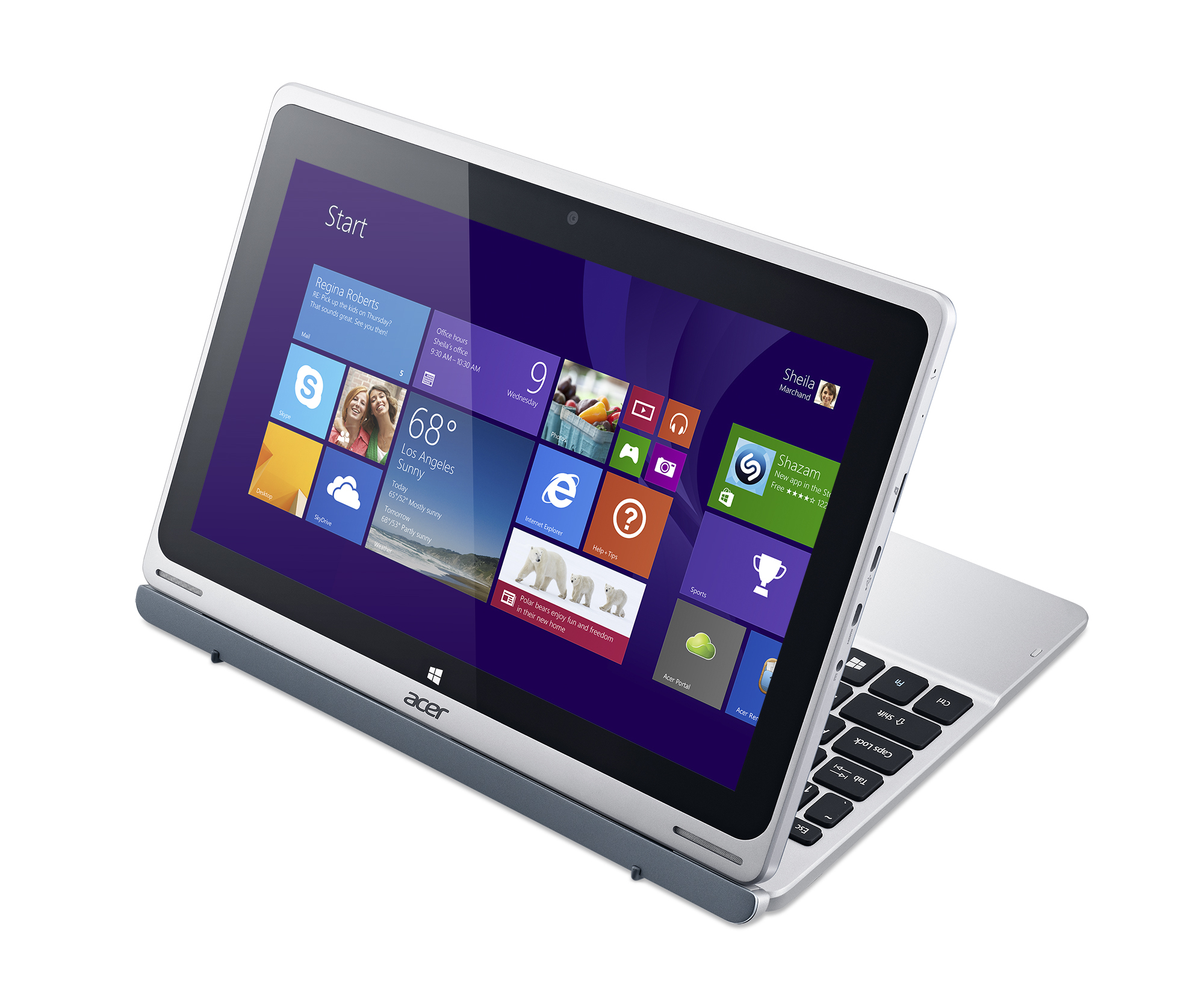

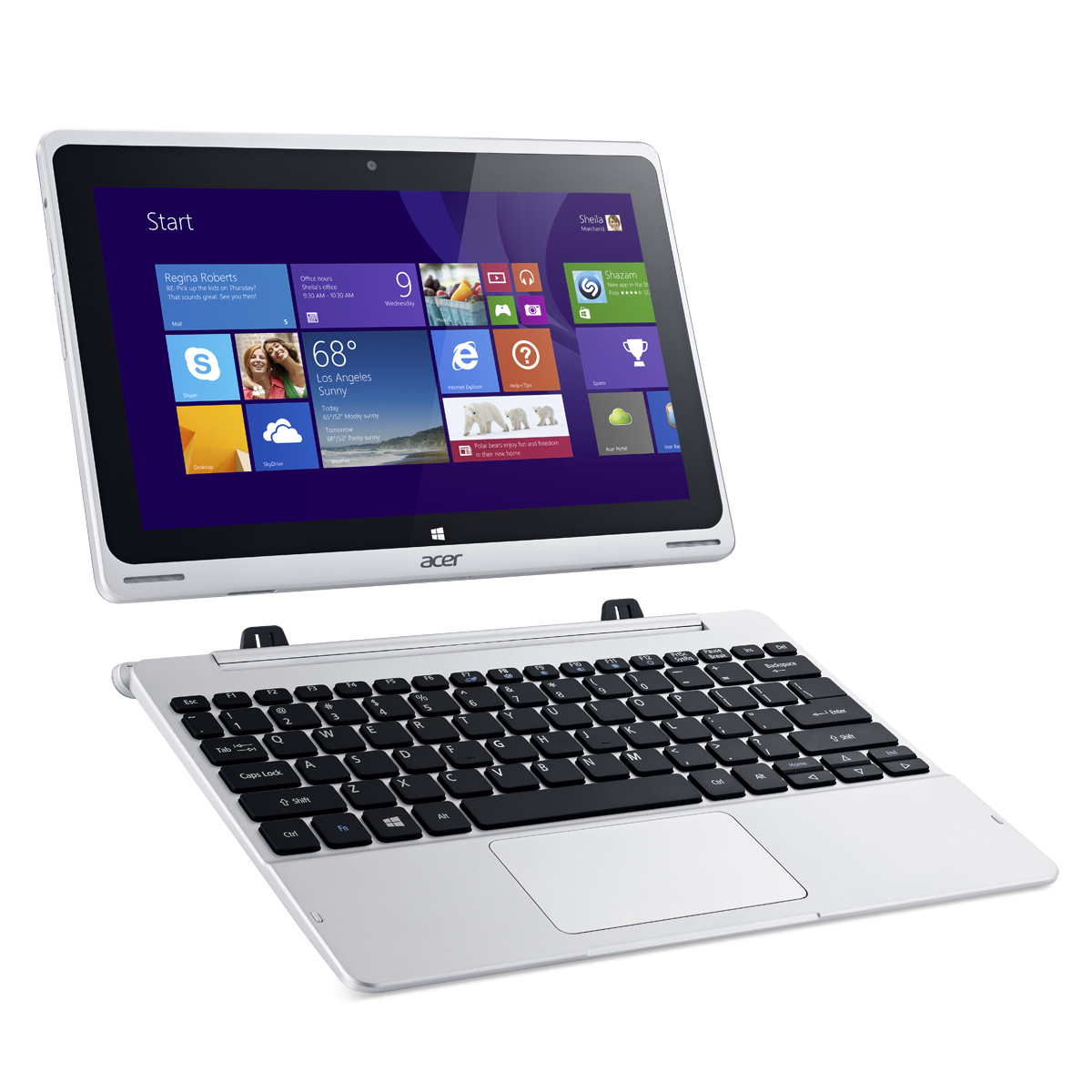

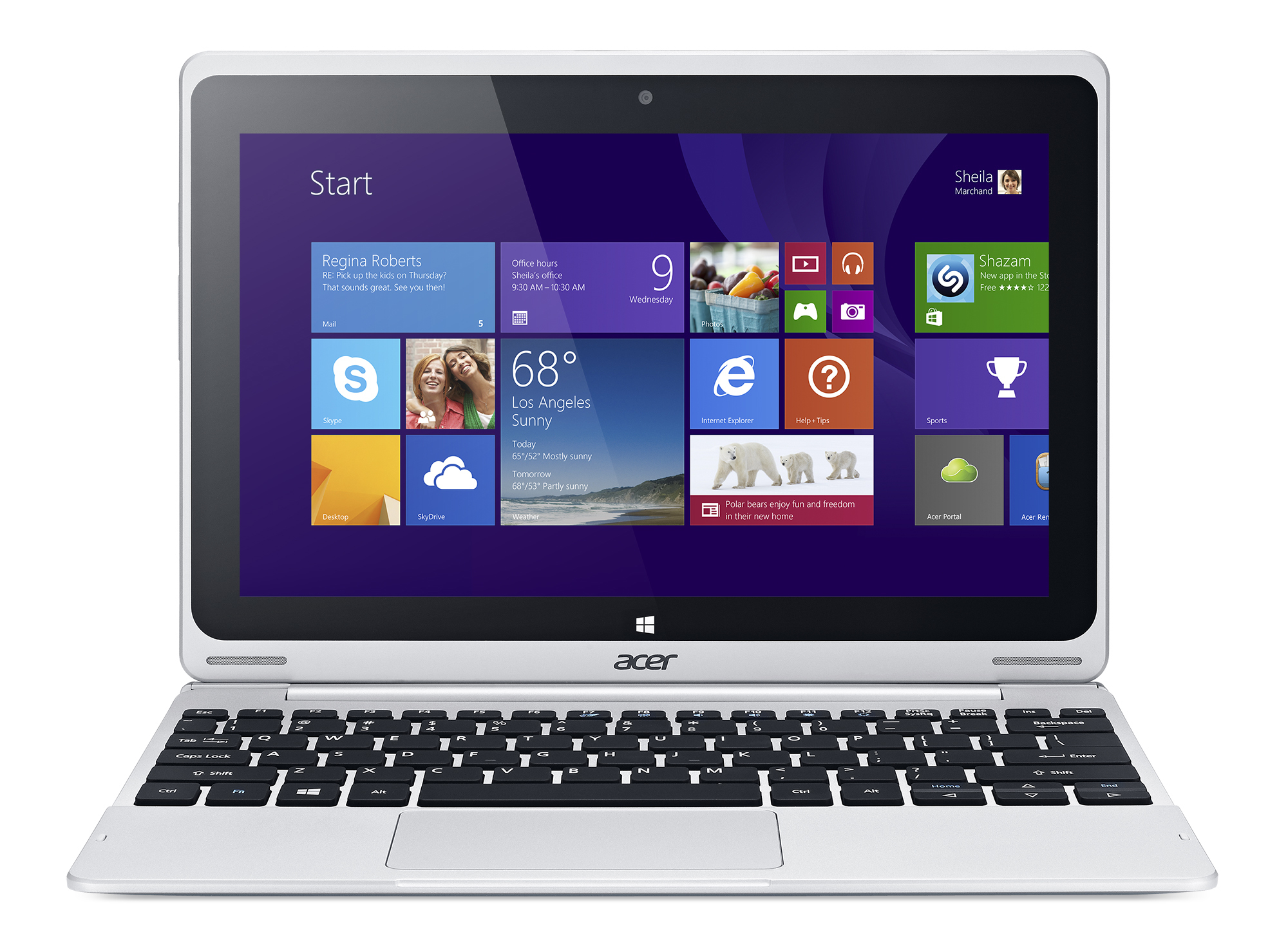

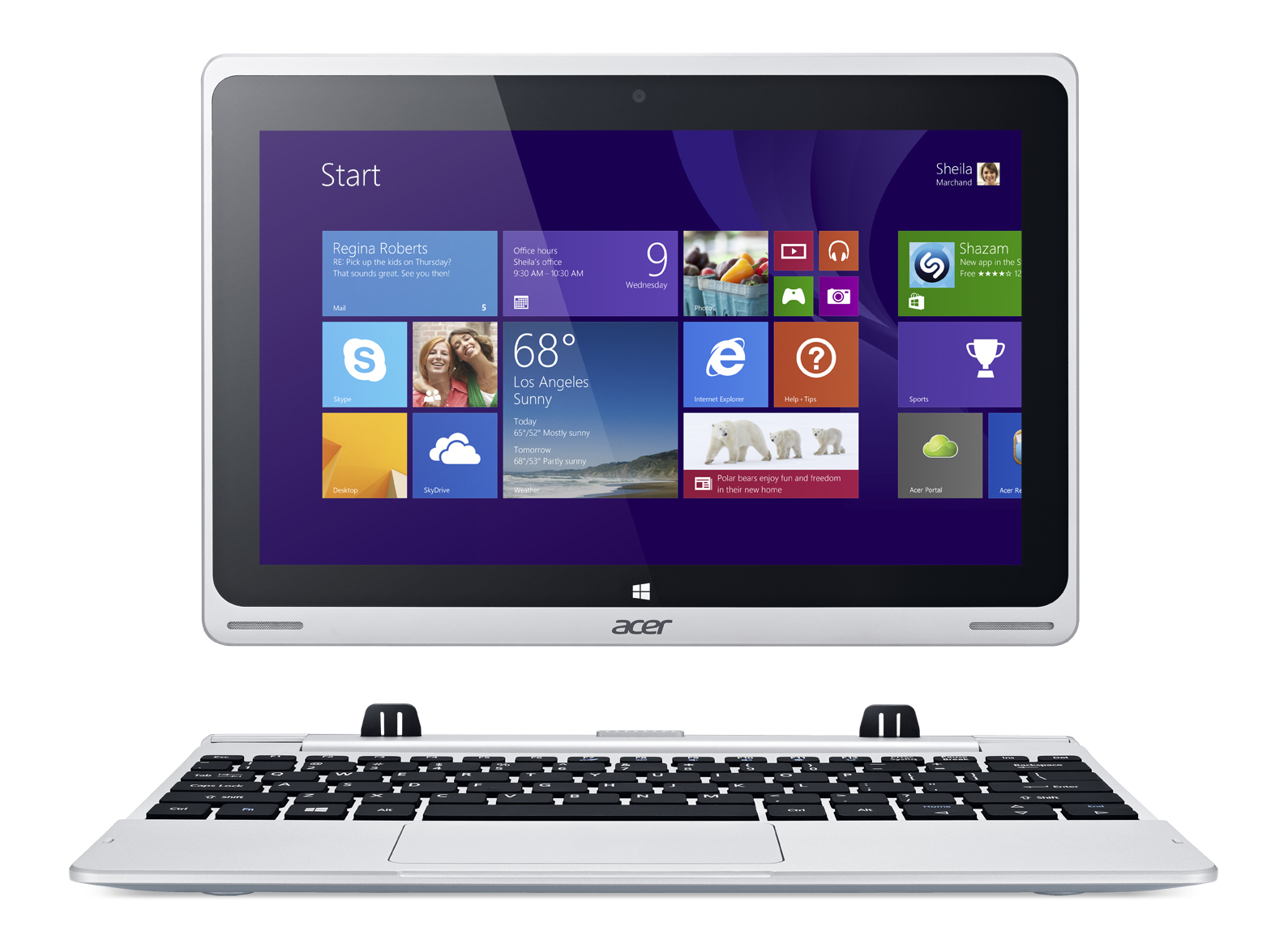

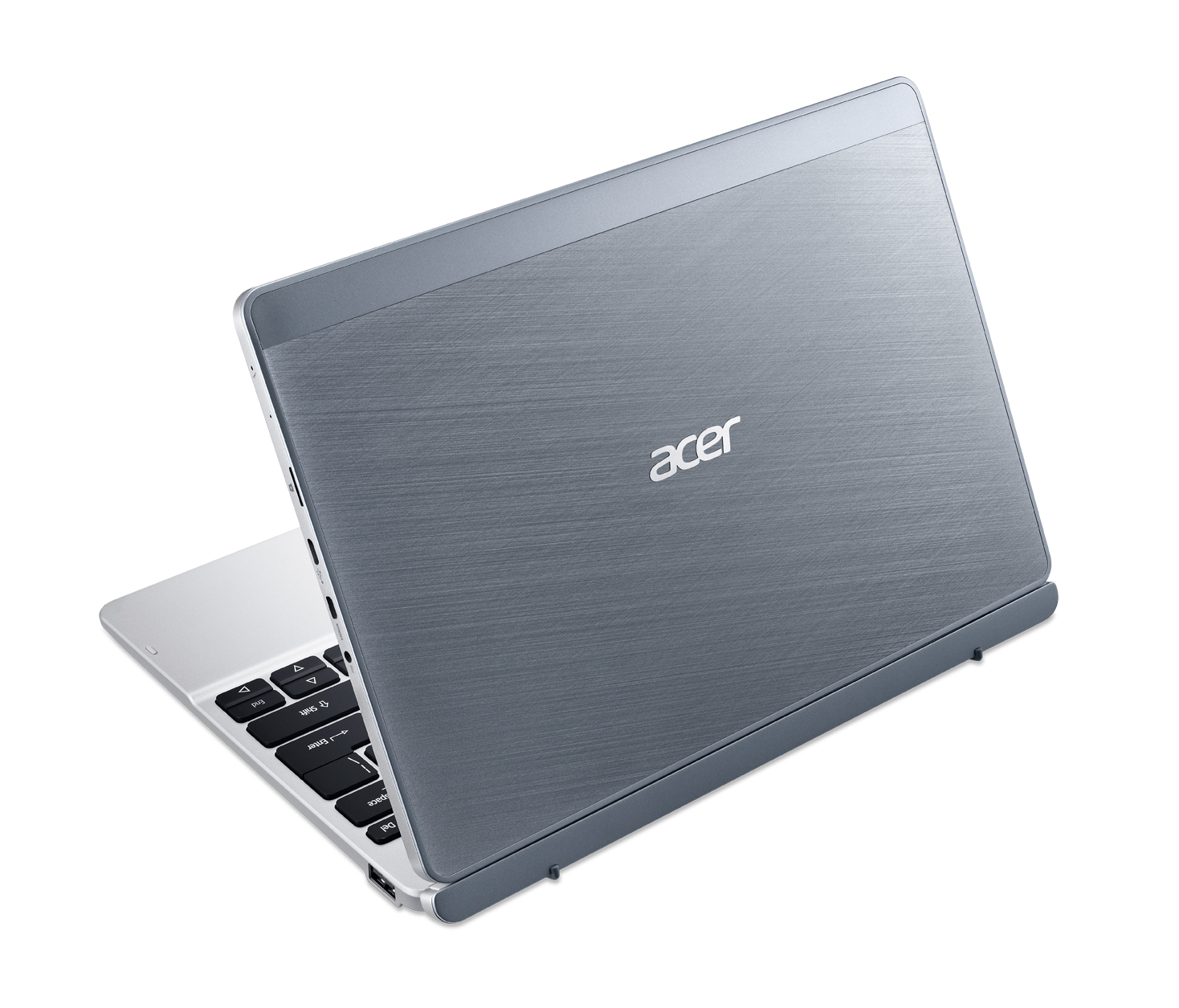

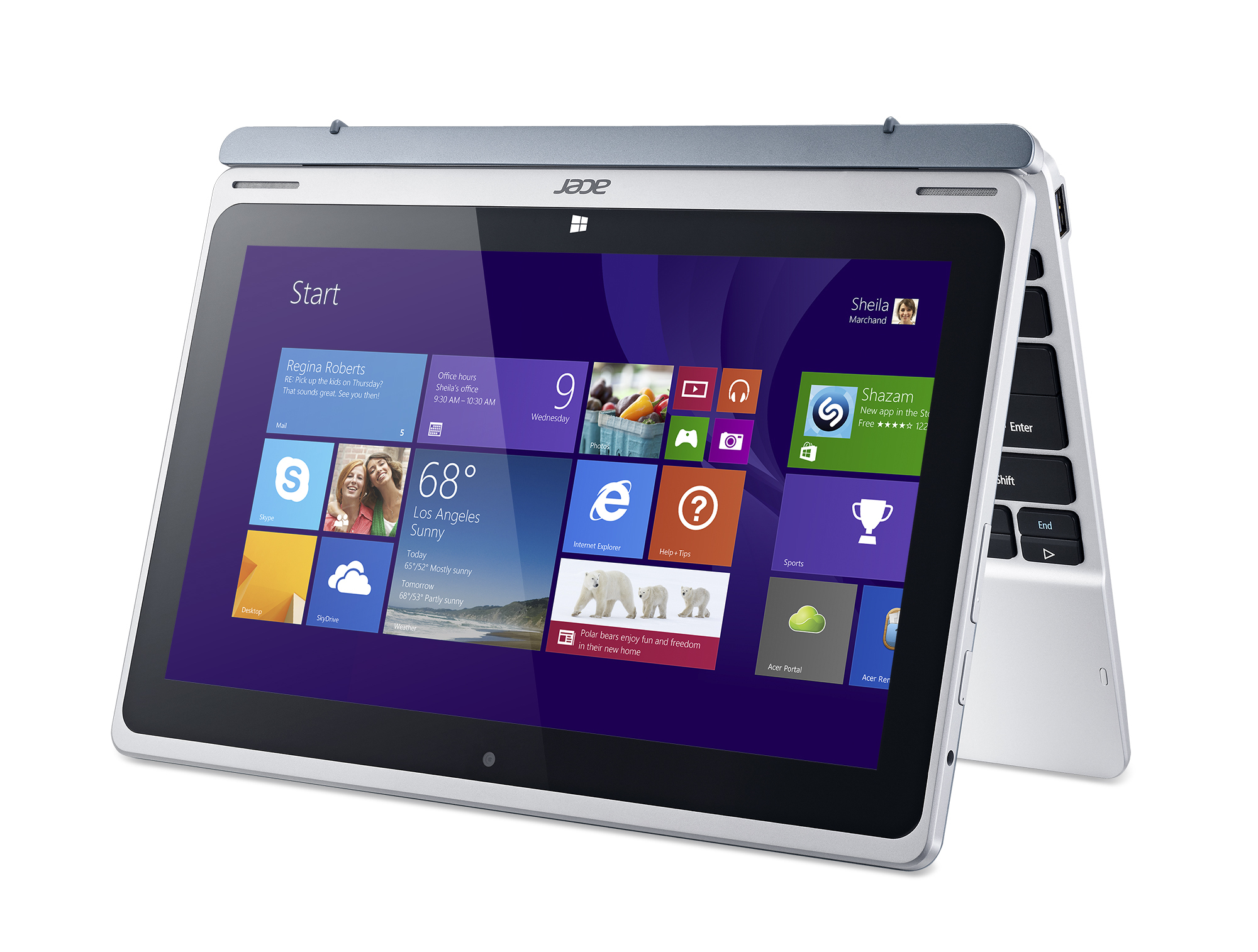

Acer Aspire Switch 10 SW5-012-19QM Intel Atom® Z3735F Hybrid (2-in-1)

25.6 cm (10.1") Touchscreen 2 GB DDR3L-SDRAM 32 GB Flash Wi-Fi 4 (802.11n) Windows 8.1 Sil

Model SW5-012-19QMPart no. NT.L6UET.017EAN 4713147882755

140 specifications Checked 3 days ago

Display25.6 cm (10.1")
ProcessorIntel Atom®
Memory2 GB
Storage32 GB
GraphicsNot available
Battery5700 mAh

See all specifications

Overview

Display: 25.6 cm (10.1")
Processor: Intel Atom®
Memory: 2 GB
Storage: 32 GB
Graphics: Not available
Battery: 5700 mAh

Brand: Acer
Category: Laptop
Model: SW5-012-19QM
Part number: NT.L6UET.017
EAN / UPC: 4713147882755
Also known as: Acer Aspire Switch 10 SW5-012-19QM Intel Atom® Z3735F Hybrid (2-in-1) 25.6 cm (10.1") Touchscreen 2 GB DDR3L-SDRAM 32 GB Flash Wi-Fi 4 (802.11n) Windows 8.1 Sil

Specifications

140 specifications in 20 groups

Design

Specification	Value
Product type	Hybrid (2-in-1)
Product colour	Silver
Form factor	Convertible (Detachable)

Display

Specification	Value
Display diagonal	25.6 cm (10.1")
Touchscreen	Yes
Touchscreen type	Capacitive
Touch technology	Multi-touch
Panel type	IPS
LED backlight	Yes

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	Z3735F
Processor cores	4
Processor threads	4
Processor boost frequency	1.83 GHz
Processor frequency	1.33 GHz
Processor cache	2 MB
Processor cache type	L2
Processor socket	BGA 592
Processor lithography	22 nm
Processor operating modes	32-bit, 64-bit
Processor series	Intel Atom Z3700 Series
Processor codename	Bay Trail
FSB Parity	No
Stepping	C0
Scenario Design Power (SDP)	2.2 W
ECC supported by processor	No

Memory

Specification	Value
Internal memory	2 GB
Internal memory type	DDR3L-SDRAM
Memory form factor	On-board
Memory layout (slots x size)	1 x 2 GB
Maximum internal memory	2 GB
Maximum internal memory (64-bit)	2 GB

Storage

Specification	Value
Total storage capacity	32 GB
Storage media	Flash
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
On-board graphics card base frequency	311 MHz
On-board graphics card burst frequency	646 MHz

Audio

Specification	Value
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes
Front camera resolution (numeric)	2 MP

Optical drive

Specification	Value
LightScribe	No

Network

Specification	Value
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	No
Bluetooth	Yes
Bluetooth version	4.0

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Ethernet LAN (RJ-45) ports	0
HDMI ports quantity	0
DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	0
Thunderbolt ports quantity	0
Micro HDMI ports quantity	1
Headphone outputs	0
S/PDIF out port	No
Combo headphone/mic port	Yes
Microphone in	No
Docking connector	Yes
ExpressCard slot	No
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No

Performance

Specification	Value
Accelerometer	Yes
Ambient light sensor	Yes
Gyroscope	Yes
Orientation sensor	Yes

Keyboard

Specification	Value
Pointing device	Touchpad
Numeric keypad	No
Windows keys	Yes

Software

Specification	Value
Operating system installed	Windows 8.1
Operating system architecture	32-bit

Processor special features

Specification	Value
Intel® Wireless Display (Intel® WiDi)	No
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	No
Execute Disable Bit	No
Graphics & IMC lithography	22 nm
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Smart Connect Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Active Management Technology (Intel® AMT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® High Definition Audio (Intel® HD Audio)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Matrix Storage Technology (Intel® MST)	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Rapid Start Technology	No
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Smart Response Technology	No
Intel® Turbo Boost Technology	No
Intel® Virtualization Technology (Intel® VT)	VT-x
Processor ARK ID	80274
Processor code	SR1UB
Processor package size	17 x 17 mm
Thermal Monitoring Technologies	No
Conflict-Free processor	Yes

Battery

Specification	Value
Battery technology	Lithium Polymer (LiPo)
Number of battery cells	2
Battery capacity	5700 mAh

Power

Specification	Value
AC adapter power	18 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	No

Weight & dimensions

Specification	Value
Width	261.6 mm
Depth	177.7 mm
Height	8.9 mm

Packaging content

Specification	Value
AC adapter included	Yes
Manual	Yes
Power cord included	Yes
Quick start guide	Yes
