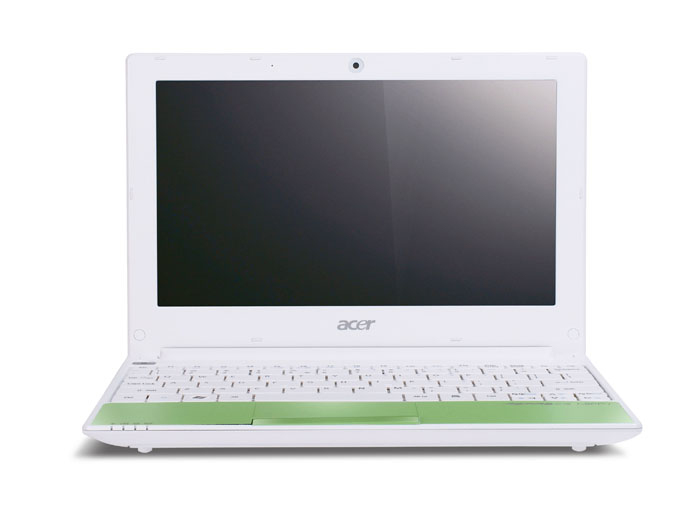

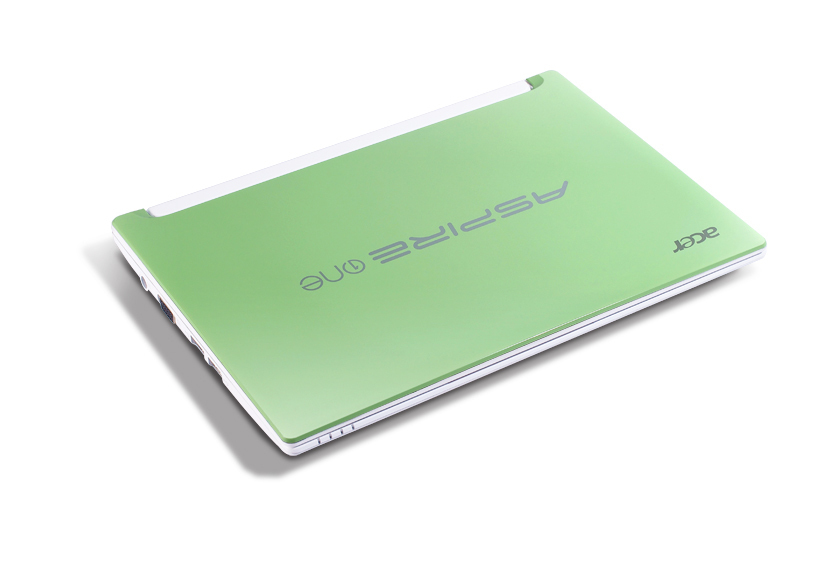

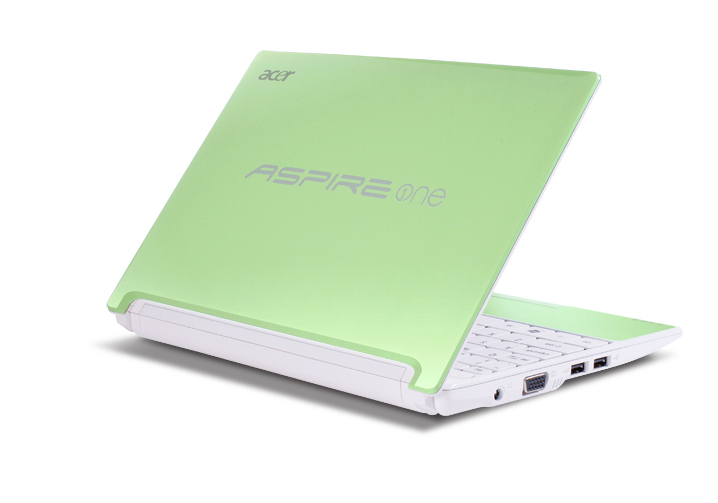

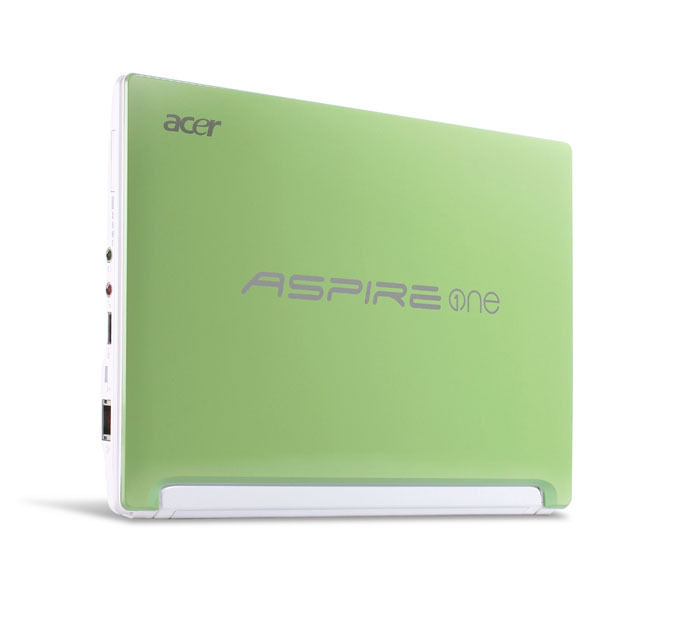

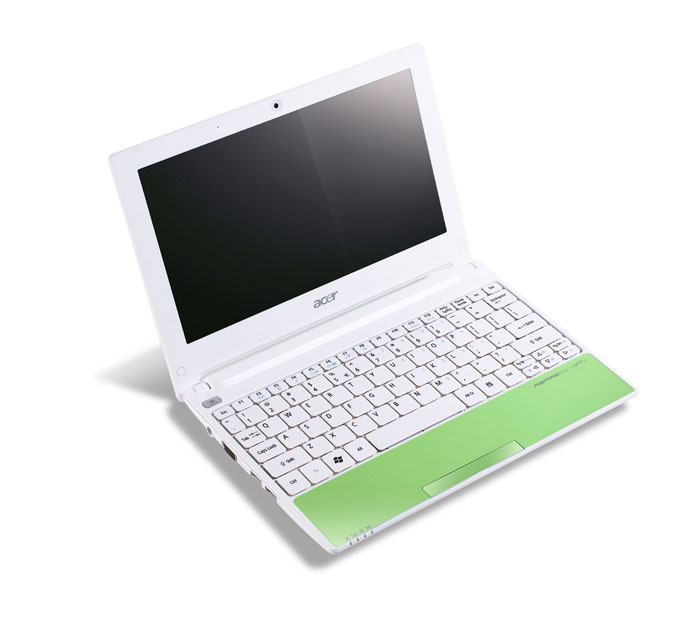

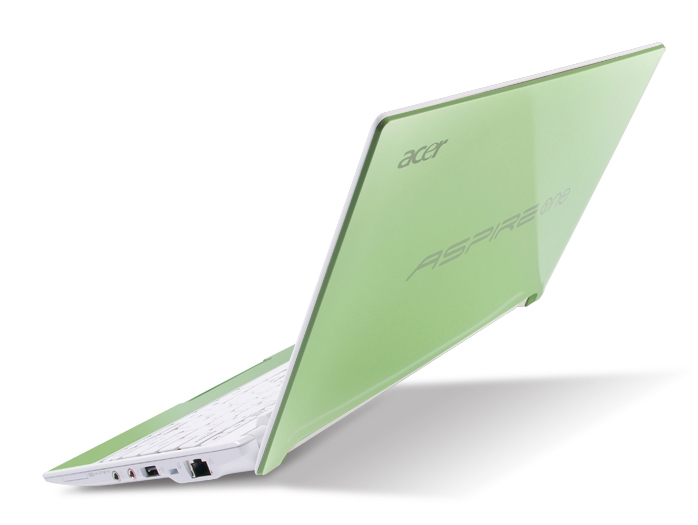

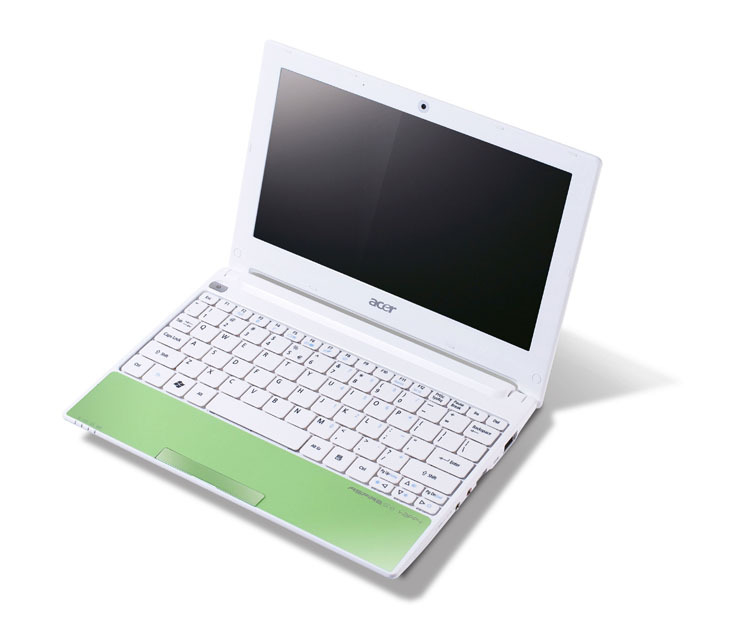

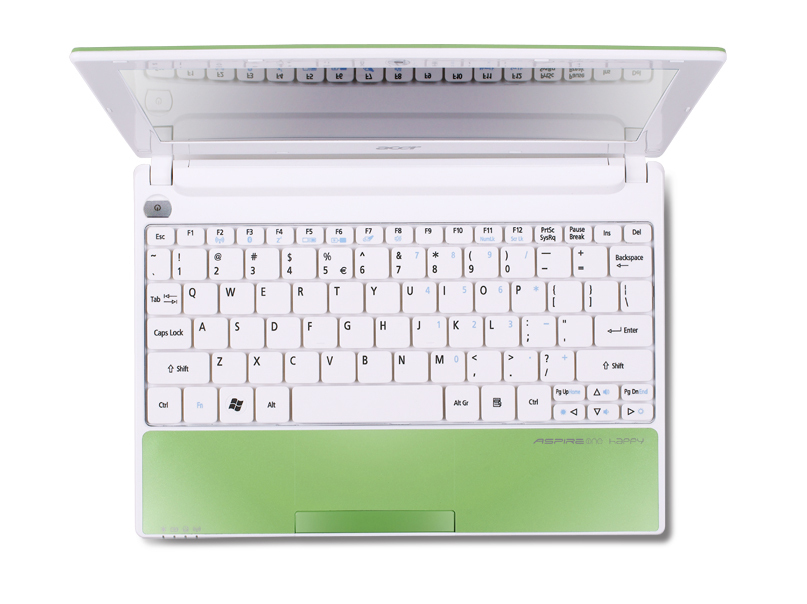

Acer Aspire One Happy LU.SED0D.158 netbook Intel Atom® N570

25.6 cm (10.1") 1 GB DDR3-SDRAM 250 GB HDD Windows 7 Starter Lime, White

Model LU.SED0D.158EAN 4717276696559

121 specifications Checked 3 days ago

Display25.6 cm (10.1")
Resolution1024 x 600 pixels
ProcessorIntel Atom®
Memory1 GB
Storage250 GB
GraphicsNot available

See all specifications

Overview

Display: 25.6 cm (10.1")
Resolution: 1024 x 600 pixels
Processor: Intel Atom®
Memory: 1 GB
Storage: 250 GB
Graphics: Not available

Brand: Acer
Category: Laptop
Model: LU.SED0D.158
Part number: LU.SED0D.158
EAN / UPC: 4717276696559
Also known as: Acer Aspire One Happy LU.SED0D.158 netbook Intel Atom® N570 25.6 cm (10.1") 1 GB DDR3-SDRAM 250 GB HDD Windows 7 Starter Lime, White

Specifications

121 specifications in 22 groups

Design

Specification	Value
Product type	Netbook
Product colour	Lime, White
Form factor	Clamshell

Display

Specification	Value
Display diagonal	25.6 cm (10.1")
Display resolution	1024 x 600 pixels
Touchscreen	No
HD type	Not supported
LED backlight	Yes
Native aspect ratio	5:3

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	N570
Processor cores	2
Processor threads	4
Processor frequency	1.66 GHz
System bus rate	2.5 GT/s
Processor cache	1 MB
Processor cache type	L2
Processor lithography	45 nm
Processor operating modes	64-bit
Processor codename	Pineview
Thermal Design Power (TDP)	8.5 W
Number of Processing Die Transistors	17 M
Processing Die size	87 mm²

Memory

Specification	Value
Internal memory	1 GB
Internal memory type	DDR3-SDRAM
Memory clock speed	1066 MHz
Memory layout (slots x size)	1 x 1 GB
Memory slots	1x SO-DIMM
Maximum internal memory	2 GB

Storage

Specification	Value
Total storage capacity	250 GB
Storage media	HDD
Number of HDDs installed	1
HDD capacity	250 GB
HDD interface	SATA
HDD speed	5400 RPM
Optical drive type	No
Card reader integrated	Yes
Compatible memory cards	MMC, SD

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card	No
Discrete graphics card model	Not available
On-board graphics card family	Intel® GMA
On-board graphics card model	Intel® GMA 3150
On-board graphics card base frequency	200 MHz

Audio

Specification	Value
Built-in microphone	Yes

Camera

Specification	Value
Front camera	Yes

Optical drive

Specification	Value
LightScribe	No

Network

Specification	Value
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet LAN	Yes
Ethernet LAN data rates	10,100 Mbit/s
Bluetooth	Yes
Bluetooth version	3.0+HS

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	0
DisplayPorts quantity	0
DVI port	No
VGA (D-Sub) ports quantity	1
Thunderbolt ports quantity	0
Headphone outputs	1
S/PDIF out port	No
Combo headphone/mic port	No
Microphone in	Yes
Docking connector	No
ExpressCard slot	No
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No

Performance

Specification	Value
Motherboard chipset	Intel® NM10 Express

Keyboard

Specification	Value
Pointing device	Touchpad
Numeric keypad	Yes
Keyboard number of keys	84
Windows keys	Yes

Software

Specification	Value
Operating system installed	Windows 7 Starter
Operating system architecture	32-bit
Trial software	McAfee Internet Security Suite
Bundled software	Microsoft Office Starter 2010, Acer eRecovery Management, Acer ePower Management, Acer Video Conference Manager, Adobe Reader, Adobe Flash Player 10, Norton Online Backup, Windows Live Essentials - Wave 3.2

Processor special features

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Trusted Execution Technology	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Quick Sync Video Technology	No
Intel® Turbo Boost Technology	No
Intel® Virtualization Technology (Intel® VT)	No
Processor ARK ID	55637
Processor package size	22 x 22 mm
Supported instruction sets	SSE2, SSE3, SSSE3
Thermal Monitoring Technologies	Yes
Conflict-Free processor	Yes

Battery

Specification	Value
Battery technology	Lithium-Ion (Li-Ion)
Number of battery cells	6
Battery capacity	4400 mAh
Battery life (max)	8 h

Power

Specification	Value
AC adapter power	40 W
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	No

Certificates

Specification	Value
Wi-Fi certified	Yes

Weight & dimensions

Specification	Value
Weight	1.25 kg
Width	258.5 mm
Depth	185 mm
Height	24 mm

Packaging content

Specification	Value
AC adapter included	Yes
Cables included	AC
Quick start guide	Yes
Warranty card	Yes

Other features

Specification	Value
3D	No
