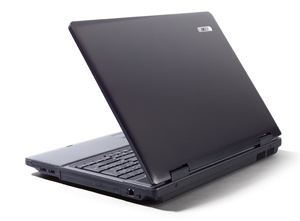

Acer Extensa 7630-654G32Mn

Model Extensa 7630-654G32MnPart no. LX.EAW0X.007EAN 4712842161509

101 specifications Checked 2 days ago

Display43.2 cm (17")
Resolution1440 x 900 pixels
ProcessorIntel® Core™2 Duo
Memory4 GB
Storage320 GB
GraphicsIntel® GMA 4500MHD

See all specifications

Overview

Display: 43.2 cm (17")
Resolution: 1440 x 900 pixels
Processor: Intel® Core™2 Duo
Memory: 4 GB
Storage: 320 GB
Graphics: Intel® GMA 4500MHD

Brand: Acer
Category: Laptop
Model: Extensa 7630-654G32Mn
Part number: LX.EAW0X.007
EAN / UPC: 4712842161509
Also known as: Acer Extensa 7630-654G32Mn Intel® Core™2 Duo T6500 43.2 cm (17") 4 GB DDR2-SDRAM 320 GB Intel® GMA 4500MHD Windows Vista Home Premium

Specifications

101 specifications in 18 groups

Display

Specification	Value
Display diagonal	43.2 cm (17")
Display resolution	1440 x 900 pixels
Native aspect ratio	16:10
Display brightness	220 cd/m²

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™2 Duo
Processor model	T6500
Processor cores	2
Processor threads	2
Processor frequency	2.1 GHz
Processor cache	2 MB
Processor cache type	L2
Processor front side bus	800 MHz
Processor socket	LGA 3647 (Socket P)
Processor lithography	45 nm
Processor operating modes	64-bit
Processor codename	Penryn
Bus type	FSB
Stepping	R0
Thermal Design Power (TDP)	35 W
Tjunction	105 °C
Number of Processing Die Transistors	410 M
Processing Die size	107 mm²
CPU multiplier (bus/core ratio)	10.5

Memory

Specification	Value
Internal memory	4 GB
Internal memory type	DDR2-SDRAM
Memory layout (slots x size)	2 x 2 GB
Memory slots	2x SO-DIMM
Maximum internal memory	4 GB

Storage

Specification	Value
Total storage capacity	320 GB
HDD interface	SATA
HDD speed	5400 RPM
Optical drive type	DVD Super Multi DL
Card reader integrated	Yes
Compatible memory cards	MMC, MS PRO, SD, xD

Graphics

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	Intel® GMA 4500MHD
Discrete graphics card memory	0.0625 GB
Maximum graphics card memory	1.759 GB

Audio

Specification	Value
Audio system	High Definition Audio
Number of built-in speakers	2
Audio system direct 3D sound	Yes

Camera

Specification	Value
Front camera resolution (numeric)	0.3 MP

Network

Specification	Value
Networking features	Gigabit Ethernet, WLAN
Wireless technology	802.11 a/b/g/n
Bluetooth	No

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	4
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Headphone outputs	1
S/PDIF out port	No
Line-in	Yes
Microphone in	Yes
Docking connector	Yes
ExpressCard slot	Yes
CardBus PCMCIA slots quantity	1
CardBus PCMCIA slot type	Type II
SmartCard slot	No
Modem (RJ-11) ports	1
TV-in port	No
TV-out	No
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0

Software

Specification	Value
Operating system installed	Windows Vista Home Premium
Trial software	-McAfee Internet Security Suite.
Bundled software	-Acer Empowering Technology (Acer ePower, eDataSecurity, eRecovery, eSettings), -Acer GridVista, -Acer Launch Manager, -Adobe Reader, -Corel WinDVD, -Microsoft Office Ready 2007, -NTI Media-Maker, -NTI Shadow.

Processor special features

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Intel 64	Yes
Intel Virtualization Technology (VT-x)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Turbo Boost Technology	No
Processor ARK ID	39311
Processor code	SLGF4

Battery

Specification	Value
Number of battery cells	6
Battery capacity	48.8 Wh
Battery life (max)	2.5 h

Power

Specification	Value
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Password protection type	BIOS
HDD user password	Yes

Certificates

Specification	Value
Certification	-Wi-Fi, -ACPI 3.0, -Mobile PC 2002, -DMI 2.0, -TCG 1.2.

Weight & dimensions

Specification	Value
Weight	3.4 kg
Width	396 mm
Depth	286 mm
Height (front)	3.52 cm
Height (rear)	4.4 cm

Packaging content

Specification	Value
AC adapter included	Yes

Other features

Specification	Value
Infrared data port	No
Wake-on-LAN ready	Yes
Wake-on-Ring ready	Yes
Internal modem	Yes
Modem speed	56 Kbit/s
Modem type	ITU V.92
Supplied AC adapter type	AC
