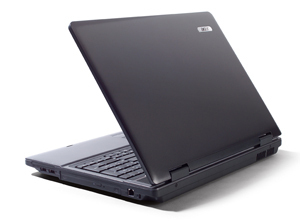

Acer Extensa 7630-5B3G25

Model Extensa 7630-5B3G25Part no. LX.EAW0Z.058EAN 4712842840985

98 specifications Checked 3 days ago

Display43.2 cm (17")
Resolution1440 x 900 pixels
ProcessorIntel® Core™2 Duo
Memory3 GB
Storage250 GB
GraphicsIntel® GMA 4500MHD

See all specifications

Overview

Display: 43.2 cm (17")
Resolution: 1440 x 900 pixels
Processor: Intel® Core™2 Duo
Memory: 3 GB
Storage: 250 GB
Graphics: Intel® GMA 4500MHD

Brand: Acer
Category: Laptop
Model: Extensa 7630-5B3G25
Part number: LX.EAW0Z.058
EAN / UPC: 4712842840985
Also known as: Acer Extensa 7630-5B3G25 Intel® Core™2 Duo T5670 43.2 cm (17") 3 GB DDR2-SDRAM 250 GB Intel® GMA 4500MHD Windows Vista Business QWERTY

Specifications

98 specifications in 18 groups

Display

Specification	Value
Display diagonal	43.2 cm (17")
Display resolution	1440 x 900 pixels
Native aspect ratio	16:10

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™2 Duo
Processor model	T5670
Processor cores	2
Processor threads	2
Processor frequency	1.8 GHz
Processor cache	2 MB
Processor cache type	L2
Processor front side bus	800 MHz
Processor socket	LGA 3647 (Socket P)
Processor lithography	65 nm
Processor operating modes	64-bit
Processor codename	Merom
Bus type	FSB
Stepping	M0
Thermal Design Power (TDP)	35 W
Tjunction	100 °C
Number of Processing Die Transistors	291 M
Processing Die size	143 mm²
CPU multiplier (bus/core ratio)	9

Memory

Specification	Value
Internal memory	3 GB
Internal memory type	DDR2-SDRAM
Memory layout (slots x size)	1 x 1 + 1 x 2 GB
Memory slots	2x SO-DIMM
Maximum internal memory	4 GB

Storage

Specification	Value
Total storage capacity	250 GB
HDD interface	SATA
HDD speed	5400 RPM
Card reader integrated	Yes

Graphics

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	Intel® GMA 4500MHD

Audio

Specification	Value
Audio system	High Definition Audio
Audio system direct 3D sound	Yes

Network

Specification	Value
Networking features	Gigabit Ethernet, WLAN
Wireless technology	802.11 a/b/g/n
Bluetooth	Yes
Bluetooth version	2.0+EDR

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	4
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Headphone outputs	1
S/PDIF out port	No
Microphone in	Yes
Docking connector	Yes
ExpressCard slot	Yes
CardBus PCMCIA slots quantity	1
CardBus PCMCIA slot type	Type II
SmartCard slot	No
Modem (RJ-11) ports	1
TV-in port	No
TV-out	No
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0

Performance

Specification	Value
Motherboard chipset	Intel® GM45 Express

Keyboard

Specification	Value
Pointing device	Touchpad
Keyboard layout	QWERTY

Software

Specification	Value
Operating system installed	Windows Vista Business
Trial software	McAfee Internet Security Suite
Bundled software	Acer ePower, eDataSecurity, eRecovery, eSettings, Acer GridVista, Acer Launch Manager, Acer Video Conference Manager, Adobe Reader, Corel WinDVD, Microsoft Office Ready 2007, NTI Media-Maker, NTI Shadow

Processor special features

Specification	Value
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	No
Idle States	Yes
Intel 64	Yes
Intel Demand Based Switching	No
Intel Trusted Execution Technology	No
Intel Virtualization Technology (VT-x)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Turbo Boost Technology	No
Processor ARK ID	35163
Processor code	SLAJ5
Processor package size	35 x 35 mm

Battery

Specification	Value
Number of battery cells	6
Battery life (max)	2.5 h

Power

Specification	Value
AC adapter power	65 W
AC adapter input voltage	100 - 240 V
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Password protection type	BIOS
HDD user password	Yes

Weight & dimensions

Specification	Value
Weight	3.4 kg
Width	396 mm
Depth	286 mm
Height (front)	3.52 cm
Height (rear)	4.4 cm

Packaging content

Specification	Value
AC adapter included	Yes

Other features

Specification	Value
Infrared data port	No
Internal modem	Yes
Modem speed	56 Kbit/s
Modem type	ITU V.92
Supplied AC adapter type	AC
