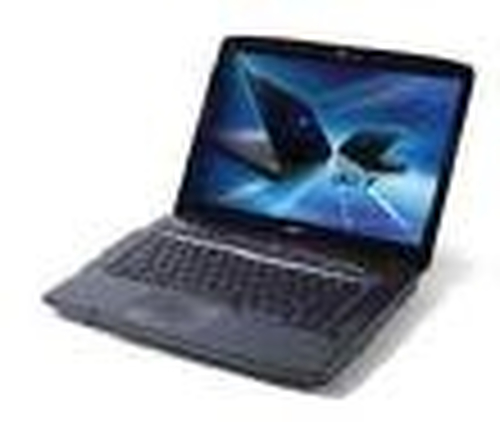

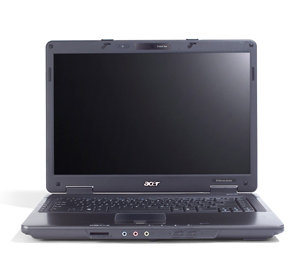

Acer Extensa 5630

Model Extensa 5630Part no. LX.EBW0X.017

92 specifications Checked 2 days ago

Display39.1 cm (15.4")
Resolution1280 x 800 pixels
ProcessorIntel® Pentium®
Memory3 GB
Storage250 GB
GraphicsIntel® GMA 4500MHD

See all specifications

Overview

Display: 39.1 cm (15.4")
Resolution: 1280 x 800 pixels
Processor: Intel® Pentium®
Memory: 3 GB
Storage: 250 GB
Graphics: Intel® GMA 4500MHD

Brand: Acer
Category: Laptop
Model: Extensa 5630
Part number: LX.EBW0X.017
Also known as: Acer Extensa 5630 Intel® Pentium® T3200 39.1 cm (15.4") 3 GB DDR2-SDRAM 250 GB Intel® GMA 4500MHD Windows Vista Home Premium

Specifications

92 specifications in 18 groups

Display

Specification	Value
Display diagonal	39.1 cm (15.4")
Display resolution	1280 x 800 pixels
Native aspect ratio	16:10
Display surface	Matt

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Pentium®
Processor model	T3200
Processor cores	2
Processor threads	2
Processor frequency	2 GHz
Processor cache	1 MB
Processor cache type	L2
Processor front side bus	667 MHz
Processor socket	LGA 3647 (Socket P)
Processor lithography	65 nm
Processor operating modes	64-bit
Processor codename	Merom
Bus type	FSB
FSB Parity	No
Stepping	M0
Thermal Design Power (TDP)	35 W
Tjunction	100 °C
Number of Processing Die Transistors	291 M
Processing Die size	143 mm²
CPU multiplier (bus/core ratio)	12

Memory

Specification	Value
Internal memory	3 GB
Internal memory type	DDR2-SDRAM
Memory clock speed	667 MHz

Storage

Specification	Value
Total storage capacity	250 GB
Optical drive type	DVD±RW
Card reader integrated	Yes

Graphics

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	Intel® GMA 4500MHD

Audio

Specification	Value
Number of built-in speakers	2

Optical drive

Specification	Value
CD write speed	24x

Network

Specification	Value
Bluetooth	No

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	3
eSATA ports quantity	1
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	0
DVI port	No
VGA (D-Sub) ports quantity	1
Firewire (IEEE 1394) ports	0
Headphone outputs	1
S/PDIF out port	No
Line-in	Yes
Microphone in	Yes
Docking connector	No
ExpressCard slot	Yes
CardBus PCMCIA slots quantity	0
CardBus PCMCIA slot type	No
SmartCard slot	No
Modem (RJ-11) ports	1
TV-in port	No
TV-out	No
PS/2 ports quantity	0
Parallel ports quantity	0
Serial ports quantity	0

Performance

Specification	Value
Motherboard chipset	Intel® GL40 Express

Software

Specification	Value
Operating system installed	Windows Vista Home Premium
Trial software	McAfee Internet Security Suite
Bundled software	Acer Empowering Technology Acer GridVista Acer Launch Manager Adobe Acrobat Reader Corel WinDVD NTI Media Maker

Processor special features

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Intel 64	Yes
Intel Demand Based Switching	No
Intel Trusted Execution Technology	No
Intel Virtualization Technology (VT-x)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Turbo Boost Technology	No
Processor ARK ID	37160
Processor code	SLAVG

Battery

Specification	Value
Number of battery cells	6
Battery life (max)	2.5 h

Power

Specification	Value
DC-in jack	Yes

Security

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington
Password protection type	BIOS

Weight & dimensions

Specification	Value
Weight	2.9 kg
Width	267 mm
Depth	30.3 mm
Height	360 mm
Dimensions (WxDxH)	267 x 30.3 x 360 mm

Packaging content

Specification	Value
AC adapter included	Yes

Other features

Specification	Value
Infrared data port	No
Compliance industry standards	ACPI, DMI, Mobile PC2002, Wi-Fi CERTIFIED
Wake-on-LAN ready	Yes
Internal modem	Yes
Modem speed	56 Kbit/s
Modem type	V.92
Supplied AC adapter type	AC
